Ceiling System T Bar Hanging Ceiling Grid Tee/ T24 Ceiling

Product Overview

Description

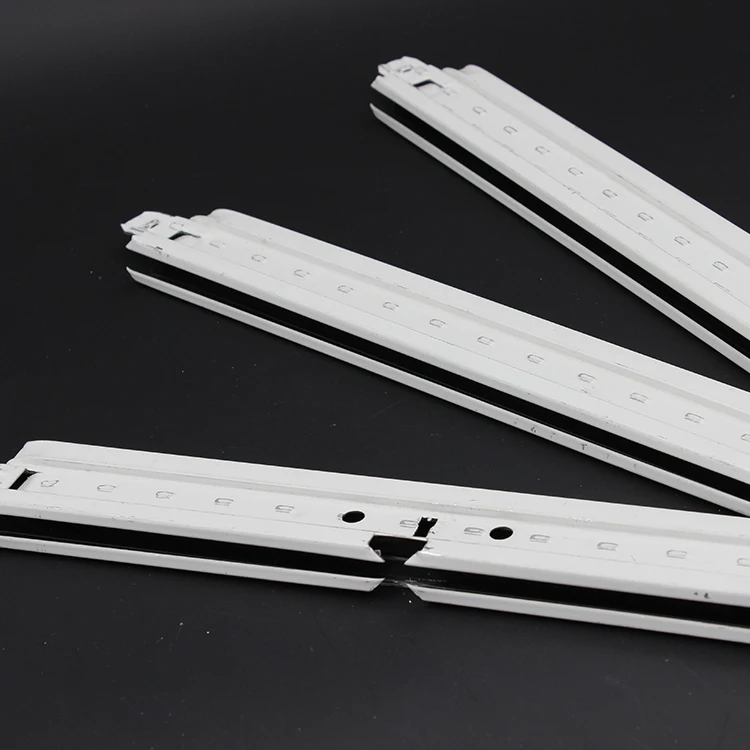

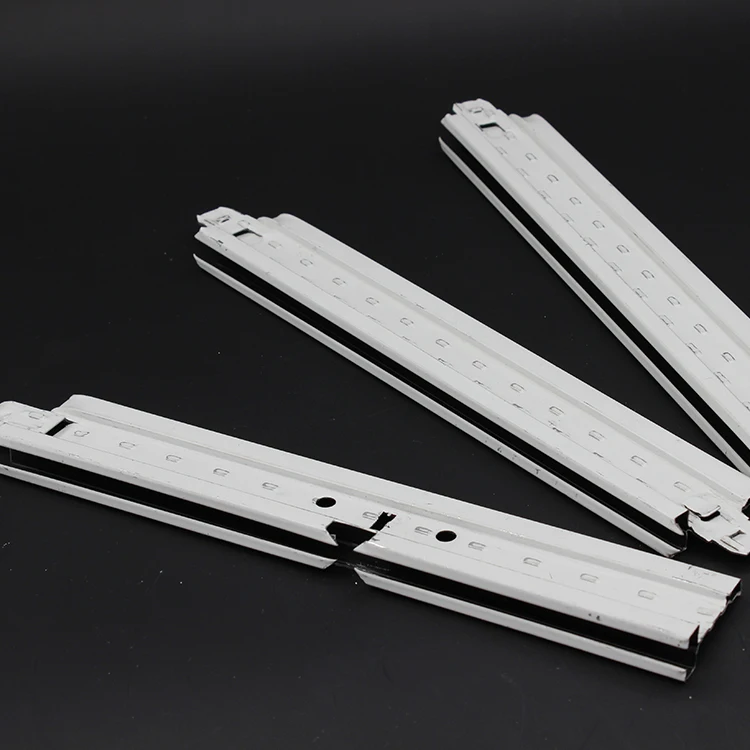

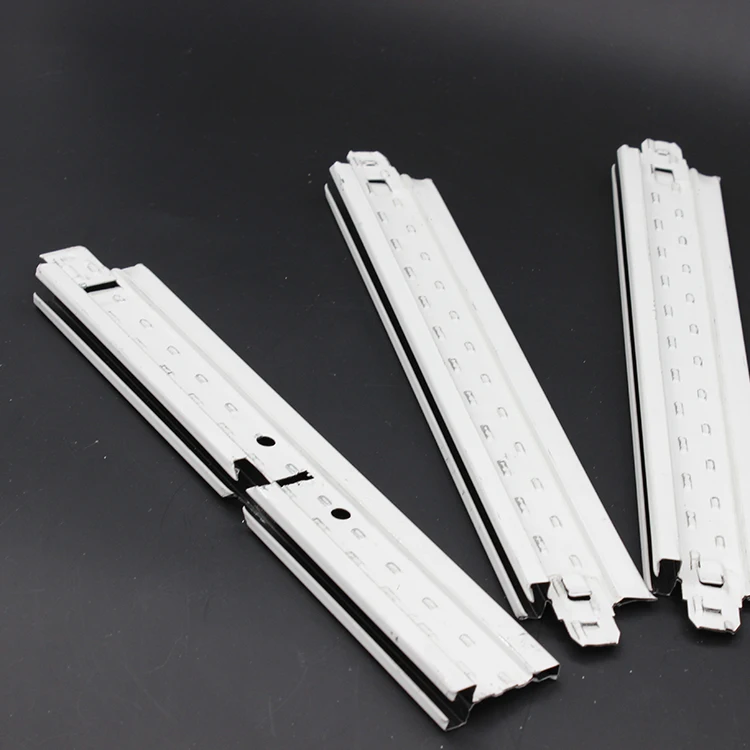

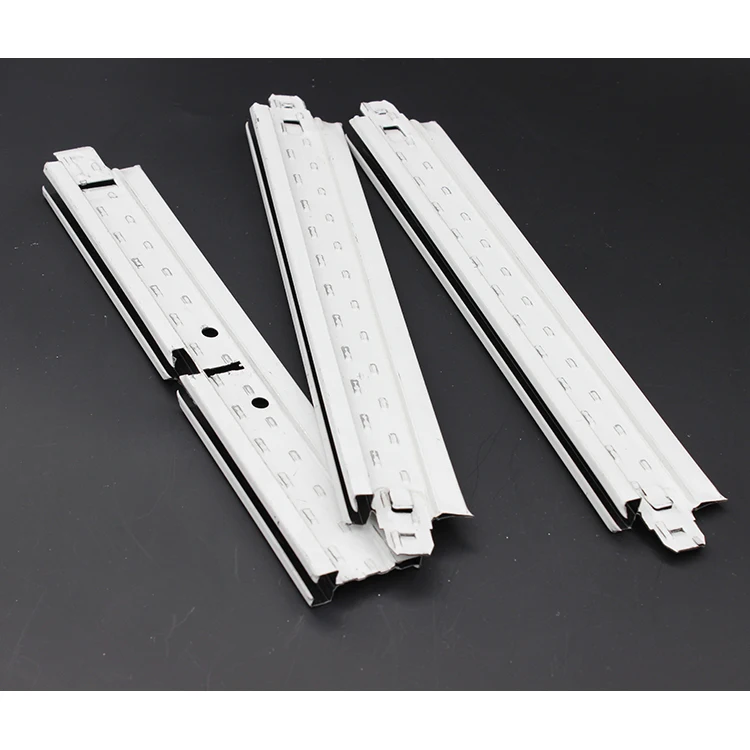

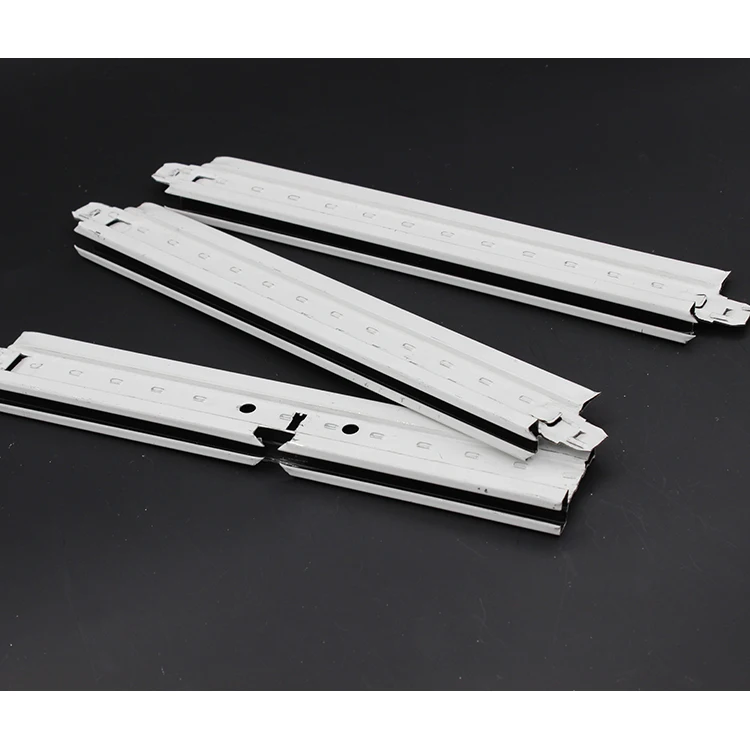

Ceiling System T Bar





 DESCRIPTION

T-grid is made from hot dipped galvanized steel, pressed to T shape after cooling, baked paint on surface finish.

 ADVANTAGE

1. High grade galvanized steel as main material, non-deforming, fadeless, moisture proof and anti-corrosive.

2. Strong close fitting, high symmetry.

3. High load capacity.

4. Easy and fast installation, save installing time and labor cost.

5. Large production line and strict product inspection, larger quantity and better quality are available.

 SPECIFICATION



1. PLANE T GRID





2. NOTCH T GRID







3. SOLID NOTCH T GRID







4. WALL ANGLE





 NOTES

1. Available thickness: 0.23mm/0.26mm/0.3mm/0.35mm/0.4mm/0.5mm

2. Wall angle: 20*15mm/20*20mm/22*22mm/24*24mm

3. Other specification is available.



 TECHNICAL DATA



Inspection item	Unit	National Standard	Test Result
Appearance	——	no damage	no
Hole Distance Difference	mm	±0.3	±0.1
Difference of baking paint thickness	µm	≥20	24
Width  Difference	mm	±0.5	0.1-0.3
Length Difference	mm	±1.0	0.3-0.6
Underside straight Limitation	mm/1000mm	≤1.3	0.6
Galvanized thickness	µm	≥14	17
Load bending Limitation	mm	≤2.8	2.1



 Ceiling T-grid























































Please click the link for more details about Pvc gypsum ceiling tiles :

//preview.alibaba.com/product/60292031752-219465486/New_Designs_And_Nice_Looking_PVC_Laminated_Gypsum_Ceiling_Tiles.html



 PRODUCTION LINE









PACKING & LOADING









 RECENT OVERSEAS EXHIBITION





Please contact us for 2015 big promotion, and you are the most welcome to visit our factory !!!
