Spice Powder Grinding Grinder Machine

Product Overview

Description

Spice Powder Grinder Grinding Machine



specifications

 Electric Spice Grinder
1.full 304 stainless steel
2.materials can be crushed quickly and uniformly
3.cleaning is easy



 The spice grinder uses relative movement of the active hammer,grind the target material.the size of powder granules can be achieved by changing of screen.the machine has the features of easy structure ,solid,stable running and good efficiency.  It can crush any feed. It is made out of stainless steel. "GPM" standard.





Main application:



This grinder machine can be mainly used for grinding various grains, dry spices and herbs, herbal medicines containing roots and branches, chemical materials, and some other hard and brittle materials.
Such as: grains,roasted coffee bean,spices,herbs,salt,sugar,pepper,walnut shells,seed,etc.After grinding, fine powder can be made.















The machine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc.

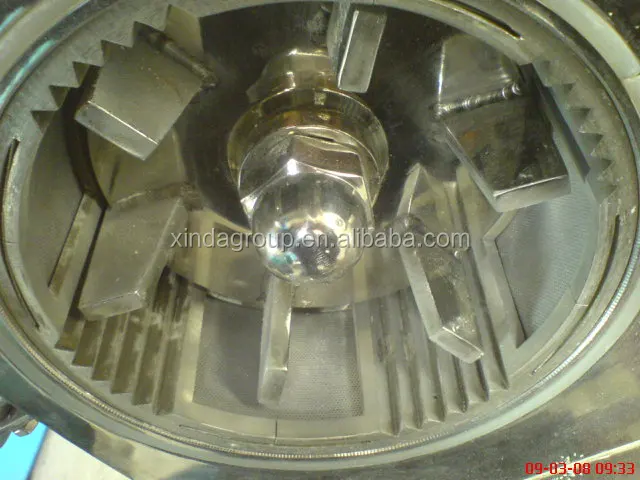

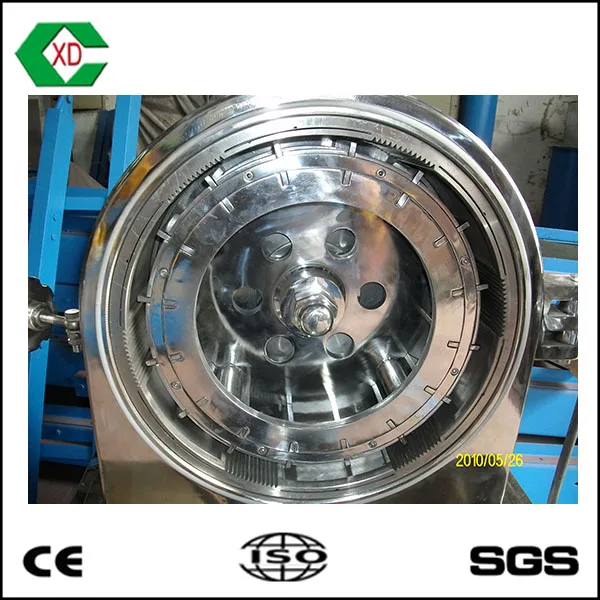

The crushing chamber is equipped with the wind wheel type high-speed rotary cutters so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.





The machine uses the wind wheel type high-speed rotary cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen. The dust will be collected and recycled via cloth bag or filter of the dust box.





MODEL	MODEL 150	MODEL 250	MODEL 350	MODEL 500
Capacity (kg/h)	20-80	30-200	50-300	80-500
Size of input granules (mm)	< 10	< 10	< 12	< 15
Size of output granules	12-120	12-120	12-120	12-120
crushing power (kw)	2.2	5.5	7.5	11
Dust absorption power (kw)	1.5	1.5	1.5	1.5
Speed of principal axis (r/min)	3000	2900	2900	2800
Weight (kg)	250	350	420	580
Overall size (L×W×H) (mm)	1280×600 ×1450	1280×600 ×1550	1300×600 ×1650	1450×600 ×1780
