FGF 5 Semi Automatic Soft Tube Filling and Sealing Machine
- Category: Pharmaceutical Machinery >>>
- Supplier: Wuxi YK Automation Technology Co. Ltd.
Share on (60397086491):
Product Overview
Description
Product Description

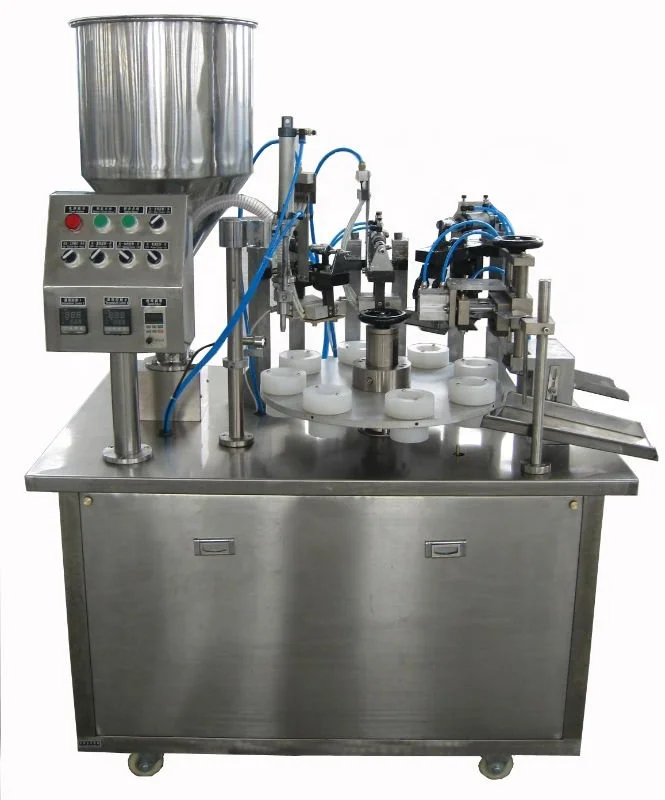

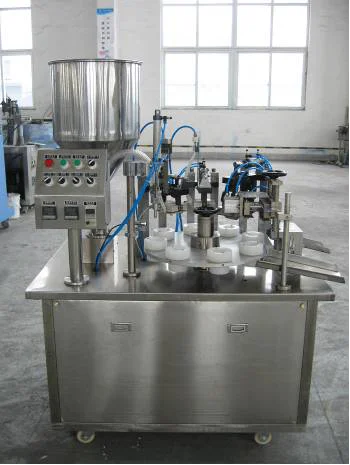

Semi-Automatic Soft Tube Filling and Sealing Machine
This machine is made of stainless steel.The process is button-controlled.After manual-tube-feeding,8 tube-position rotates continuously for quantity filling,auto-cut-off,heating sealing and tube ejecting. The whole process are pneumatic-controlled but use electric to heat seal. It is easy to adjust filling quantity and speed. The machine is suitable for various size of aluminum-plastic laminated tube for filling, sealing, and date print. It is featured with perfect sealing, precision quantity and reliable performance. Optional: Pot Heating System,Against-Trail-Out Filling Head
Specification
1. Voltage:AC220V±10% 50Hz
2. Power:400w*2 (heating sealing).
3. Compressed Air: pressure0.6~0.7Mpa
4. Air Consumption:<30 dm3/min
5. Filling Quantity :50ml,100ml,200ml
6. Filling Speed:30~40tubes/min
7. Quantity Error:<2%
8. Dimension:1230mm*700mm*1400mm
9. Weight:600kg
| Material | SUS316L |
| Control type | Button control |
| Intubation type | Manual intubation with cooling machine |
| Tube type | Plastic tube, hopper 30l |
| Filling volume | 120g |
| Diameter | 40mm with 175mm in height |
Related Products
You May Also Like
 |  |  |  |
 |  |  |
|
company information
Why do you choose us?
- Select spare parts with high quality and well-known brands only.
- We are approved by ISO, CE, GS and etc.
- One year warranty; perfect after-sales service for spare parts.
- Best prices with good quality and reliable performance
- Easy maintenance
- Our logo ODM or OEM
......................................................................................................................................................................................................
 | About YK > |
| R&D > | |
| Our Customers > | |
| Our Factory > | |
| Our Service > | |
| Our Suppliers > | |
| Honor & Certificates > | |
| Company TIMELINE > |
FAQ
FAQ
1. Why your machine similar with other supplier?
We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.
2. I'm new in our industry, but I'm planning to setup a factory, What can I do?
We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.
3.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1) Cream, paste Products,
- In cosmetic industry: face cream, body cream, washing cream,vaseline etc
- In food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
- In chemical industry:welding paste,ink, paint,pigment etc.
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(2) Liquid products
shampoo, lotion, liquid soap, detergent,juice,solution etc.
Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(3) Make-up products:
Lipstick, lip gloss, nail polish, marscara etc
Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc
(4) Adhesive products:
Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.
Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine etc
......................................................................................................................................................................................................
Packing & Shipping
Packaging:
packing by wooden case usually, we also do other packaging as per customer's requirement.
Shipping:
- European Countries: 22-28 days
- United States: East --13-16 days, West--21-28 days
- Brazil: 30-40 days
- Russia: 36 days
- Asia Countries: 3-5daysSe
- mi-Automatic Soft Tube Filling and Sealing Machine
