2V Series Two Position Two Way Solenoid Valve
- Category: Solenoid Valves >>>
- Supplier: Ningbo Airtop Pneumatic Hydraulic Co. Ltd.
Share on (60397427562):
Product Overview
Description
Banner
Product Description
- As a professional solenoid valve manufacturer,AirTOP Pneumatic & hydraulic has a wide range of solenoid valves widely used in many sections of the industrial control systems.
- AirTOP solenoid valve have zero differential valves,plastic solenoid valves,high pressure solenoid valves,etc.

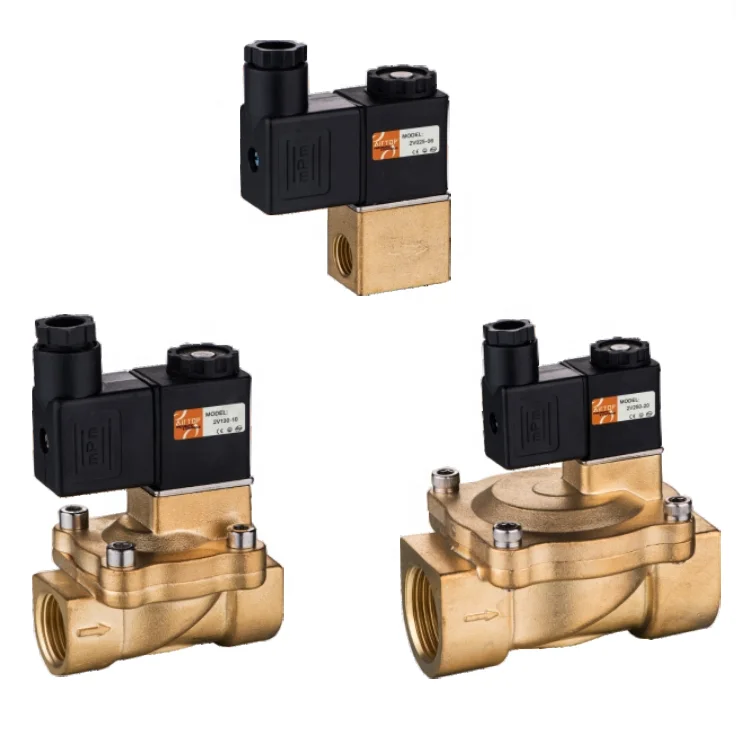

2V Series Two-Position Two-Way Solenoid Valve
Specification
Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
Working Medium | Air, Water, Oil | |||||
Acting | Direct Drive Type | Guide Type | ||||
Working Type | Normal Close Type | |||||
Aperture Of Flow Rate (mm) | 2.5 | 13 | 25 | |||
CV Value | 0.23 | 6.2 | 23 | |||
Joint Pipe Bore | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
Operation Fluid Viscosity | 20CST Below | |||||
Working-Pressure | 0~1.0Mpa | 0.05~0.7Mpa | ||||
Max. Pressure Resistance | 1.5Mpa | 1.05Mpa | ||||
Operating Temperature Range | -10~ +80℃ | |||||
Voltage Range | ±10% | |||||
Protect Class | IP65 | |||||
Power Consumption | AC:7VA/60Hz,9VA/50Hz/DC:6W | |||||
Insulation | F Class | |||||
Material Of Body | Aluminum Or Brass | Brass | ||||
Material Of Oil Seal | NBR Or VITON | NBR | ||||
Shortest Excitation Time | 0.05 Second | |||||
Ordering Code
Dimension
Product Photos
More products
Company Information
Packaging & Shipping
Trade Terms:
- Payment: T/T, L/C,Western Union: 30% deposits, 70% balance before delivery
- Delivery time: Standard samples: 5-7 days, customized samples: 10-15 days,bulk prodution depends on the quantity
Why Choose us?
Best Quality & Best Service with Competitive price.
- Alibaba Assessed 7 years Gold Supplier.
- We have ISO9001:2000 Quality System and CE Certifications ensure every component to be precise, accurate and durable.
- We have imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines.
- AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market. AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.
