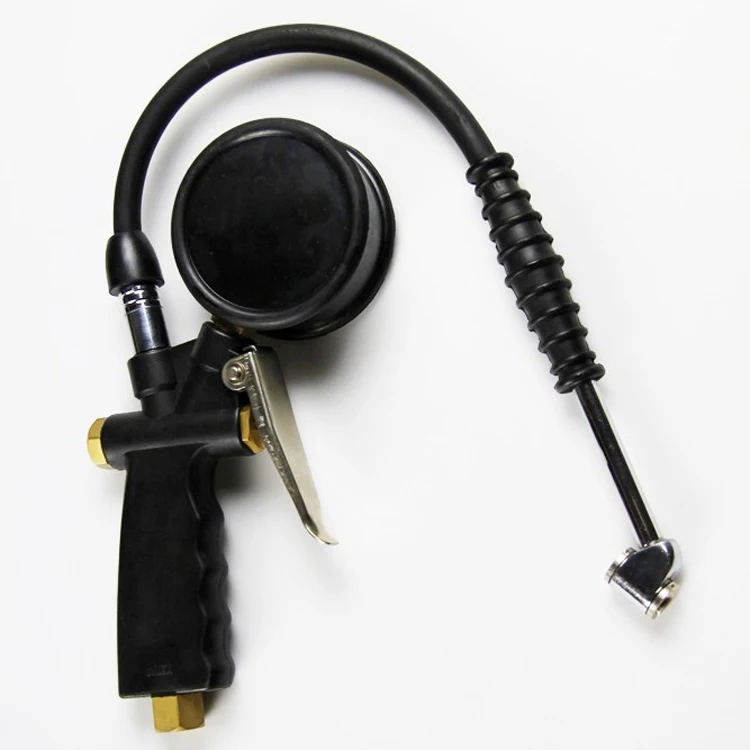

Air chuck dial tire gauge with inflating gun for any vehicle

1. Dial: 2.5''
2. ABS case and snap on acrylic window, gear type rubber boot, brass internal and connection,

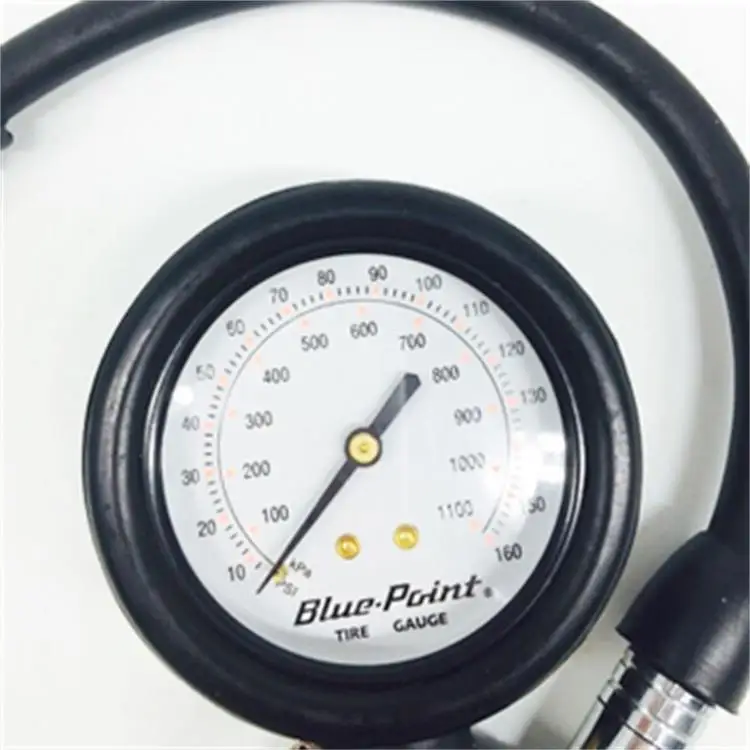

3. Large, easy-to-read 270^o dial face ensures a precise pressure reading

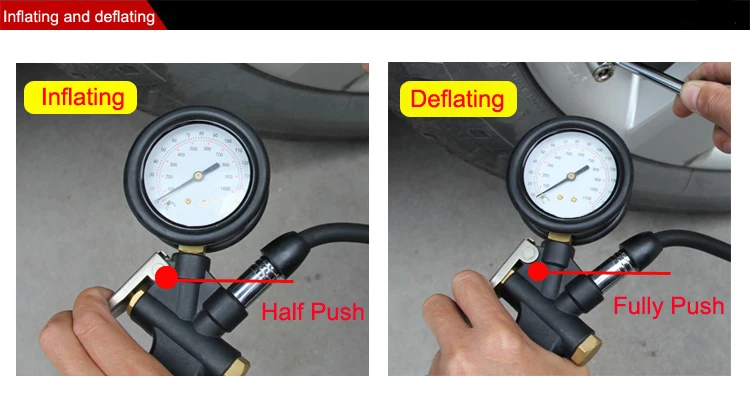

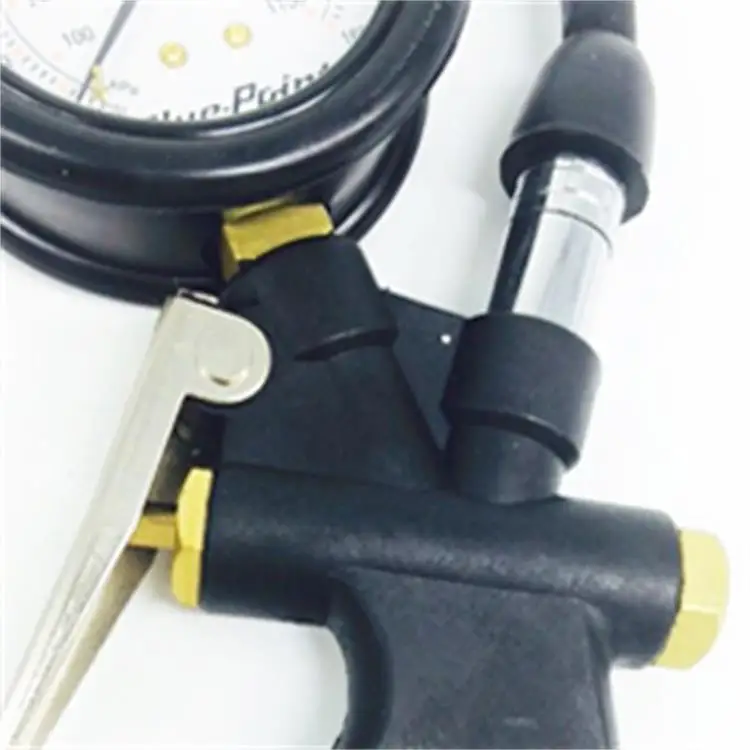

4. Grip handle valve inflates air to desired pressure, Flexible
5. 360^o  swivel hose, bleeding valve for deflation
6. Range: 0-60 psi, 0-100 psi, 0-160 psi, available for bar, kg/cm², kpa etc
7. Accuracy: 1.6%

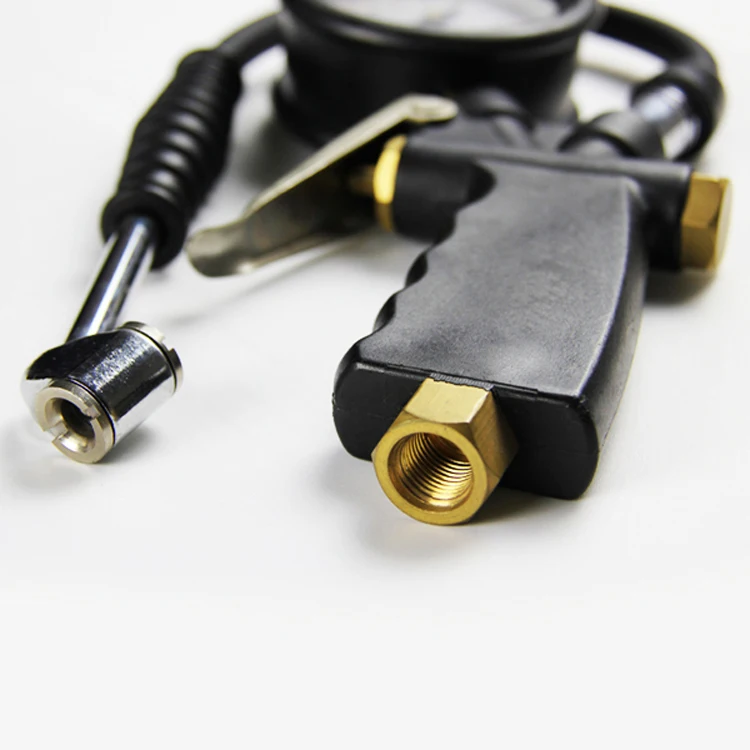

8. 1/4'' F-NPT inlet connection
9. End:  Long rubber hose with clip on chuck  (25TIG2C)


We supply 4 end chuck designs for all tire inflator gauges for option

• Type A: Heavy duty zinc alloy dual foot chuck with hook
• Type B: Heavy duty zinc alloy dual foot chuck
• Type C: Long rubber hose with clip on chuck
• Type D: Heavy duty extended length zinc alloy dual foot chuck

use

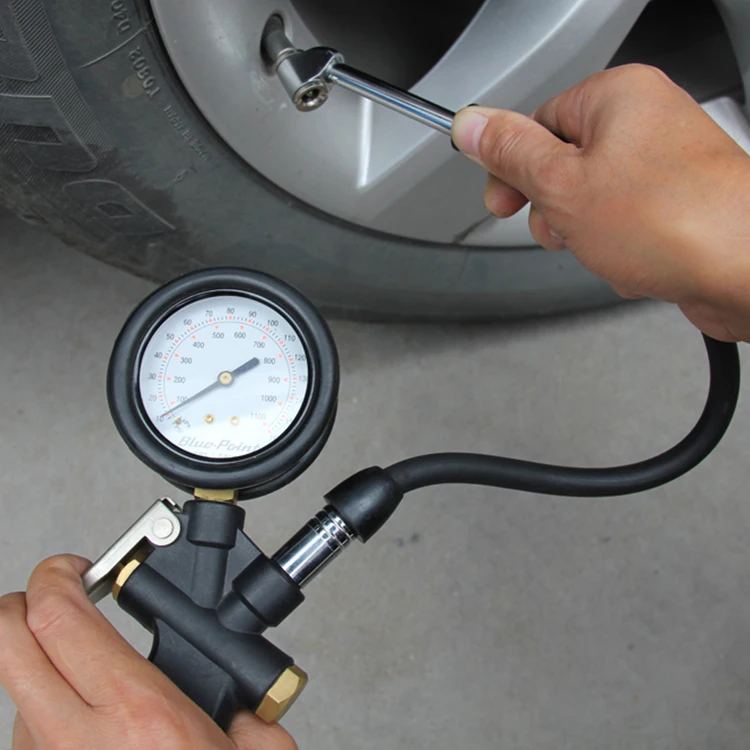

1. Determine the proper pressure for your tires by checking the owner’ manual or driver’s side door jamb placard.
2. Check tire pressure before driving when tires are cold.
3. Press chuck onto the tire stem.
4. The air pressure of your tire will be displayed.

Notes:

1. For accuracy, check pressure when tires are cold. Pressure increases with heat. Tires can lose one pound per month under normal conditions. Proper tire pressure improves gas mileage, handling, braking and durability.
2. To avoid the possibility of eye injury, eye protection must be worn when using this gauge.
3. Do not exceed maximum pressure on gauge.
4. Dropping or severe jarring may impair accuracy of gauge.
