Screw Type EMI Filter M4 thread

Product Overview

Description

Screw Type EMI Filter M4 thread

Feature:

1). RoHS,REACH,CE approved!
2). Available in RF Components widely!
3).Custom design is available!

4).Certification: ISO9001:2008,ISO14001:2004, ISO18001:2007

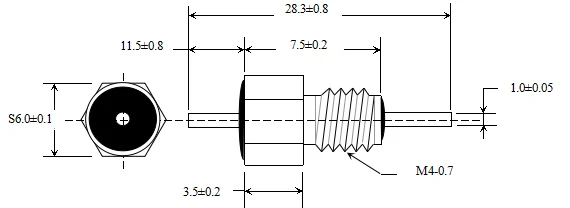

Drawing:

L6040-75 series List as follows

Part No.	Capacitance	Tolerance	Rated Voltage	D.W.V.	Typical No Load Insertion Loss(dB)
					1MHz	10MHz	100MHz	1GHz
L6040-054A	10pF	+80%-20%	200V	1000VDC	—	—	—	5
L6040-031	100pF	+20%-20%	100V	300VDC	—	—	3	20
L6040-056	220pF	+80%-20%	100V	300VDC	—	—	4	22
L6040-055	250pF	+80%-20%	200V	1500VDC	—	—	5	22
L6040-007	330pF	+20%-20%	100V	300VDC	—	—	8	24
L6040-002	470pF	+80%-20%	200V	600VDC	—	—	12	26
L6040-002A	560pF	+80%-20%	100V	300VDC	—	—	14	27
L6040-001	1000pF	+80%-20%	100V	300VDC	—	3	20	35
L6040-009	2200pF	+80%-20%	100V	300VDC	—	8	25	35
L6040-011	3300pF	+80%-20%	100V	300VDC	—	12	30	40
L6040-012	4700pF	+20%-20%	100V	300VDC	—	15	30	45
L6040-008	0.01uF	+20%-20%	100V	300VDC	4	21	35	50
L6040-010	0.1uF	+20%-20%	100V	300VDC	22	40	47	70
