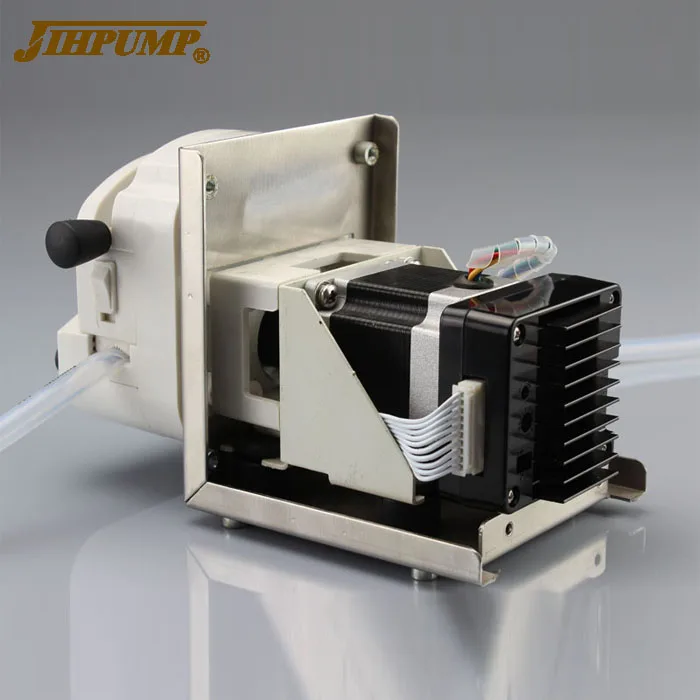

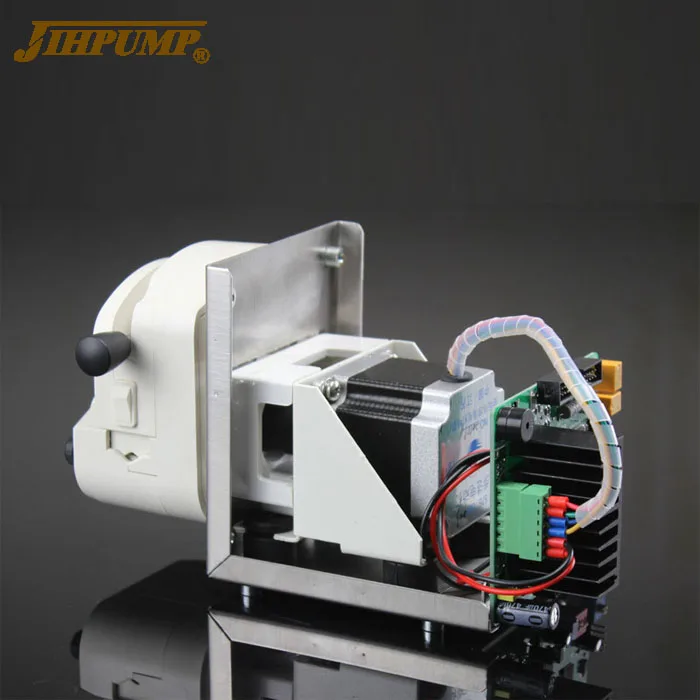

Medical Instrument OEM peristaltic pump with Tubing easy install support type 253Yx
- Category: Pumps >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (60410845000):
Product Overview
Description
Product description
1. Stepper motor drives OEM pump
2. Self-collocated governing speed panel,12-24V power supply
3. Panel or bottom installation optional
4. Medical Devices:filling and cooling pump,flushing and draining etc.
5. Environmental protection equipment: gas and liquid sampling
| Specification | |
| Item | 153Yx/JBT,253Yx/JBT |
| Picture |
|
| Speed | 0.1~600rpm |
| Tube | Fitted with wall 1.6mm and 2.4mm hose,ID 1.6~7.9mm |
| Tube type | 14#(1.6×1.6),16#(3.2×1.6),25#(4.8×1.6),17#(6.4×1.6),18#(7.9×1.6) 15#(4.8×2.4),24#(6.4×2.4),35#(7.9*2.4),36#(9.7*2.4) |
| Flow rate | 0-3000ml/min |
| Power | 50W |
| Motor | 57 stepper motor |
| Voltage | 24V |
| Weight | 2Kg |
| Usage | Suitable equipment OEM package,can be installed in the device or insturment panel.Otherwise high-strength corrosion resistant black head in optional |
Flow rate (ml/min,Medium:water)
| Pump head | 153Yx | 253Yx | |||||||
| Tube | 14# | 16# | 25# | 17# | 18# | 15# | 24# | 35# | 36# |
| ID×wall | 1.6×1.6 | 3.2×1.6 | 4.8×1.6 | 6.4×1.6 | 7.9×1.6 | 4.8×2.4 | 6.4×2.4 | 7.9×2.4 | 9.7×2.4 |
| 0.1~50rpm | 0.03~10 | 0.08~39 | 0.17~85 | 0.3~149 | 0.4~195 | 0.2~75 | 0.3~130 | 0.4~195 | 0.5~250 |
| 0.1~100rpm | 0.03~21 | 0.08~75 | 0.17~157 | 0.3~275 | 0.4~375 | 0.2~145 | 0.3~210 | 0.4~375 | 0.5~500 |
| 0.1~300rpm | 0.03~63 | 0.08~230 | 0.17~500 | 0.3~890 | 0.4~1280 | 0.2~445 | 0.3~840 | 0.4~1280 | 0.5~1500 |
| 0.1~600rpm | 0.03~125 | 0.08~470 | 0.17~1120 | 0.3~1780 | 0.4~2200 | 0.2~900 | 0.3~1620 | 0.4~2300 | 0.5~3000 |
