Product Overview

Description





QDC-5010

 PVC Nylon Cell

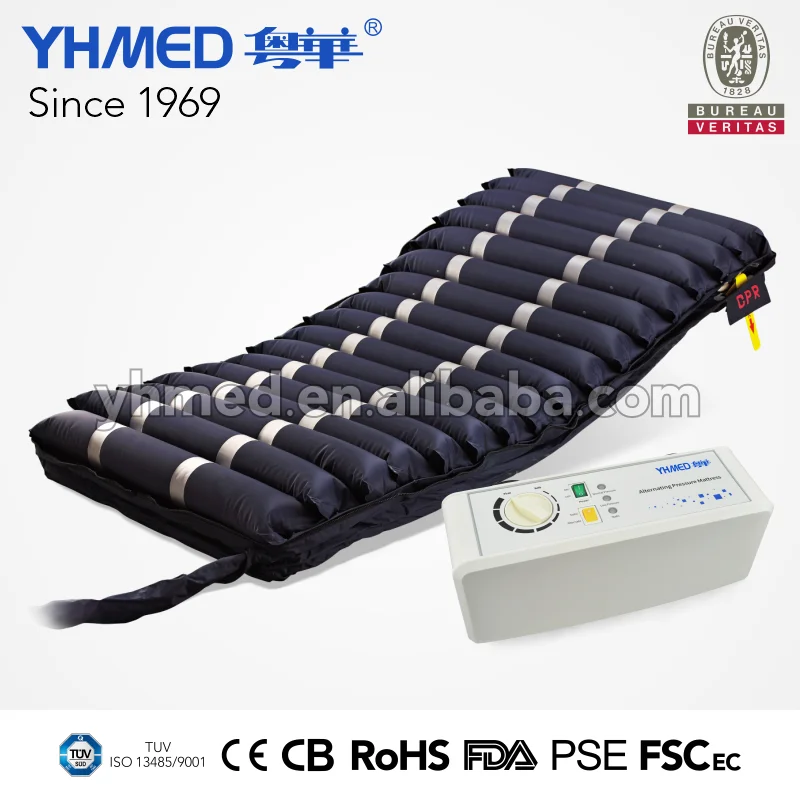

                    Alternating Pressure Mattress



The QDC-5010 is an effective alternating overlay system combined with static therapy mode. By having 17 pcs of 12.8cm (5'') individual in cycles, patient's receive their adequate pressure relief. The system can be switched to a static mode to facilitate all kinds of nursing procedures including dressing changes. With Air-pressure Dial Adjustment, DQC-5010 is easy to use and is recommended for patients at medium risk to high risk of pressure ulcers (StageⅠ/Ⅱ/Ⅲ).

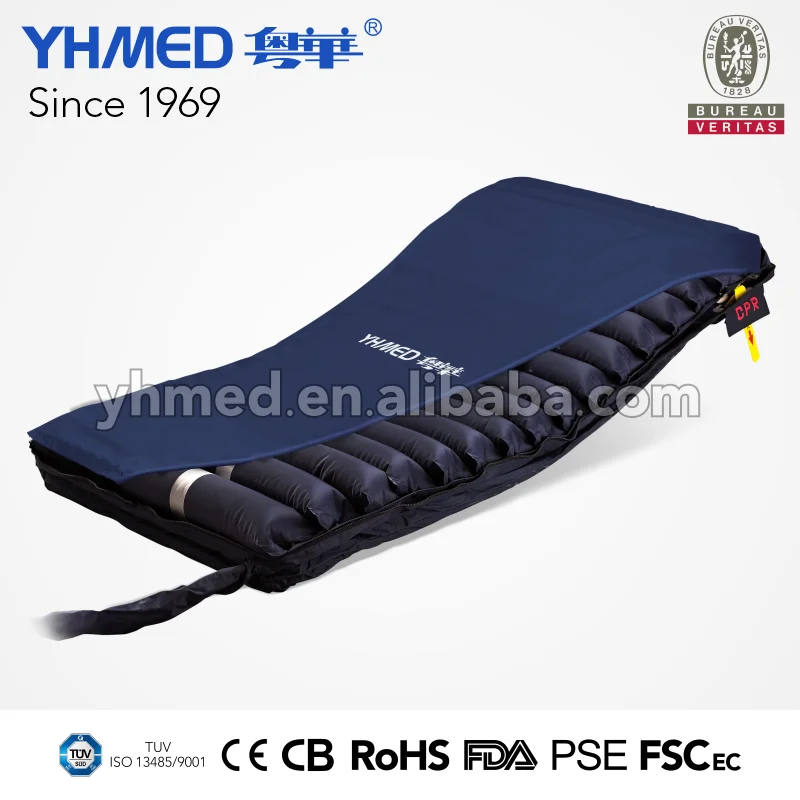

Nylon PU Cover with Cotton Lining



Biocompatibility, Vapor Permeable & Water



Resistant with CA117 Flame Retardant Level







Zipper-All-Around

 Cover Reduce ingress of unwanted fluid and can be completely removed for laundry













  Ventilated Low-Air-Loss Cells



Wicks moisture away to keep the patient more comfortable





CPR Straps



Quickly deflate the mattress for emergencies













Alternating function

(Group A and Group B as shown in the picture)



The pump will be inflate and deflate for the cell with cyclicity, to change the contact position between the patient and the bed, so that to promote the blood circulation to prevent the bedsore and recovery the bedsore, reduce the patient's pain and the nursing labor intensity.







Pillow function

 (Group C as shown in the picture)



The cell of the head position won't be alternating, to provide the most comfortable for the patient.















Spring-Load Tube


Inside the air tubes, springs are installed to prevent any kink or unwanted bending on the tubes that connects pump and mattress to maintain consistent smooth airflow











Slip-Resistant Elastic



Convenience to fix the mattress and avoid the movement.

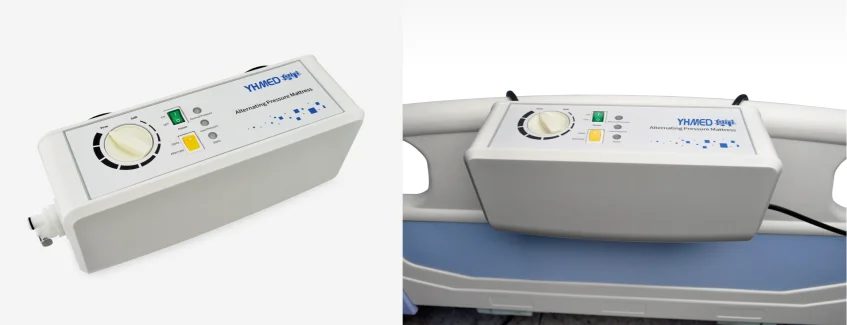

P3000A2QB Pump













    Air-pressure Dial Adjustment

   Static mode helps with patient reposition and all kinds of nursing care

   Low pressure alarm feature increases patient safety











     Hanger Design                Quick Connector          Transfer Function







Easy-to-use Quick Connector with Transfer Cap

Mattress can be transformed from a powered support surface to sealed static air mattress,

providing a uniform stable surface for patient transportation.







Specifications

	model	QDC-5010
QDC-5010  Mattress		5'' Cell Overlay	5'' Cell+3''Foam Base  Pocket  Overlay
	Dimension(L*W*H)	200*90*12.8cm	200*90*12.8cm+3"Base  Pocket
	Maximum Patient  Weight	150kg	160kg
	Alternating	1-in-2(Group  A&B)
	Cell Height	17*5''Cells
	Cover Material	Nylon PU with  Cotton  Lining
	Cell Material	TPU
	Pressure Ulcer  Stage	Ⅰ,Ⅱ,Ⅲ
	Warranty	12Months
P3000A2QB  Pump	Dimension(L*W*H)	30*13.5*11cm
	Case Material	Flame Retardant ABS
	Supply Voltage	AC 220-240,50Hz;  100-120v,60Hz
	Operating Cycle	12min(50Hz);10min(60Hz)
	Air Output	7-8L/Min
	Output Pressure  Range	55-120mmHg
	Warranty	24Months







Narrow Size (85cm in width) is also available.

Bariatric Size (42'', 48", 54" & 60" in which) is also available.

QDC-5010 should always be used directly on top of an existing surface or an additional foam.

The airflow output and cycle time may vary slightly due to different electrical voltage and frequency.

Optional advanced 2-directional stretch flame retardant cover is also available.



















Economy P3000N2EB Pump Optional               Advanced P3000A2CB Pump Optional                                                                                                                 (CPC Quick Connector)
