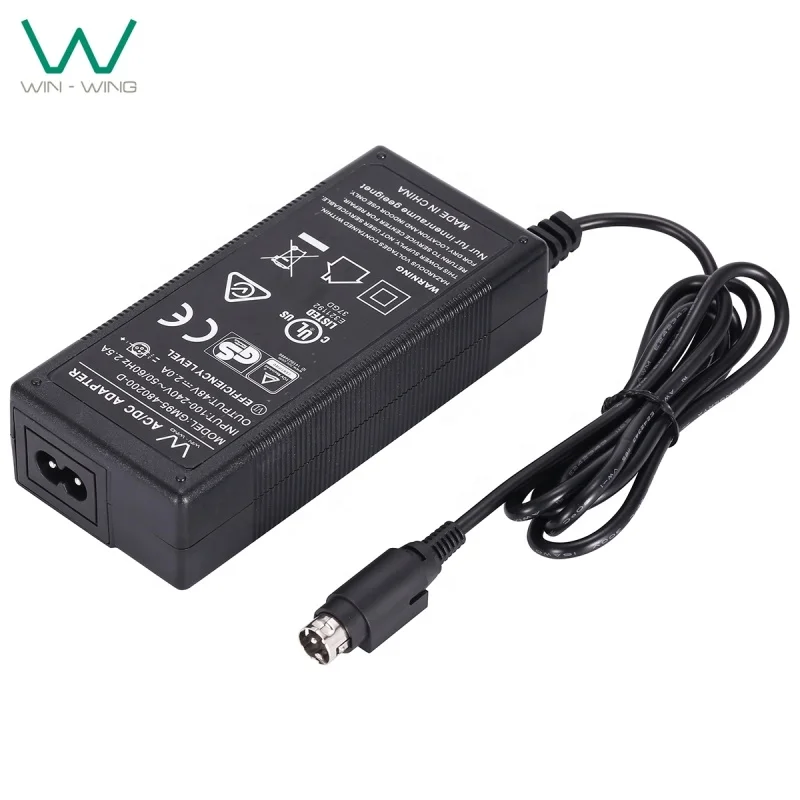

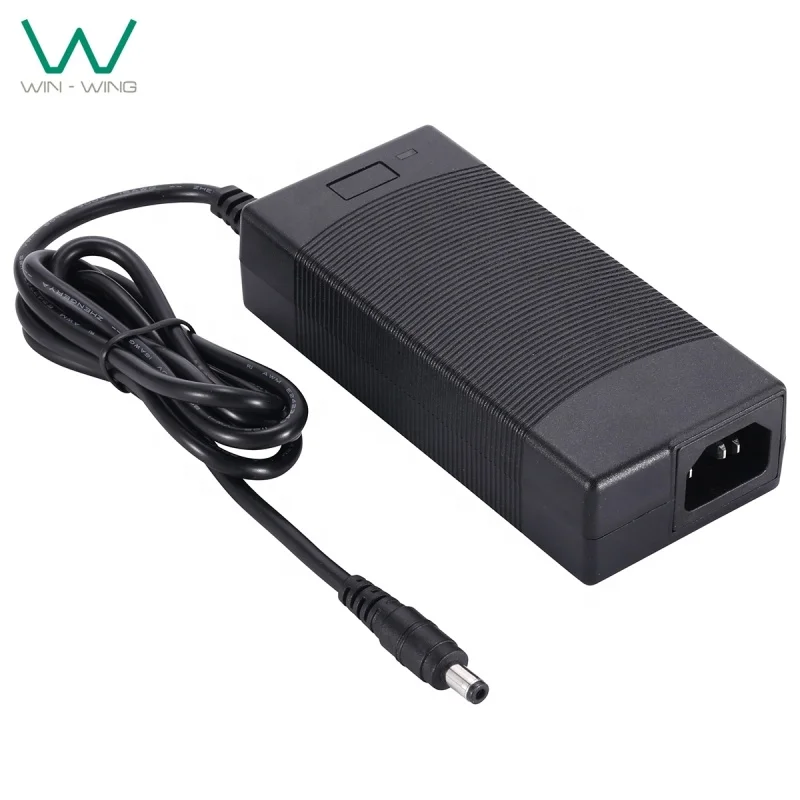

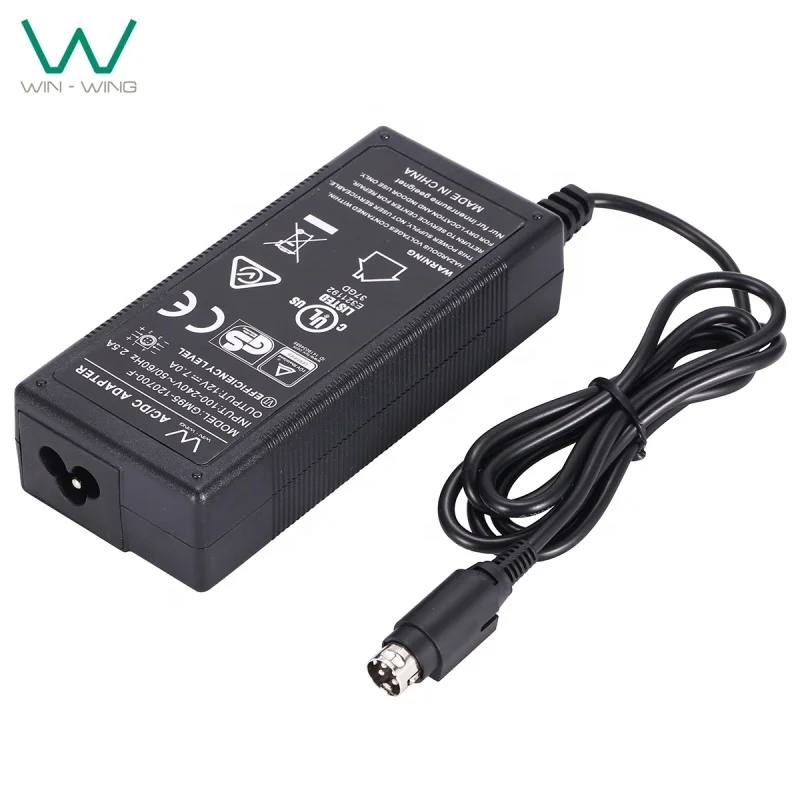

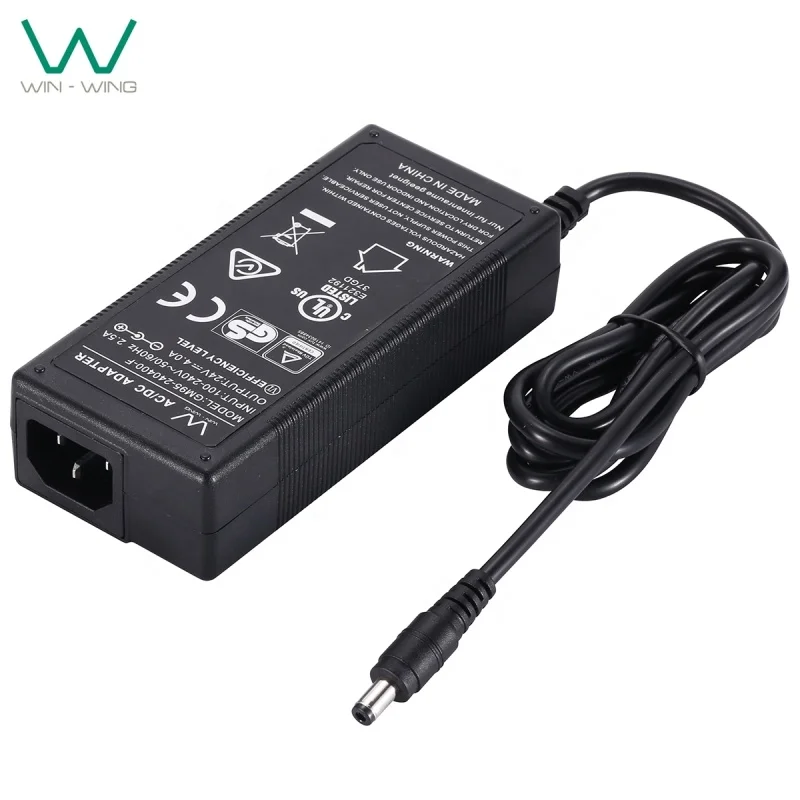

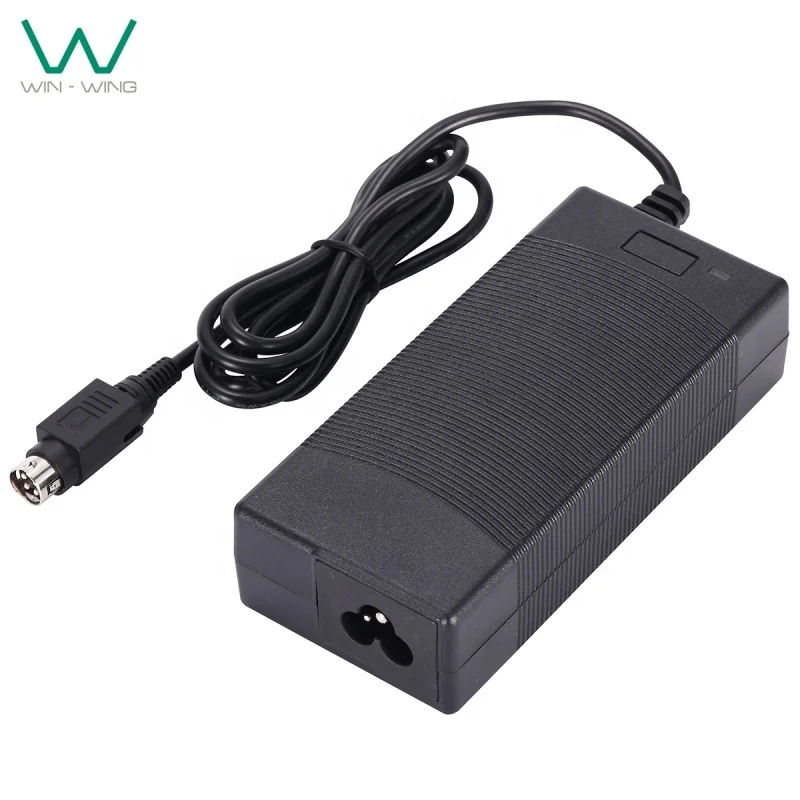

Адаптер питания IEC C6 C8 C14 36 в 2,5 А 90 Вт

Product Overview

Description





Features:

Universal AC Input/full Range

4hrs Full Aging Testing

Cost effective and reliable

UL FCC GS TUV CE PSE KC SAA fully safety approved

Fully enclosed plastic case

MTBF>50,000 hours

Energy Star, Erp Step2, CEC, MEPS Compliant

2 year warranty



Application:

LCD Monitor, LED Lights, HDD Enclosure, ADSL, DPF, Refrigerators, Portable DVD, Stereo, Radio, Security System Products Etc.



Specification:

Input	Voltage	AC 100V ~ 240V full range
	Frequency	50-60Hz
	Input Current	120A/240VAC
	Leakage Current	50,000hrs
Output	DC	36V 2.5A 90W
Other	Ripple & Noise	120mV Max
	Protection	Over-Voltage, Over-Current, Short-Circuit
	Hold Up Time	>5mS @115VAC
	Cooling	Natural Cooling
	MTBF	50,000hrs/ MIL-HDBK-217F
Mechanical	AC Input Type	IEC C14 3PIN
	DC Output Type	Per Customer's requirement
	Dimensions	130mm(L)*55mm(W)*30mm(H)
	Net Weight	290-300G
Environment	Temperature	Operating 0 to 40C, Storage -25 to +85C
	Conducted EMI	FCC Part15 Class B , EN55022 class B
	Safety Certificate	CUL/UL CE GS SAA PSE KC CCC
