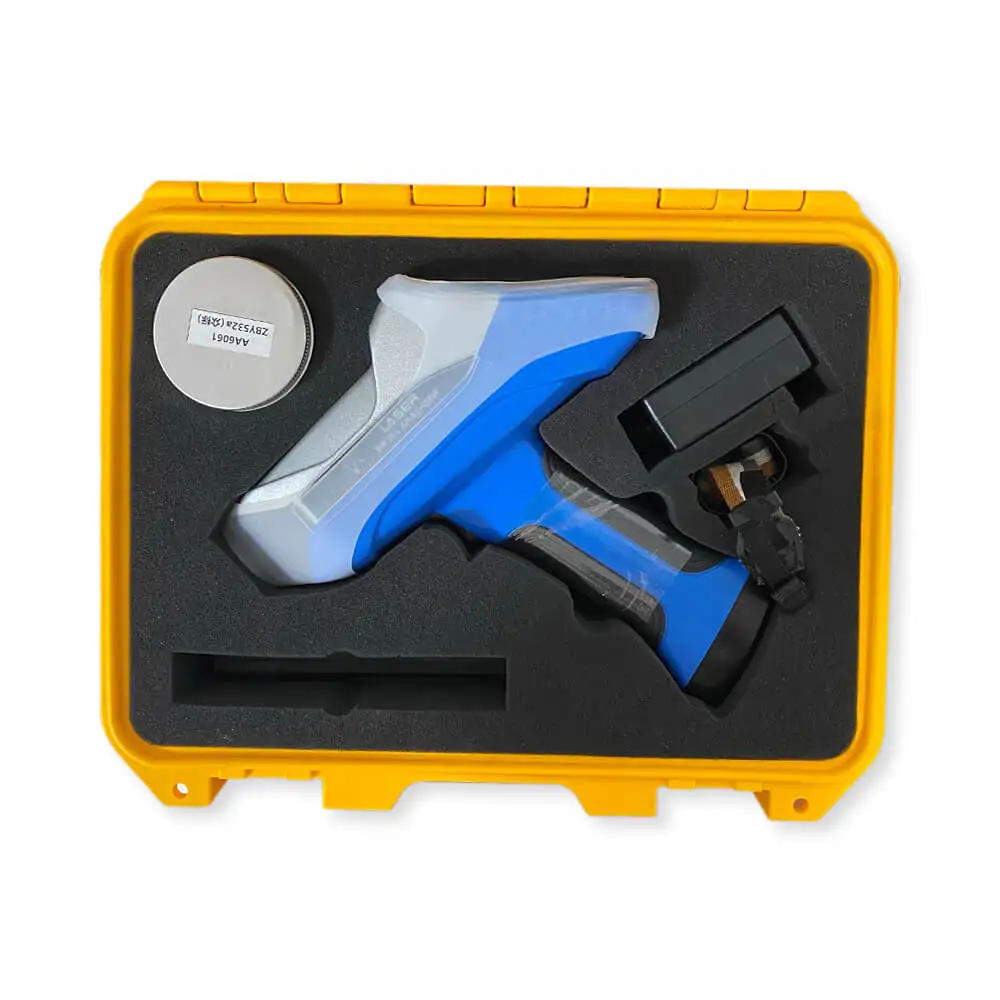

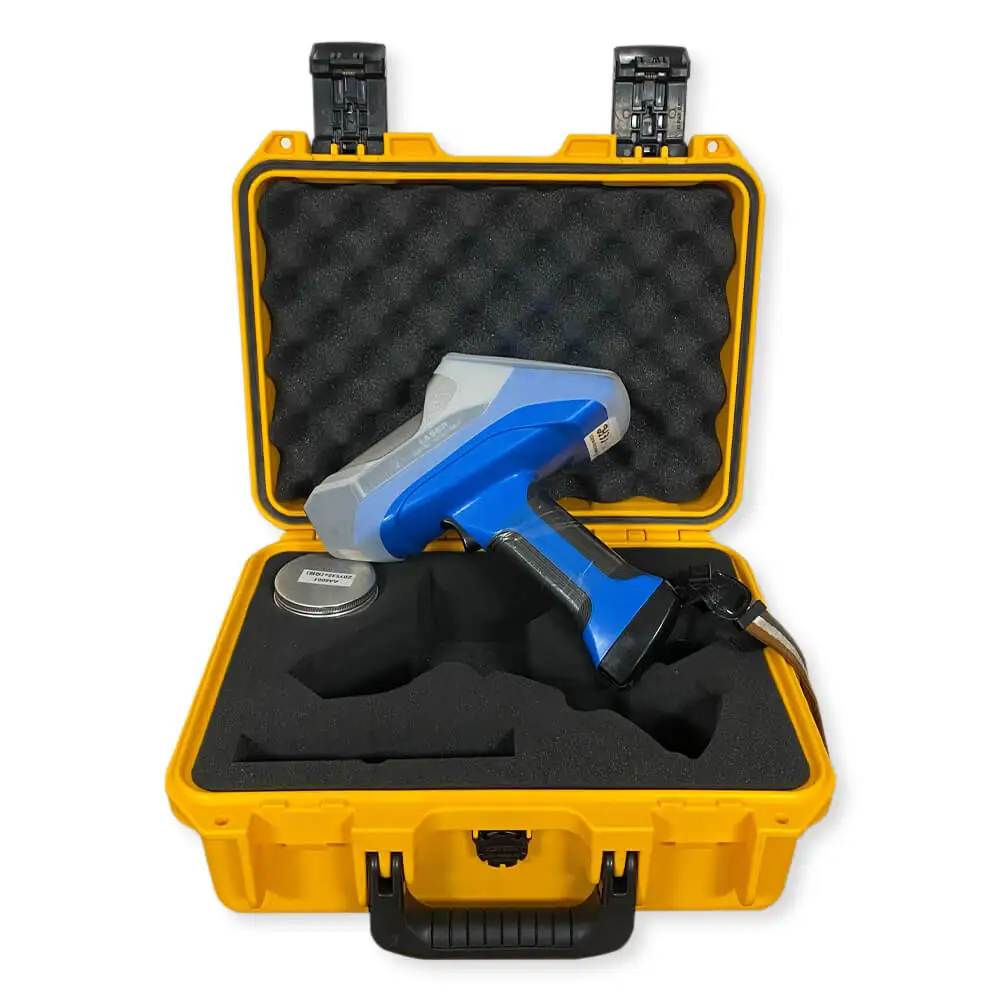

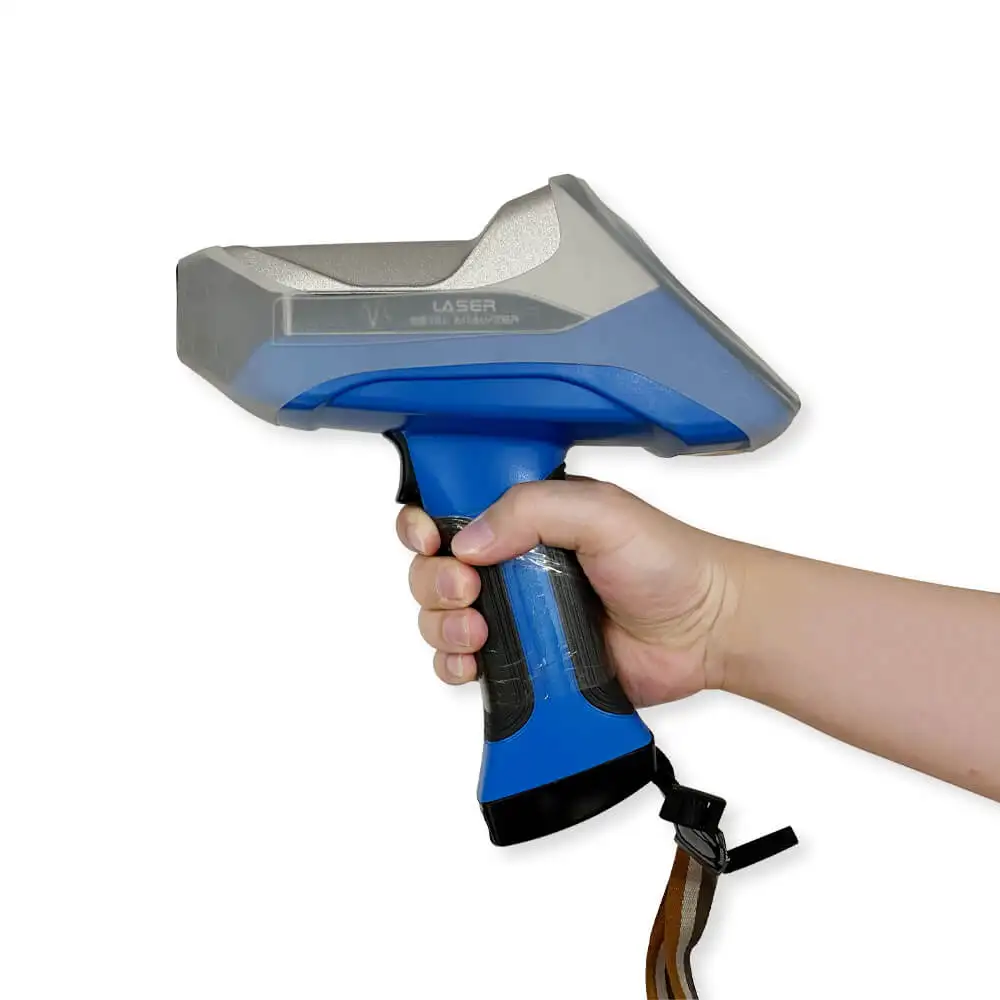

Handheld X ray fluorescence spectrometer for metal analysis

Application:

1. Stainless steel grade test

2. Alloy elements analysis

3. Ore analysis

4. Soil environmental monitoring

5. ROHS+halogen

Product features

Small,light, portable and convenient for on-site working

Use American newest Silicon Drift Detector

Auto-switch filters

Large integrated alloy database can also be added new ones according to user’s needs

The integrated optical structure design based on aluminum alloy offers better heat-dissipation performance which guarantees data stability for long-time measurement

Automatically close excitation source in case of no sample

 Specifications:

SDD detector resolution: 139eV
Excitation source: X-ray tube, Ag target, end window, 50KV/100uA
Ambient temperature: -15℃-40℃
Battery: large capacity of 7800mAh which can keep 8 hours of working
Measurable elements: Na– U
Screen: rotating 3.5 inch touch screen
Detection limit: 0.001%~0.01%
Measurement time: 3 to 60 seconds
Filters: 18 filters combination and can automatically switch
Weight:1.5Kg
