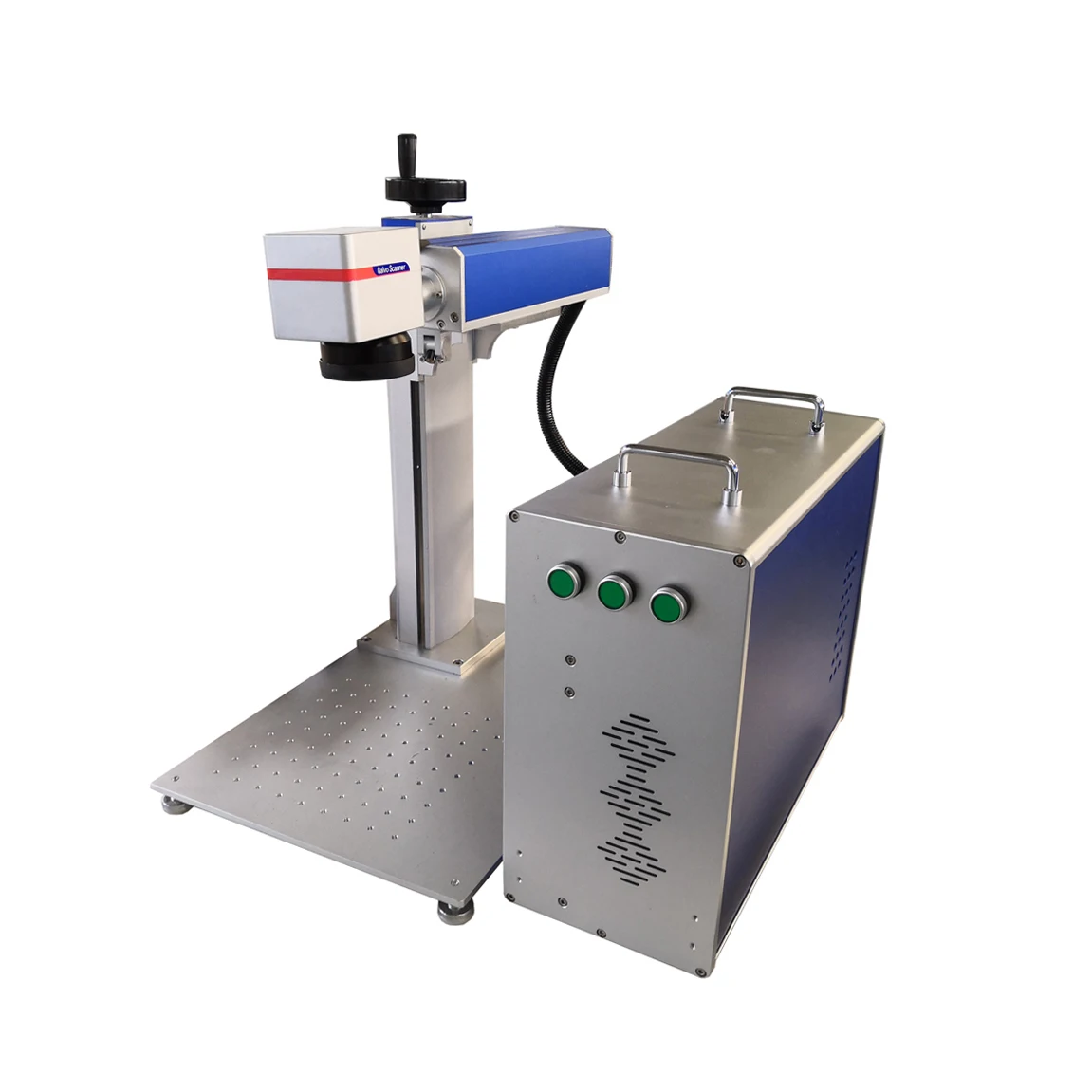

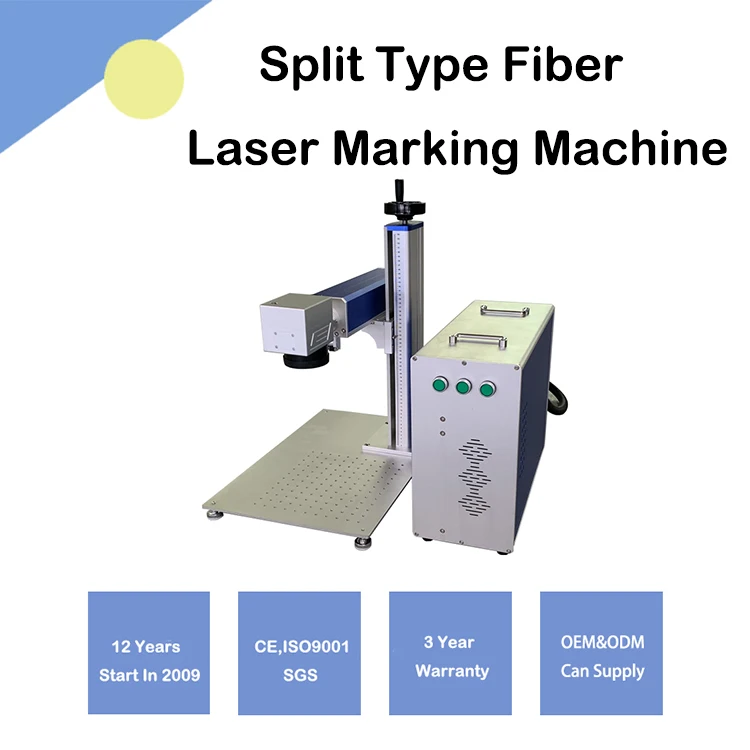

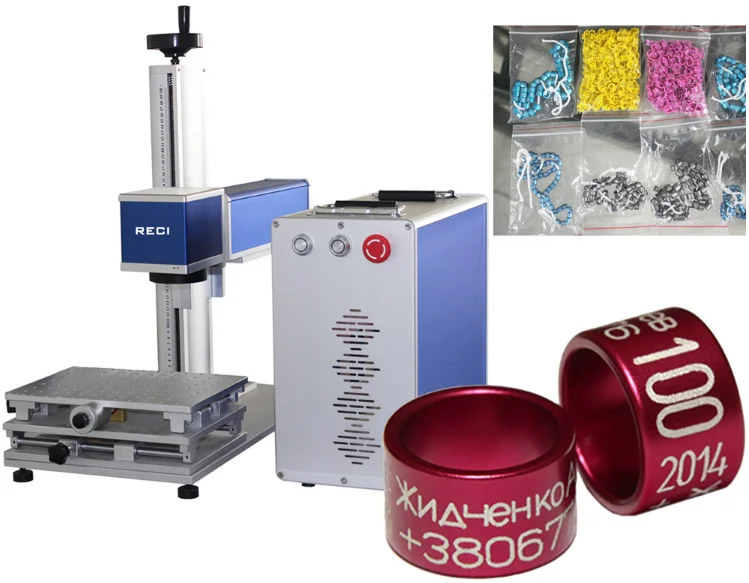

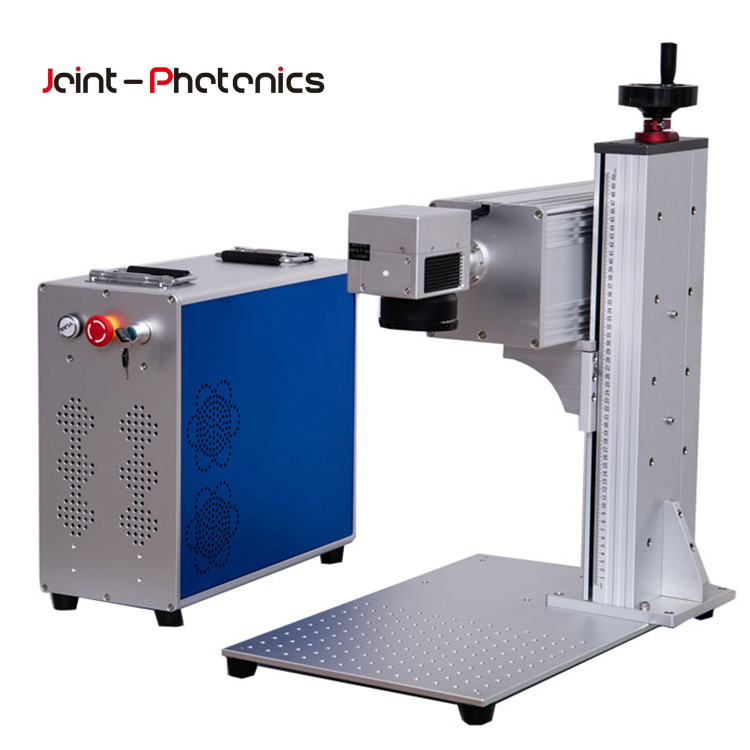

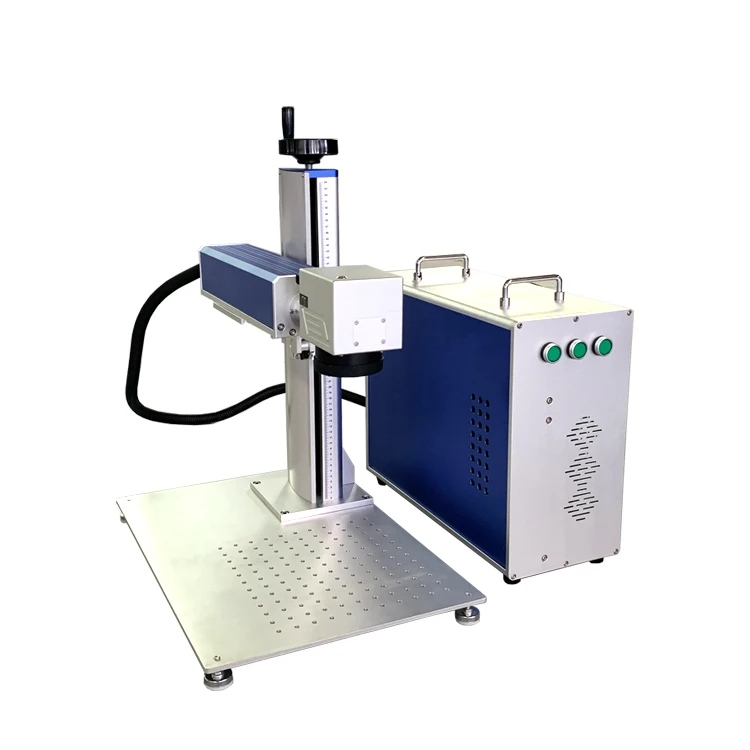

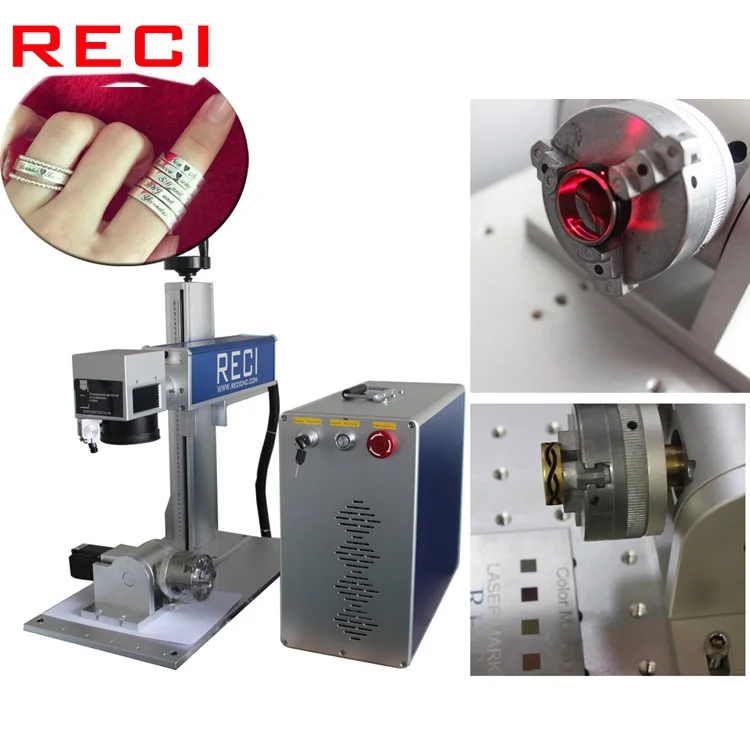

CNC Inside Outside Rings Bird Ring Laser Engraving Machine

Product Overview

Description

Inside outside ring laser engraving machine laser marking machine







Product's description

1. Compactness, With the unique all built-in integration design, the optical, electronic and mechanical components are highly intergrated, so that the whole machine weight only 35kg. It can be called the smallest fiber marker in the world. In addition, it adopts imported fiber laser, and coupled with all air-cooled design, it need not external cooling devices.

2. High durability, The laser module has a long service life(greater than 100,000 hours; while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so )

3. Low consumption, Due to the all air-cooled design, no consumable materials and free of maintenance, it has a low cost at use. Furthermore, it saves energy with a total power below of 0.5kw.

4. High speed, it applies imported high-speed galvanometer of traditional lamp-pumped maker and the second-generation of semiconductor marker(depend on the marking material).



Technical Parameters

Model	RC-20A
Laser Power	20W/30W 50w 100w optional
Laser Wavelength	1064nm
Q-frequency	20KHZ-100KHZ
Divergence	0.3mard
Marking Range	110*110mm/200*200mm/290*290mm optional
Minimum Character	O.1mm
Minimum Line Width	0.01mm
Minimum Depth	0-1mm(Depending on the materials)
Engraving Line Speed	≤7000mm/s
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2-1.8
Marking Format	Graphics,text,bar codes,two-dimension code,automatically marking the date,batch number,serial number,frequency,etc.
Graphic Format Supported	BMP,JPG,GIF,PNG,TIF,AI,DXF,DST,PLT,etc.
Working Voltage	220V/50HZ/4A
Unit Power	<0.5kw
Working Environment Required	Clean and dust free or dust less
Working Condition :humidity	5%-95%,Free of condensed water
Laser Module Life	>100000hours

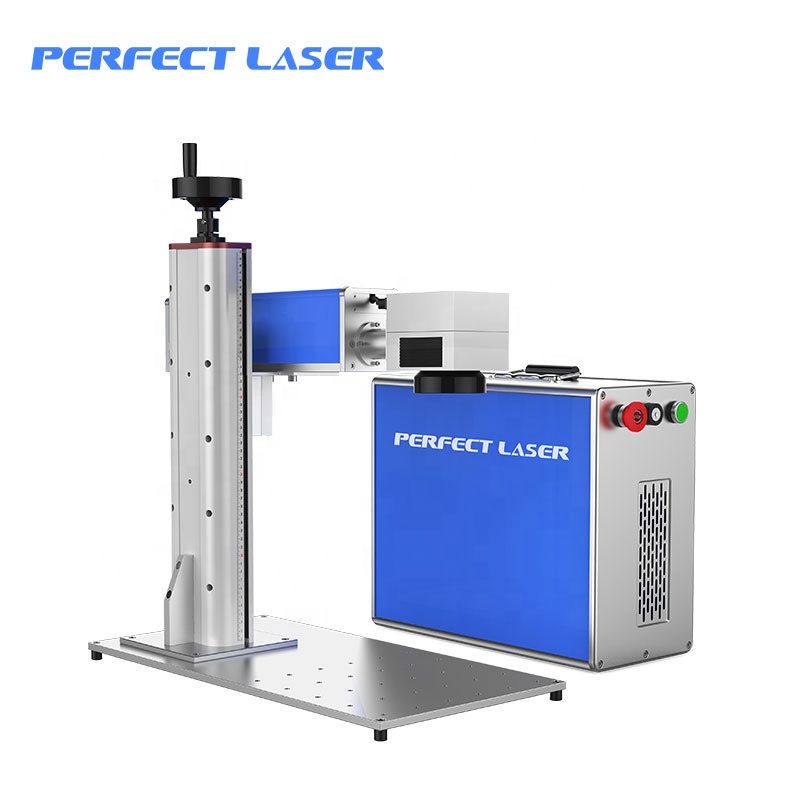

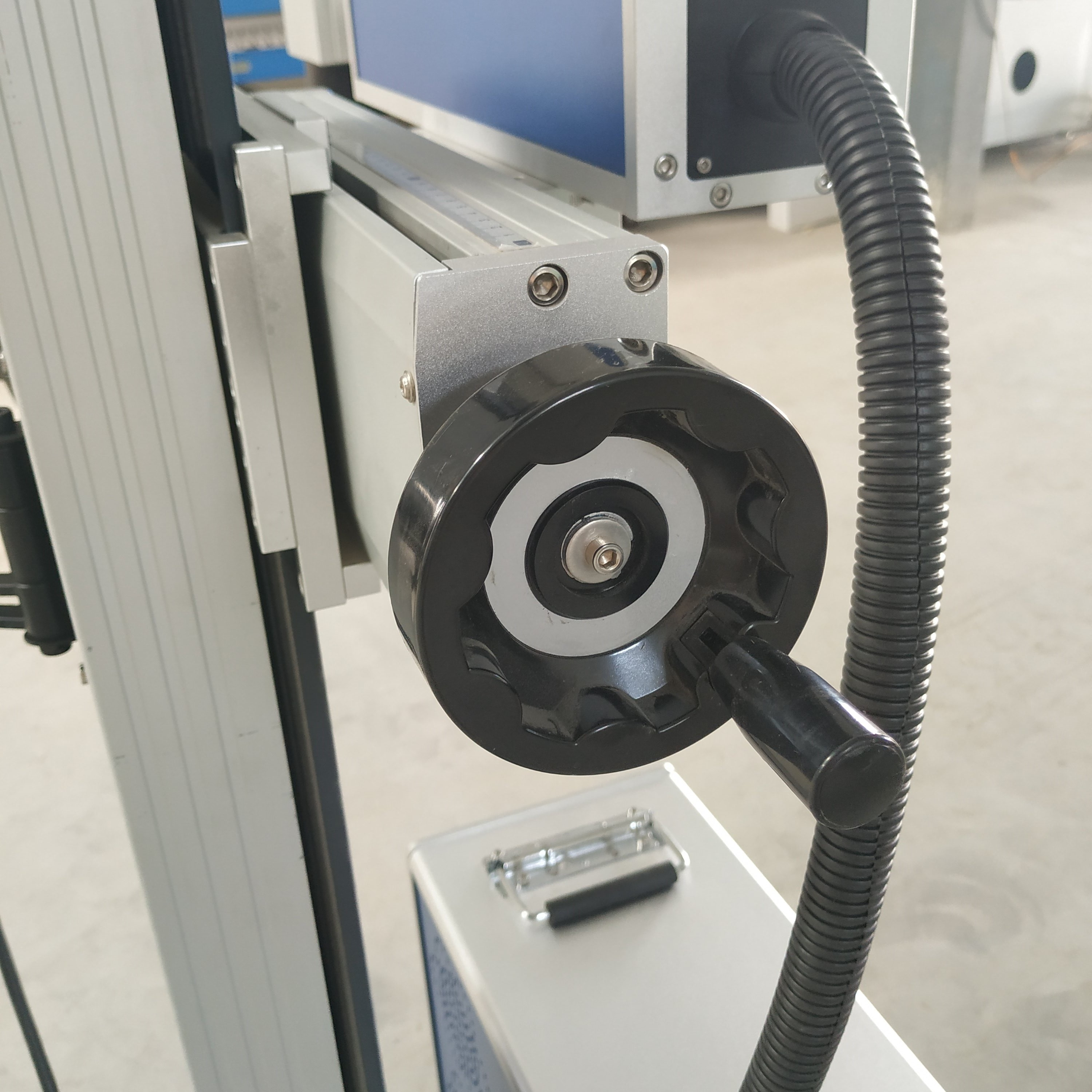

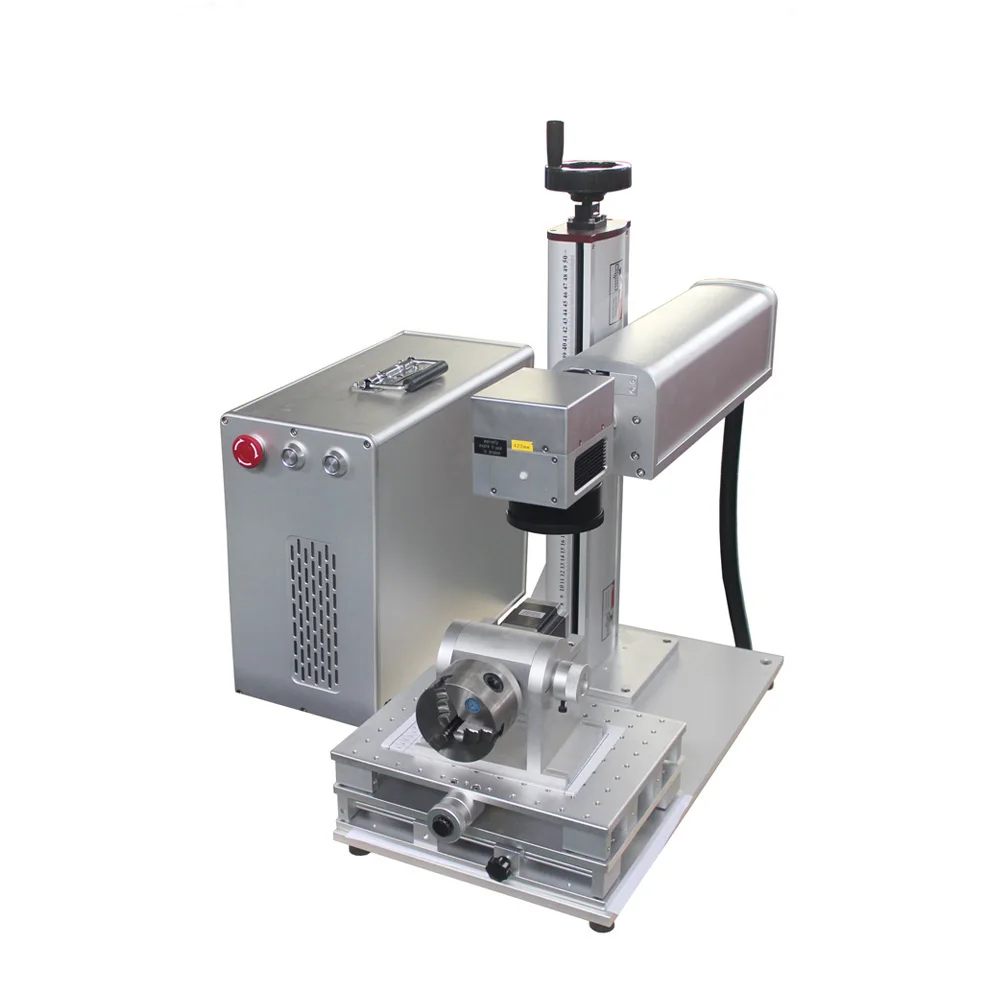

Main parts of ring laser engraving machine











Applicable materials

Matels (including rare matals ), engineering plastics, eletroplating maerials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper,aluminum and other materials.

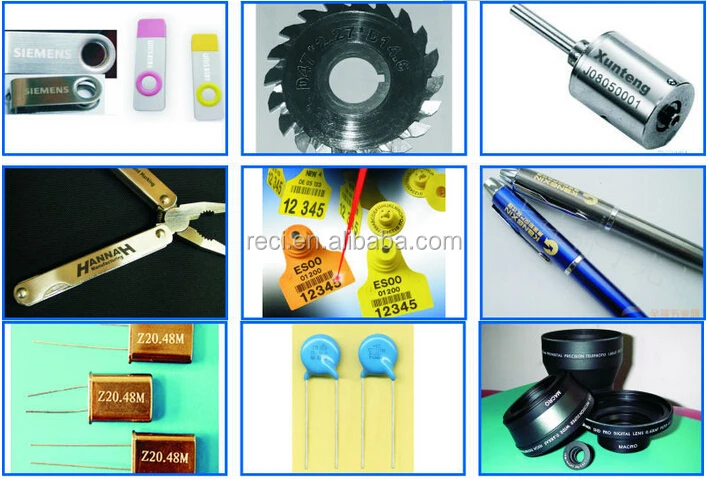

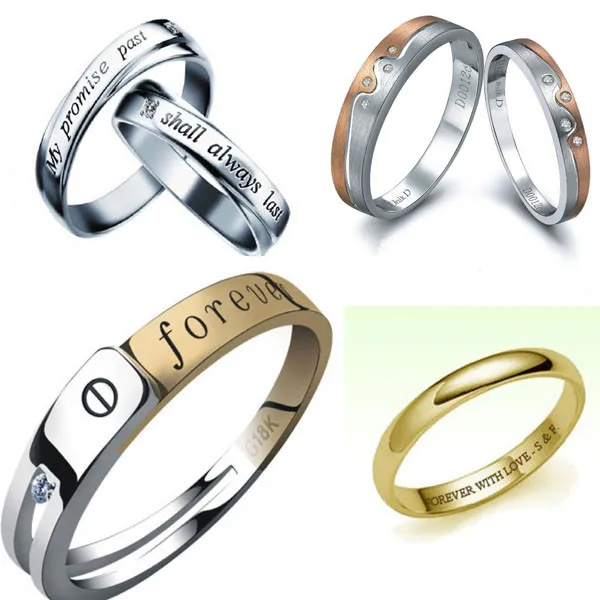

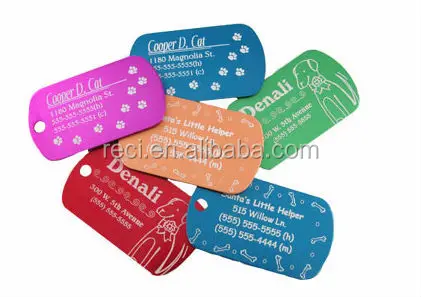

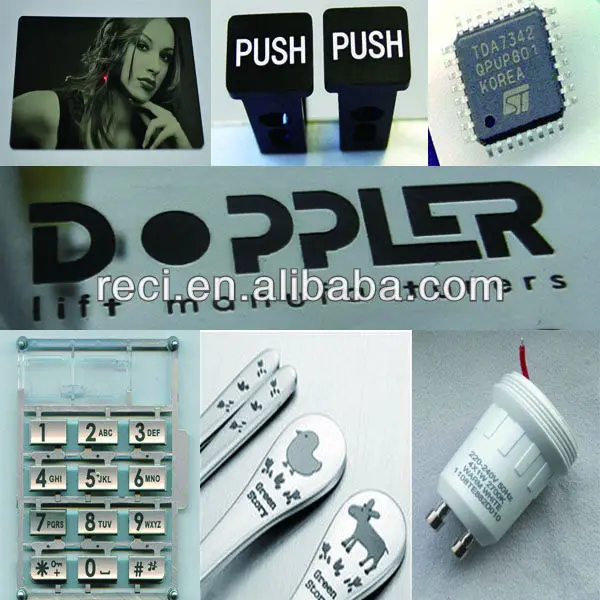

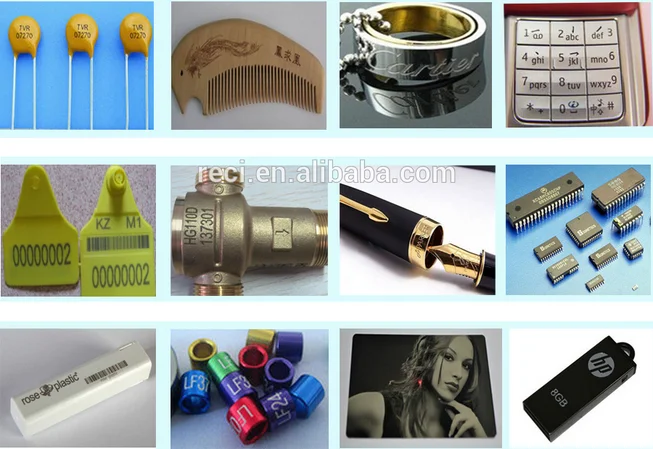

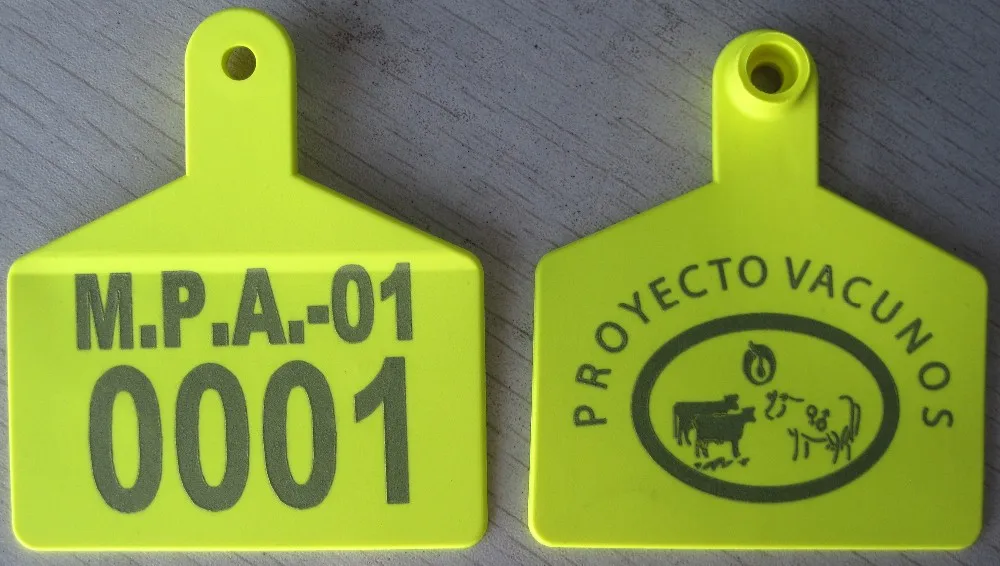

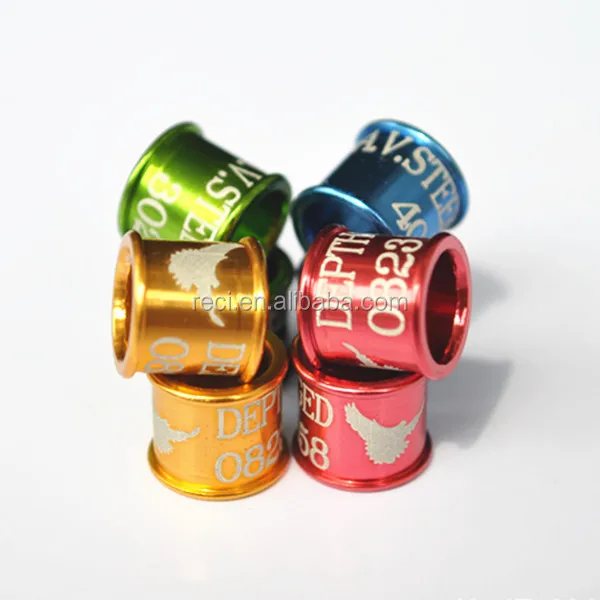

Samples:







Wooden box package /Shipping by air or by sea







* After-sale

1. 24 months guarantee for the machine .

2. Perfect 7*24 hours technical support by e-mail /whatsapp / skype / wechat,etc .

3. Calling or door-to-door service,professional training to your workers .

4. Use friendly English software, user manual and detailed Videos/CD .

5. Priority to become our agent in your city,we offer you our factory price.
