Product Overview
Description
Product Description

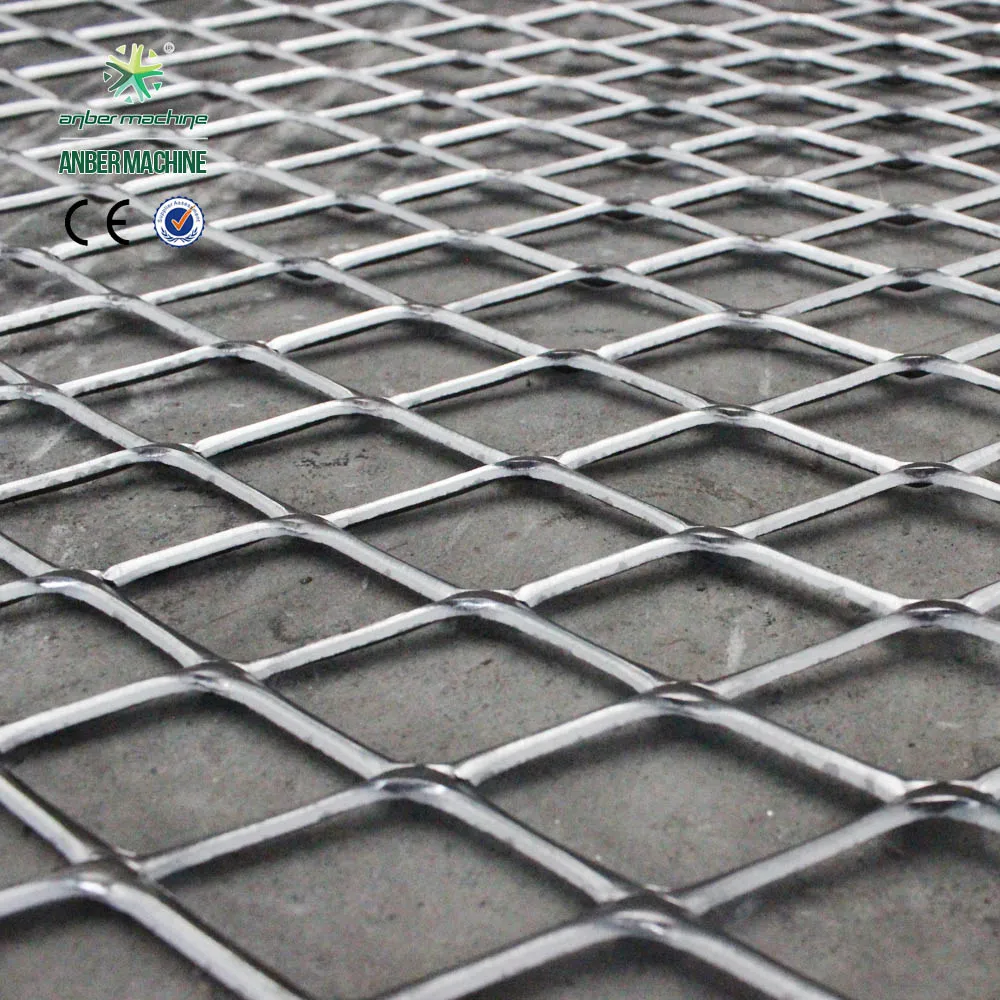

What is expanded metal mesh?
Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
Expanded Metal Mesh Production Process
1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
4. Using the unique shearing and streching process means very little waste is created. the metal is sheared and then streched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
Composition of expanded mesh machine
The expanded metal mesh machine is composed of main machine frame, driving system, crankshaft, upper blade frame(movable frame), down blade frame, feeding device, material moving device, lubrication system and electric control part.
Main technical parameters | ||||
Model | ABE-4-1300 | |||
Material | low carbon steel | |||
Max. width | mm | 1300 | ||
Max. Thickness of steel | mm | 4.0 | ||
Expanding speed | strokes/minute | 85 | ||
Motor power | 11KW | 11 | ||
Expanding force | T | 60 | ||
Overall size of machine(L*W*H) | mm | 2500*1400*2150 | ||
Machine weight | T | 4.7 | ||
Typical Mesh size | LWD*SWD=50*25mm, 60*30mm, 70*35mm or according to customer's demand | |||

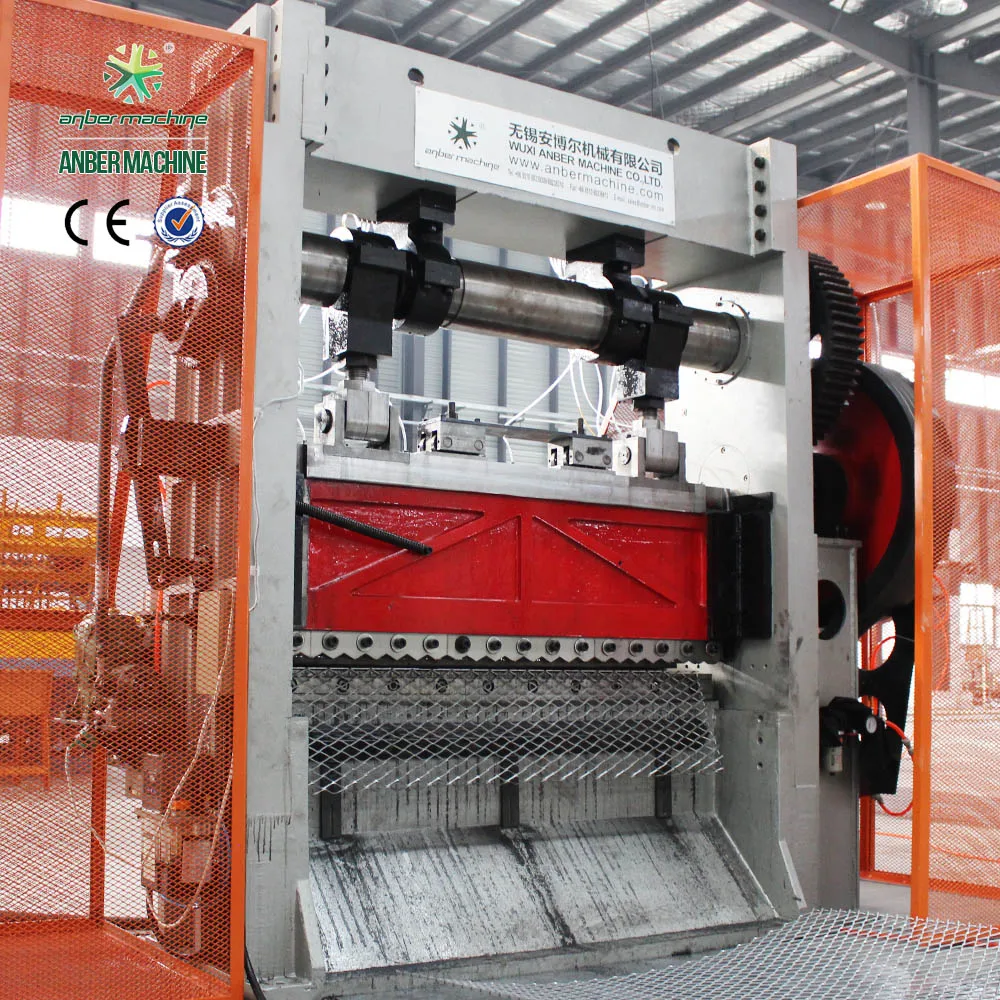

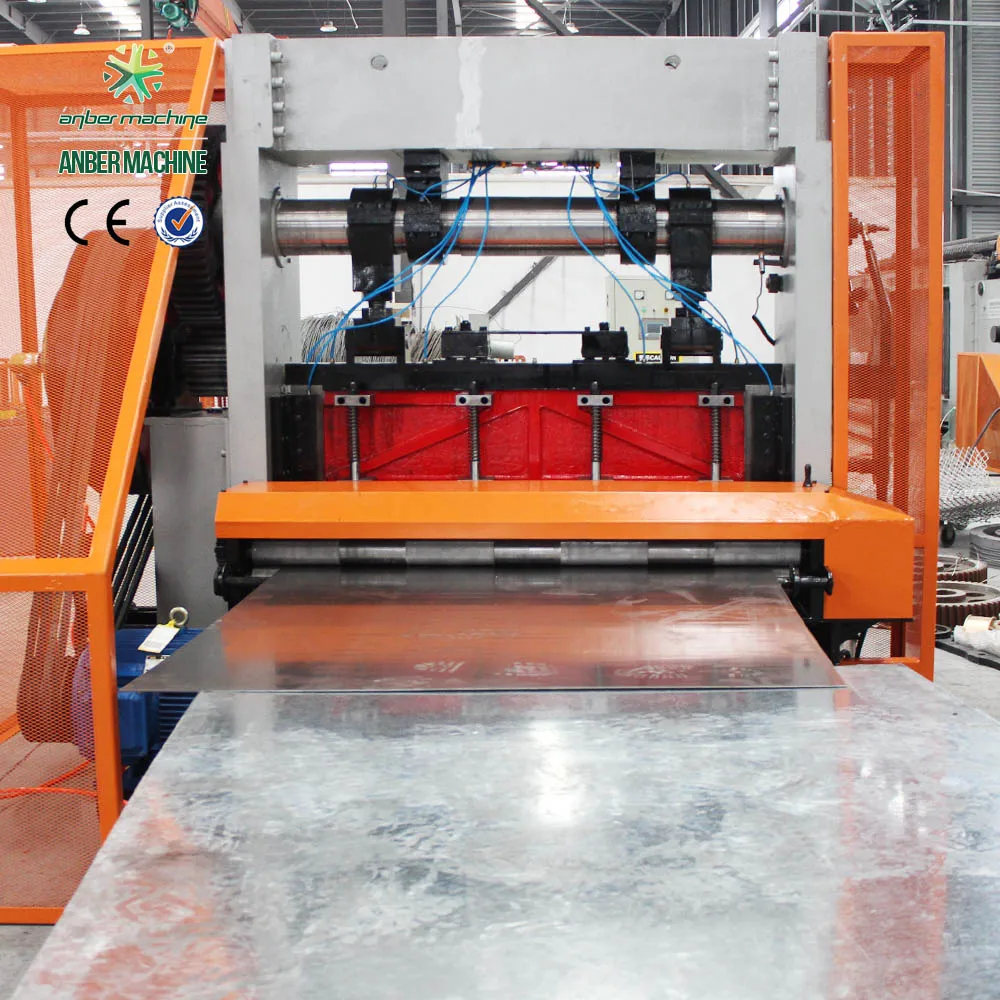

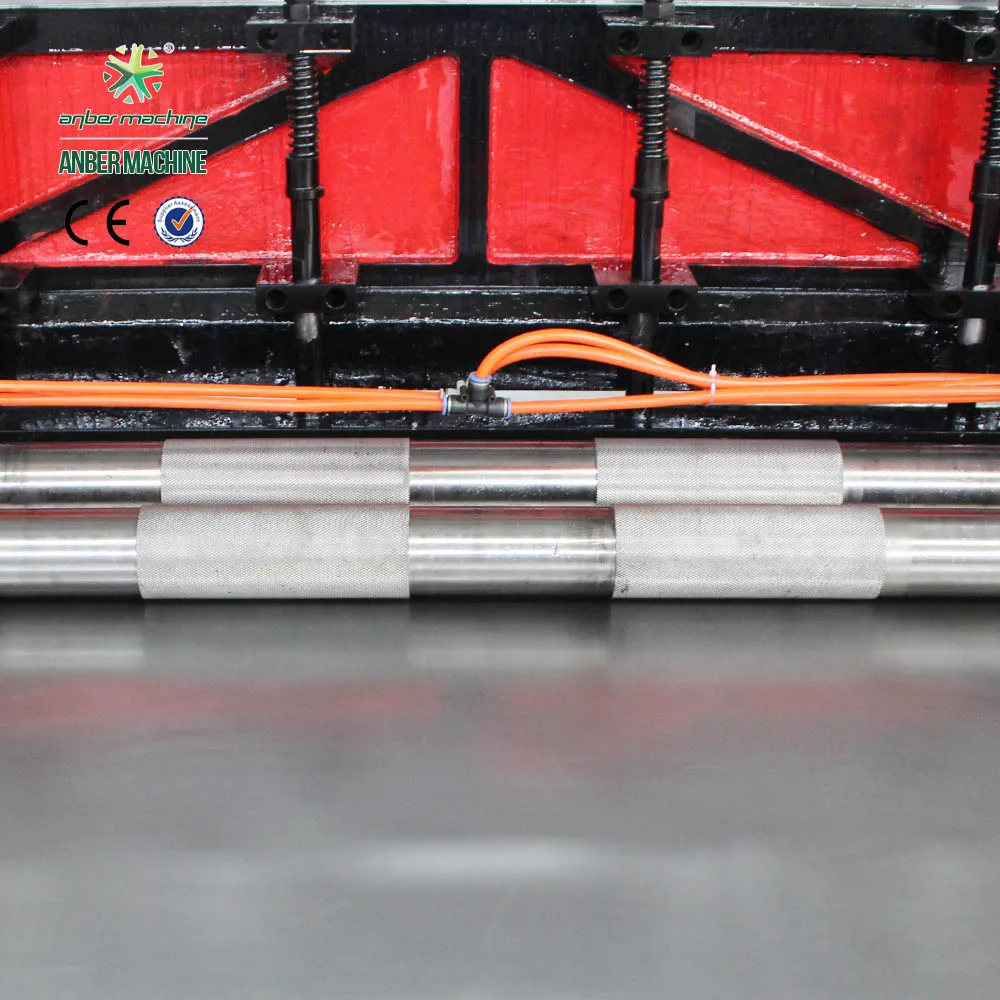

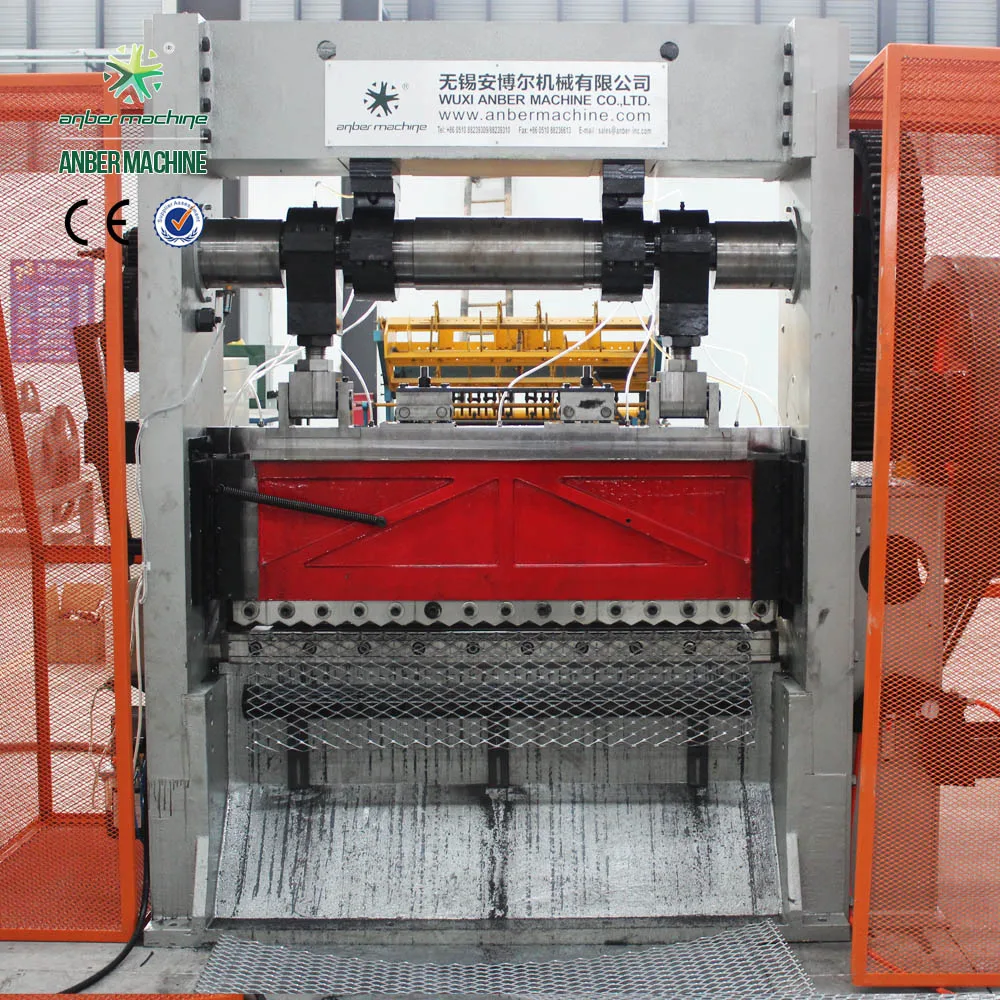

Detailed Images
Related Products
Packing & Delivery
Our Service
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing?
Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.
3. What should we charge for your engineer?
You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from the machine finished installation.
5. How could we do after one year warranty period?
We can also do service for you, but you need pay for spare parts and engineer's cost.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
9. How many worker do we need running those machines?
One or two workers required for machine operation, there will be only one worker for our micro type expanded metal mesh machine within 25T punching force otherwise need two workers for hevay duty expanded metal machine.
Our Company
Anber Machine Co.,ltd. before was named Anber Machine co., Ltd., as it grown bigger, is the manufacturer and seller of the expanded metal mesh machine. The expanded metal mesh machine(metal expander) is devided into the heavy-duty expanded metal mesh machine(standard metal mesh machine), expanded metal mesh machine for filter(filter mesh machine) and light-type metal mesh machine(micro mesh machine).
1.Grating type expanded metal mesh machine
Grating type mesh machine ABE-8-2000
Heavy duty expanded mesh machine ABE-6-2500
Coil in Metal expander ABR-6-2000
2. Fence type expanded metal mesh machine(standard metal mesh machine)
Fence mesh machine ABE-4-2000
Fence type expanded mesh machine ABE-2.5-2000
Standard metal mesh machine ABE-4-1300
Standard metal expander ABE-2.5-1500
3.Expanded metal mesh machine for filter (filter mesh machine)
Filter mesh machine ABE-1.5-1250
High speed Filter mesh machine ABE-300-1000
Filter type expanded mesh machine ABE-200-1000
Filter type metal expander ABE-120-1000
4.Light-type expanded metal mesh machine (micro mesh machine)
Micro metal mesh machine ABE-500
We also can produce accessory machines for the expanded metal mesh machine, such as decoier, recoiler, flatten machine, metal mesh slitting machine, cutting machine. We can also produce the finished products: expanded metal mesh, securilath, expanded foil, expanded diamond metal lath, self-furred "dimpled" metal lath, self-furred "grooved" metal lath, regular expanded metal, flattened expanded metal, expanded metal grating, plain steel expanded metal, galvanized steel expanded metal, aluminum expanded metal, stainless steel expanded metal, brass expanded metal, titanium expanded metal, PVC coat expanded metal, aluminum foil expanded metal, Heavy-type expanded metal.
Besides, if you have some special requirement, we can design the full production line especially for you.
