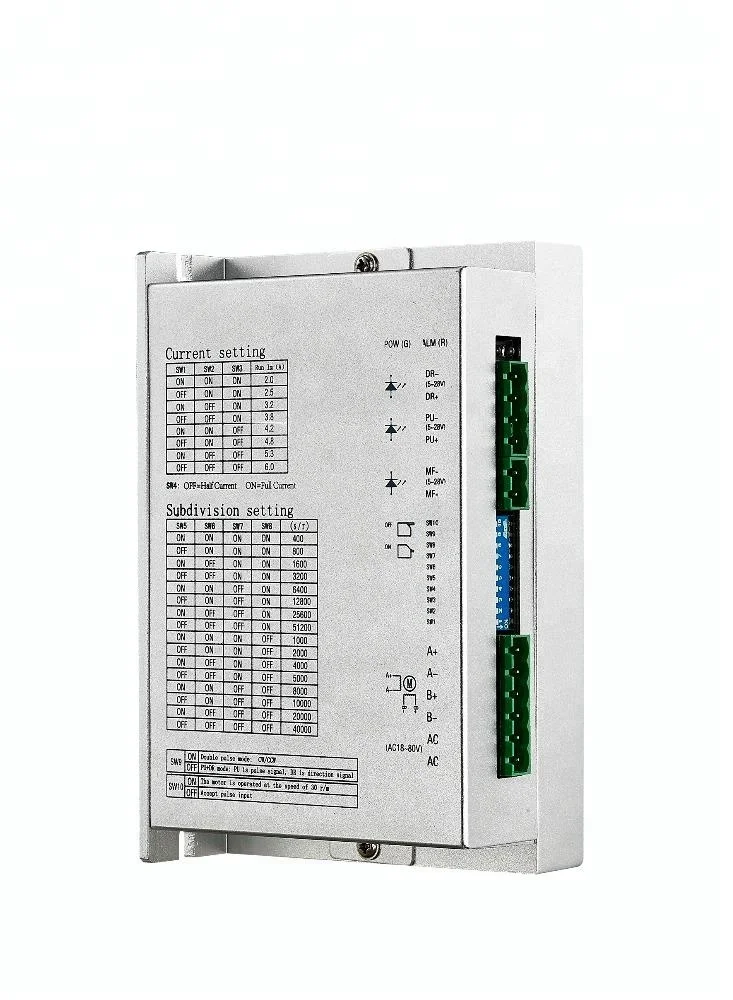

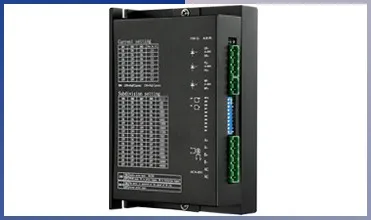

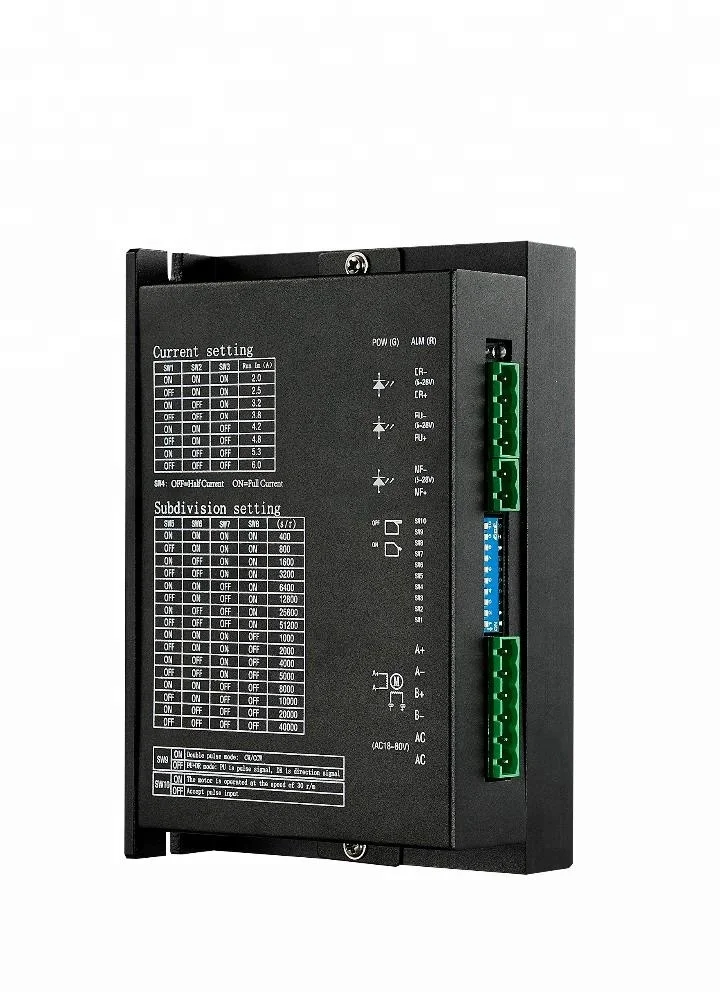

Vector Control 2 Phases 51200 ppr Step Motor Drive

step motor drive

DVS860

Brand: DVS

Original: China

The DVS860 is full digital 2-phase stepper drive based on DSP control and It is designed by DVS company for use with the 2-phase hybrid stepper motor of all kinds with nema 23

to nema34. It is widely used in engraving machines,milling machines, packing machines,

labeling machines and medical machines.

Main Features:

l 16 channels constant angle, constant torque micro steps, highest micro step: 51200ppr

l Highest response frequency: 200Kpps

l Current of winding will be reduced by approximately 50% when no step pulse command is received for

1.5 seconds

l Opto-isolated signal I/O

l Drive current is adjustable in 8 channels from 2.0A/phase to 6.0A/phase

l Single power supply from Single power supply from 18V-80VAC / 24V-110VDC

l Better to overcome the problem of low frequency vibration

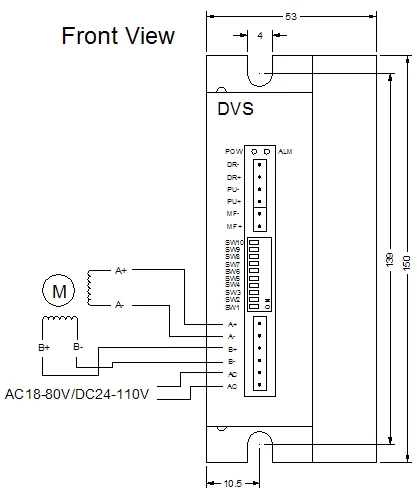

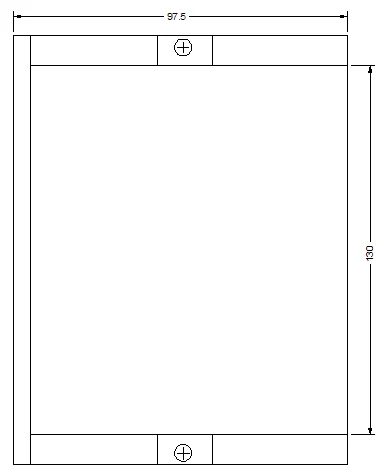

l Dimension : 150×53×97.5mm³; Net Weight : 0.6Kg

drive

drive drive

Port	Number	Symbol	Functions / Applications	Definition
Signal Port	1	PU+	Positive of opto-isolated input signal	Connect to positive supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V.
	2	PU-	DP9=OFF, PU is step pulse signal	With the falling edge of the signal PU, the motor executes an angular step. The input resistance is 220Ω. Low voltage 0-0.5V, high voltage more than 4V, pulse width>2.5μS.
	2	PU-	DP9=ON, PU is positive step pulse signal
	3	DR+	Positive of opto-isolated input signal	Connect to the end of the power supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V.
	4	DR-	DP9=OFF, DR is direction signal	Change the motor’s direction of rotation. Input resistance is 220Ω. Low voltage 0-0.5V, high voltage more than 4V, pulse width>2.5μS
	4	DR-	DP9=ON, DR is negative step pulse signal
	5	MF+	Positive of opto-isolated input signal	Connect to the end of the power supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V.
	6	MF-	Motor free signal	The motor is in the free state and the driver stops working when it is effective.
Motor And Power Supply	7	V-	Power supply	AC18-80V/ DC24-110V
	8	V+	Power supply	AC18-80V/ DC24-110V
	9	A+	Connection
	10	A-
	11	B+
	12	B-

drive

Current Setting:

The stepping drive working current is set by DIP switches SW1 to SW3.

Current(A)	2.0	2.5	3.2	3.8	4.2	4.8	5.3	6.0
SW1	ON	OFF	ON	OFF	ON	OFF	ON	OFF
SW2	ON	ON	OFF	OFF	ON	ON	OFF	OFF
SW3	ON	ON	ON	ON	OFF	OFF	OFF	OFF

SW4: OFF=Half Current; ON=Full Current.

Subdivision Setting:

The subdivision(micro step) is set by DIP switches SW5 to SW8, SW9 and SW10 are function settings,16 channels in total.

Subdivision (ppr)	400	800	1600	3200	6400	12800	25600	51200
SW5	ON	OFF	ON	OFF	ON	OFF	ON	OFF
SW6	ON	ON	OFF	OFF	ON	ON	OFF	OFF
SW7	ON	ON	ON	ON	OFF	OFF	OFF	OFF
SW8	ON	ON	ON	ON	ON	ON	ON	ON
Subdivision (ppr)	1000	2000	4000	5000	8000	10000	20000	40000
SW5	ON	OFF	ON	OFF	ON	OFF	ON	OFF
SW6	ON	ON	OFF	OFF	ON	ON	OFF	OFF
SW7	ON	ON	ON	ON	OFF	OFF	OFF	OFF
SW8	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF
SW9	ON, double pulse: PU is positive pulse signal, DR is negative pulse signal
SW9	OFF, single pulse: PU is pulse signal, DR is direction signal.
SW10	Self detect switch(OFF:accept external pulse, ON:the drive send pulse to make the motor work at the speed of 30r/min.
