CNC Kit Full Digital 3 Phase 220VAC Motor Drive

ac motor

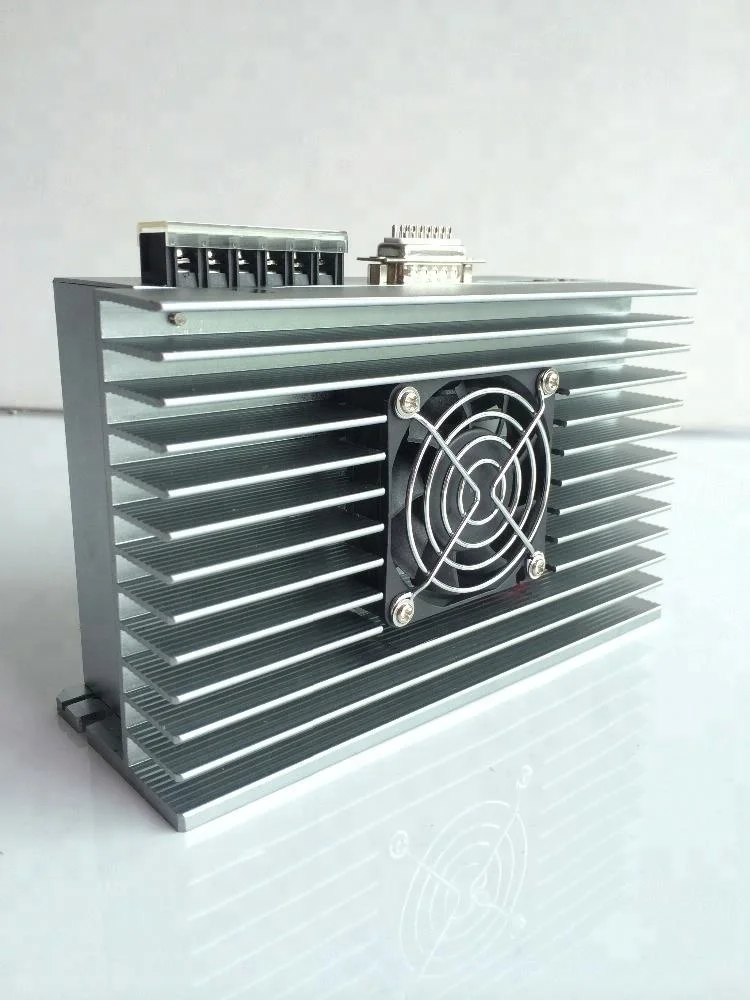

DVS3422 is full digital 3 phase stepper motor drive based on advanced DSP control. Designed and Produced by marketing demands. The circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly without noise and vibration. The voltage ranges from 120V to 270VAC. It is designed for use with the 3 phase hybrid stepper motor of all kinds with 57mm to 130mm outsider diameter, related phase current from 2.2A to 4.8A.

          ♦ 16 channels constant angle, constant torque mircsteps,upmost microstep: 60000ppr

            High response frequency: 200Kpps

        ♦ Current of winding will be reduced by approximately 50% when no step pulse command is                     received for 1.5 seconds.

        ♦ Opto-isolated signal I/O

           ♦  Drive current is adjustable in 16 channels from 2.2A/phase to 4.8A/phase

           ♦  Single power supply from 120V to 260VAC

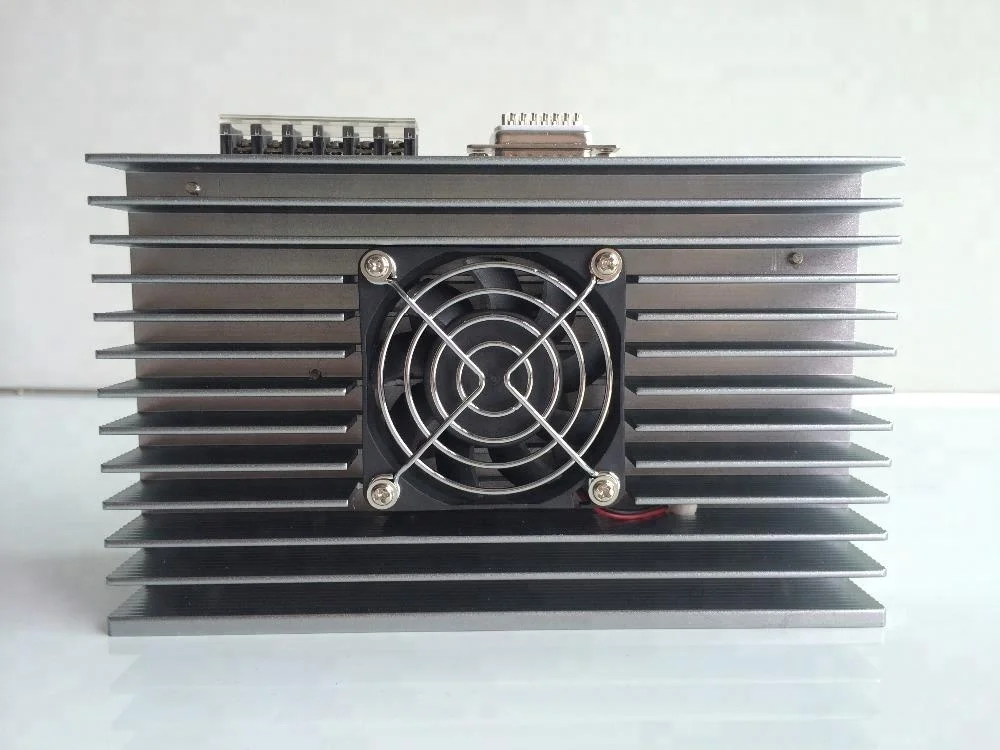

           ♦  Dimension: 178*67*108mm³             Net Weight: 1kg

DVS  3  4  22

      A        B     C     D

A  DVS:  DVS motor drive

B  Output Phase:  3 Phase motor drive

C  Max Output Current: 4.8A

D Rated Input Voltage: 220V

Notice:  The max input voltageb of the motor drive has been improved to 260V

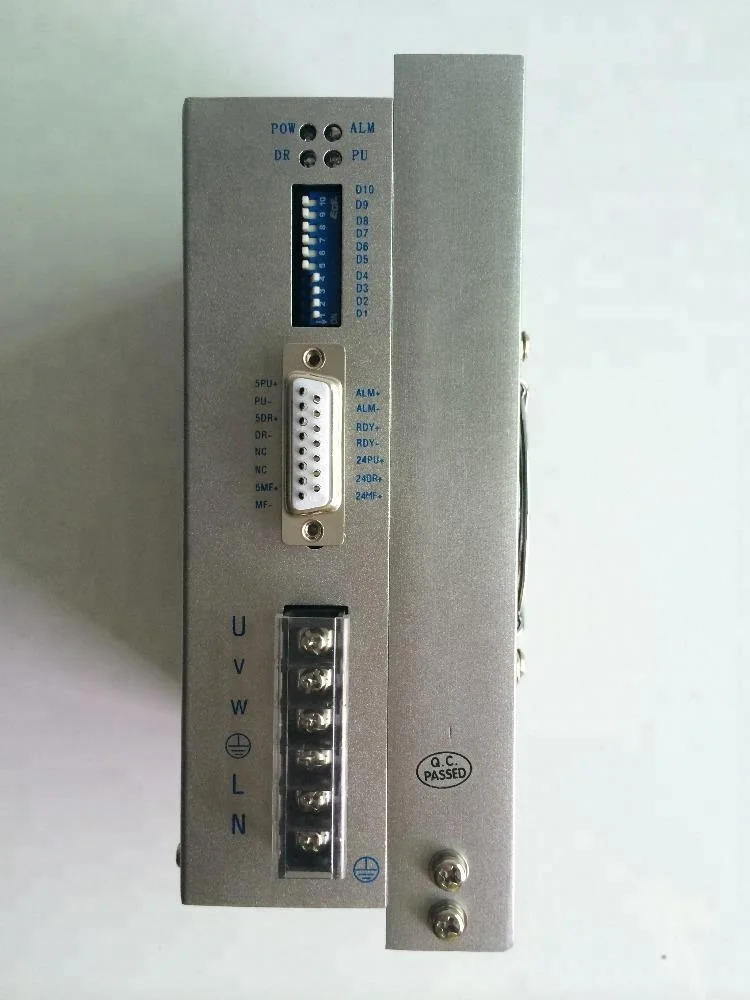

Symbol	Function	Definition
5PU+	Positive of opto-isolated input signal	Connect to +5V power supply,drive voltage ranges from +5V to +24V.Current limiting resistance is needed when it is over +5V.
PU-	DP9=OFF,PU is step pulse signal	With the falling edge of the signal PU, the motor execute an angular step. The input resistance is 220Ω. Low voltage 0-0.5V,high voltage 4-5V,pulse width>2.5μs.
	DP9=ON,PU is positive step pulse signal
5DR+	Positive of opto-isolated input signal	Connect to +5V power supply,drive voltage ranges from +5V to +24V.Current limiting resistance is needed when it is over +5V.
DR-	DP9=OFF,PU is step pulse signal	Change the motor's direction of rotation. The input resistance is 220Ω. Low voltage 0-0.5V,high voltage 4-5V,pulse width>2.5μs.
	DP9=ON,PU is nagtive step pulse signal
5MF+	Positive of opto-isolated input signal	Connect to +5V power supply,drive voltage ranges from +5V to +24V.Current limiting resistance is needed when it is over +5V.
MF-	Motor free signal	The motor current will be cut off and the driver stops working when  it is effective.
ALM+	Positive of opto-isolated input signal	The signal is effective(low voltage) when the drive is overcurrent and overheat.
ALM-	Negative of opto-isolated input signal
RDY+	Positive of opto-isolated input signal	It is effective(low voltage) when the driver is ready for receiving controller's signal.
RDY-	Negative of opto-isolated input signal
24PU+	Positive of opto-isolated input signal	Drive voltage : +24V
24DR+
24MF+
L,N	Power supply	120-260VAC
PE	Ground	Ground terminal
U	Connection
V
W

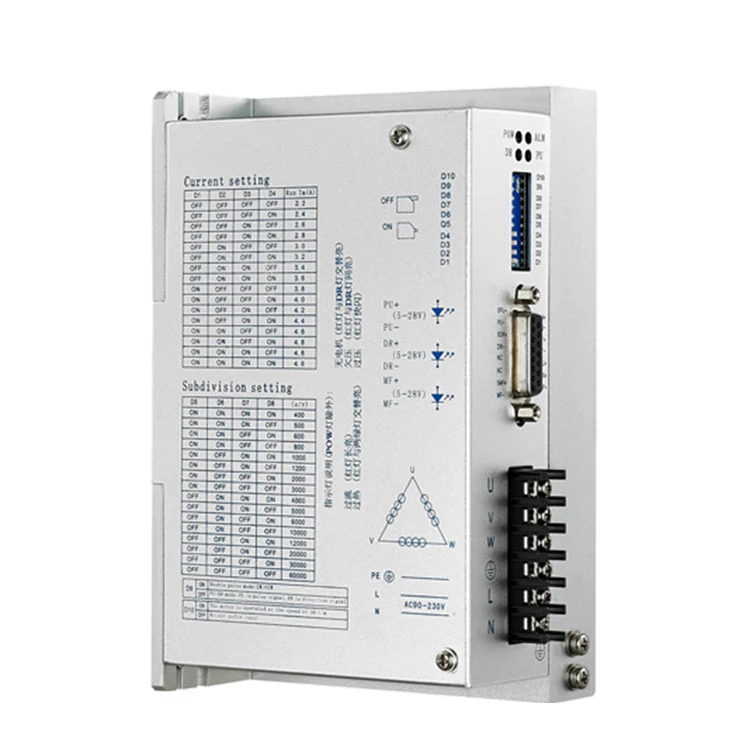

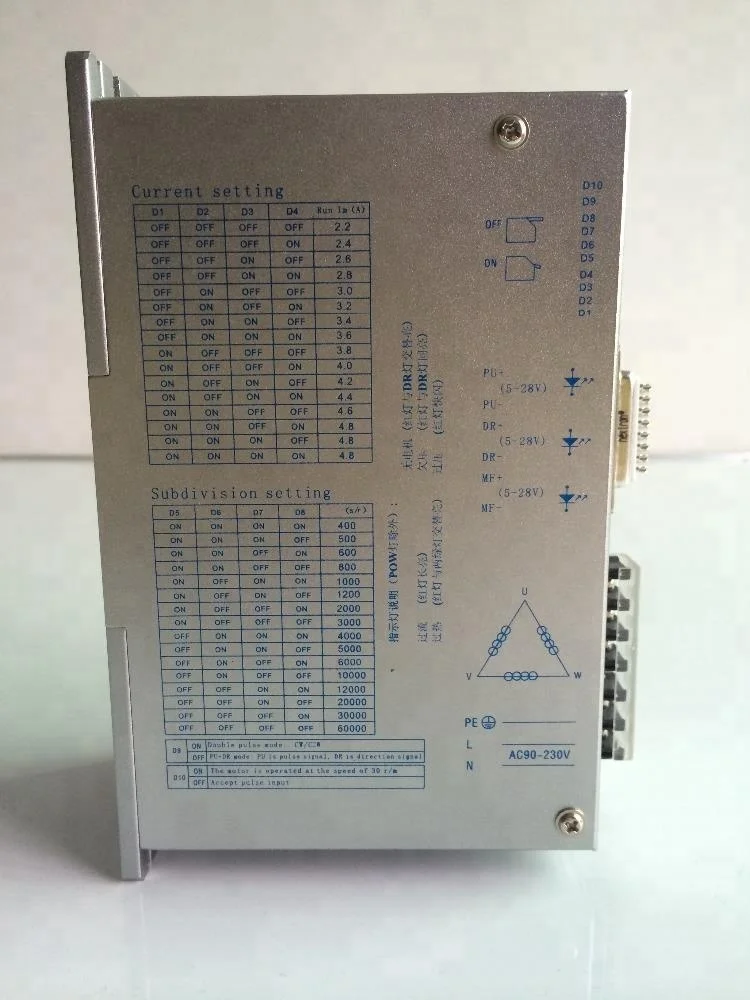

     § Stepper driver working current is set by DIP switches D1 to D4.

    § The subdivision (micro step) is set by DIP switches D5 to D8, 16 channels in total. D9 and D10 are used to set the drive function.
