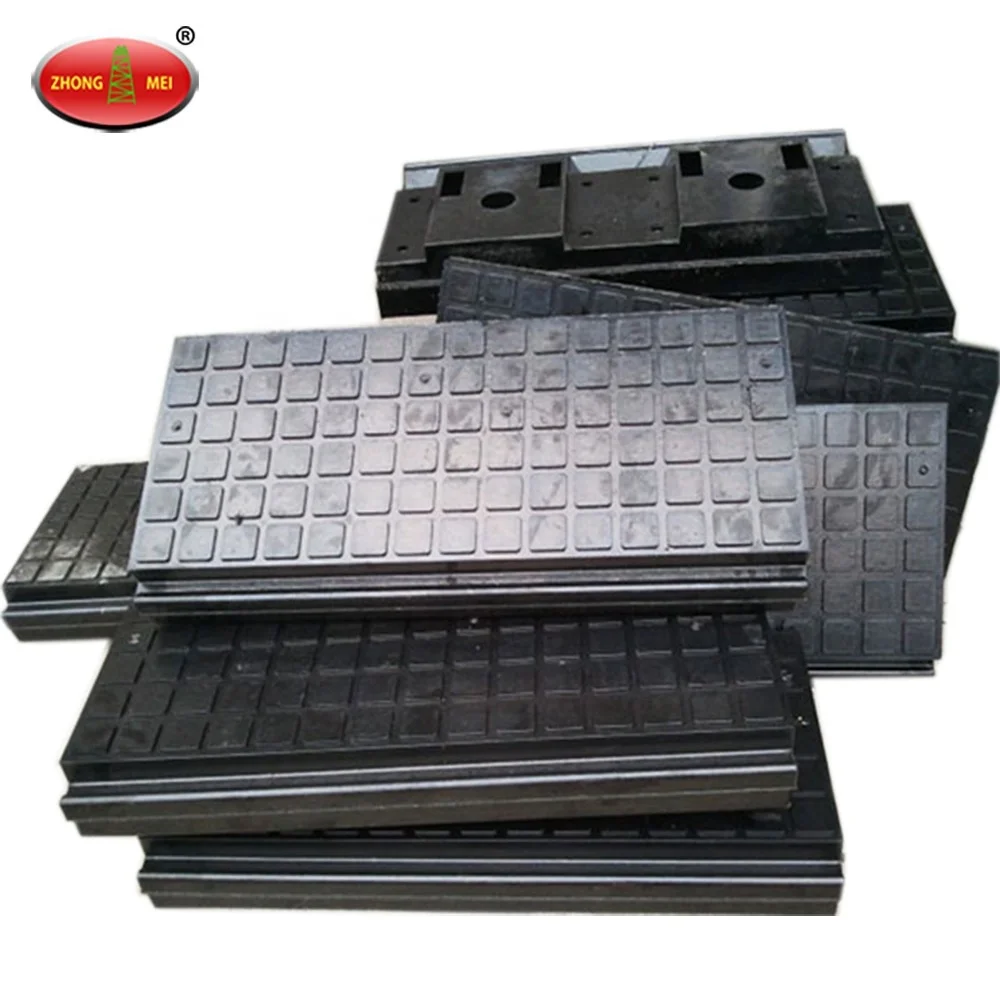

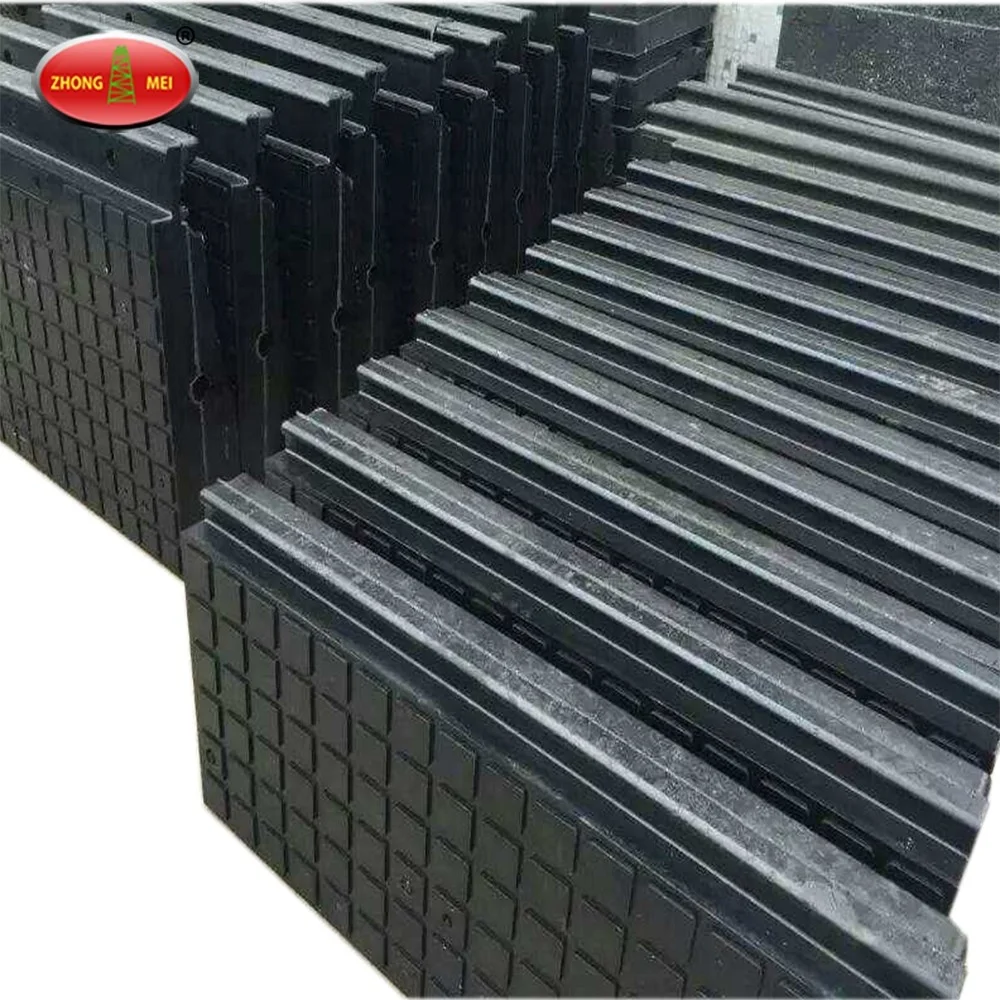

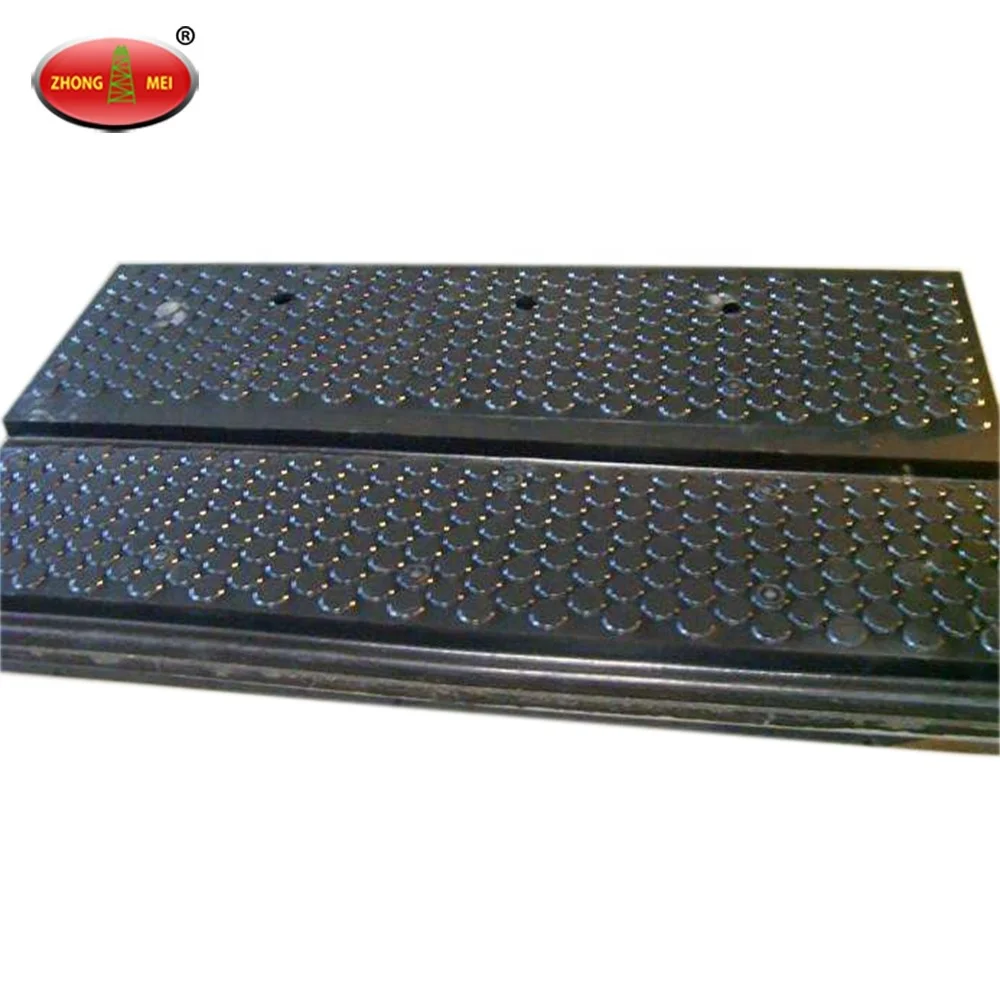

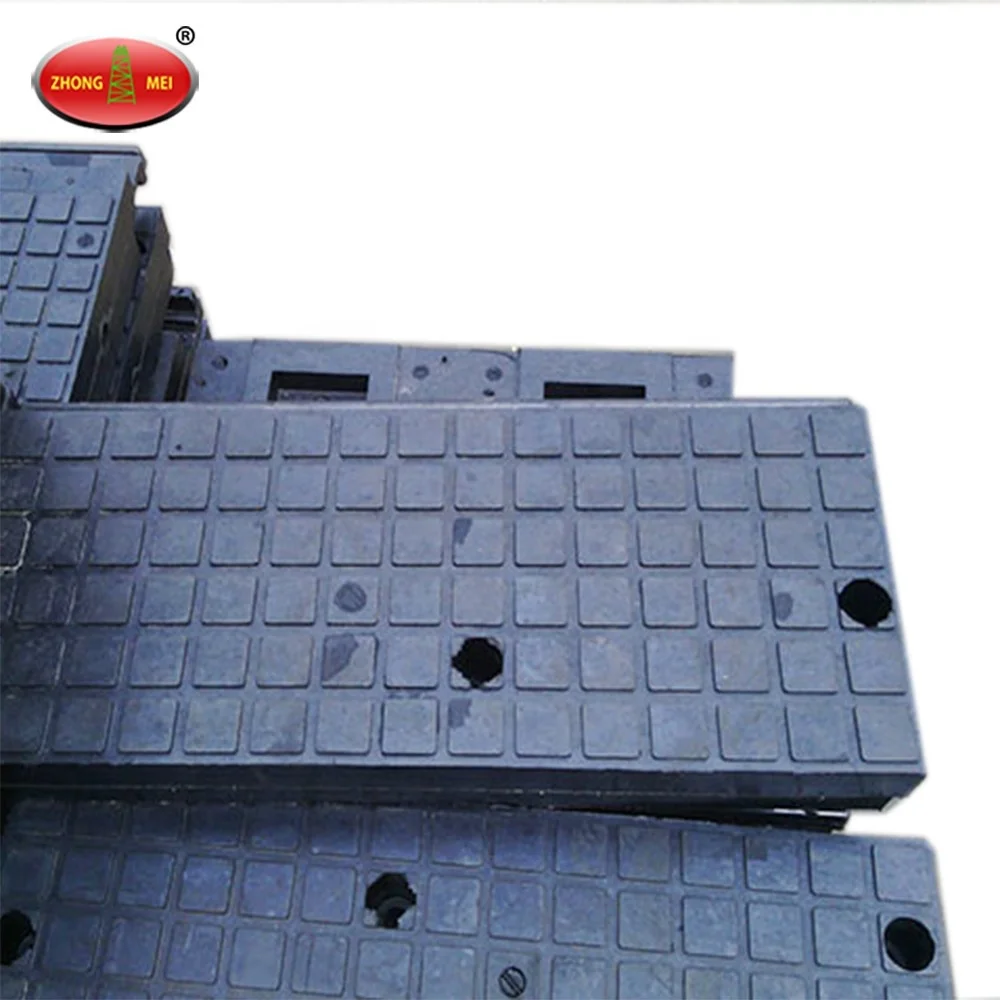

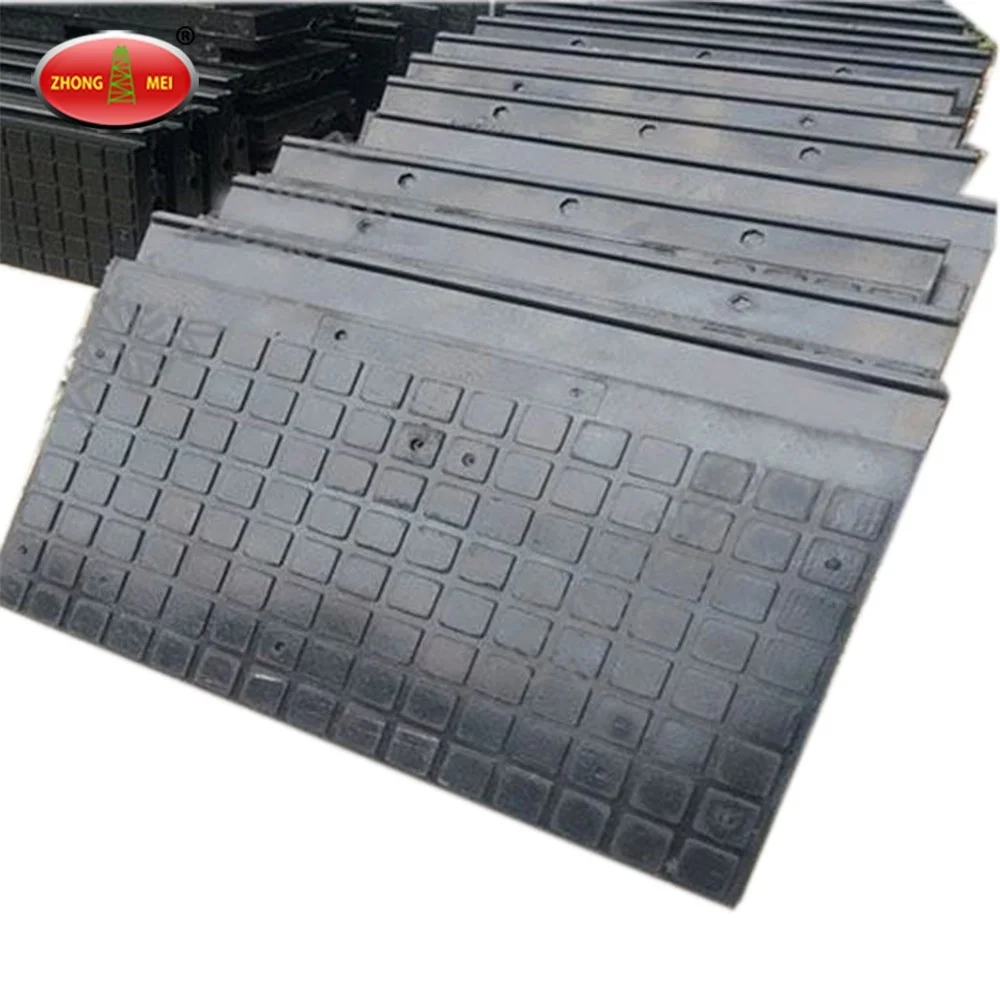

Railway Level Crossing Rubber Buffer Plate

Share on (60415235097):


Price:$500.00

Quantity:


Product Overview

Description



Company Profile


Company Profile.jpg







.pngwKhQpFUr2QqEPSO-AAAAAJSe4D0707.jpgwKhQt1No-X6ED-DqAAAAAMSNK9A325.jpgwKhQtFNo-z6EA8llAAAAAK0xfr4895.jpgwKhQtlNyUtOEbKNYAAAAAK9SCzw086.jpg7.jpg10.jpg5.JPG



Introduction


Product Introduction.jpg


Rubber Crossing board is now the world's most advanced products, with strong shock resistance, good insulation properties, wear resistance, many times less compression deformation, strong resistance, resistance to aging, not turning mud, long life and other characteristics. Using times increase from the 150,000 to 450,000, service life 10--15 years, in line with the railway speed and environmental requirements. Use it to increase the transport capacity of the motor vehicles, reducing the maintenance times and avoiding accidents caused by motor vehicle flameout. zmwm06


Rubber Crossing board is suitable for railway, highway level crossing, urban light rail  ring road level crossing and station platform, station baggage car aisle, yard, depot repair shop, outside the dedicated line, business, mining railway, highway flat crossing








Parameter


Product Parameter.jpg




















































Model



Specification(mm)



Weight(kg)



Installation Position



Length



Width



Height



P60KG-1



1650



750



202



250



In the middle of the rails



P60KG-2



1650



490



160



140



Outside of the rails



P50KG-1



1100



750



175



200



In the middle of the rails



P50KG-2



1100



480



175



100



Outside of the rails





























































Item



Unit



Standard



              Actual Performance



Hardness



Shore Degree



72-82



                        81



Working resistance



Ω



≥10



                        5.2x107



Tensile strength



Mpa



≥12.5



                        18.4



Elongation at break



%



≥250



                        291



200% Modulus



Mpa



≥9.5



                        11.8



Permanent compression set



%



≤30



                        17



Tensile strength



Mpa



 ≥10



                        14



Elongation at break



%



 ≥150



                        152
