908 Small Front Loader Mini wheel Loader/shovel loader

Share on (60415313589):


Price:$6,000.00 - $6,300.00

Quantity:


Product Overview

Description


Product Description

 TECHNICAL PARAMETERS

  • Rated loading weight: 800kg
  • Rated bucket capacity: 0.4CBM
  • Bucket width: 1,400mm
  • Track base: 1,285mm
  • Wheelbase: 2,170mm
  • Minimum swerve diameter: 4,600mm
  • Minimum ground clearance: 240mm
  • Dump height fully raised: 2,300mm
  • Reach fully raised: 750mm
  • Lifting time: 4 seconds
  • Hydraulic cycle time: 9 seconds
  • Maximum tilt angle: 300
  • Maximum bucket breakout force, lift cylinder: 28kN
  • Driving mode: four-wheel drive
  • Operating weight: 2,600kg
  • Dimensions (L x W x H): 4,600x 1,600 x 2,550mm
  • Engine model: Changchai ZN390Q
  • Engine type: in-line arrangement, water cooled, 3cylinder diesel engine
  • Engine starting mode: electric
  • Rated speeds: 2,400rpm
  • Rated power: 25kW
  • Brake mode: four-wheel hydraulic spread-shoe brake
  • Steering system pressure: 10mPa
  • Work system pressure: 16mPa
  • Color: according to the requirements of customer
  • Packaging details: nude package, 3units/40-foot HQ container
  • Supply ability: 100 units per month

 MAJOR FEATURE:

1.Using direct injection diesel engine as power, with easy startup and low oil

consumption

2.Using special drive axle, with strong ability to overcome obstacle

3.Chassis uses hinged structure, with small turning radius and flexible turning,

which applies to the operation in narrow space

4.This machine uses hydraulic operation, with simple structure, convenient

operation, good performance and reliable quality

5.Widely applying to the construction of agricultural engineering and small and

medium building such as road, coal mine, brickyard, urban construction, kiln factory,

stone material factory, prefabricated cement parts factory, etc.

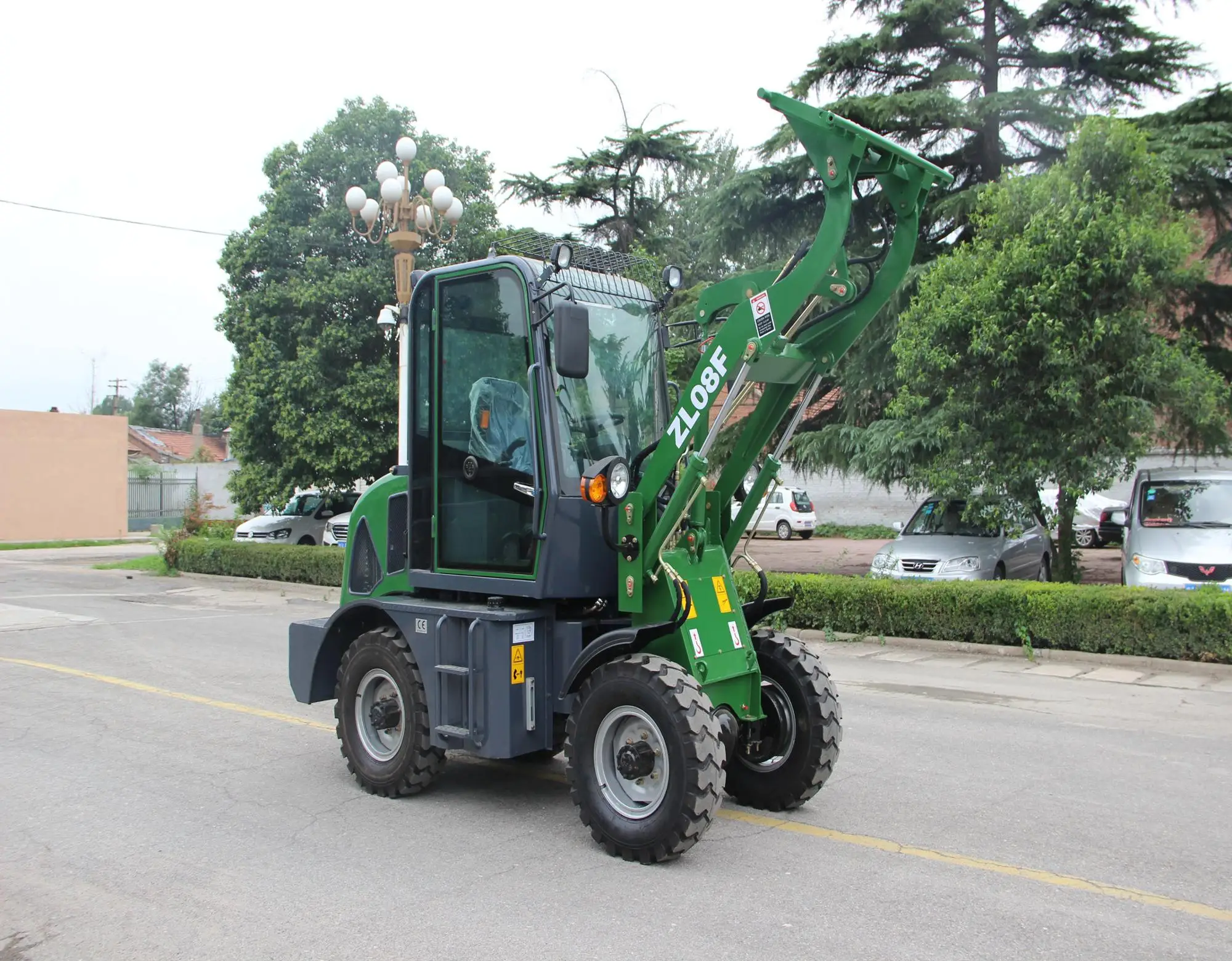

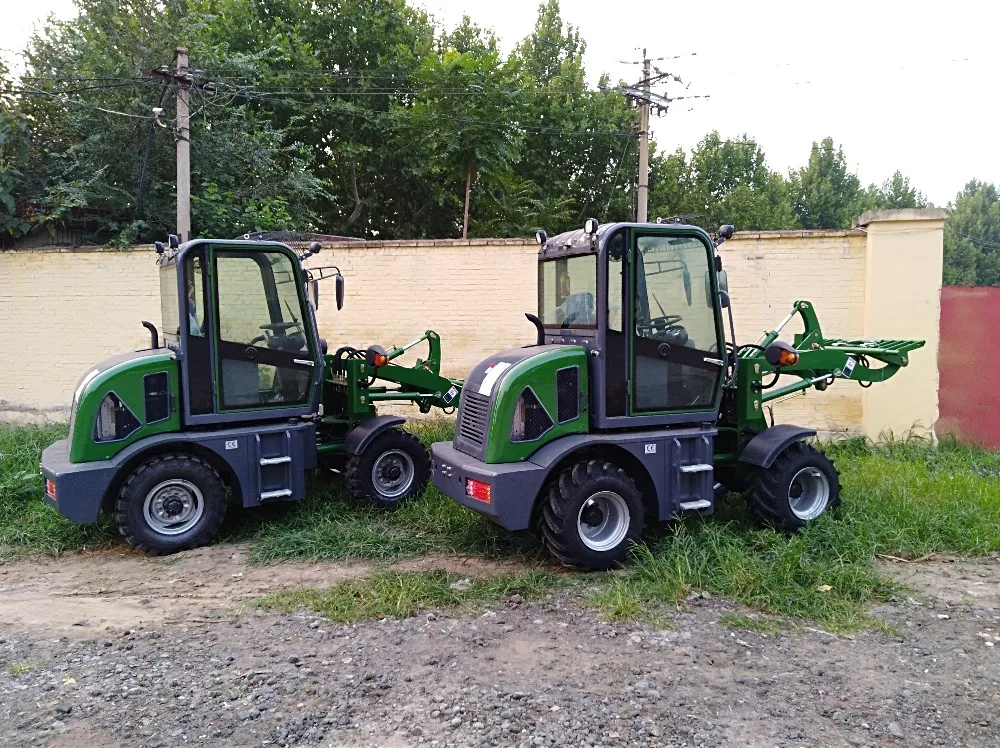

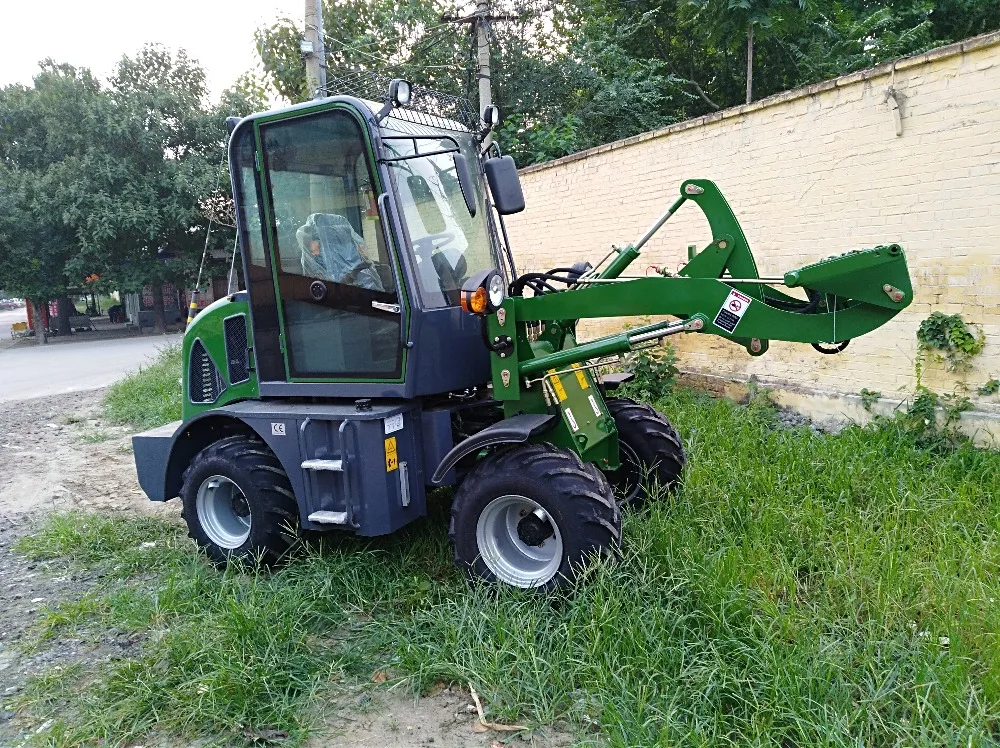

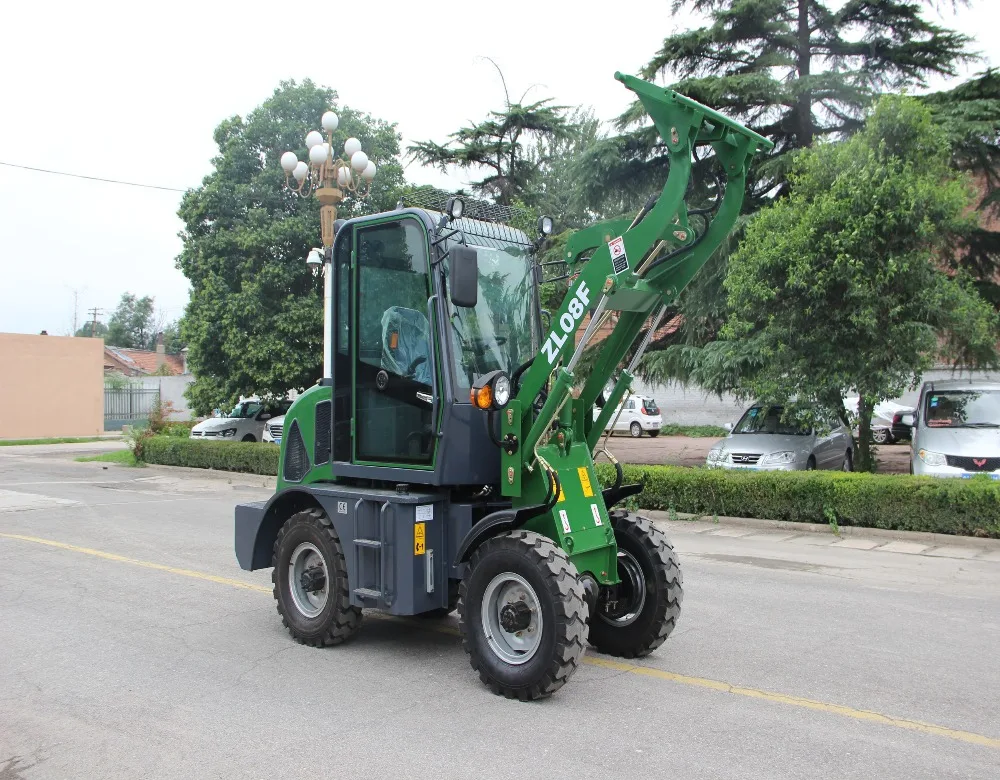

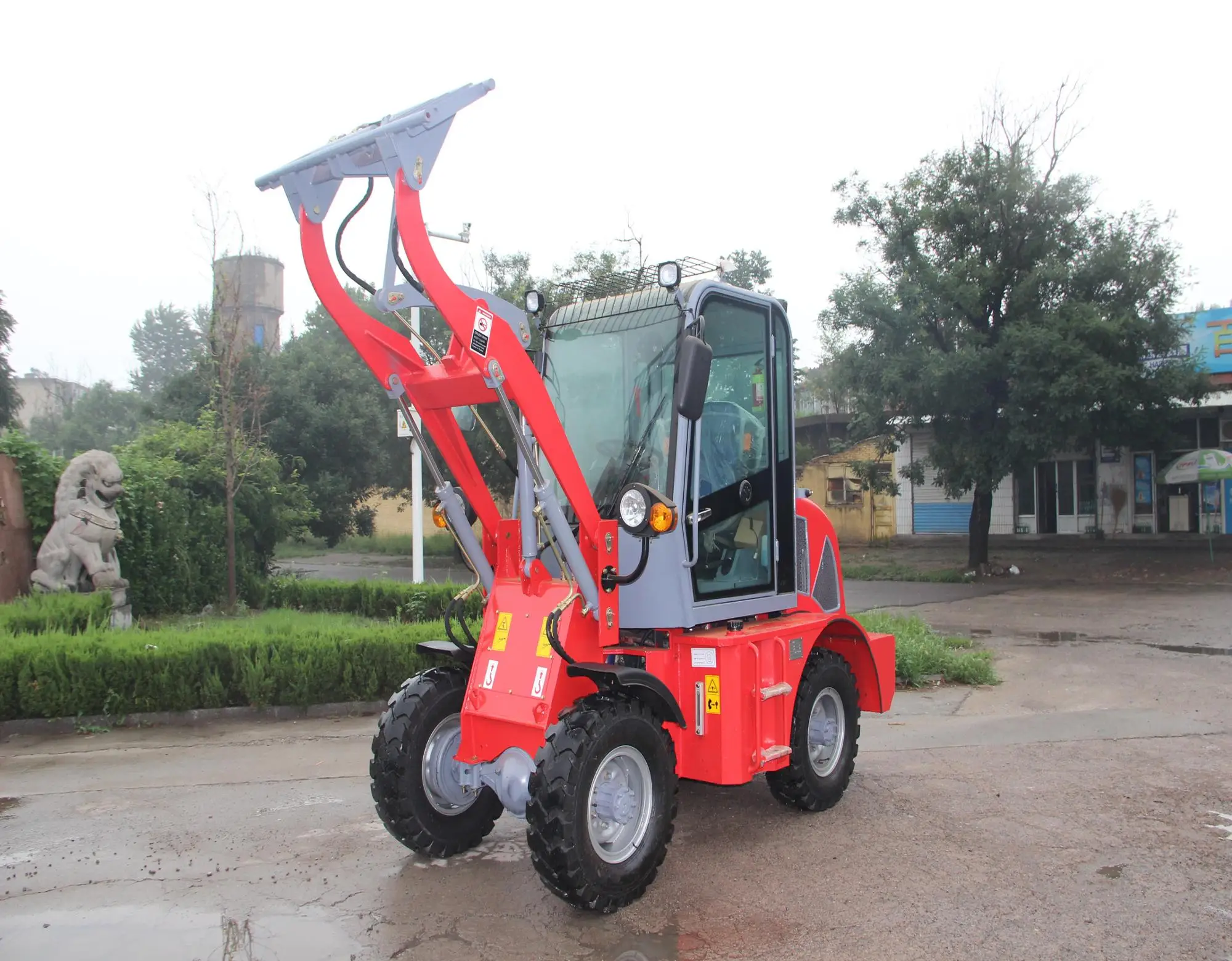

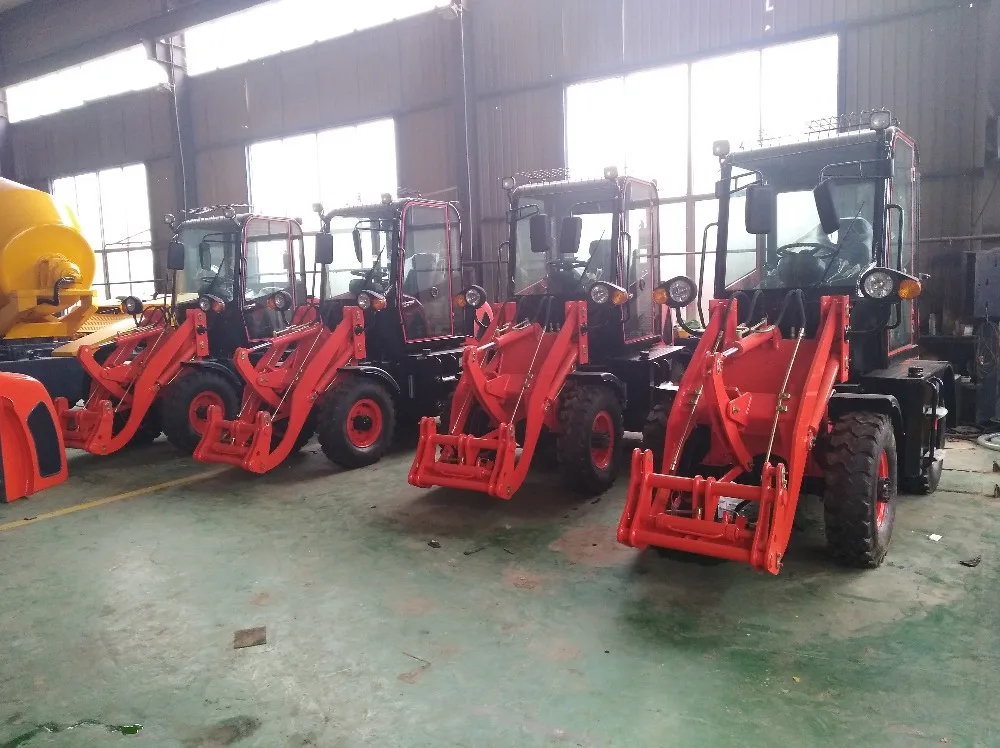

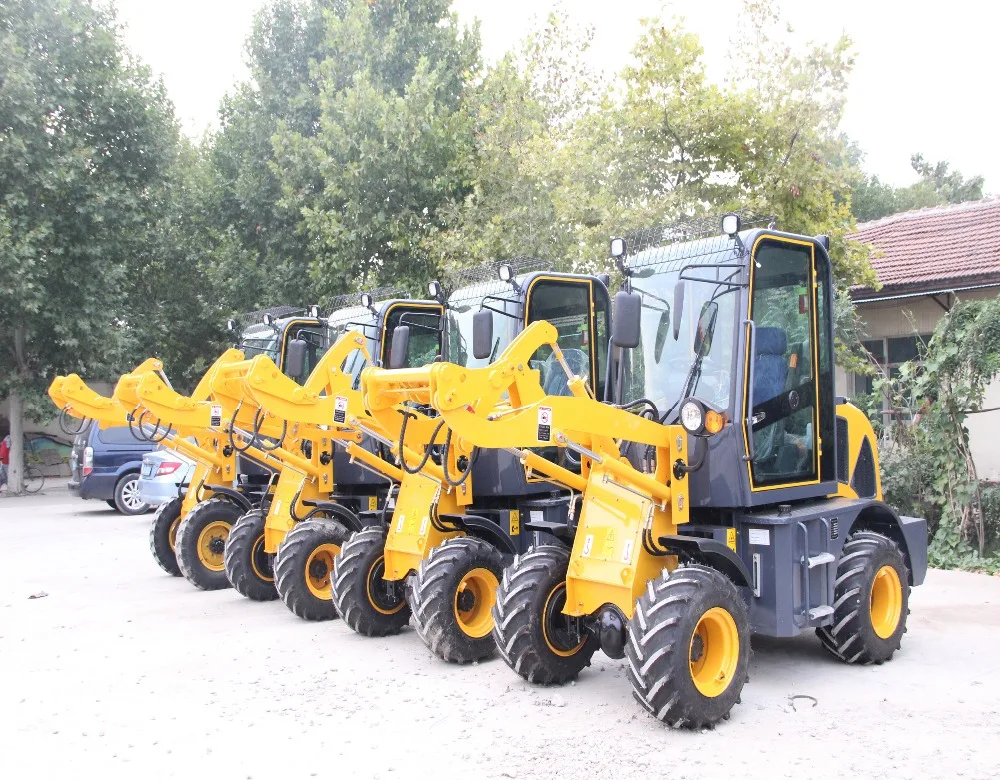

Pictures



















Our Services

    We major export to Europe market from 2010, include Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Malaysia, Australia, Canada, Brazil, Argentina, Uruguay etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or some counties in Europe or other regions.



    The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.

Packaging & Shipping

Nude packing, One 20 feet GP container can pack one unit with some accessories, but need to disassemble the cabin.

One 40 feet HC container can pack three units with some accessories.

FAQ

Q:All Of Hongyuan Wheel Loader Has CE Certification?

A:Yes.They all Have CE Certications.



Q:What Products Dose Hongyuan Machinery Company Has?

A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.



Q:Dose the Hongyuan Machinery Has Their Own Factory?

A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.



Q:Dose the Hongyuan Machinery Has Good Service?

A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
