Direct Sale DVS860 6A 80vac Stepper Motor Drive



.jpg

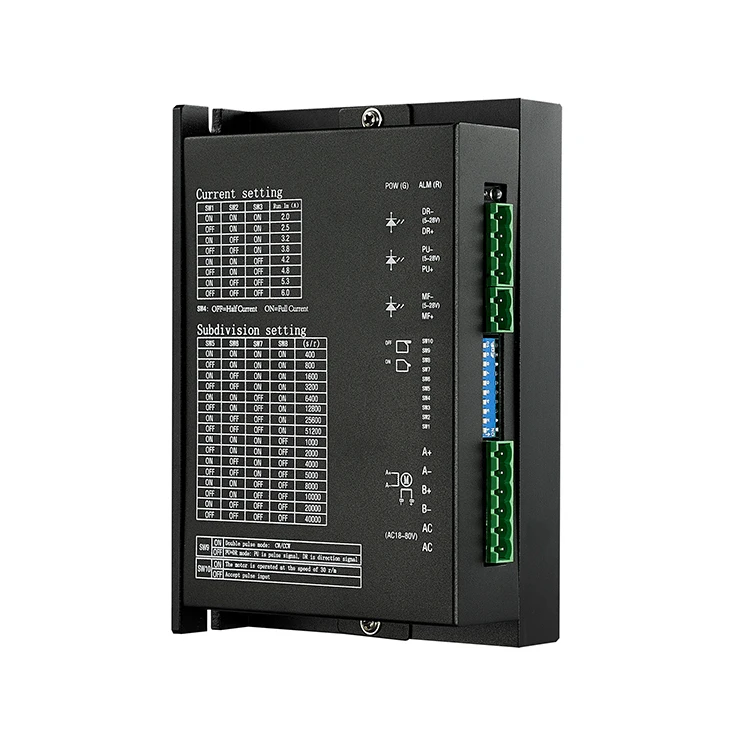

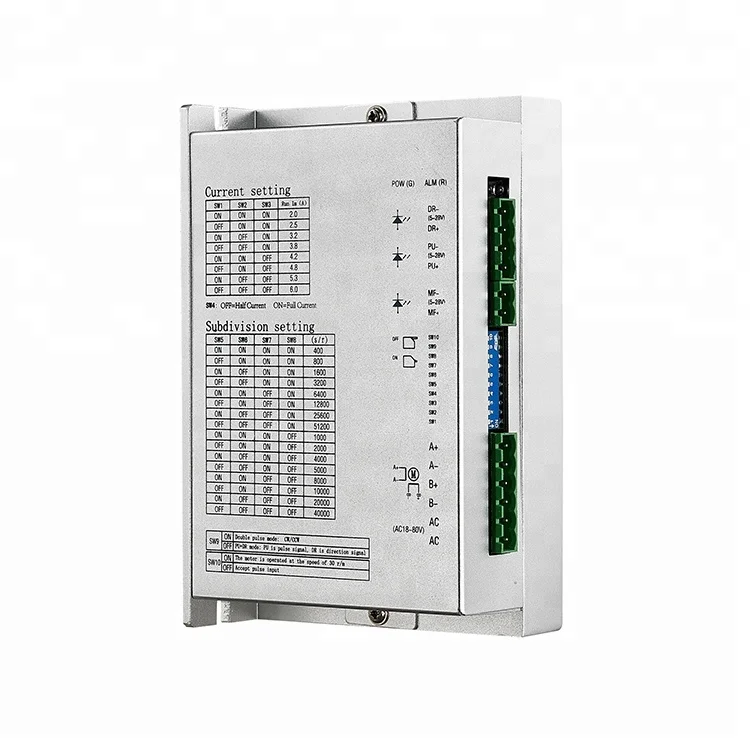

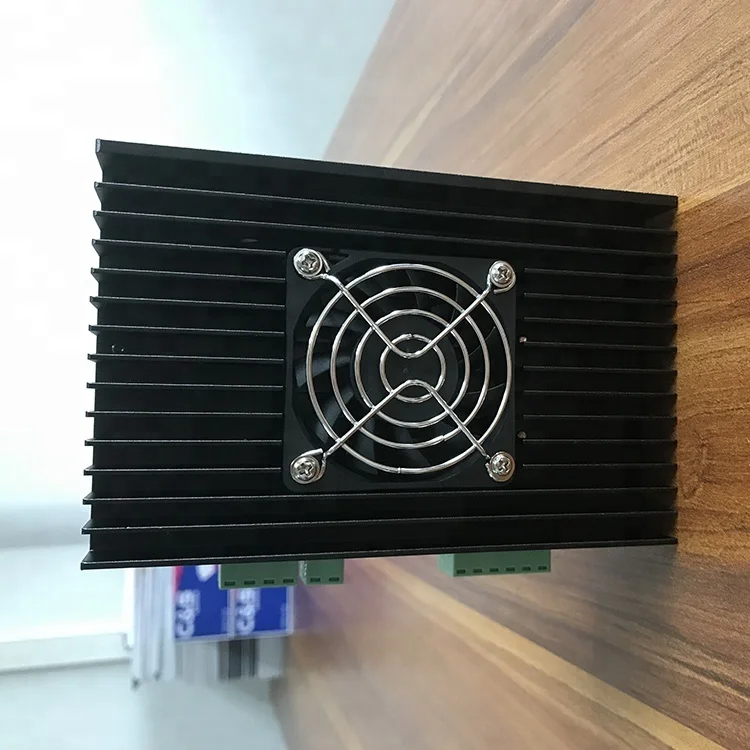

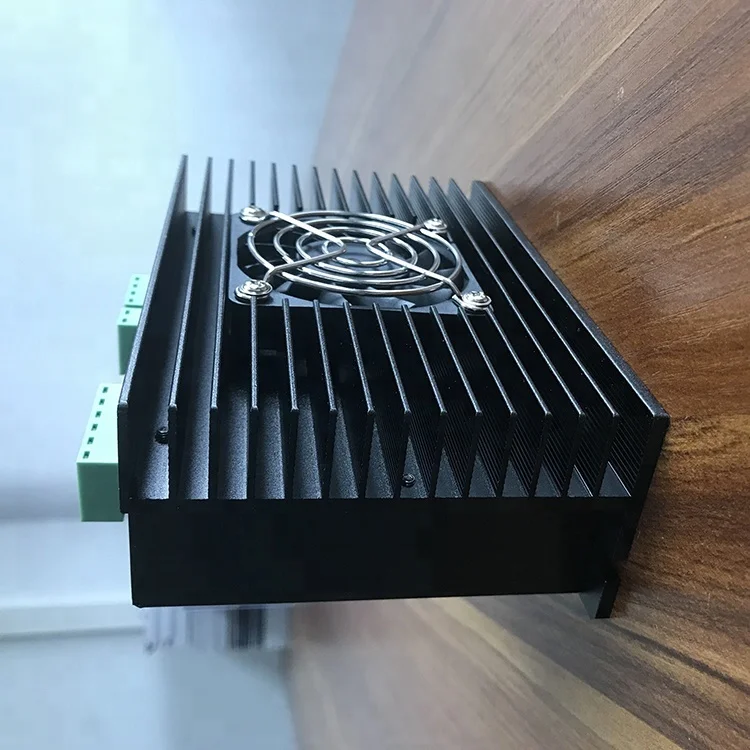

stepper motor drive

Ø Description

The DVS860 is full digital 2-phase stepper driver based on DSP control , the drive voltage ranges from 24V-110VDC/ 18V- 80VAC. It is designed for use with the 2-phase hybrid stepper motor of all kinds with 57mm to 86mm outside diameter, regulated phase current from 2.0A to 6.0A. The circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly without noise and vibration.

Ø Application

It is widely used in curving machine, processing equipment, packing machine, electronic machine, and etc.

Ø Feature

16 channels constant angle, constant torque micro steps, highest micro step: 51200ppr

Highest response frequency: 200Kpps

Current of winding will be reduced by approximately 50% when no step pulse command is received for 1.5 seconds

Opto-isolated signal I/O

Drive current is adjustable in 16 channels from 1.0A/phase to 4.0A/phase

Single power supply from Single power supply from 18V to 80VAC or 24V to 110VDC

Better to overcome the problem of low frequency vibration

Dimension : 150×53×97.5mm3;   Net Weight : 0.6Kg


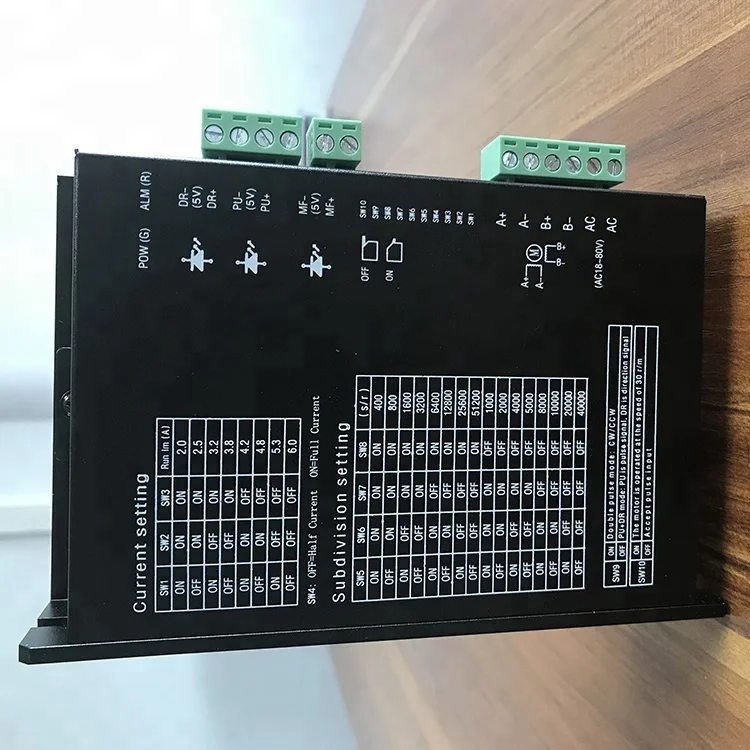

Ø Current Setting

Stepper driver working current is set by DIP switches SW1 to SW3.

Working current (A)

2.0

2.5

3.2

3.8

4.2

4.8

5.3

6.0

SW1

ON

OFF

ON

OFF

ON

OFF

ON

OFF

SW2

ON

ON

OFF

OFF

ON

ON

OFF

OFF

SW3

ON

ON

ON

ON

OFF

OFF

OFF

OFF

The SW4 is set for single and double pulse mode switch: OFF for monopulse (PU + DR); ON for double pulse (the CW/CCW).

Ø Subdivison(micro step) Setting

The subdivision (micro step) is set by DIP switches SW5 to SW8, 16 channels in total.

Subdivision (micro step) ppr

400

800

1600

3200

6400

12800

25600

51200

SW5

ON

OFF

ON

OFF

ON

OFF

ON

OFF

SW6

ON

ON

OFF

OFF

ON

ON

OFF

OFF

SW7

ON

ON

ON

ON

OFF

OFF

OFF

OFF

SW8

ON

ON

ON

ON

ON

ON

ON

ON

Subdivision (micro step) ppr

1000

2000

4000

5000

8000

10000

20000

40000

SW5

ON

OFF

ON

OFF

ON

OFF

ON

OFF

SW6

ON

ON

OFF

OFF

ON

ON

OFF

OFF

SW7

ON

ON

ON

ON

OFF

OFF

OFF

OFF

SW8

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

SW9

ON, double pulse: PU is positive pulse signal, DR is negative pulse signal



OFF, single pulse: PU is pulse signal, DR is direction signal

SW10

Self detect switch (OFF: accept external pulse, ON: the driver send pulse to make the motor work at the speed of 30r/m)

Ø CAUTION



1. The supply voltage shouldn’t exceed AC80V/DC110V.

2. Input control signal is 5V~28V, and it is not necessary to connect current-limiting resistance when it is over 5V.

3. Input pulse signal is effective with the falling edge.

4. Alarm indicator ALM lights and the driver stops working when the driver temperature is over 80℃. It restarts working until the temperature falls to 50℃. The heat sink is needed when overheat occurs.

5. Alarm indicator ALM lights when overcurrent (short of load) occurs. Please check motor’s connection and other shorts and turn the power supply on after removing the trouble.

6. Alarm indicator ALM lights when no motor connected or poor connection. Please check motor’s connection and turn the power supply on after removing the trouble.

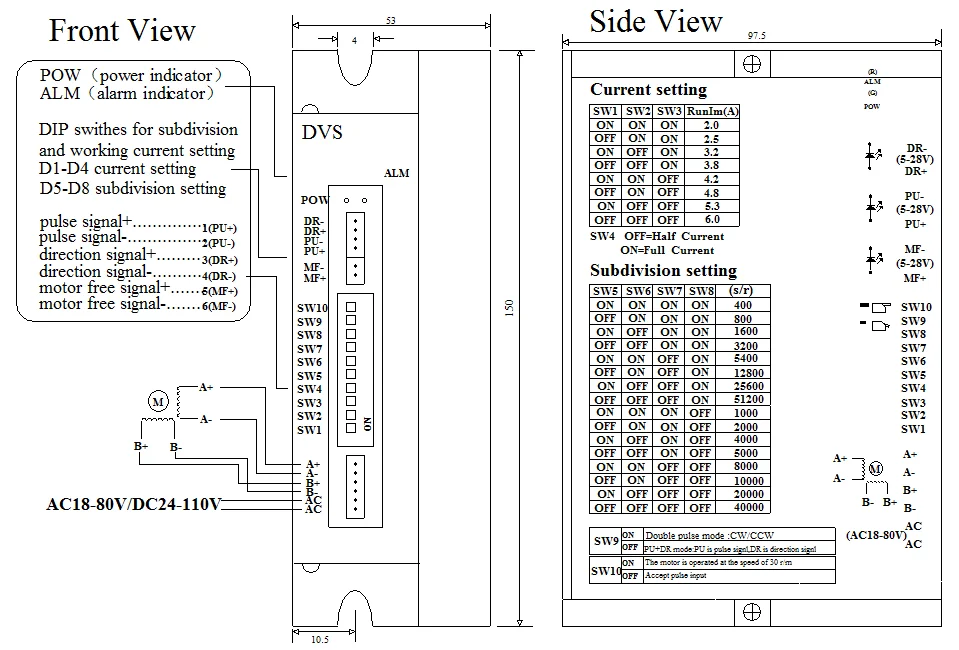

Ø Dimension Diagram And Wiring Example


Ø Terminal Function

Port

Connector pin No.

Symbol

Functions / Applications

Definition

Signal port

1

PU+

Positive of opto-isolated input signal

Connect to positive supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V.

2

PU-

DP9=OFF, PU is  step pulse signal

With the falling edge of the signal PU, the motor executes an angular step. The input resistance is 220Ω.

Low voltage 0-0.5V, high voltage more than 4V, pulse width>2.5μS.

DP9=ON, PU is positive step pulse signal

3

DR+

Positive of opto-isolated input signal

Connect to the end of the power supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V.

4

DR-

DP9=OFF, DR is direction signal

Change the motor’s direction of rotation. Input resistance is 220Ω.

DP9=ON, DR is negative step pulse signal

Low voltage 0-0.5V, high voltage more than 4V, pulse width>2.5μS

5

MF+

Positive of opto-isolated input signal

Connect to the end of the power supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V.

6

MF-

Motor free signal

The motor is in the free state and the driver stops working when it is effective.

Motor and power supply

7

V-

Power supply

AC18-80V

DC24-110V

8

V+

9

A+

Connection


10

A-

11

B+

12

B+
