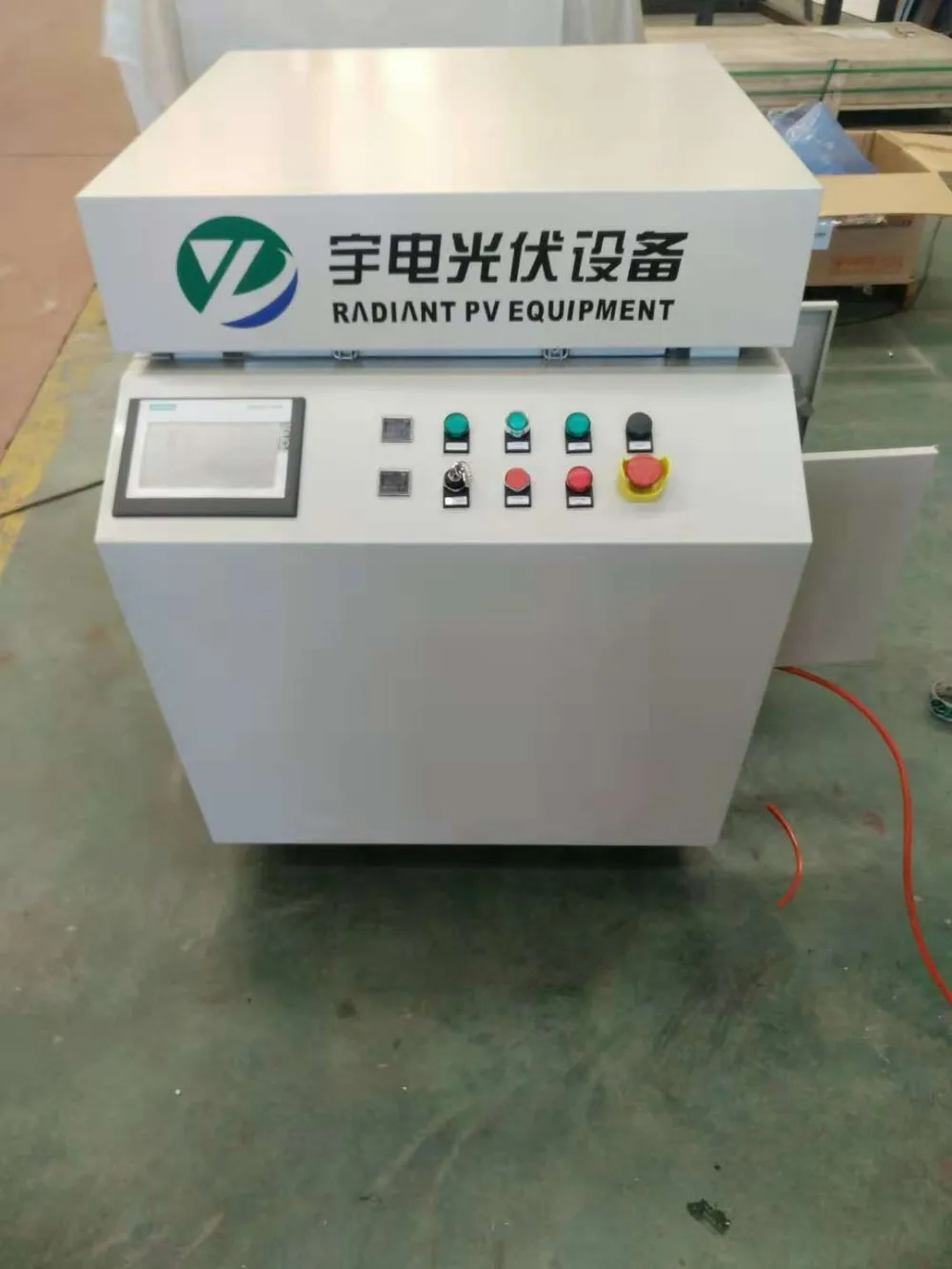

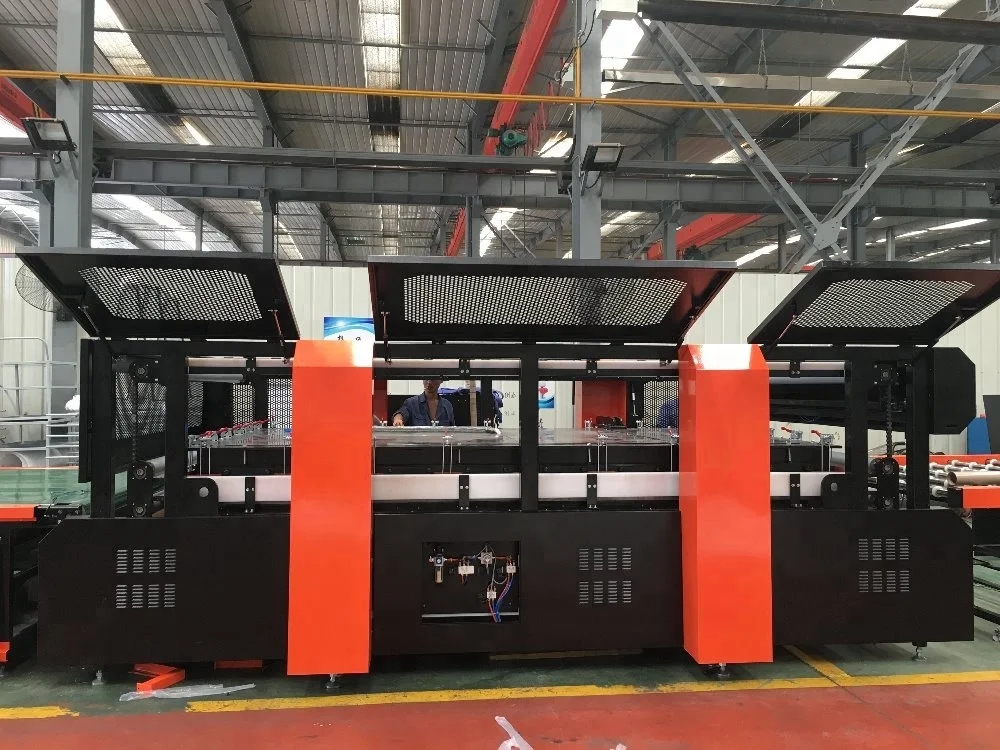

Radiant yudian Solar Panel Laminator solar PV module laminating machine

Share on (60415964410):


Price:$20,092.00

Quantity:


Product Overview

Description





Introduction

Introduction



Solar Panel Manufacturing Equipment( solar panel machine for manufacturing solar panel,Keyland PV module making machines to manufacture solar panels)
1Mw ~50 MW turnkey Solar panel manufacturing line is a semi-automatic /Full automatic Line for the manufacturing of solar panels with high quality and efficiency.
This is a good solution for who wants to enter in the industry as a solar panels manufacturer with the strength of extreme flexibility of the line permits an easy, quick and cost competitive upgrade to higher levels of automation and capacities.







Product Desription

Product Desription


























































Main parameters of semi-automatic laminator


Model


YDB-2222


Laminate area


2200mm x 2200mm


Dimension


2900x2500x1200


Weight


6500kg


Peak power


47 Kw


Pumping speed


70L/S


Work power


22 Kw


Ultimate vacuum


20-80 Pa


Maximum temperature


180℃


Temperature uniformity


Multi-point temperature control


Work temperature


100℃~160℃


Controllable temperature precise


at the regulated set temperature value


Unevenness of the worktable


Unevenness ≤200Nm/mz


Air discharge speed


Can adjust continuously within 0~50 L/S


Max. Laminate


28mm


Work vacuum degreeThickness


80~20Pa



























































Semi-auto Laminator Model


YDB-2222


YDB-1814


YDB-1122


YDB-1118


Laminate Area


2200*2200


1800*1400


2200*1100


1800*1100


Laminate Thickness


28mm


28mm


24mm


24mm


Total Power


45KW


45KW


24KW


24KW


Working Power


21KW


21KW


12KW


12KW


Vacuum Rate


70


70


30


30


Weight


6.5


6


4.5


4














Euipment features


1. Flexible working modes : Automatic&manual normal state, it can work automatically with high efficiency and stability; In installation or other condition, it can work manually. Both modes are convenient to operate and control.


2. Special design for upper cover to prevent rubber sheet wrinkle : Extends the service life of rubber sheet by one time above. It improves lamination flatness and reduces cell panels' wrinkle.


3. Multi-position control Technology : The combination of vacuum technology, pneumatic transmission technology, PID auto-tuning technology, programmable control technology, and electric relay control technology realizes digital control for vacuum system, heating system and the whole process.


4. Control system(Import element&high allocation) : Uses imported Siemens PLC&Siemens touch screen with super reliable and high precision performance. It meets the standards of industrial automation control.


5. Network control between equipments : Reserve serial interface for network interconnection between equipments. It is suitable for intensive management of modern enterprises.


6. Adjustable laminated pressure : You may adjust and control the laminated pressure precisely, improve process level as well.


7. Patent rights : Modern shape with design patent.






Note: Customized specifications are available upon your requirements.






Equipment Advantage

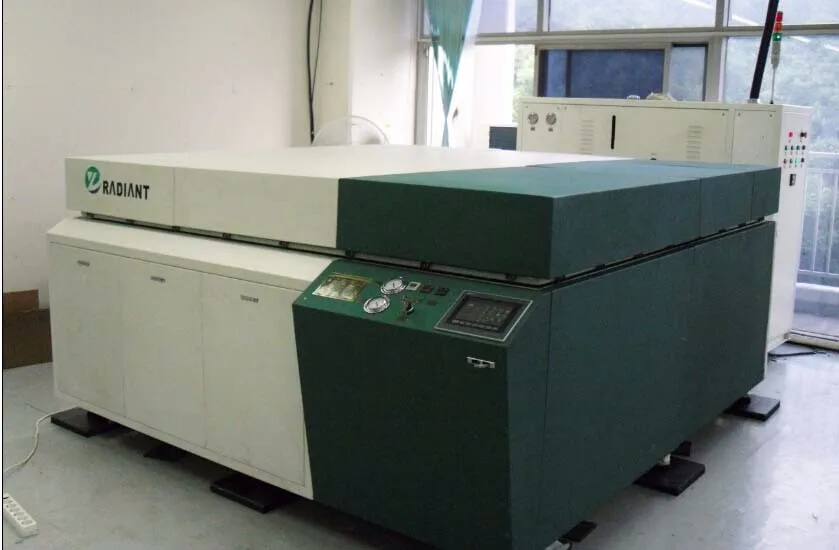

Radiant brand laminator


The silencing system keeps the noise under  70DB for 1 meter away


Ultrasonic examination is executed to the heatingboard, makes good emperature even eno flaw area


Upper chamber cover automatic open, saves 30% of silican board replacement time


Dynamicand statie quilibrium testing is executed to the transmission system, makes no mismatch of module during moving forward


To adopt multi procedures for of temperature testing, mechanical temperature meter is also used, makes sure the safty enviroment even when PLC system halted

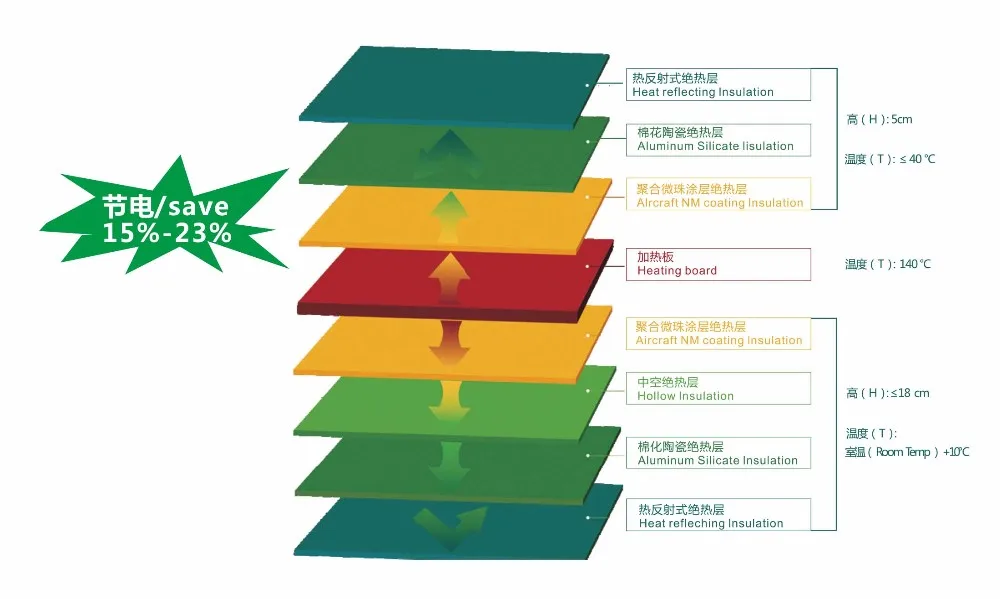

Seven Patent Insulation Technology










































Heat reflecting Insulation


H : 5cm


Aluminum Silicate lisulation


T : less than 40 ℃


Aircraft NM coating Insulation


Heating board


T : 140 ℃


Aircraft NM coating Insulation


H : less than 18cm


Hollow Insulation


T : Room Temp


Aluminum Silicate Insulation


Heat reflechinp Insulation






Why choose us?


1.the company professional to do solar panel production equipment


2.the quality of solar panel production equipment


3.stable product quality , supply, the good after sales service







Company Information






-lauren


Yudian is a professional provider of intelligent equipment products and automatic integrated solutions. After decades of development, Yudian has continually forging ahead in the photovoltaic manufacturing equipment field, and gradually forms an integrated service system which combines R&D, production, sales and professional technical consult, is recognized as a national high-tech enterprise.

We provide turnkey solution for solar PV module making line!!
