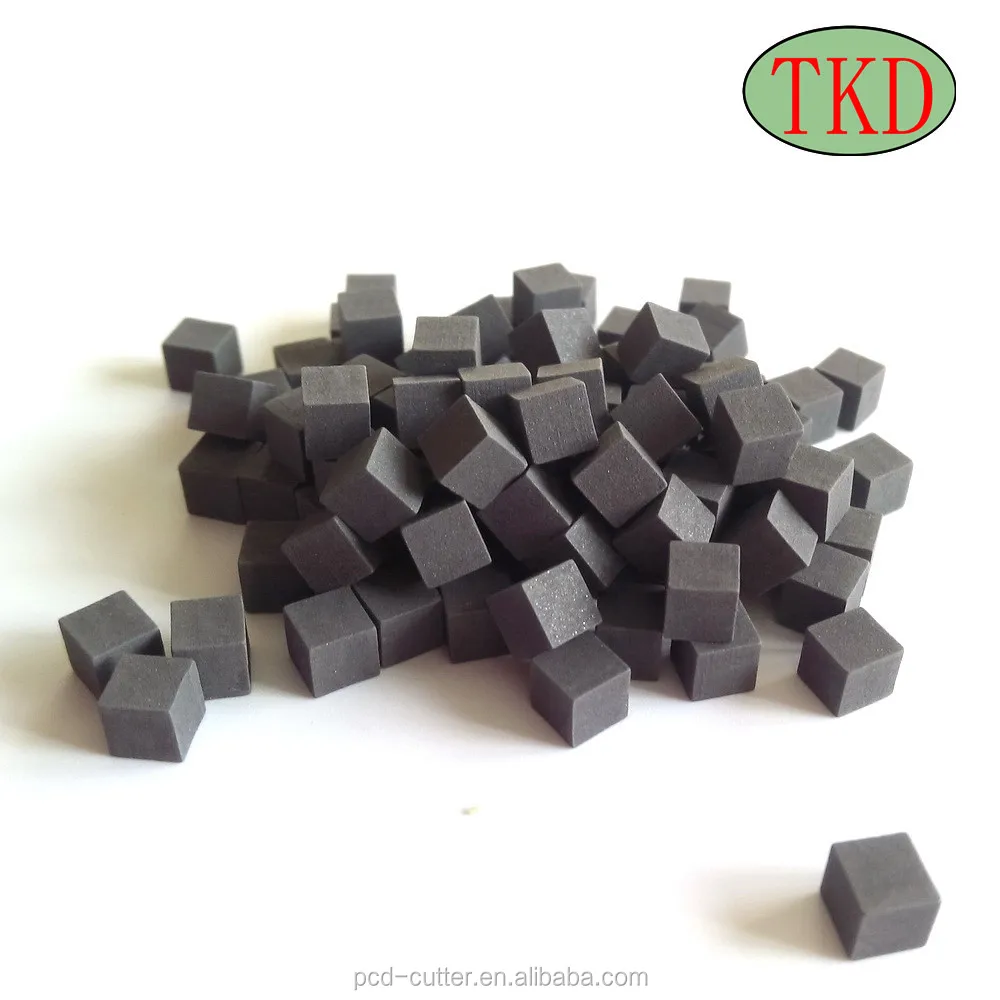

Thermal Stale Polycrystalline Diamond TSP cubes for diamond drill bit

Thermal stable polycrystalline diamond(TSP diamond) for drill bits cutters

Shape: Cubes, Cylinders, Discs, Rectangles, Triangles, hemi-Spheres, oval etc.

Application: As gauge protector and drilling cutters inserting for rock cutter machines and coal mining core drill bits for geotechnical (mining,water well drilling) tunneling, quarrying,construction and machinery aspect.

Also we can modify the composition to softer type polycrystalline diamond, which can be used for natural diamond cutting and polishing way.

Working formation:  Soft rocks and sea drilling with hardness 3-6 degrees, such as lime rock, marble, shale, etc, and in medium to hard rock with coarse grains formations.

More detailed:
Thermally stable diamond drill bit cutters maintain sharpness at temperatures up to 2000°F and are stronger to withstand drilling impact forces. Drill bits employing the TSP cutters are capable of reducing overall system costs through increasing rates of penetration and bit life.

TSP materials with increased fracture resistance, can now be brazed with high attachment shear strength using microwave and combustion synthesis brazing.

With so many advantages, the tsp bit will be the fourth-generation drill bit for petroleum and geothermal drilling applications.

We have advanced techniques to test the impact resistance, thermal stability and wear-resistance. to meet different clients special requirement.

Henan Precision Diamond is the professional superhard materials and tools manufacturer in China, based in zhengzhou city, which is the superhard materials industry center, with 14 years of experience in development- research, we TKD have become the gaint for PDC and PDC tools in this area.

We totally own 18 sets of hydraulic press machines, 12 sets of 650 mm diameter press for pdc mining cutters production, 3 sets of 750mm diameter large hydraulic press for pdc oil cutters production, and rest of 3 sets for pcd(polycrystalline diamond) items production.

Also we own the high technique for PDC tools welding and our engineers keep long years with drilling field experiences, we know how to choose right PDC cutters to make qualified tools to maximum increasing the performance.

Our factory production items are below:

1.   PDC (polycrystalline diamond compact)

1) PDC cutter for oil&gas drilling

2) PDC cutter for mining and construction

3) PCD cutting tool blanks

2.   PCD (polycrystalline diamond)

1) TSP cutter(Thermally stable PCD)

2) PCD sharps for natural stone bruting

3.   Welded PDC Tools and others

1) PCD/PCBN tools

2) PDC picks

3) PDC bits

4) Diamond wheels

We are the PDC materials and tools specialist, aiming to offer you the best pcd drilling, cutting, grinding products and services, after-sales service.

We are always here for you ! Please contact us directly when you have inquiries or need help from our team !

Our Contact details are as below:

Henan Precision Diamond Co., Ltd

Tel: 86-371-86171582

Skype: Margaret.tkd

 Contact: Margaret
