Used Tire Shredder
- Category: Rubber Recycling Machinery >>>
- Supplier: Jiangyin Xinda Medicine And Chemical Machinery Co. Ltd.
Share on (60416590439):
Product Overview
Description
Manufacture Facility
Honor&Certifications

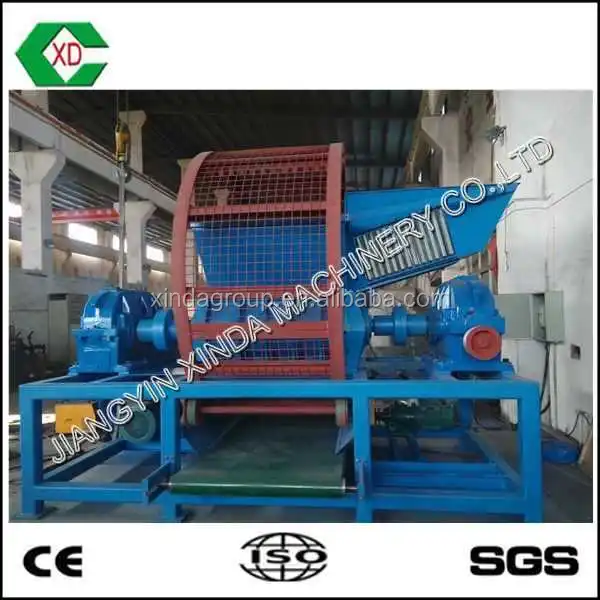

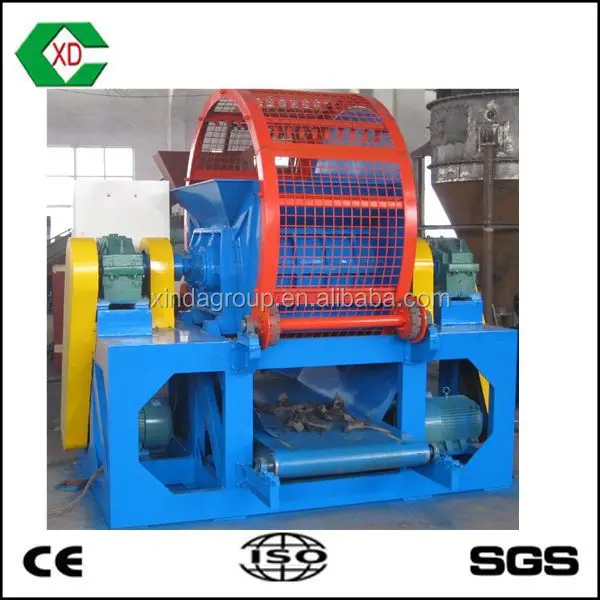

Used Tire Shredder
Specification:
1.Feeding size(mm): ≤Φ1200
2.Output size(mm): ≤60×60
3.Motor power(Kw): 45+45+7.5
4.Main shaft speed(RPM): 10
5.Weight(T): 15
Product Description
Introduction:
ZPS Tire Shredder is used to shred radial tire and fiber tire into tire chips of 50x50mm size in ambient process, the tire needs to be debeaded before shredding.
It mainly consists of motor, speed reducer, machine frame, shredding blades, rotary screener, transmission system, etc.
Technicial data:
| Model | 600 | 900 | 1300 |
| Capacity(t/h) | 0.5-1 | 0.8-3 | 2-5 |
| Feeding size(mm) | ≤600 | ≤850 | ≤1250 |
| Output size(mm) | ≤50*50 | ≤50*50 | ≤60*60 |
| Motor power(kw) | 34 | 34 | 97.5 |
| Main shaft speed(r/min) | 16 | 14 | 10 |
| Weight(ton) | 4 | 6.8 | 18 |
Description:

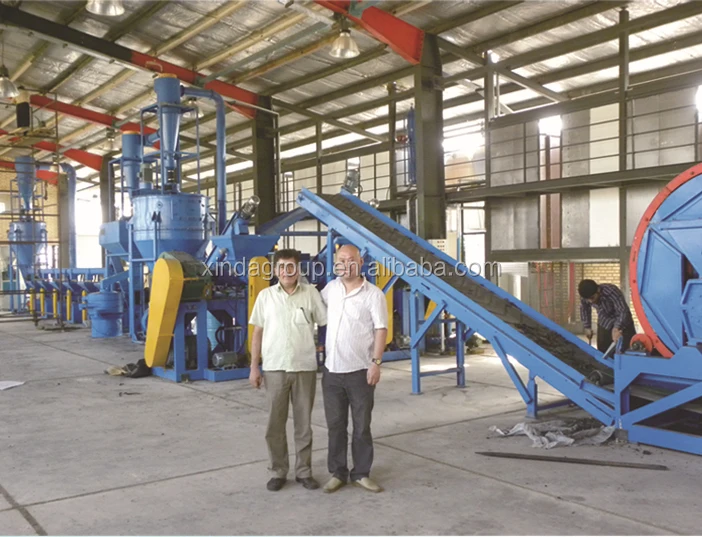

The Whole Tire Recycling Rubber Granule & Powder Production Line
