Безопасные Шкафы для легковоспламеняющихся жидкостей для химических веществ, шкаф для хранения краски
- Category: >>>
- Supplier: Wuxi Huanawell Metal Manufacturing Co. Ltd.
Share on (60417038698):
Product Overview
Description
Product Description
Product Application-Combustible Liquid Chemical Safety Cabinet
Industrial Safety Cabinet - ZYC
Combustible Liquid Storage, Explosion proof, fire proof, industrial safe storage, chemicals storage
Conforming to OSHA 29 CFR 1910.106 & NFPA Code 30
Industrial safety cabinet is intended to store combustible liquid and some dangerous chemical material and products
Industrial Safety Cabinet - ZYC
Combustible Liquid Storage, Explosion proof, fire proof, industrial safe storage, chemicals storage
Conforming to OSHA 29 CFR 1910.106 & NFPA Code 30
Industrial safety cabinet is intended to store combustible liquid and some dangerous chemical material and products
Model No. and Color Options | ZYC004R/Red |
Capacity | 4 gallons/15Liter |
1No. of Doors | 1 |
Door Type | Manual closing |
No. of Shelves | 1 |
Adjustable Shelves | Yes |
Dimensions (Exterior) | 560H*430W*430D (mm) |
Dimensions (Interior) | 450H*340W*345D(mm) |
Compliance | OSHA 29 CFR 1910.106 & NFPA |
Detailed Images
* Designed to meet OSHA and NFPA 30 standards, flammable cabinet is constructed of sturdy 18-gauge (1-mm) thick double-wall,welded steel with 1-1/2-in (38-mm) of insulating air space for fire resistance.
* High-performance, self-latching doors close easily and securely for maximum protection under fire conditions.
* Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.
* For added security, Solid-K™ handle comes with a cylinder lock and key set or accepts an optional padlock.
* Ref-L™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a
flashlight.

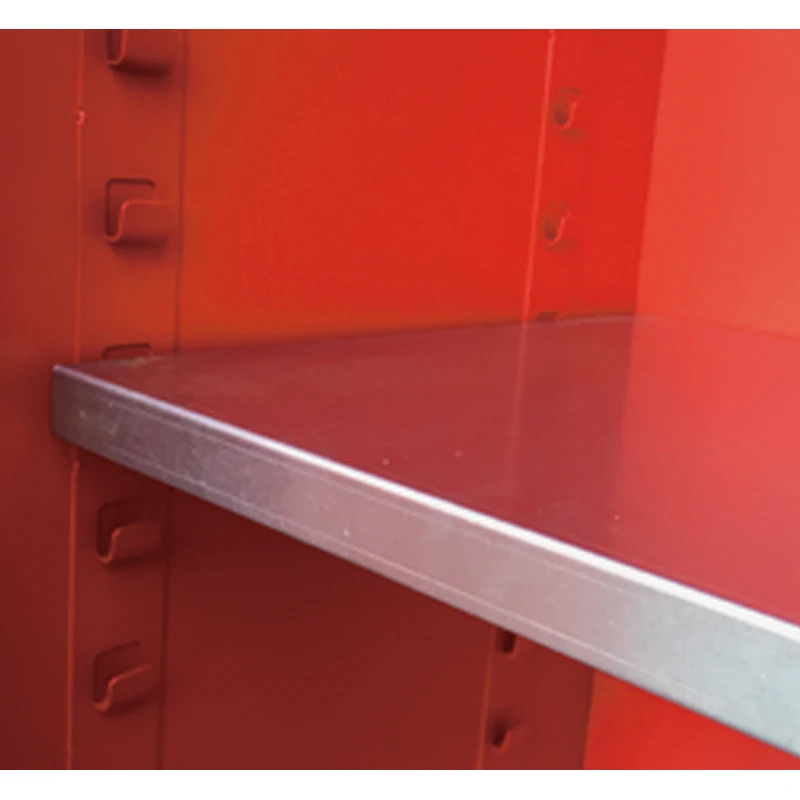

* Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on 2.36-in (60-mm) centers for

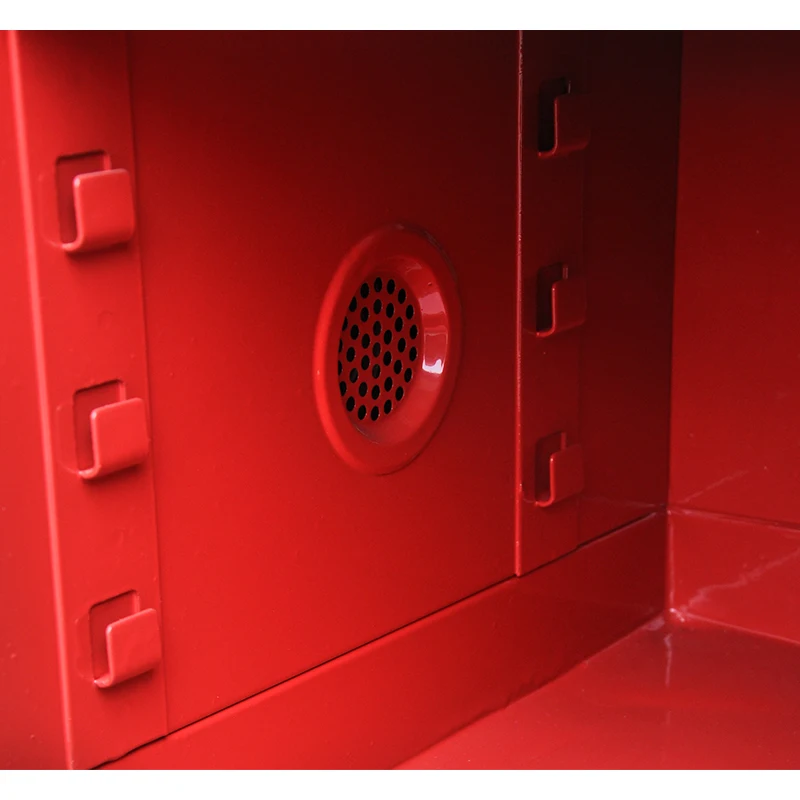

versatile storage. Cabinets also feature a leakproof 2-in (51-mm) bottom sump, dual vents with flame arresters, four
adjustableself-leveling feet, grounding connector and trilingual warning label.
* Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
* High-performance, self-latching doors close easily and securely for maximum protection under fire conditions.
* Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.
* For added security, Solid-K™ handle comes with a cylinder lock and key set or accepts an optional padlock.
* Ref-L™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a
flashlight.
* Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on 2.36-in (60-mm) centers for
versatile storage. Cabinets also feature a leakproof 2-in (51-mm) bottom sump, dual vents with flame arresters, four
adjustableself-leveling feet, grounding connector and trilingual warning label.
* Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
Size Information
Size Chart of This Design
Name | Huanawell Model | Number of doors and style | Shelf | Capacity | Ext. Dimension H*W*D/MM |
ZYC0004R | 1 door, manual | 1 | 4Gal/15L | 560*430*430 | |
ZYC0012R | 1 door, manual | 1 | 12Gal/45L | 890*590*460 | |
ZYC0022R | 1 door, manual | 2 | 22Gal/83L | 1650*590*460 | |
Combustible | ZYC0030R | 2 door, manual | 1 | 30Gal/114L | 1120*1090*460 |
Cabinet | ZYC0045R | 2 door, manual | 2 | 45Gal/170L | 1650*1090*460 |
ZYC0060R | 2 door, manual | 2 | 60Gal/227L | 1650*860*860 | |
ZYC0090R | 2 door, manual | 2 | 90Gal/340L | 1650*1090*860 | |
ZYC0110R | 2 door, manual | 2 | 110Gal/410L | 1650*1500*860 |
