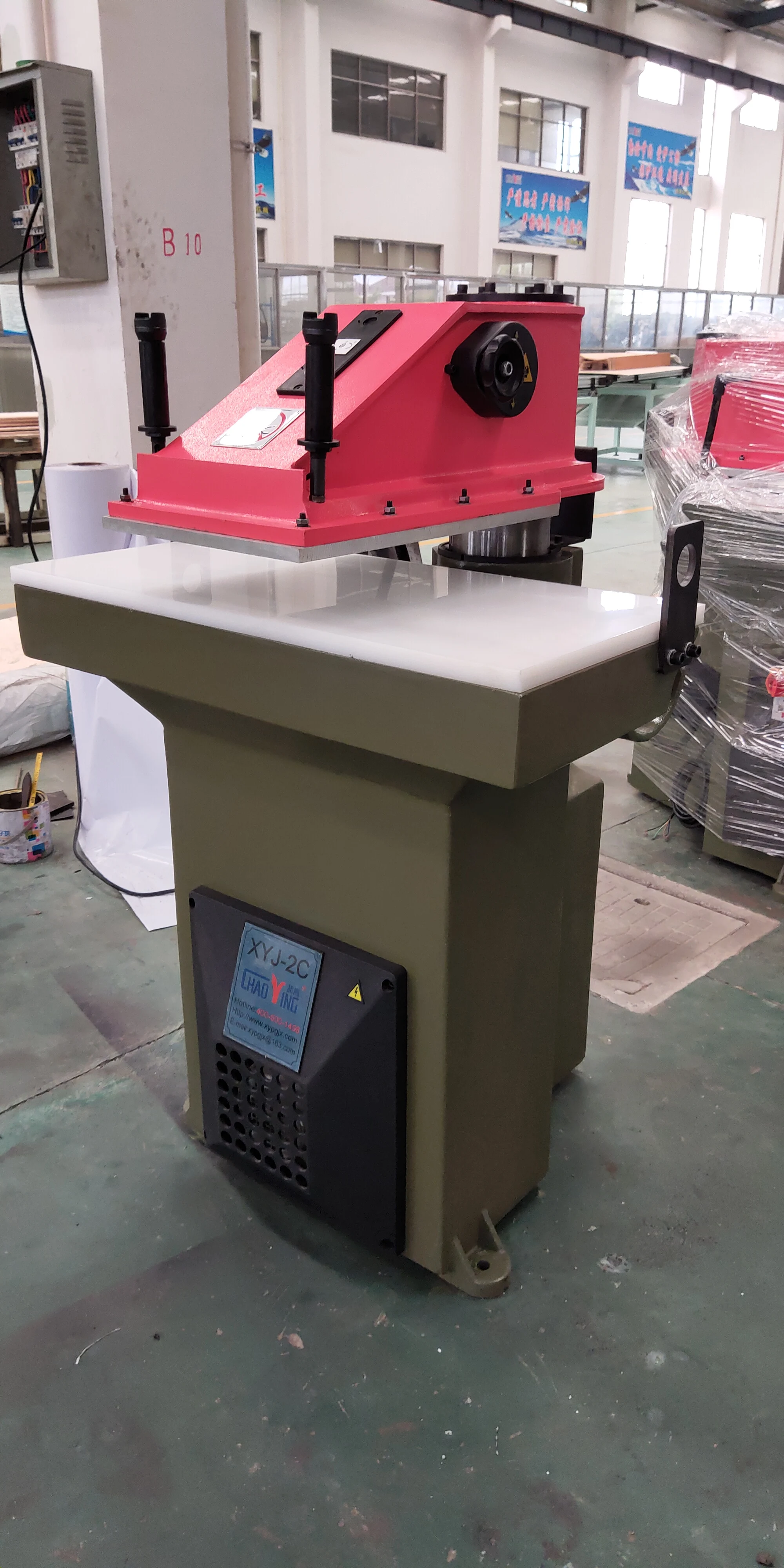

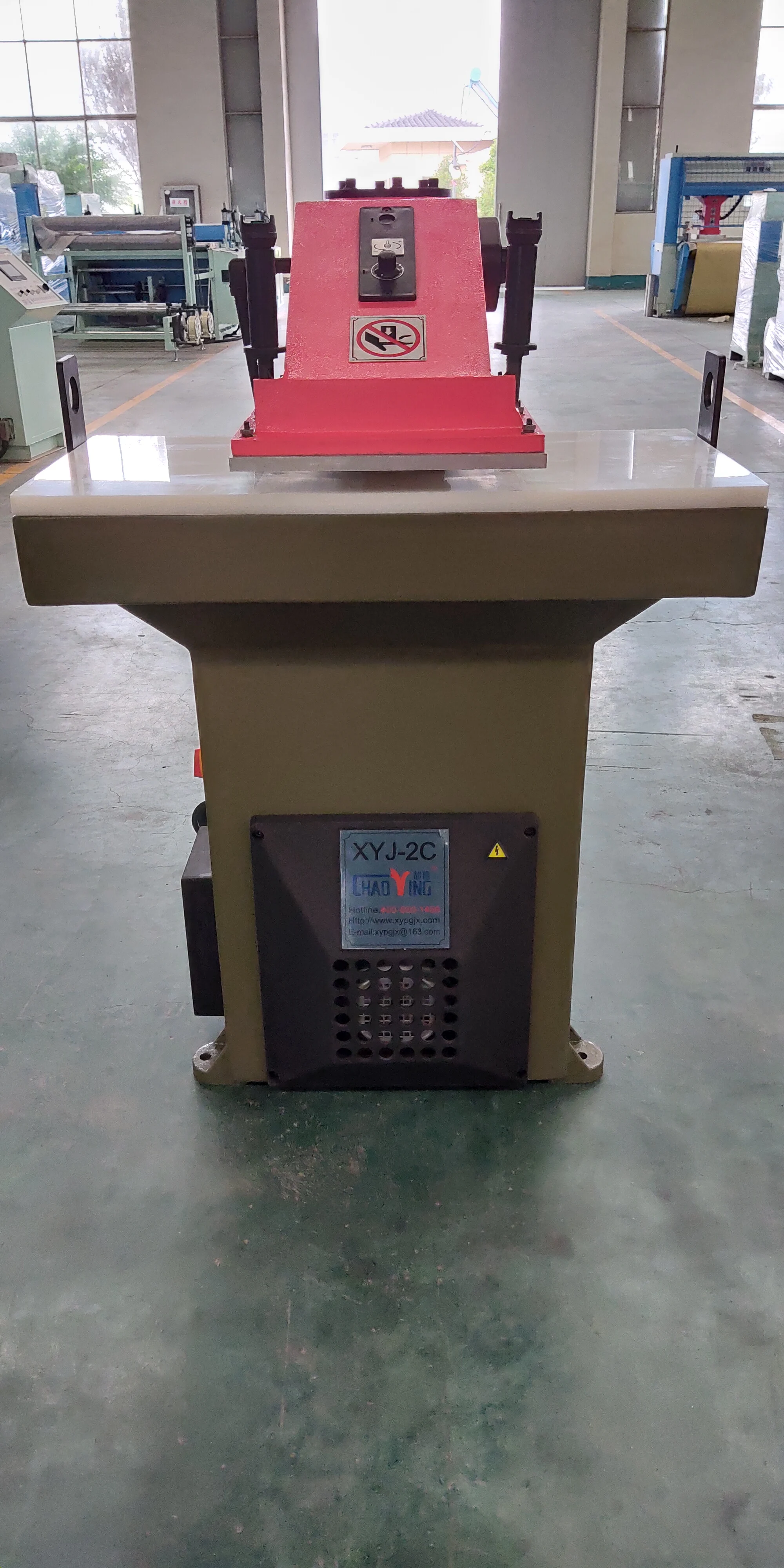

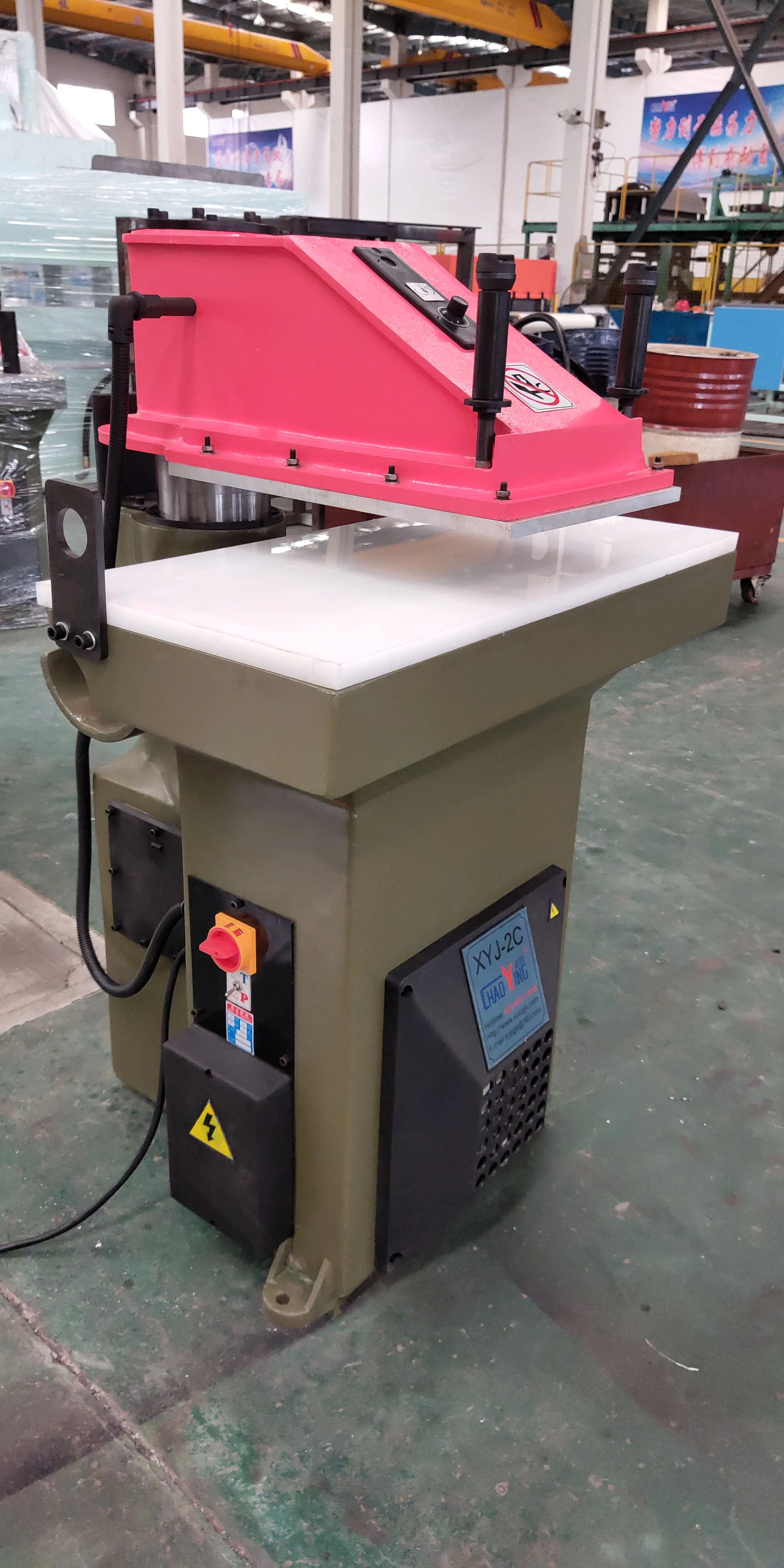

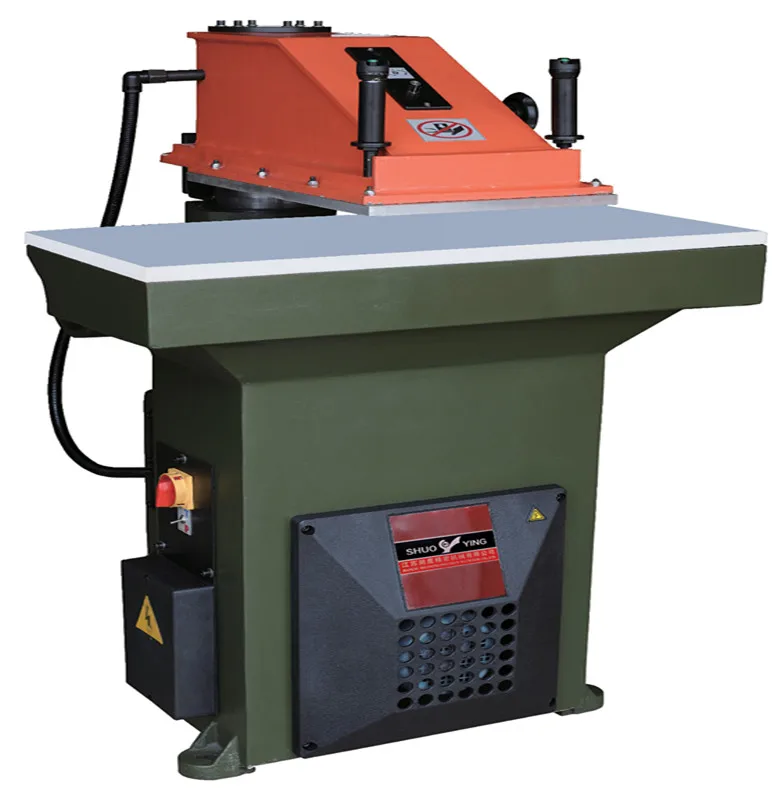

Leather click press die cutting machine

Product Overview

Description

Leather  click press  die cutting machine

CE and ISO approved Automatic hydraulic swing arm die cutting machine

Application:

The machine is suitable for cutting single layer or multiple layers of leather,

plastic, paperboard, fabric and other materials by forming cutter. It is an ideal

cutting device for shoemaking, luggage & baggage, clothing, automobile,

artwork, packaging, electronics and other industries.





Features:

1.There are two types of cutting modes for selection. the first type is small

pressure stepless regulation. The scond type is that the cutting adopts intelligent

pressure feedback design function without the need of setting cutting point. the

height of die cutter has no influence on the cutting and ideal cutting effect can be

obtained from each cutting point.

2.The column is provided with self-lubricating system of double oil circuit static

pressure supporting which make operator more easy and free in working.

3. Main parts using high reliable quality imported parts, with lower noise, high

efficiency and energy saving.

4.Operating with both hands , ensure high safety of operators .



Technical Parameters:

Maximum cutting force	22T
Stroke adjustment range	0—70mm
Range between the working tables	35—105mm
Size of swing arm	360×430mm
Size of lower worktable	900×430mm
Motor power	1.1kW
Cutting Speed	0.15m/s
Package size	900×900×1350mm
Net weight	680kg
Gross weight	850kg
Machine color	Blue and gray  or as your option
Machine logo	SHUOYING  or Customized
OEM&ODM	Welcome





Company Introduction:



Jiangsu Shuo Ying Precision Machinery manufacture various types of clicker press to

 meet our customers' manufacturing and production requirements.

 The die cutting technology that Shuoying provides its customers has proven to be top of

 the line in the international market. With the swing arm clicker presses leading the way

 in industry popularity, die cutting machinery has evolved into various press systerms

 for even more applications in a myriad of industries.

 The diversity of machinery within die cutting allows for a great range of tonnage, cutting

 stroke, and machine working table sizes for the various types of machinery.



Qualification Certificate and Sales Market:



Jiangsu Shuo Ying Precision Machinery Company own the certificate of ISO9001:

 2008 and CE, also we have export and import license.

 "Shuo Ying" branch series die cutting machine cooperated with the wellknown

 international company of Hongkong, Italy and UK.

 Our products in 60% percent export to more than 30 countries in  the world wide.









Customers visit Factory:





Production Equipment:



Shuo Ying Precision Machinery Company import advance mechanical processing

 and testing equipment, which gurantee the high quality products.





Production process:



The QA and QC department make strictly quality control for each product

 process.   Shuo Ying pursue to provide customers high quality cutting press

 machine and after-sales service.

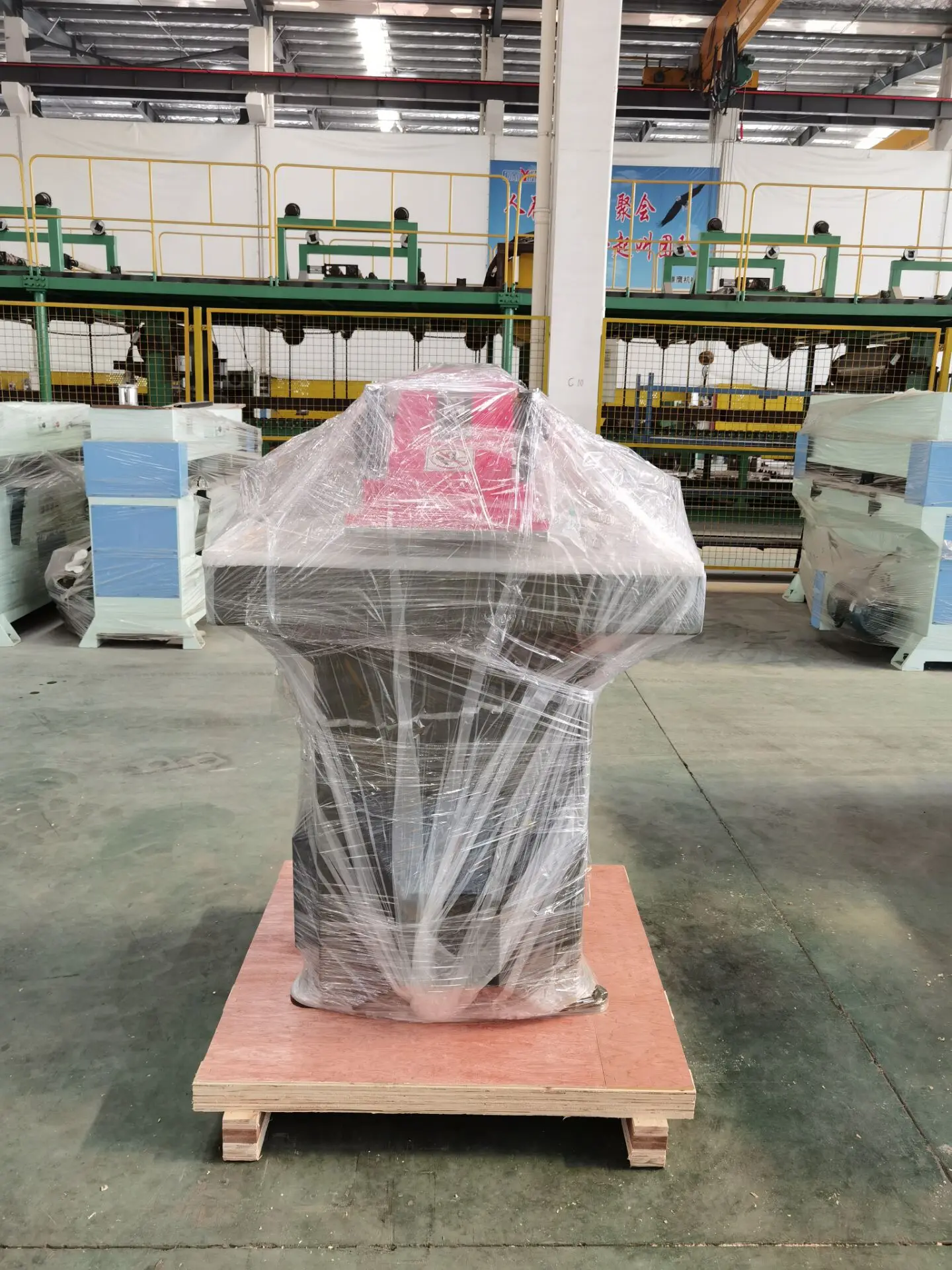

Package and Delivery:







FAQ :



1, Are you a factory or a trade company ?



we are a factory , welcome to visit  and make business contact.



2, Where is your factory located ? How can I visit your factory ?



Our factory is located in No 9 Chengxiang Road Daguang Town Yancheng city Jangsu



Province China . You can take plane from Guangzhou/Beijing/shanghai city to Yancheng



city (our city ) . It is convenient .



3, Do you attend any Fair ?



Yes , we attend some professional fairs every year :



All china leather exhibition & china international footwear fair   ( in Shanghai china  )



International exhibition on shoes& leather industry   (In Guangzhou china )



4, Can we use our company logo on your machine ?



  Yes , you can use your logo if necessary .



5, How does your factory control the machine quality ?



We have some QC staffs to inspect and test the machine . every machine must be



 tested for 12-16 hour before leaving factory .



6, How long is your guarantee period ?



 One year .
