Закрытый проводник рельсовый кран источник питания проводник бар
- Category: Power Distribution Equipment >>>
- Supplier: Wuxi Komay Electric Equipment Co. Ltd.
Share on (60418207880):
Product Overview
Description
Enclosed Conductor Rail/ Crane Power Supply/ Conductor Bar
FAQ
System Image
Dimension&Tech Data

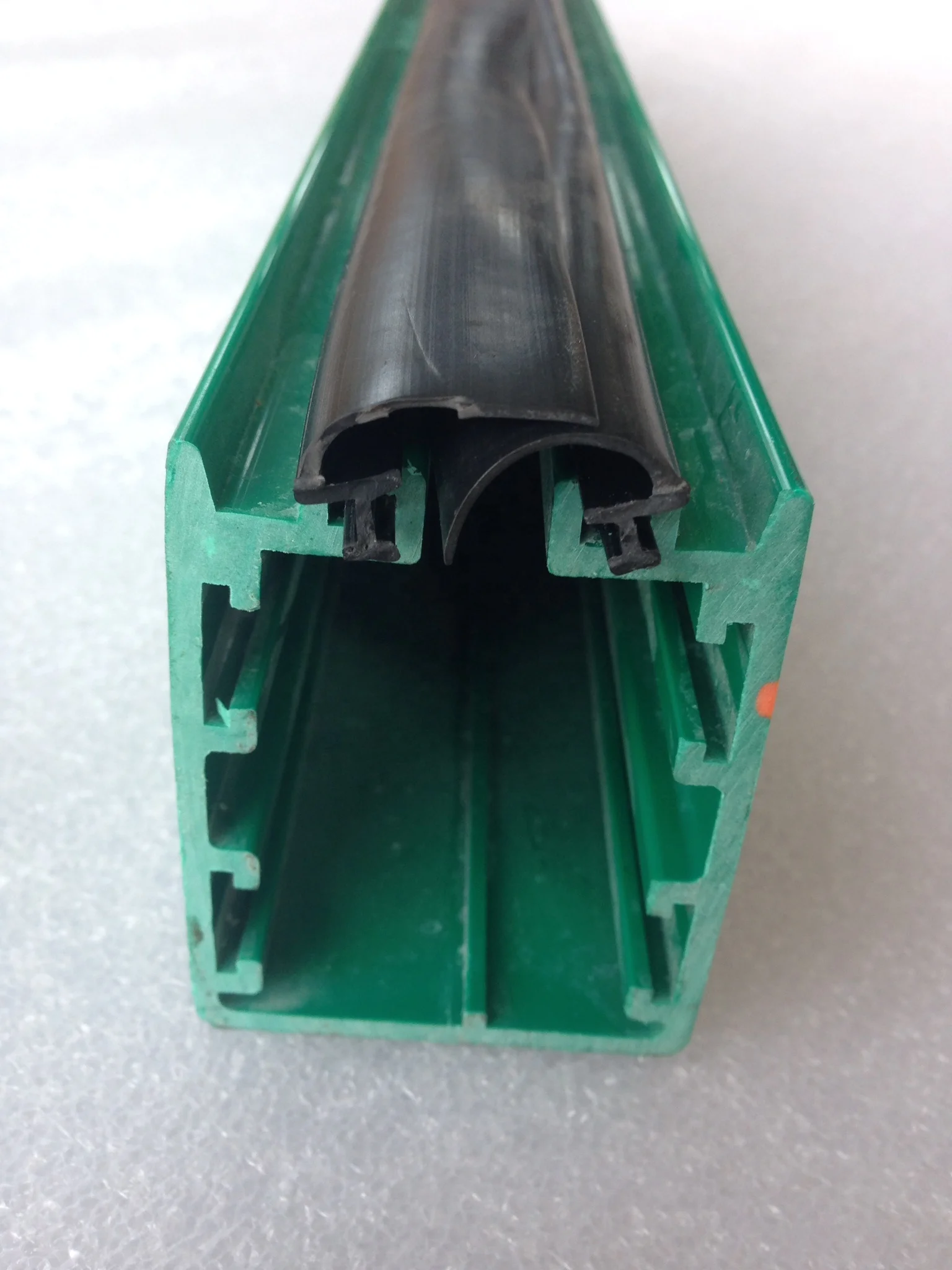

Enclosed Conductor Rail Introduction
Type | poles | (mm2) Conductor cross section | (A) Max. current | (mm) Leakage-distance | (V) Max. Voltage | (Ω/Km) Resistance | (kg) Weight |
HFP56-4-8/35 | 4 | 8 | 35 | 35 | 690 | 1.944 | 2.09 |
HFP56-4-10/50 | 4 | 10 | 50 | 35 | 690 | 1.656 | 2.16 |
HFP56-4-12/65 | 4 | 12 | 65 | 35 | 690 | 1.321 | 2.23 |
HFP56-4-15/80 | 4 | 15 | 80 | 35 | 690 | 1.137 | 2.30 |
HFP56-4-20/100 | 4 | 20 | 100 | 33 | 690 | 1.011 | 2.43 |
HFP56-4-25/120 | 4 | 25 | 120 | 33 | 690 | 0.713 | 2.56 |
HFP56-4-35/140 | 4 | 35 | 140 | 33 | 690 | 0.522 | 2.95 |
HFP56-4-50/170 | 4 | 50 | 170 | 33 | 690 | 0.337 | 3.25 |
HFP56-4-70/210 | 4 | 70 | 210 | 33 | 690 | 0.265 | 3.85 |
HFP56-4-80/240 | 4 | 80 | 240 | 30 | 690 | 0.223 | 4.16 |
Accessories
Accessories
Joint Cap
 |  |
Type | Weight kg | Material | Cat.-No. |
56LJ-5 | 0.10 | Plastic | 563405 |
56LJ-6 | 0.16 | Plastic | 563406 |

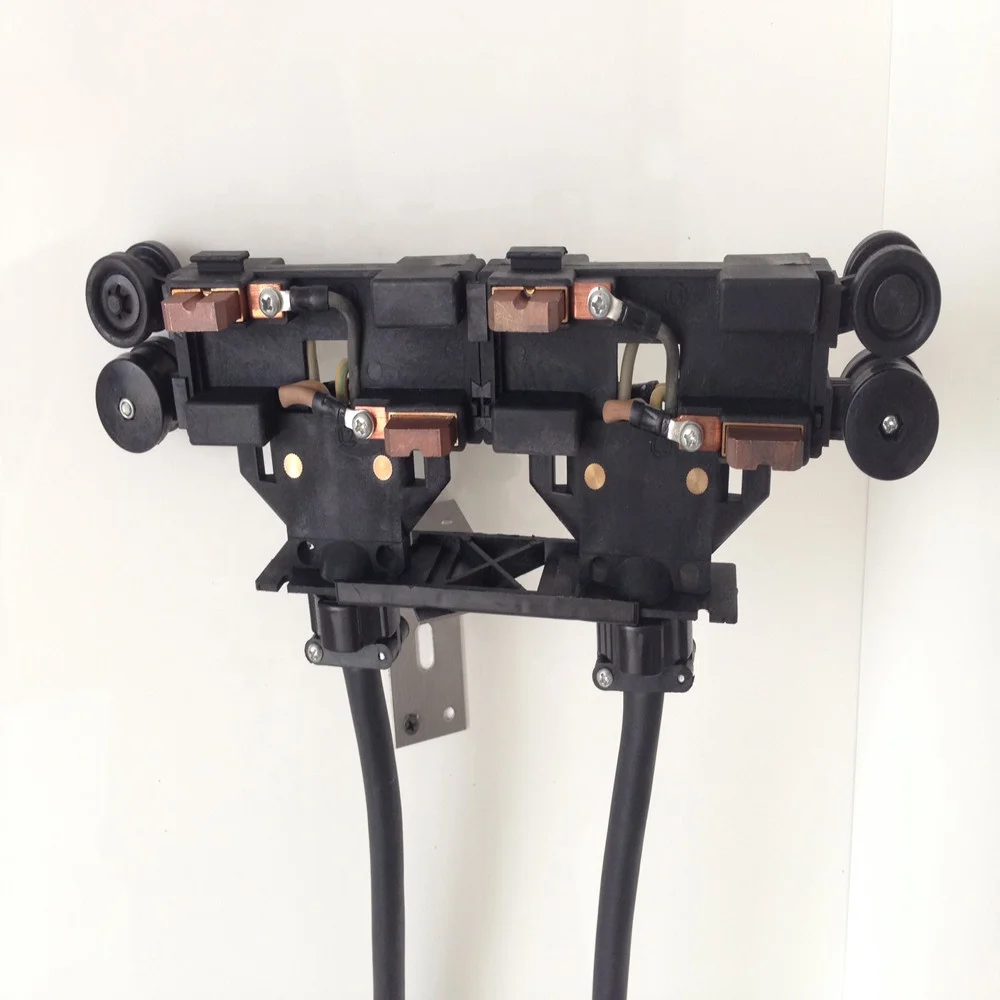

| Current Collector | ||||||||||||||||||||||||||
 | ||||||||||||||||||||||||||
| ||||||||||||||||||||||||||
Line Feeding
With 0.5 meter powerail is standard length, other lengths are available, but not exceeding 4 meters.
End Feed
Type | Weight kg | Material | Cat.-No. |
56DG | 0.25 | Plastic | 564685 |
Hanger
Type | Weight kg | Material | Cat.-No. |
56DJ/1 | 0.17 | steel | 563901 |
56DJ/2 | 0.21 | steel | 563911 |
End Cap
 | |||||||||
| |||||||||
