Vickers hardness tester

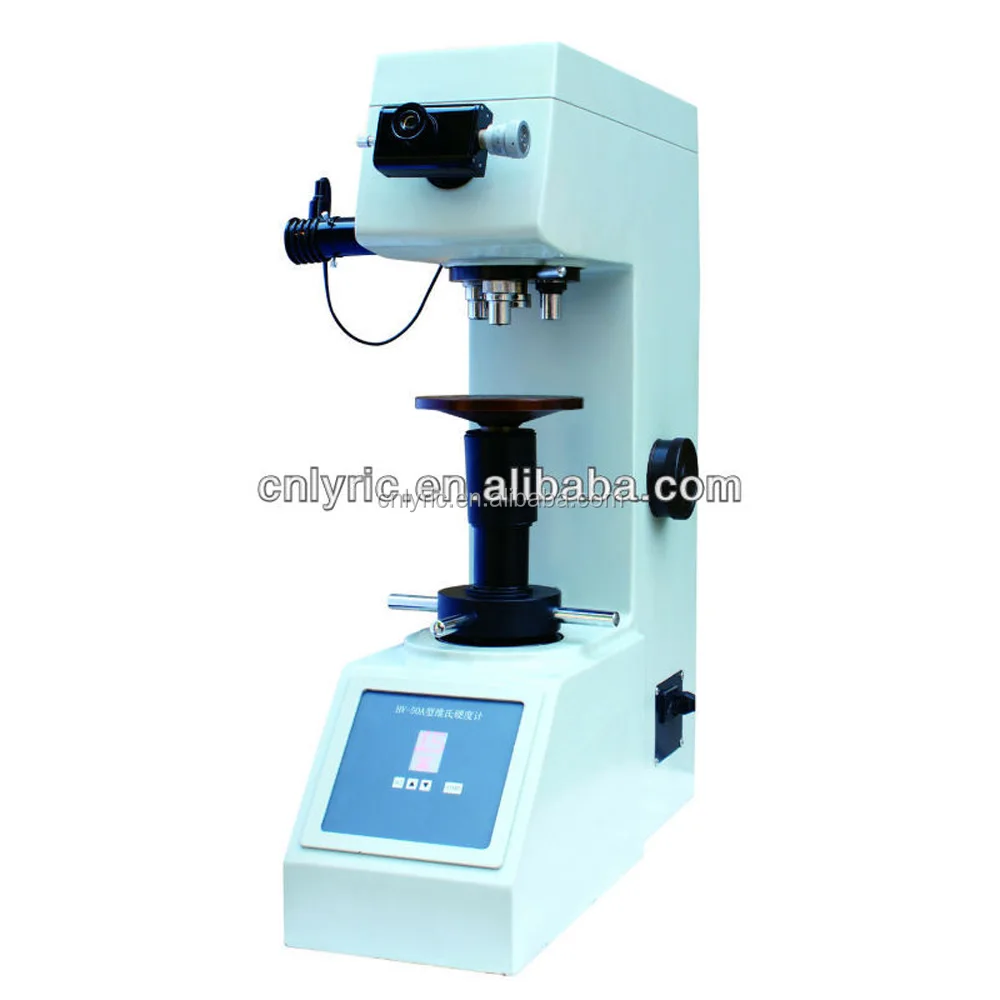

MODEL HV-50A VICKERS HARDNESS TESTER

Feature & Use

. Frictionless loading shaft, high precision testing force

. Automatic testing process, no human operating error

. Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92

It’s suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.



Specifications:

Measuring range: 5-2900HV

Test force: 9.807, 49.03, 98.07, 196.1, 294.2, 490.3N

                  (1, 5, 10, 20, 30, 50kgf)

Max. height of test piece: 180mm

Depth of throat: 125mm

Magnifications of the measuring system: 125X, 250X

Min. scale value of the optical micrometer: 1μm

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 580 x 260 x 730mm

Weight: approx. 90kg



Standard accessories:

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond pyramid penetrator: 1 pc.

Vickers standardized block: 3 pcs.
