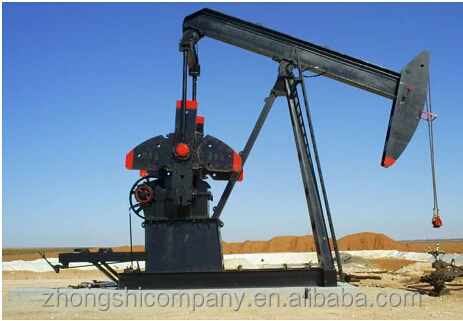

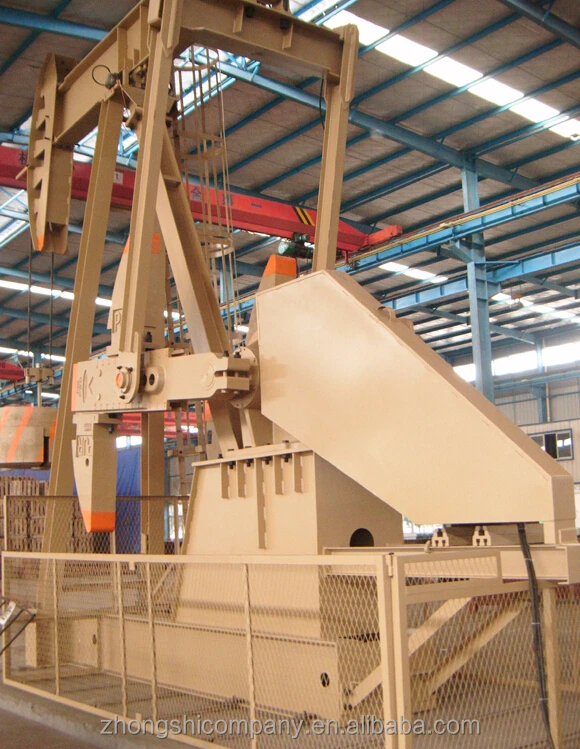

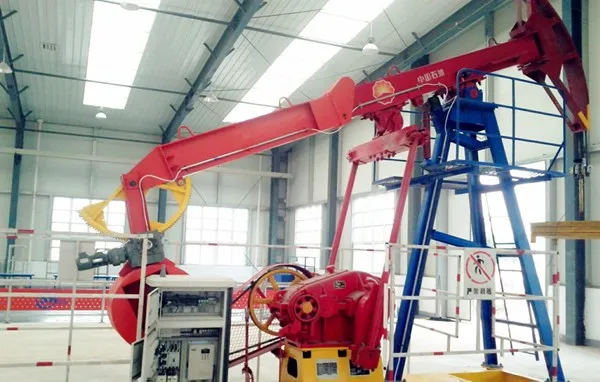

low profile pumping unit
- Category: Oilfield Pumping Unit >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (60419627575):
Product Overview
Description
Product Description
Low Profile Pumping Units is a new kind of non-beam energy-saving pumping units, it’s a power equipment on the ground used in sucker rod oil extraction.
The products conform to API Spec.11E “Specification for Pumping Units” and other relative API standards, acquired the authorization to use Official API Monogram.
The products conform to API Spec.11E “Specification for Pumping Units” and other relative API standards, acquired the authorization to use Official API Monogram.
Technical Performances
1,Use roller and belt to form flexible drive, improve impulsive load, prolong service life of gear reducer.
2,Abnormally design of crank arm make it balanced completely.
3,Gear reducer is involute herring-bone gearing, work smoothly and reliably.
4,Small cubage, light weight, the complete machine can be folded totally, it’s convenient for installation and transportation.
1,Use roller and belt to form flexible drive, improve impulsive load, prolong service life of gear reducer.
2,Abnormally design of crank arm make it balanced completely.
3,Gear reducer is involute herring-bone gearing, work smoothly and reliably.
4,Small cubage, light weight, the complete machine can be folded totally, it’s convenient for installation and transportation.
Main Technical Parameter
No | Type | Polished Rod Capacity (lb) | Stroke Length (in) | Rated Torque (in.lb) |
1 | F-320D-256-120 | 25,600 | 120,102,85 | 320,000 |
2 | F-320D-256-100 | 25,600 | 100,85,70 | 320,000 |
3 | F-320D-246-86 | 24,600 | 86,71,56 | 320,000 |
4 | F-228D-256-100 | 25,600 | 86,71,56 | 320,000 |
5 | F-228D-213-86 | 21,300 | 86,71,56 | 228,000 |
6 | F-228D-246-86 | 24,600 | 86,71,56 | 228,000 |
7 | F-228D-246-74 | 24,600 | 74,64,53 | 228,000 |
8 | F-160D-173-86 | 17,300 | 86,74,62 | 160,000 |
9 | F-160D-200-74 | 20,000 | 74,64,53 | 160,000 |
10 | F-160D-173-74 | 17,300 | 74,64,53 | 160,000 |
11 | F-114D-173-64 | 17,300 | 64,54,44 | 114,000 |
12 | F-114D-143-54 | 14,300 | 54,44,34 | 114,000 |
13 | F-114D-109-54 | 10,900 | 54,43,32 | 114,000 |
Packaging & Shipping
Company Information
Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 18 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of casing accessories likebow spring centralizer, solid rigid centralizer,float equipment, cementing plug etc.
We have 9 factories, more than 500 employees, and many kinds of production equipments.
We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.
With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
