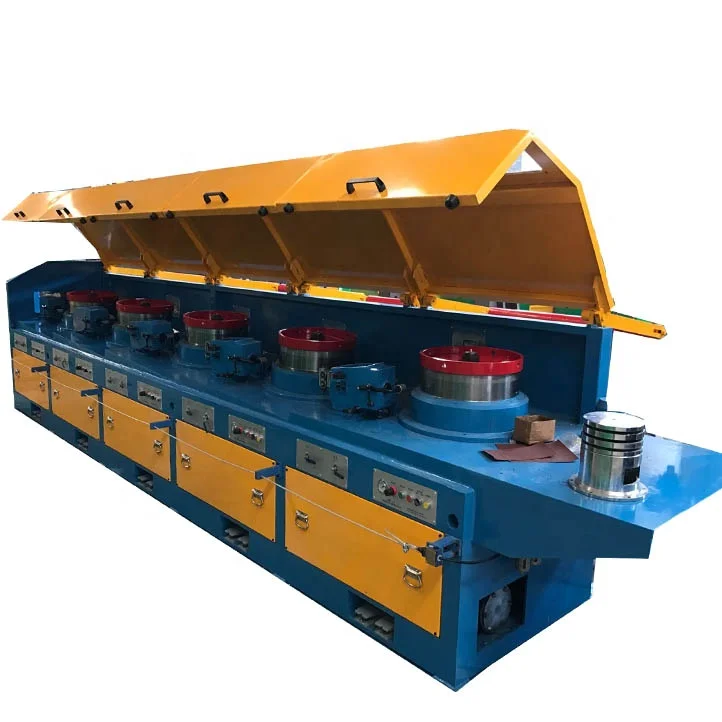

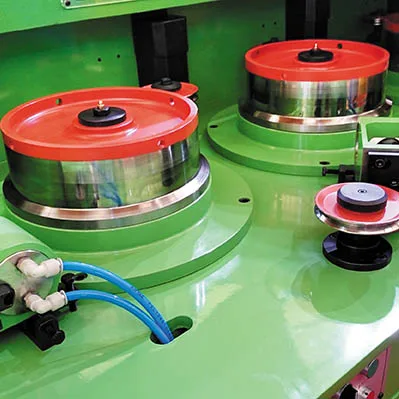

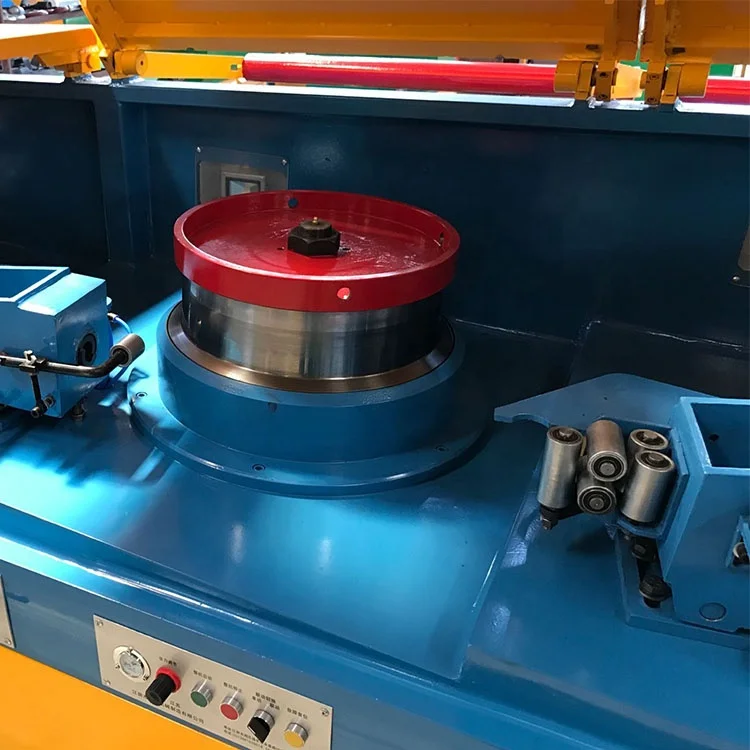

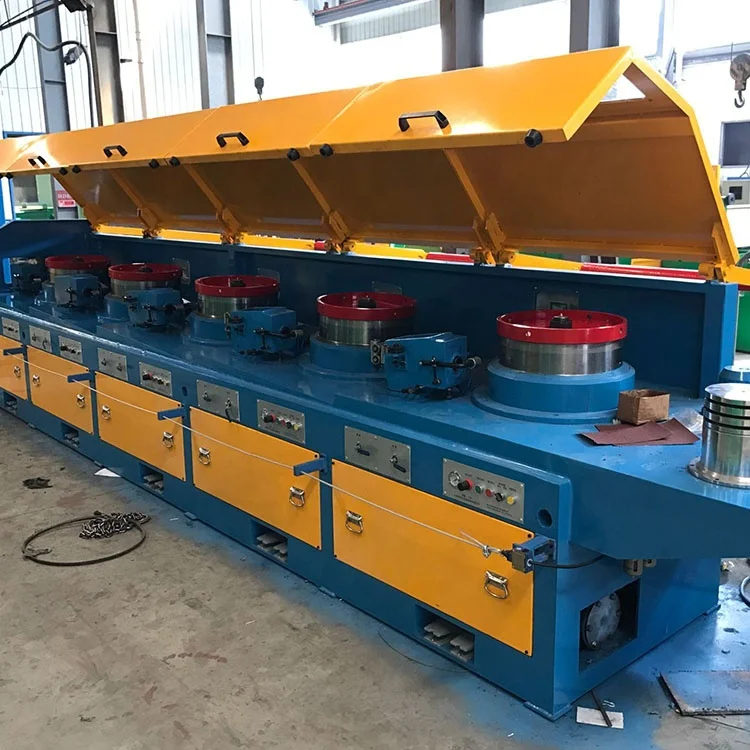

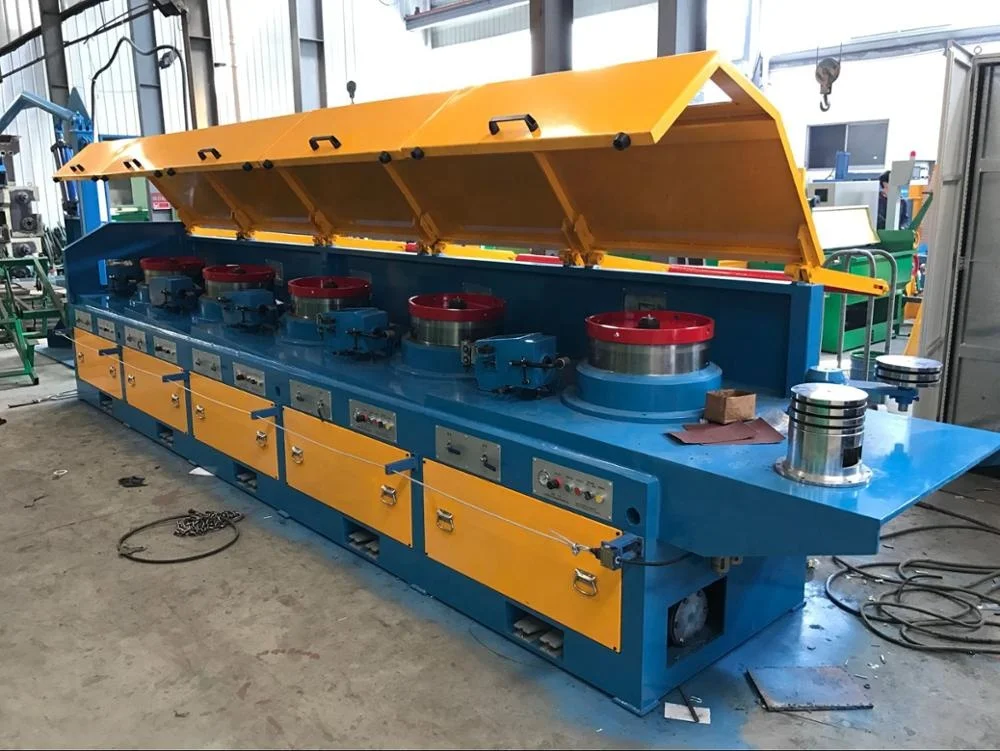

China New design popular cold drawn wire drawing machine

Max inlet

Φ2.3-1.5mm

Min outlet

Φ1.05mm~0.5mm

Drawing passes

21

Drawing material

The high-carbon steel wire with carbon

content of 0.70-0.82%C after lead patenting

and phosphating or plating the copper

Take-up speed

Normal working speed is 700m/Min,

and the max design speed is 1000m/Min.

Inverter

380V, 3P 4Line, 60Hz(LG-IS7 inverter);

Control cabinet:220V

Main engine power

45Kw with AC motor;

Spool motor:11Kw.(Brand:siemens)

Tensile strength of inlet wire

high-carbon steel wire <1250Mpa

Cone no

4 groups

Pay-off

1.8T on-lift petal-basket pay-off rack
