Good Quality DPP 260Ki highest speed Automatic blister packaging machine for tablet and capsule
- Category: Pharmaceutical Machinery >>>
- Supplier: Huizhou Pingfang Trading Co. Ltd.
Share on (60420376173):
Product Overview
Description
Good Quality DPP-260Ki highest speed Automatic blister packaging machine for tablet and capsule
Product Description
Application:
Model DPP-260Ki aluminum foil blister packing machine is a currently the fastest Blister Machine in China, with more than of 20 years of professional experience. the machine accommodates forming material reels of up to 600mm in diameter and a waste material trimming, cutter, which allow production runs of approximately 90 minutes therefore reducing the material replacement frequency. It is equipped with integrated forming material splicer to enhance efficiency. Automatic format positioning system achieves straightforward format changeover. Window frame type no-waste-trimming cutter saves packing materials.And it adopts transverse cutter which easily collects its blister card and rejects faulty blister. The motor is servo motor. It can be connected to subsequent machines, for example: High-speed cartoning machine and others equipment in line. It is for a whole packaging line.
Features:
1)Aluminum Foil holder enables exchange of sealing alum foil in 10 seconds.
2)Mould accurate positioning device meets the demand for quick exchange of moulds.
3)Al/PVC, AL/Al double duty mechanism only needs to change mould.
4)Sealing cylinder placed inside machine body ultimate machine structure.
5)PVC fast cut patch device and waste foil cutterenables continuous working of machine.
Technical Parameters:
Max. Punch Speed: | AL/PL:60 times/min(stand type) | |
AL/AL:35 times/min | ||
Max. Production Capacity: | AL/PL:350 thous.Pcs/h | |
AL/AL: 150 thous.Pcs/h | ||
Adjustable range of stroke: | Standard dispose≤140mm(according to the customers′Requirement) | |
Max. Forming Area: | 245x112mm | |
Max. Forming Depth: | AL/PL:12mm | |
AL/AL:12mm | ||
Specification of packaging material: | Note:the width of the material 130-260mm | PVC:260x0.25(0.15-0.5)mm |
Heat-sealing PTP:260x0.02mm | ||
Power Connection: | There Phases Four Wires: 380V 50Hz (220V 60Hz) | |
Total Power: | 9.95KW | |
Main Motor Power: | 2.2KW | |
Forming Upper and Lower Heat power: | 1.5KW(x2) | |
Heat-sealing Heat Power: | 3KW | |
Air Pump(Air Compressor)Volume: | ≥0.4m3/min | |
Dimensions of overall machine(L×W×H) : | 4000x800x1700mm | |
Dimensions of packing case(L×W×H): | 4100x980x2000mm | |
Dimensions of separate packing cases(L×W×H): | 2370x1000x1800mm and 2500x1000x2000 | |
Weight: | 1800kg | |

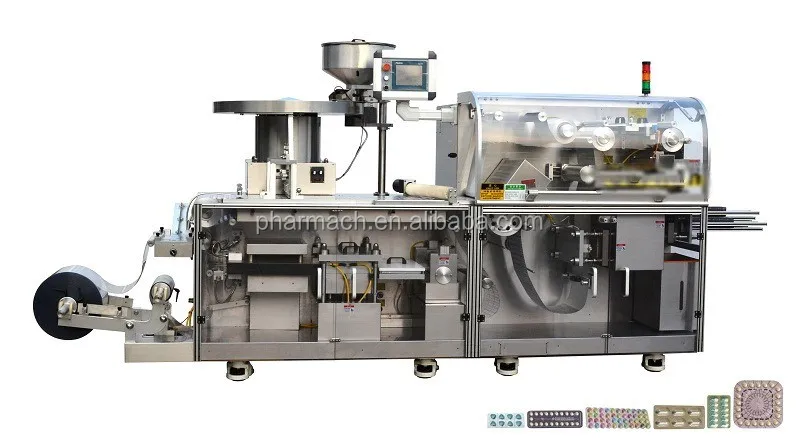

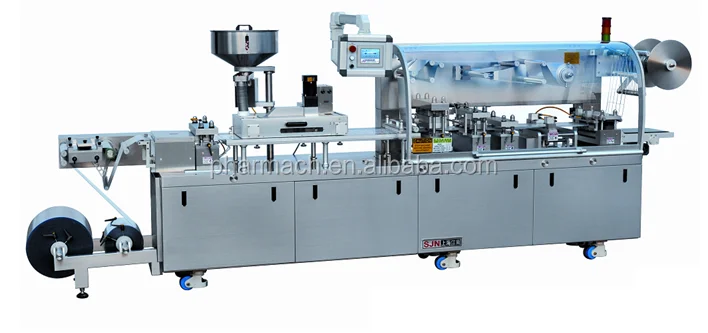

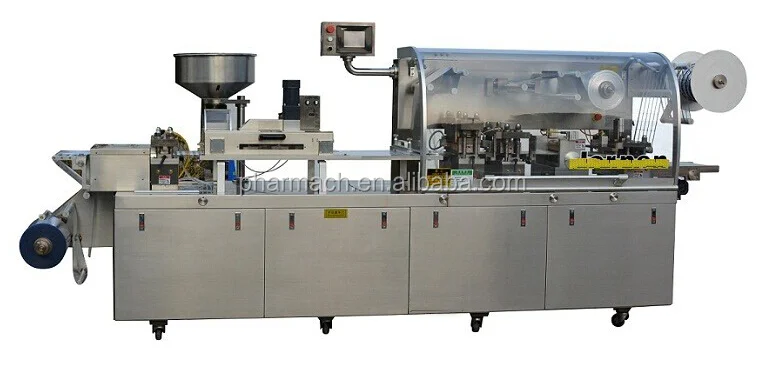

Picture of machine:

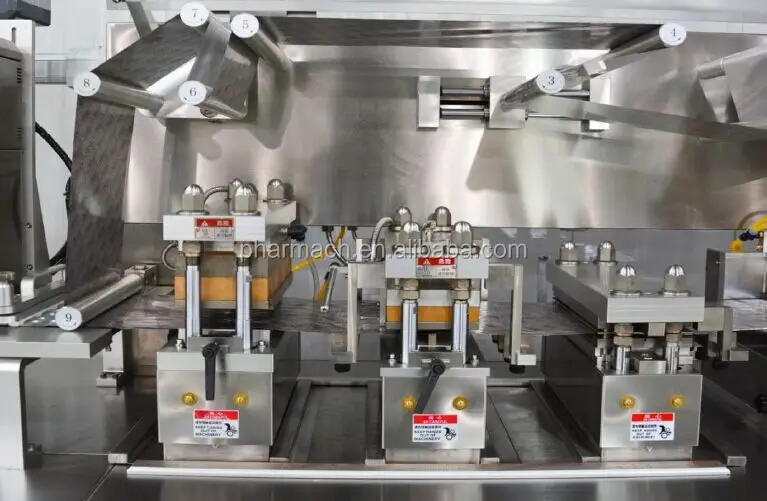

Working station:

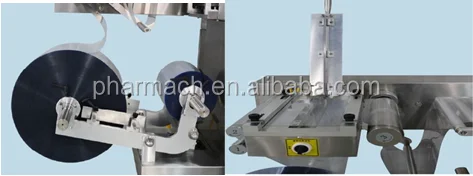

Transfering station for PVC film:

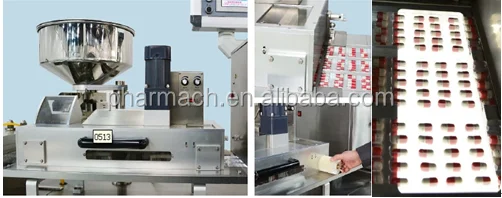

Universal Feeder for ALu-PVC plate:

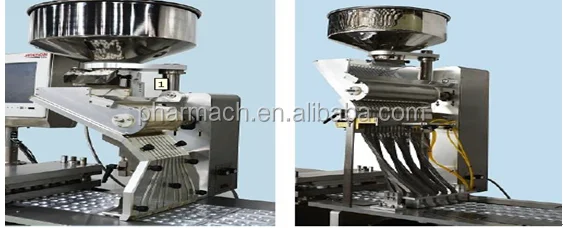

Special feeder (rack type) for Alu-ALu plate for tablet:

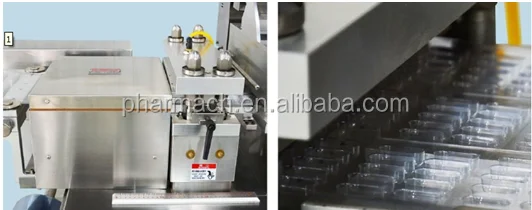

Forming station in high precision:

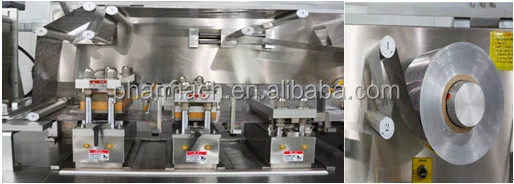

Sealing station for Aluminum foils:
Heating sealing station:

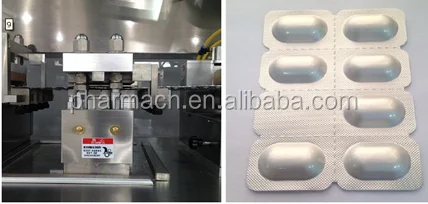

Embossing line station:

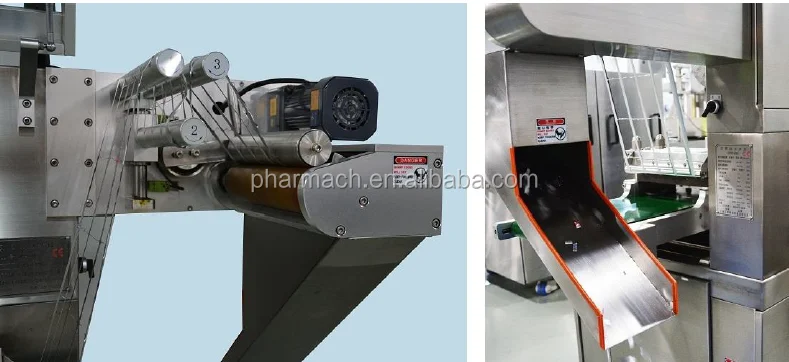

Cutting station:
Our Services
To be statification with you, We can provide with professional technical support if you are in question of fix or installation the automatic blister packing machine at customer bill account. Also, we can send our technical solution on video line at any time just you call or computer.
