heavy duty four side moulder wood planer
US $22300-$23300
wood planer moulder 4 side moulder MB5016ER
- Category: Wood Planer >>>
- Supplier: Qingdao Sosn Machinery Co. Ltd.
Share on (60421920759):
Product Overview
Description

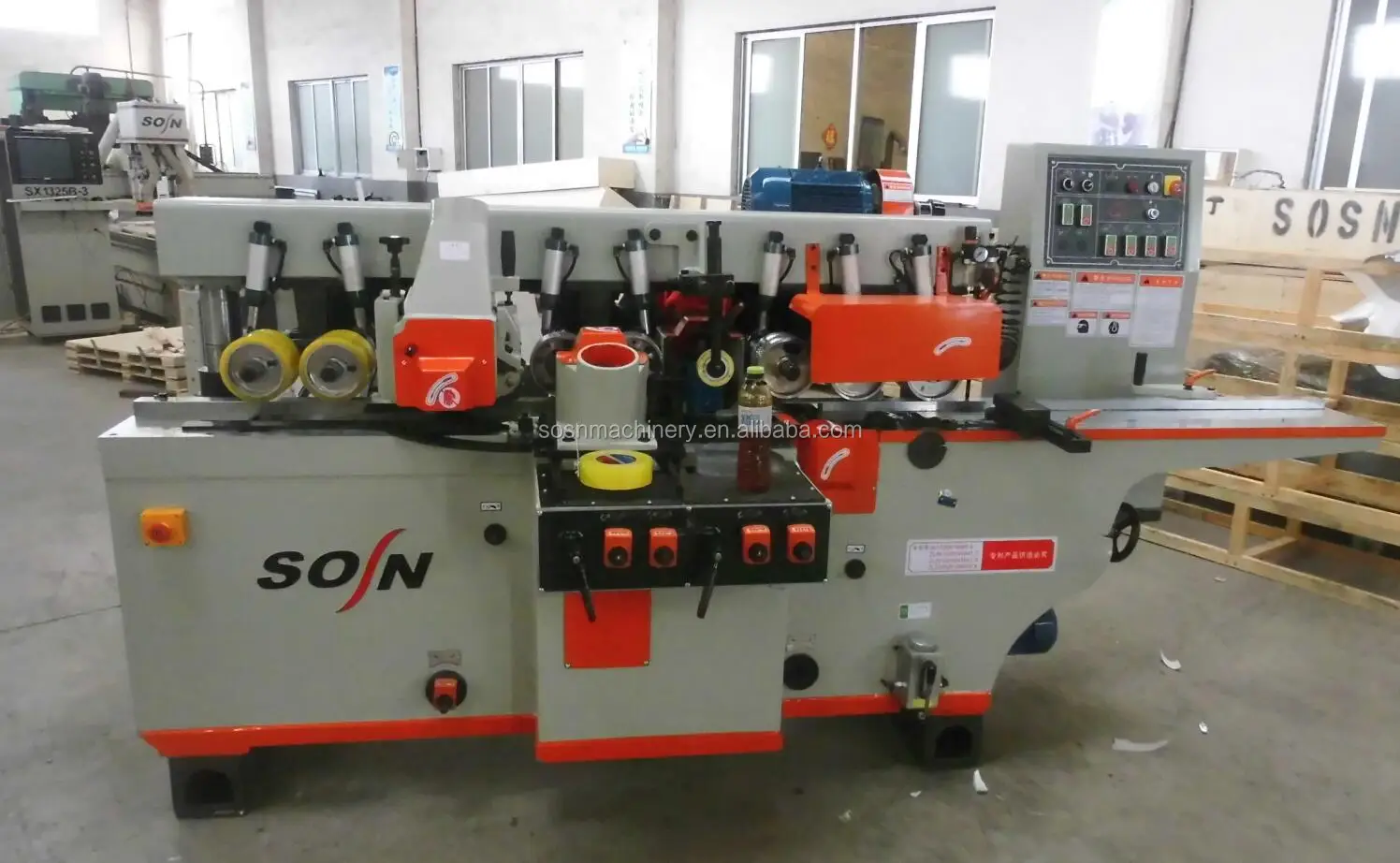

wood planer moulder 4 side moulder MB5016ER
Technical Parameter
Processing width | 20-160mm |
Processing thickness | 8-100mm |
Feeding speed | 5-20m/min |
First bottom cutter | |
power | 3.0kw |
Speed | 6000r/min |
Diameter | 40mm |
Max turning circle | 140mm |
Diameter of side trimming cutter | 142x10mm |
Feeding piwer | 2.2 kw |
Left and right cutter | |
Power | 3x2kw |
Speed | 6000r/min |
Diameter | 40mm |
Max turning circle | 160mm |
First upper cutter | |
Power | 5.5 kw |
Speed | 6000r/min |
diameter | 40mm |
Max turning circle | 160mm |
Second bottom cutter | |
Power | 4 kw |
Speed | 6000r/min |
Diameter | 40mm |
Max turning circle | 145mm |
Cross beam lifting and lowering power | 0.75 kw |
Total power | 21.45 kw |
Pressure of air supply source | 0.3-0.4 Mpa |
Total weight | 2200kg |
Product details

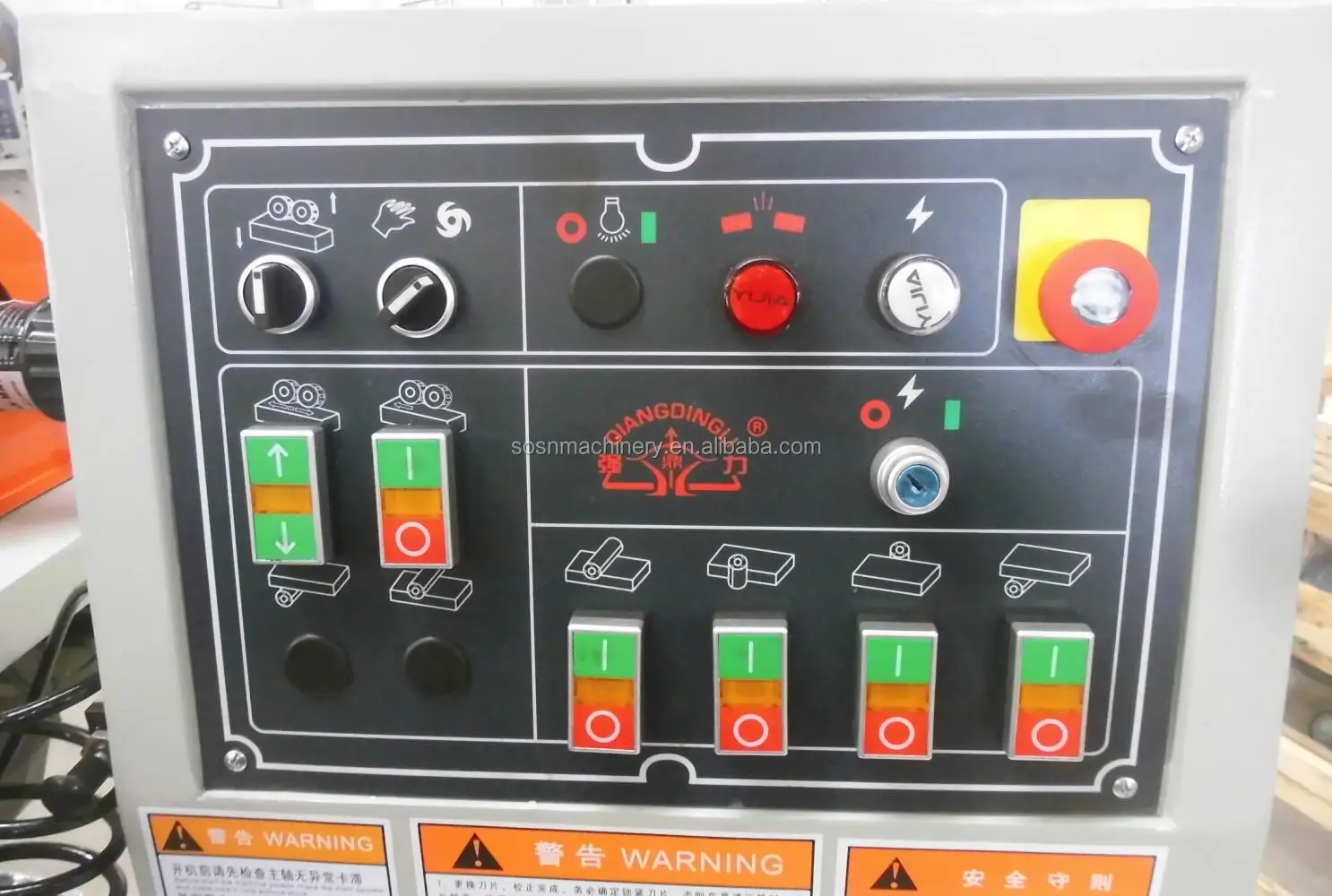

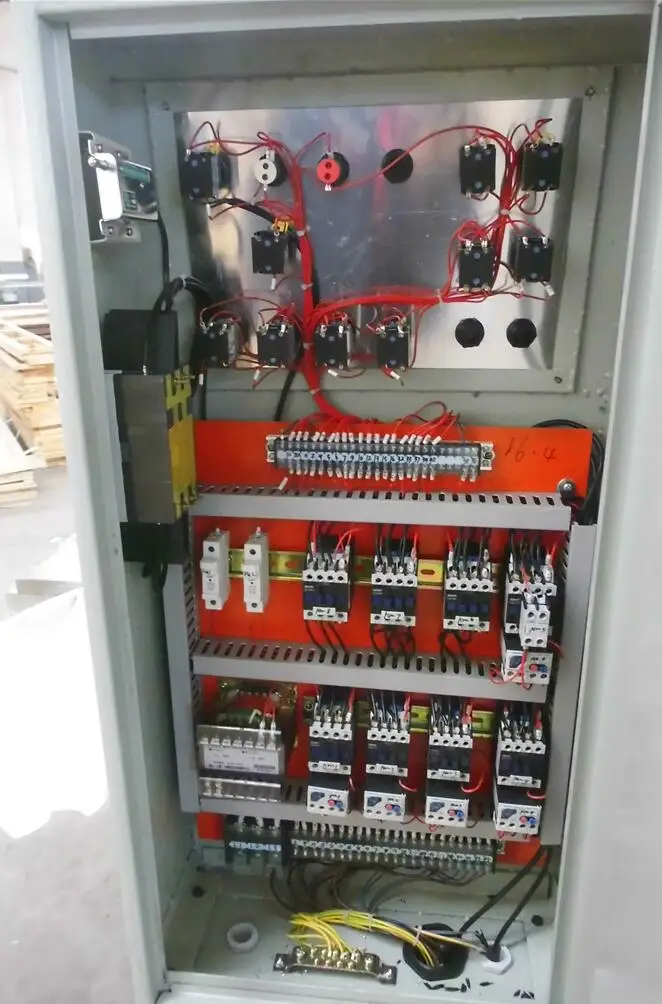

Control board and the electric of Four side moulder

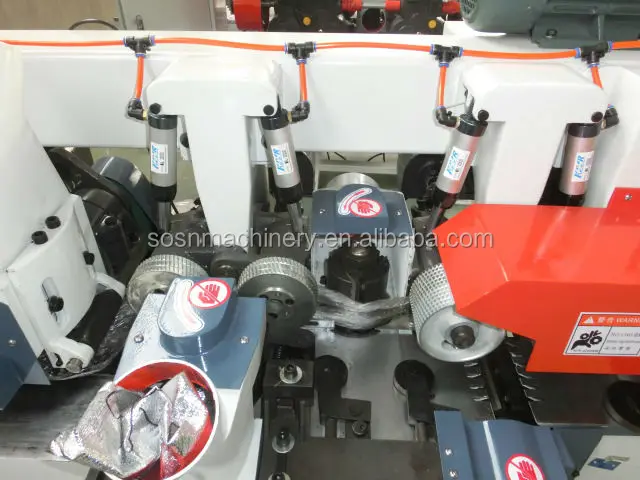

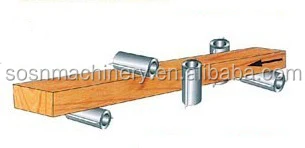

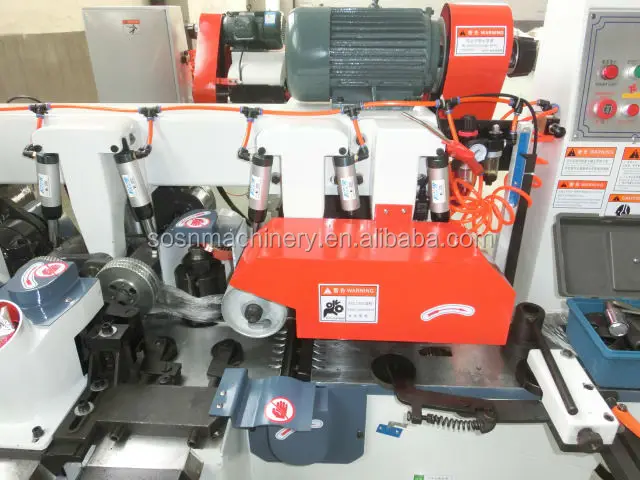

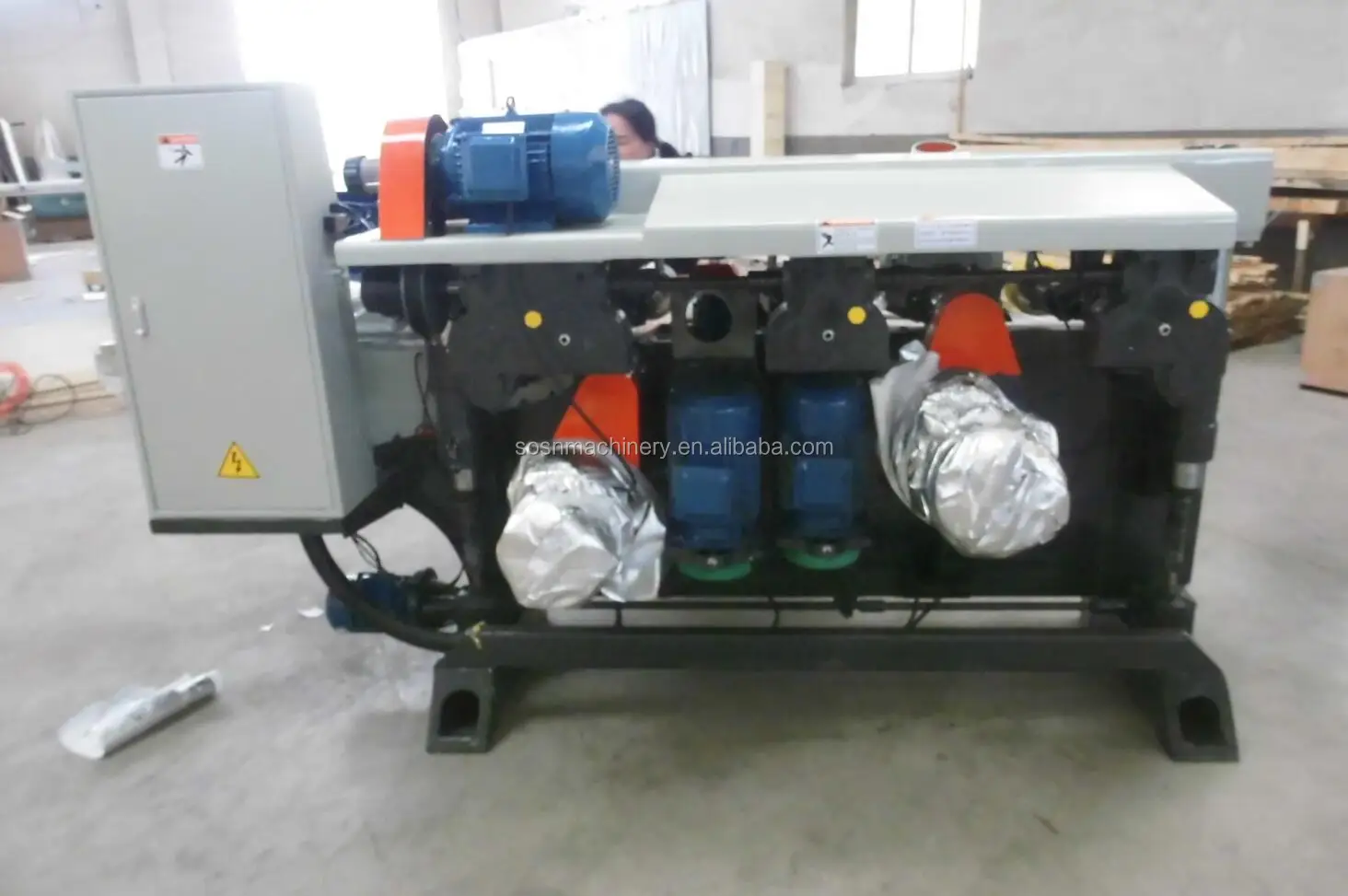

The machine structure:

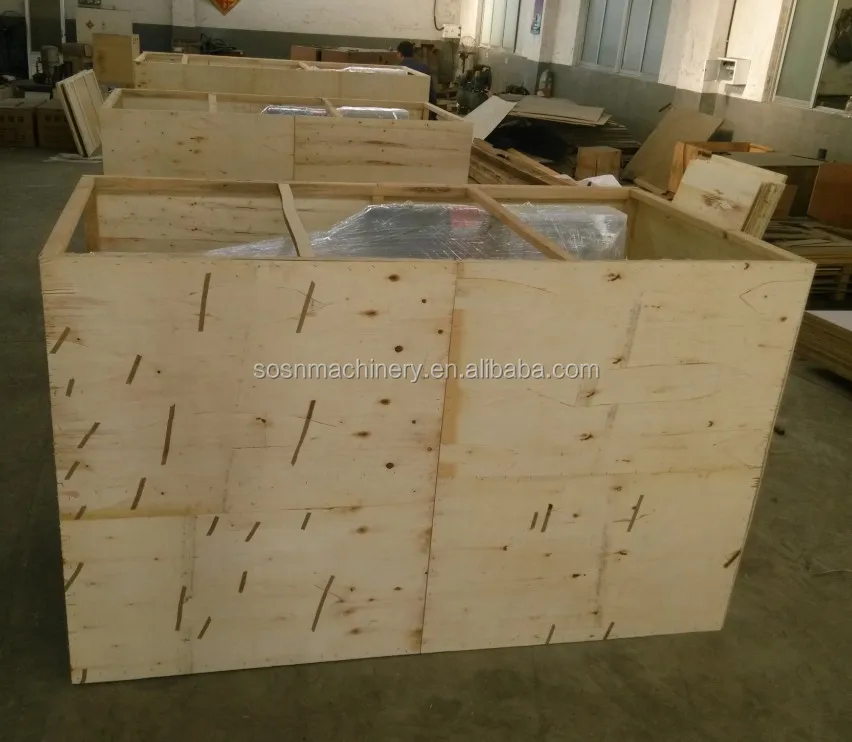

Plywood package:
