double saws aluminum angle cutting machine
- Category: Notching Machine >>>
- Supplier: Shanghai Tallntech Machinery Manufactory Co. Ltd. [Shanghai China]Shanghai
Share on (60425505022):
Product Overview
Description
double saws 45 degree aluminum frame cutting machine
1. Quick cutting
2. Time saving
3. Automatic
4. Factory price
double saws 45 degree aluminum frame cutting machine

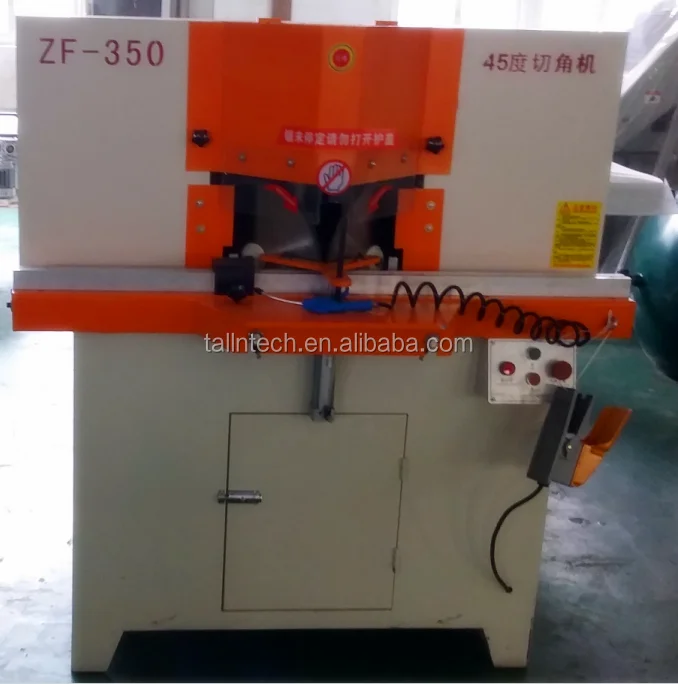

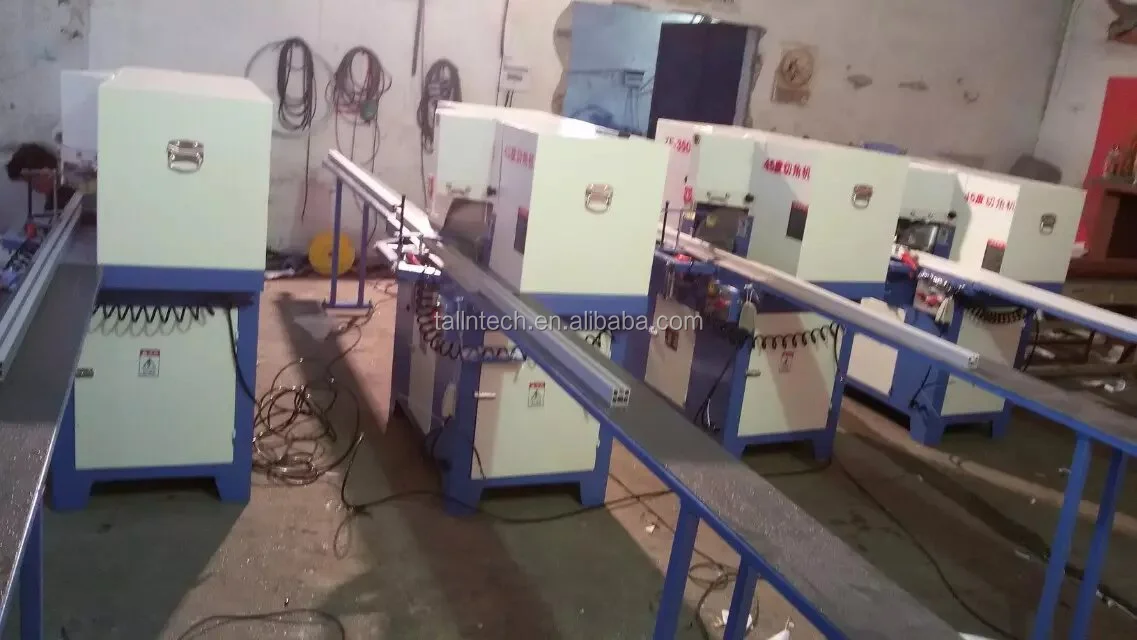

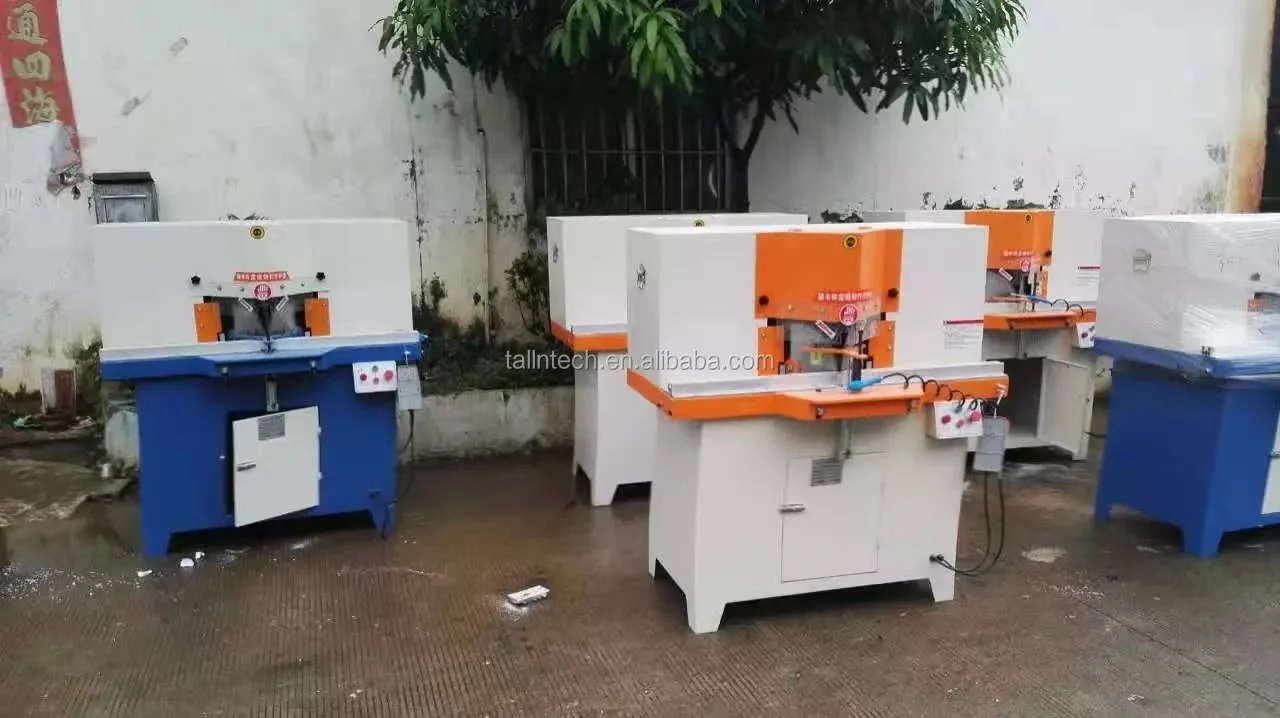

Machine: double head 45 degree aluminum saw, double end aluminum cutting machine for 45 degree

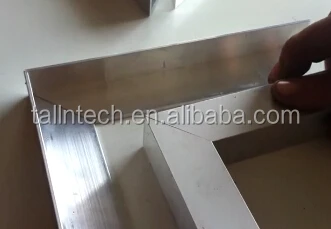

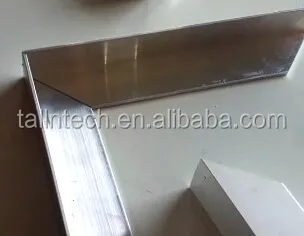

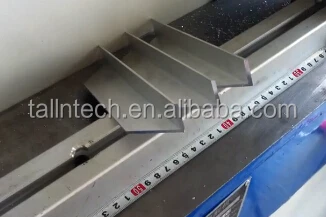

Function: cutting 45 degree on two ends at one time
Suitable for cutting: aluminum, wood, plastic etc
Material shape: round and square pipe, tube, rod, bar, profile, extrustion, sheet etc

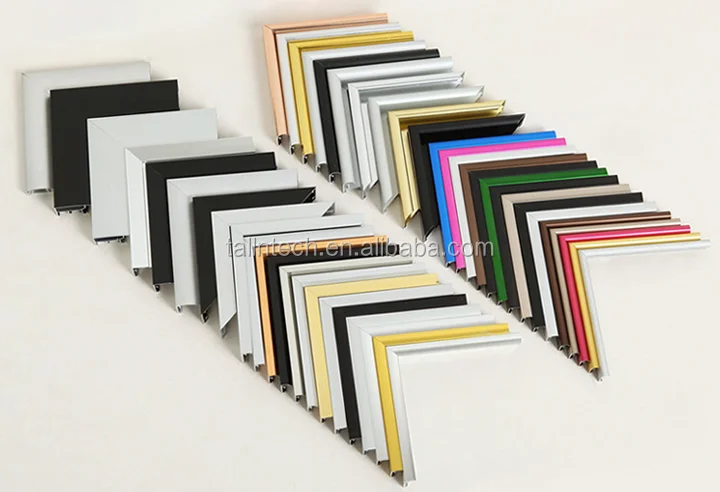

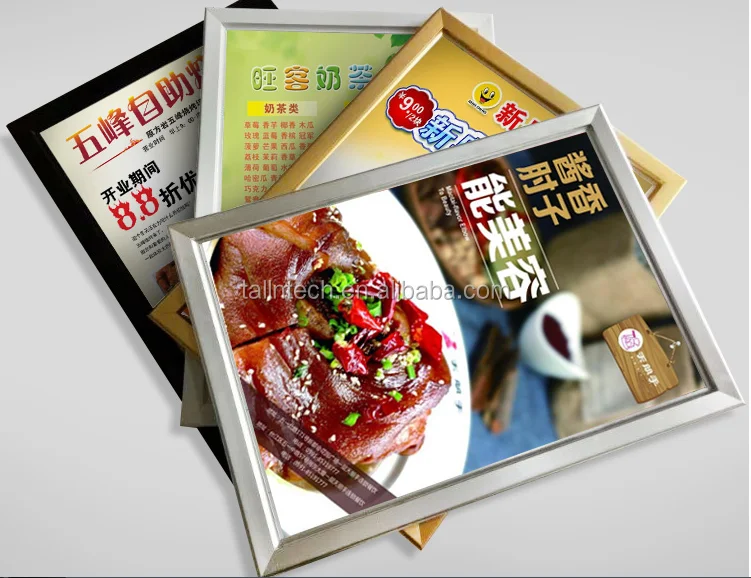

Main application fields: window manufacturing, frame making, door making and other furniture manufacturing fields.
Control: semi automatic
Feeding: manually
Cutting: semi automatic
Drive: pneumatic
Power: 380volts, 50hz, 3 phases (accept customization)
Advantages:
Professional: 7 years into machinery.
Brand: Lix, China Famous Brand
Engineers: 10 professional and experienced engineers
Certificates: ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Honors: National Hi-Tech Enterprise, AAA Grade Credit Enterprise
Exported Countries: South Africa, India, Australia, Russia, UK, Ukraine etc
Features:

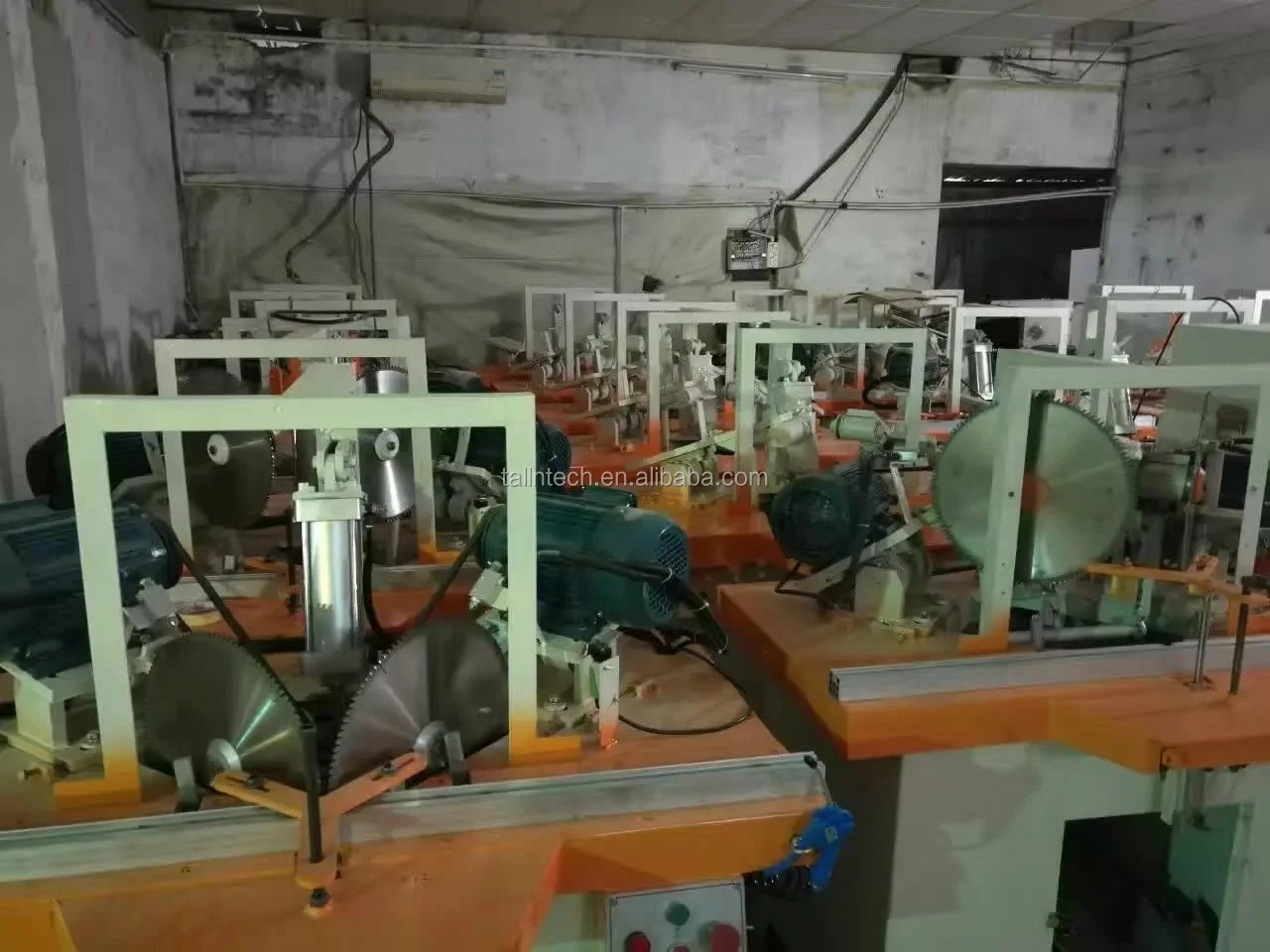

1. Double sawblade---quick cutting, time saving, improving production efficiency
2. Footswitch---automatic loading materials, automatic clamping
3. Lubricating---four lubricators to automatically lubricate the sawblade
Specification:

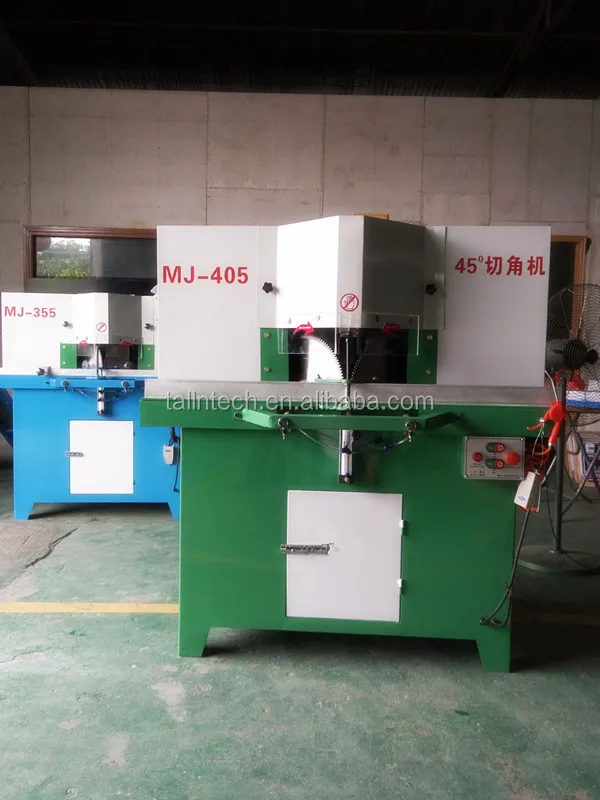

Model | Unit | MJ-405 |
Voltage | v | 380v, 3 phase |
Cutting angle | degree | 45*2 |
Max. width | mm | 100 |
Max. thickness | mm | 120 |
Rated Power | kw | 2 |
Cutting speed | rpm | 3200 |
Saw blade DIA |
| 405mm |
Working table | mm | 870*200*800 |
Main motor | KW | 2.2KW*2 |
Machine dimension | mm | 1400*700*1600 |
Package dimension | mm | 1480*1000*1700 |
N.W./G.W. | kg | 450/500 |
