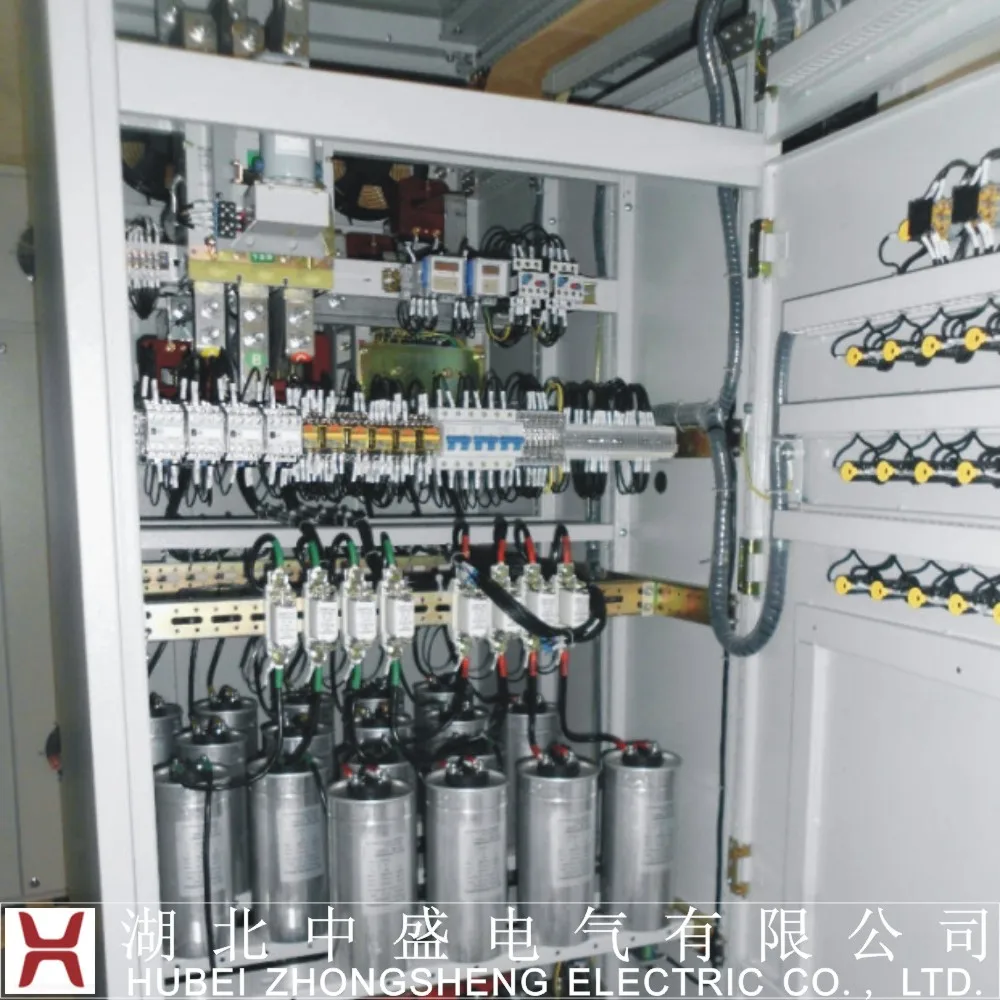

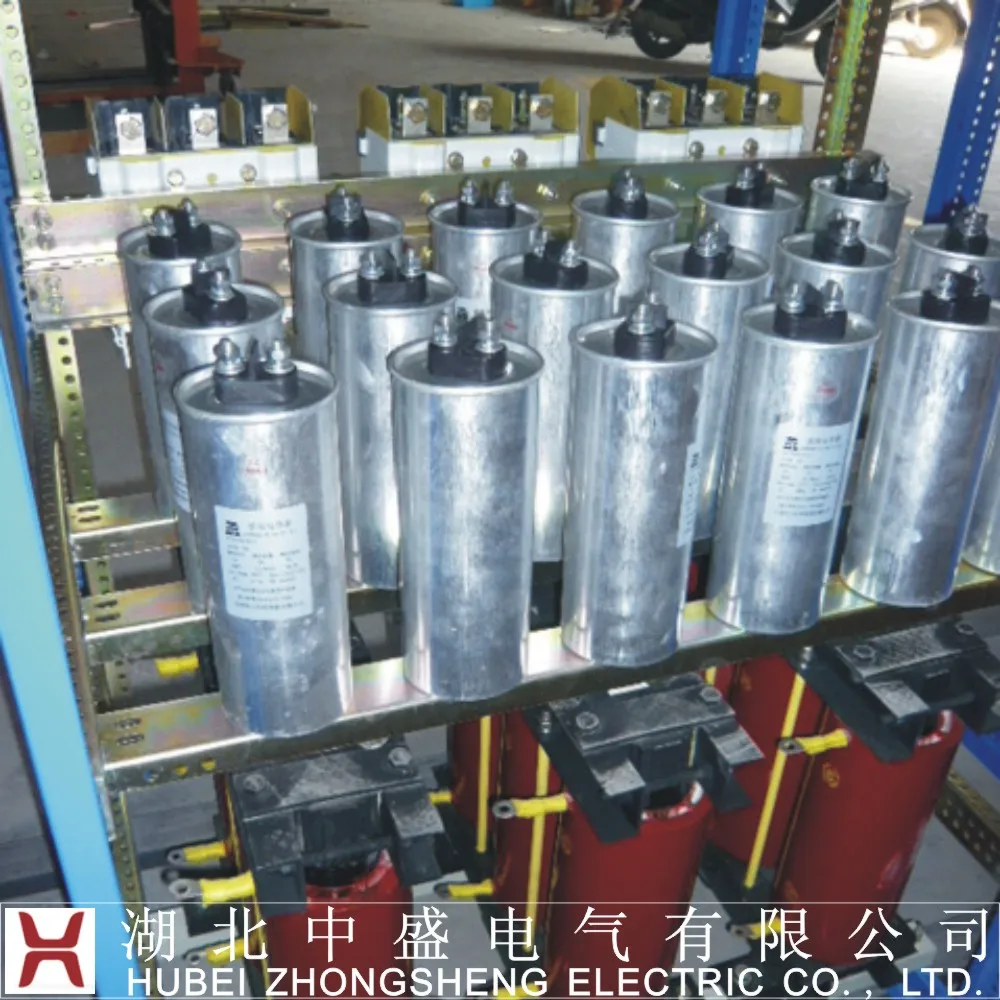

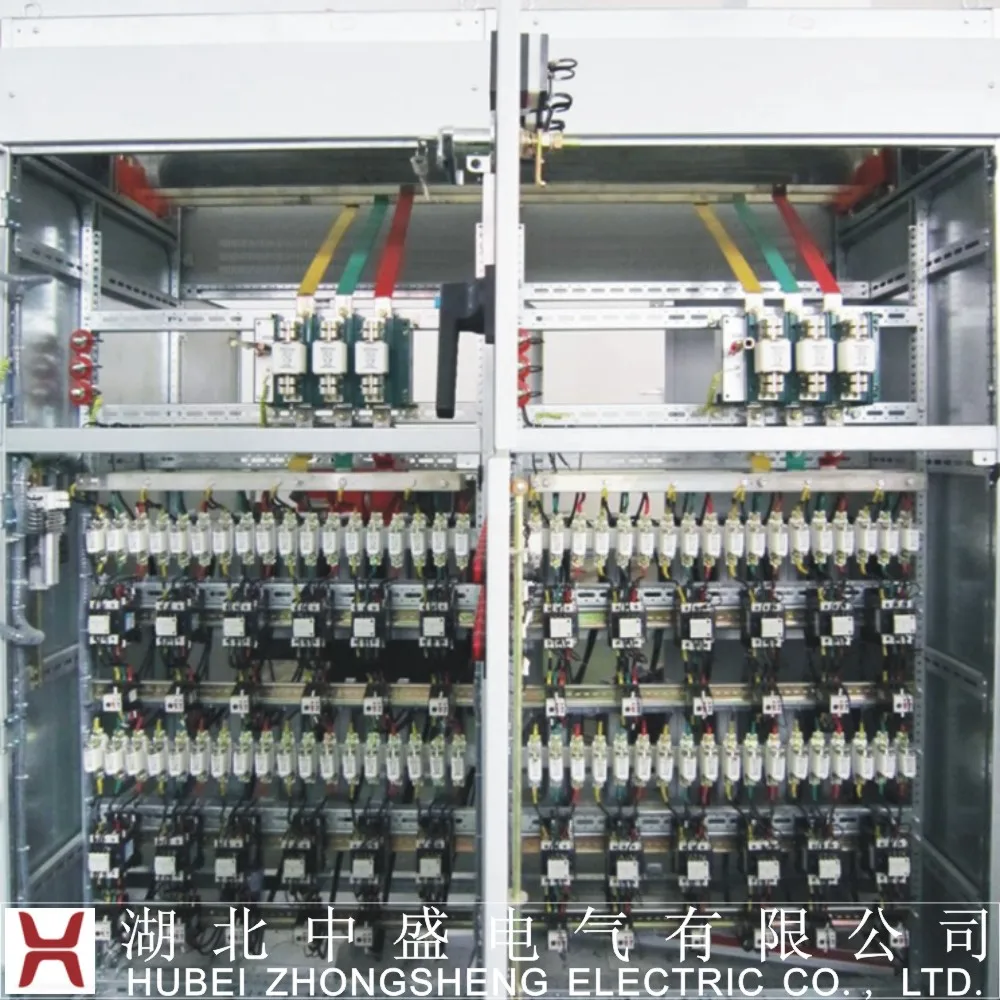

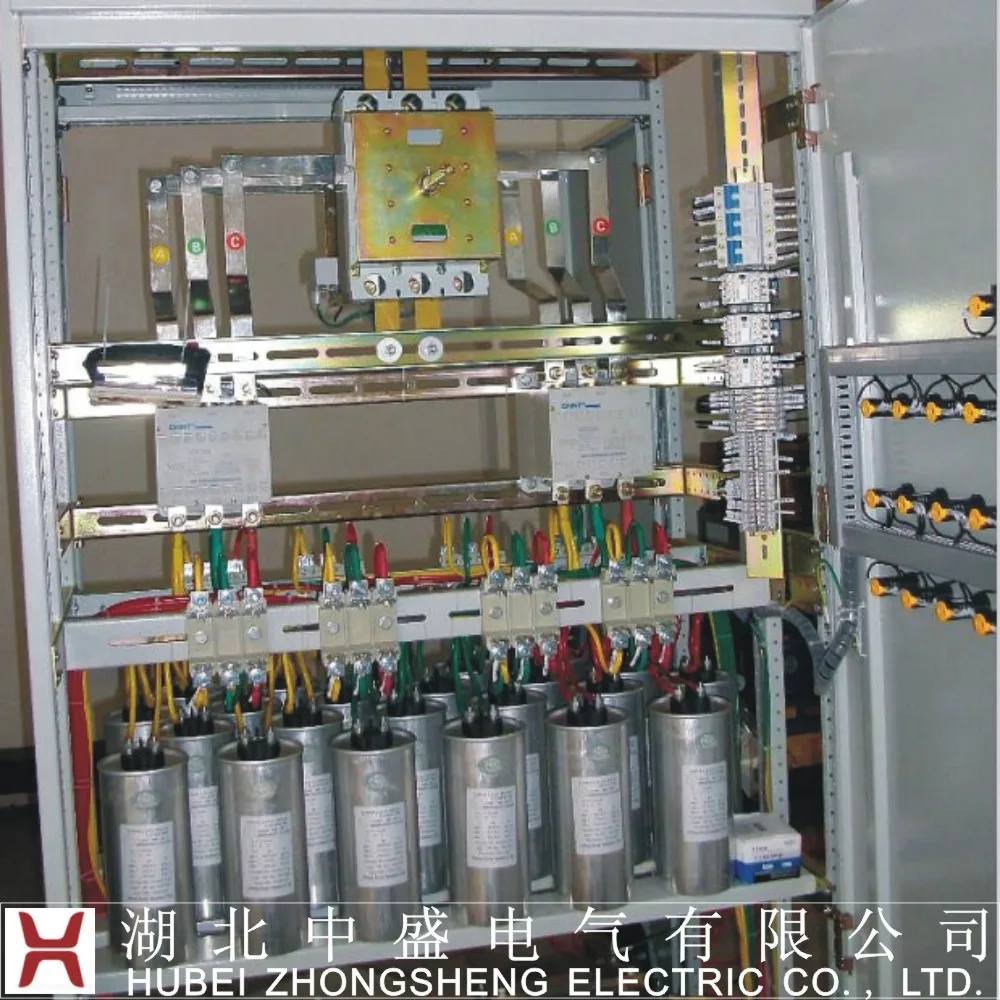

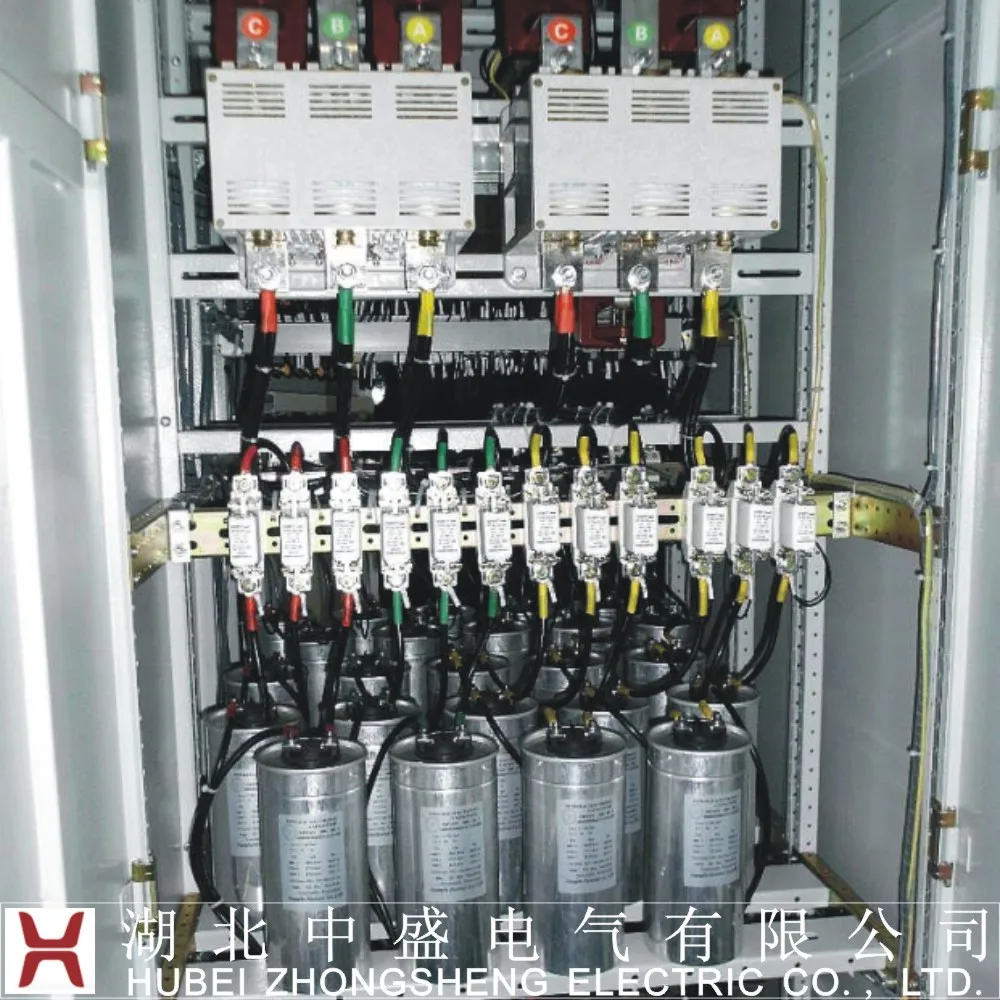

Industrial power factor correction unit is suitable for low power factor electrical system with or without harmonics. This unit is a specially designed system with three configuration options.
Model No.
Rated Capacity (kvar)
Size (mm)
Width
Depth
Height
SLVC-60/X
60
600
600
2200
SLVC-90/X
90
600
600
2200
SLVC-100/X
100
600
600
2200
SLVC-120/X
120
600
600
2200
SLVC-150/X
150
800
600
2200
SLVC-180/X
180
800
800
2200
SLVC-210/X
210
800
800
2200
SLVC-240/X
240
1000
800
2200
SLVC-270/X
270
1000
800
2200
SLVC-300/X
300
1000
800
2200
SLVC-330/X
330
1200
1000
2200
SLVC-360/X
360
1200
1000
2200
Note: The size in this table is for the configuration with only reactive power compensation application.
Features
1. Three configuration options: only reactive power compensation application, reactive power compensation with harmonic filter application, only harmonic filter application.
2. Automatic switching capability, and automatically computer and analyze electrical parameters, such as voltage, current, active power, reactive power, power factor.
3. Can be normally tuned to the 5th, 7th, 11th, 13th harmonics, efficiency is more than 75%.
4. Offer quick responding, the fasted time can be less than 20ms.
5. Reliable and safe structure, easy to install.
Service condition
1. Ambient temperature: -10℃ ~ +40℃.
2. Relative humidity: Less than 85%, non-condensation.
3. Altitude: Less than 2000m. (more than 2000m should be with special design.)
4. Installation site: Indoor service. Vertical inclination shall be less than 5 degree. No fire hazard, explossion risk, conductive dust, corrosive gas and strong vibration exist.
Ordering Instructions
Please providing following information when you place the order:
1. Harmonics will affect the performance of the unit. If the electrical system has harmonics, please give us the details of harmonic frequencies.
2. Confirm natural power factor and target power factor.
3. Any special requirements, such as outdoor installation, please consult with our company.
4. This low voltage power factor correction unit is working with switchgear, if you don't have switchgear, you can order the unit together with switchgear from us.
