LNG Coriolis Mass Flow Meter
- Category: Flow Meters >>>
- Supplier: Zhejiang Sealand Technology Co. Ltd.
Share on (60427433023):
Product Overview
Description
LNG Coriolis Mass Flow Meter
We are the only Chinese brand who gets ATEX, and we get it from TUV SUD, the most authoritative institute for ATEX. Our meter passed all tests carried out by TUV without any modification. Their only suggestion is to replace the cable entry device with a ATEX approved one; thus, please rest assured that we produce our meter with high standard :)
Besides, Sealand meter and calibration lab are approved by CNAS, member of ilac in China.
Specifications
Specifications of Coriolis mass flow meter | |
Model No. | CG-25 |
Max. flow rate | 200kg/min |
Nominal diameter | 25mm( 1 inch) |
LNG accuracy grade | ±0.5% |
Zero stability | 0.62kg/hr |
Repeatability | 0.25% |
Warranty | 2 years |
Temperature accuracy | ±1°C ±0.5% of reading |
Fluid temperature | -200~60°C |
Certificate | ATEX, IECEx, CE, SIL & ISO |
Package size | 665*645*320mm |
G.W. | 23kgs |

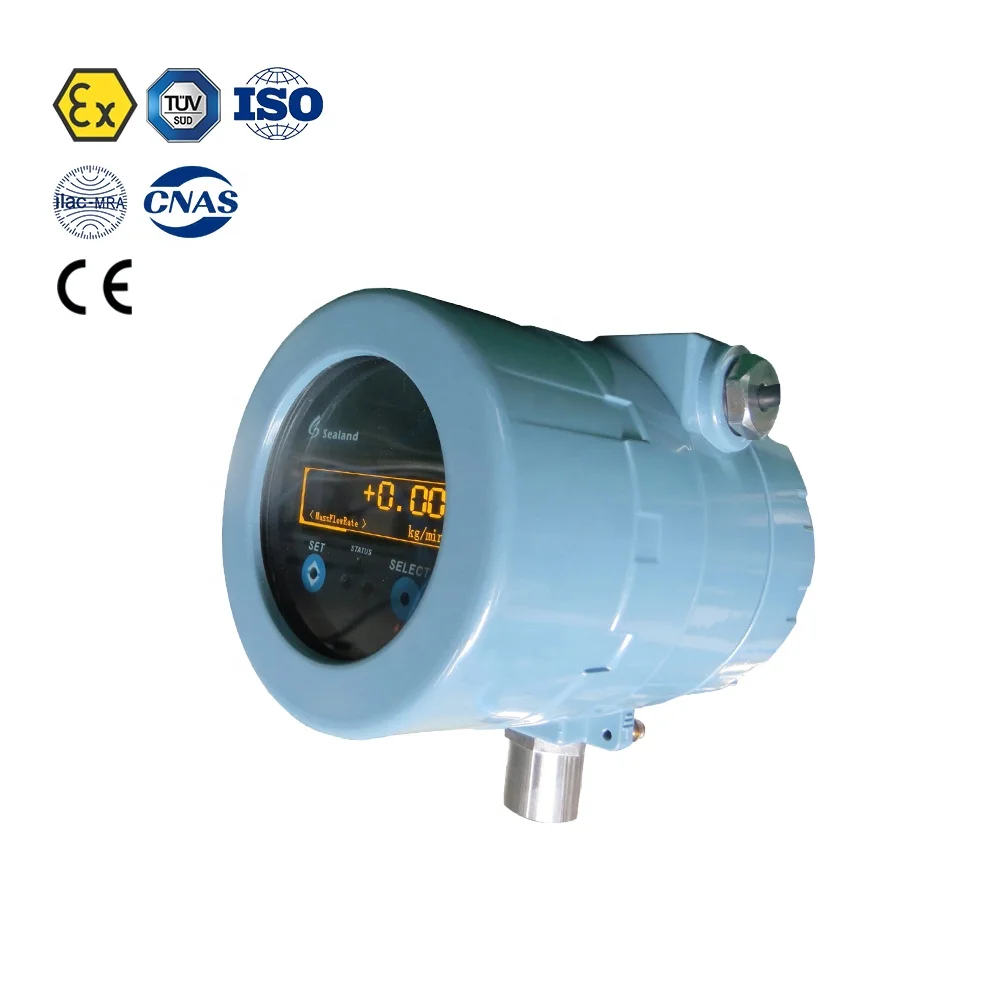

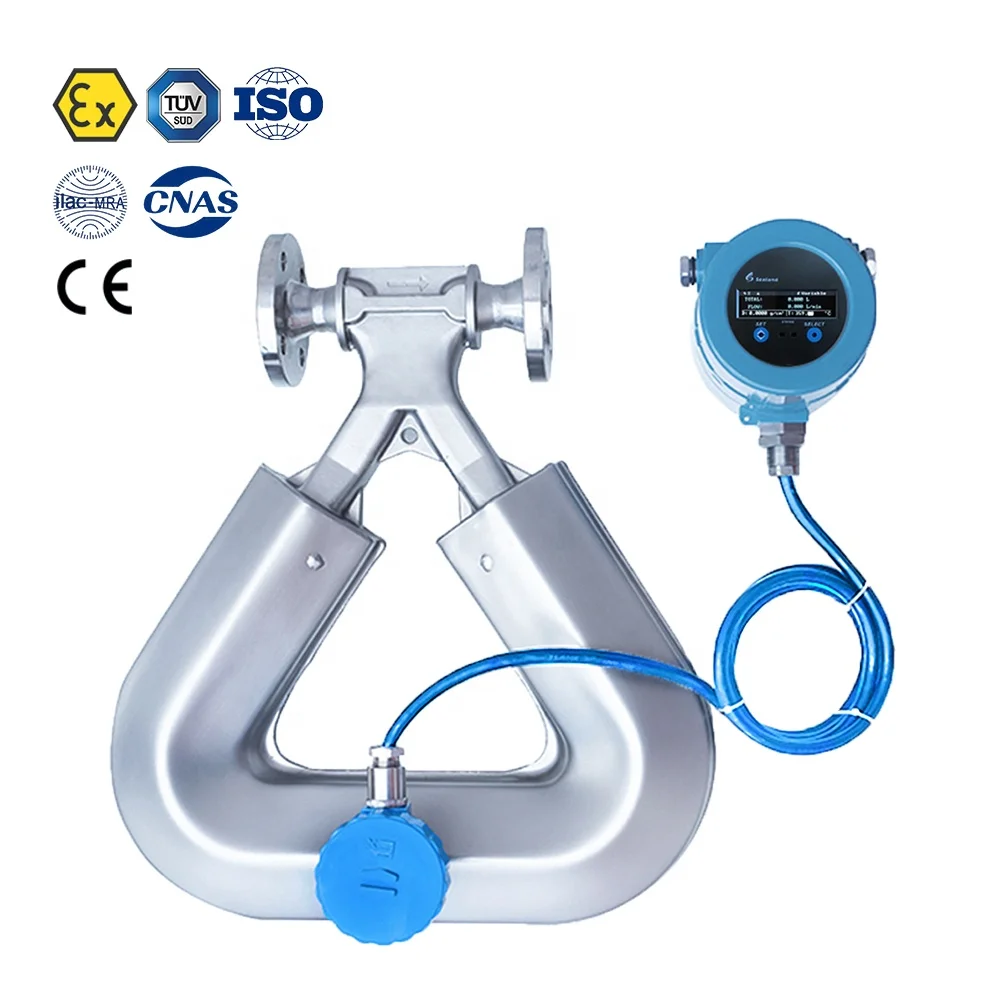

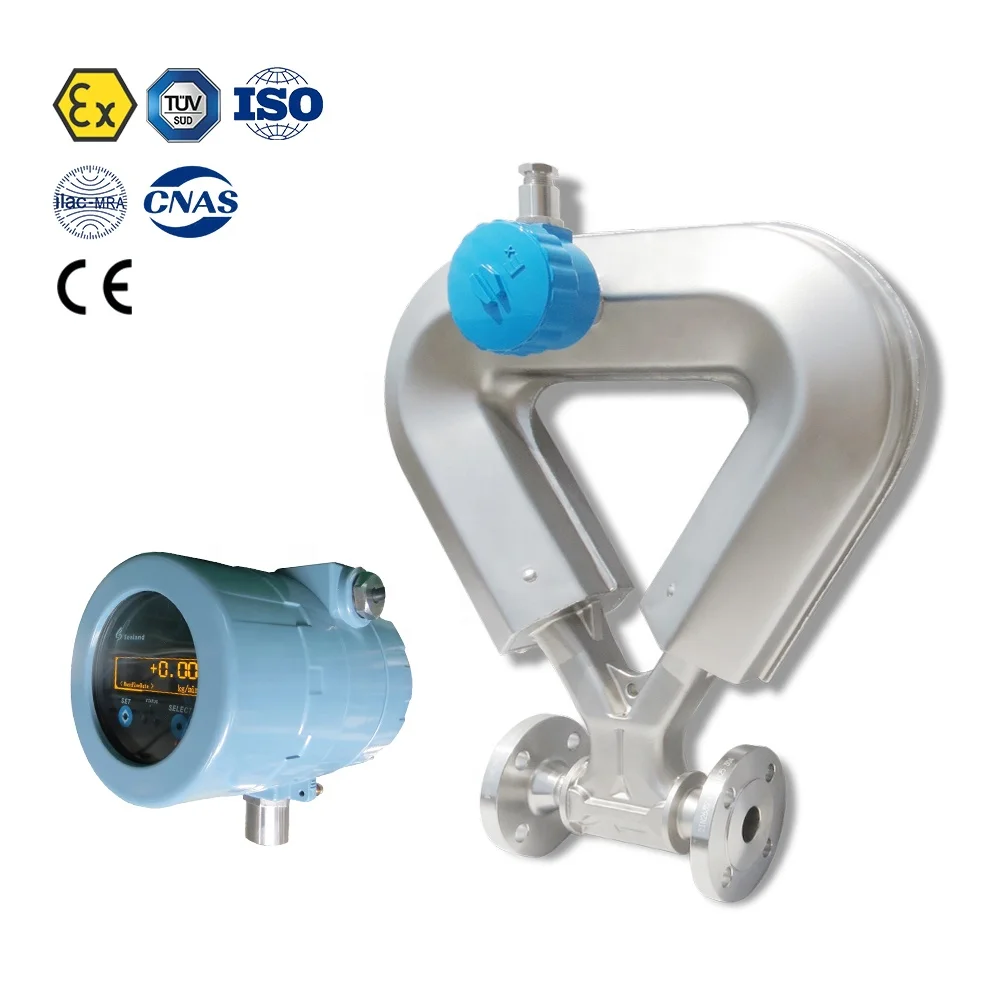

Detail pictures

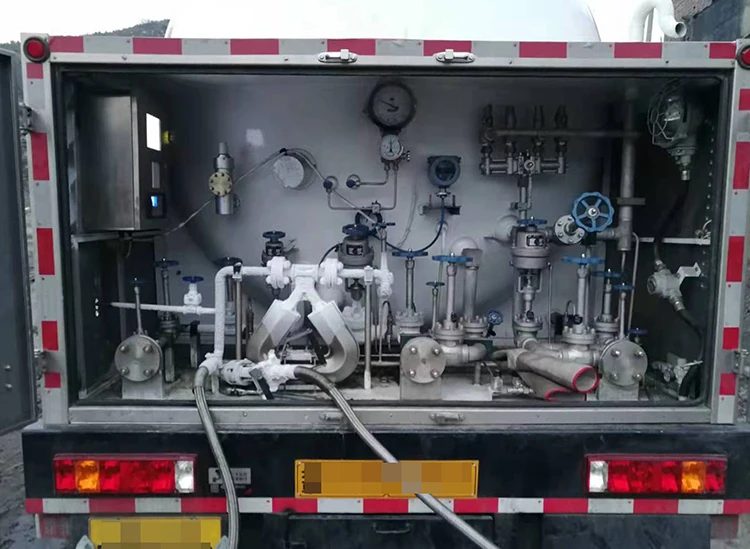

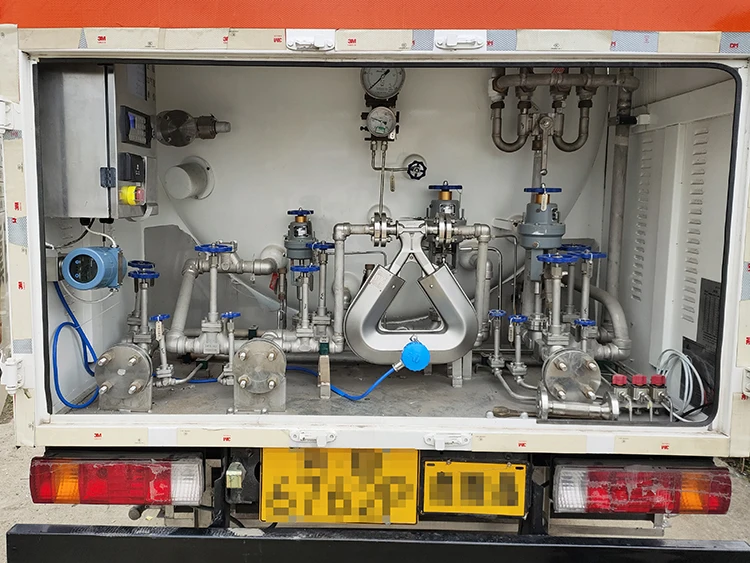

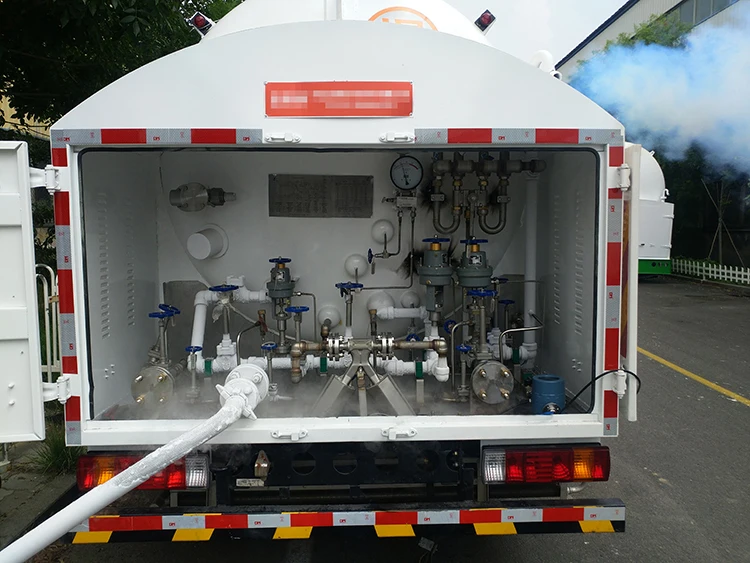

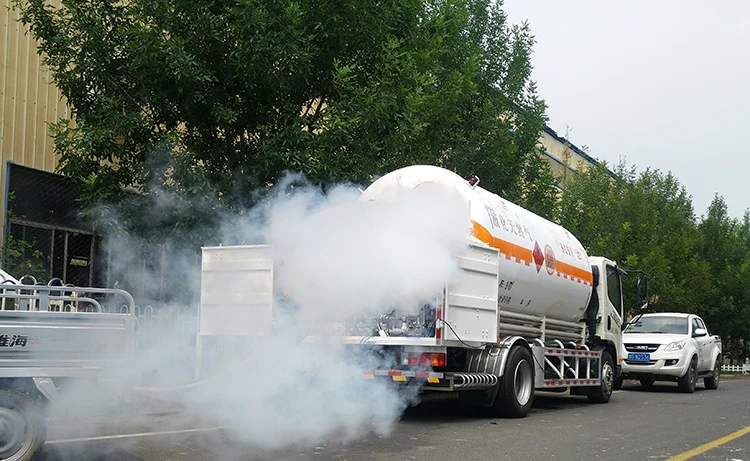

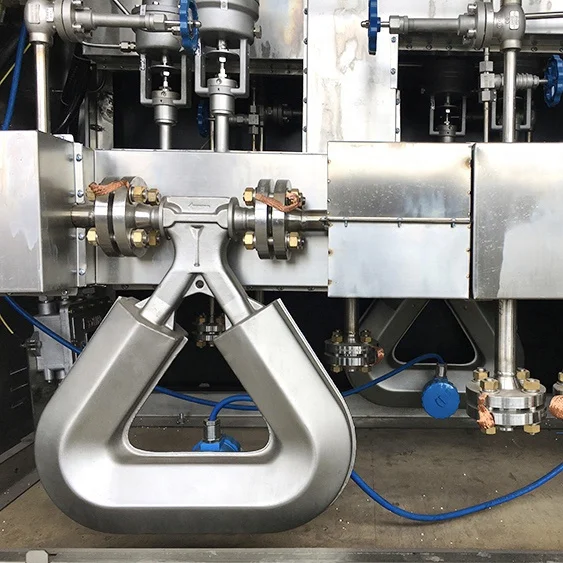

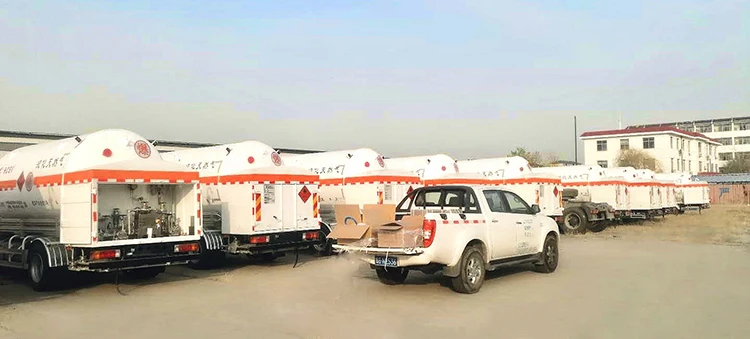

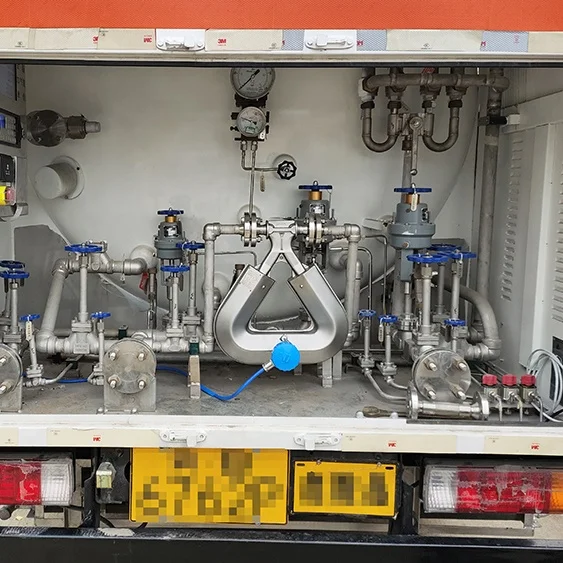

On-site Pictures of Sealand Coriolis mass flow meter for LNG
Sealand is the most experienced Chinese brand for LNG application.
Advantages of Coriolis mass flow meter
1. Maintenance-free
2. HIgh accuracy & reliability
3. Shows many parameters simultaneously, such as mass flow, temperature & desity
4. Compact design with no moving parts, no special mounting and no flow conditioning required.
Related Products
We have DN03~DN150 models for the moment.
Model No. | Diameter (mm) | Max. flow rate (kg/min) | MWP. (MPa) | Accuracy grade (%) | Zero stability (kg/h) |
CG-03 | 03 | 6 | 4 | 0.1/ 0.2/ 0.5 | 0.012 |
CG-06 | 06 | 18 | 4 | 0.1/ 0.2/ 0.5 | 0.04 |
CG-15 | 15 | 50 | 25 | 0.1/ 0.2/ 0.5 | 0.12 |
CNG-20 | 20 | 120 | 25 | 0.1/ 0.2/ 0.5 | 0.36 |
CG-25 | 25 | 200 | 4 | 0.1/ 0.2/ 0.5 | 0.62 |
CG-40 | 40 | 500 | 4 | 0.1/ 0.2/ 0.5 | 1.60 |
CG-50 | 50 | 1000 | 4 | 0.1/ 0.2/ 0.5 | 2.38 |
CG-80 | 80 | 3000 | 4 | 0.1/ 0.2/ 0.5 | 7.05 |
CG-100 | 100 | 3600 | 4 | 0.1/ 0.2/ 0.5 | 12.00 |
CG-150 | 150 | 8000 | 4 | 0.1/ 0.2/ 0.5 | 50.00 |
About Sealand
Zhejiang Sealand Technology Co. Ltd. is a professional hi-tech enterprise, specialized in development, production & sales of Coriolis mass flow meter, located in Binhai ETDZ, Wenzhou, Zhejiang, China. Read more!
Calibration Lab for Mass Flow Meter
The calibration lab is equipped with world famous brand METTLER TOLEDO instrument with accuracy 0.014%, and other devices imported from South Korea, national institute approved.
Mass Production of Mass Flow Meter
Why Sealand?
1. Sealand is professional, with senior engineers from the first research team in this field in China, and junior one from college, to keep improving.
2. Sealand is experienced. It started to research and develop in 1990. All employees are stable here; even the production-line workers have worked here for more than 5 years.
3. Sealand strictly controls the quality from raw material to finished products, and all products will be inspected and tested for 3 times before shipment.
4. The warranty is 2 years, but technical support is always available. Read more!
FAQ.
1.Customer: May I release trial order, 1 pc for example?
Sealand: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
2.Customer: Could you design according to my requirements?
Sealand: Of course, our team will design for you, to make our mass flowmeter work perfectly at your end.
