5 axsis brush making machine
US $1.00

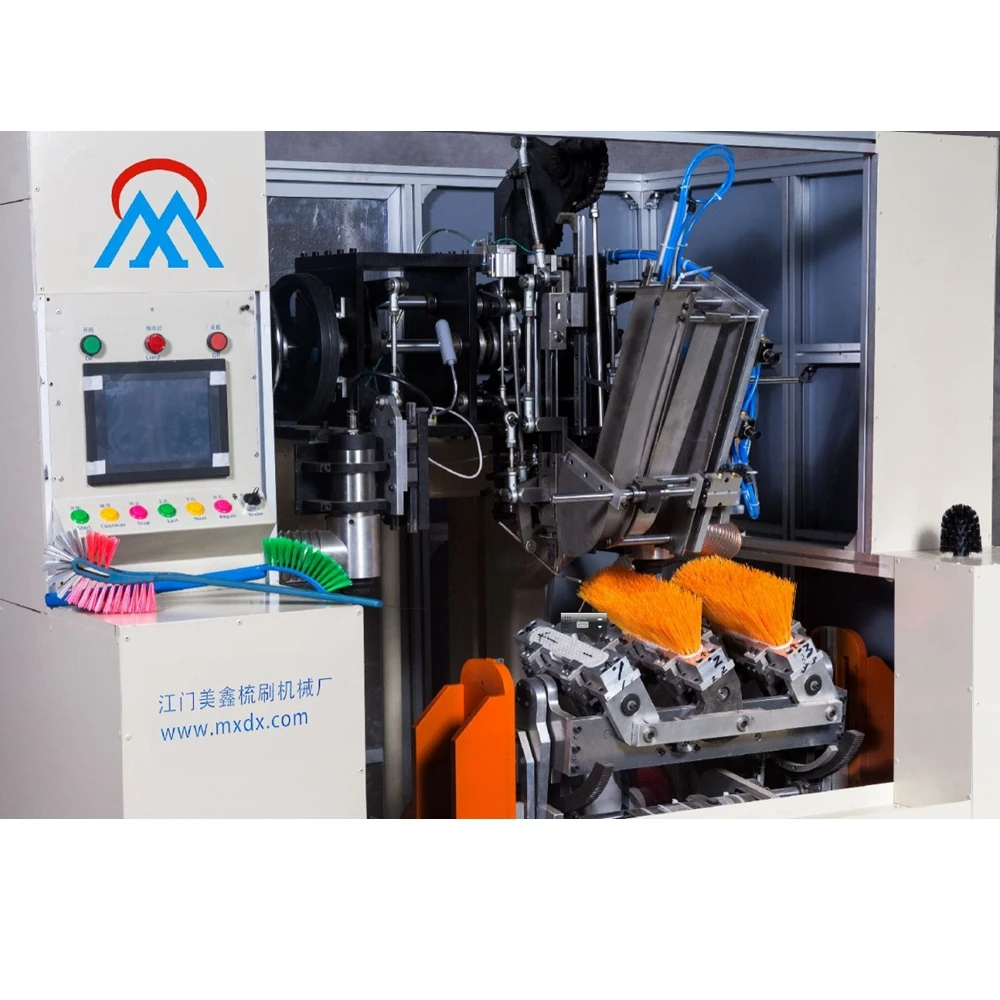

High production customized 5 axis 2 drilling 1 tufting broom making machine
- Category: Brush Making Machines >>>
- Supplier: Jiangmen Meixin Comb Brush Machinery Co. Ltd.
Share on (60428589533):
Product Overview
Description
| Description: | |
| Model | MX-5ADT002 |
| NO. of axis | 5 axis |
| Qty of heads | 2 drilling and 1 tufting |

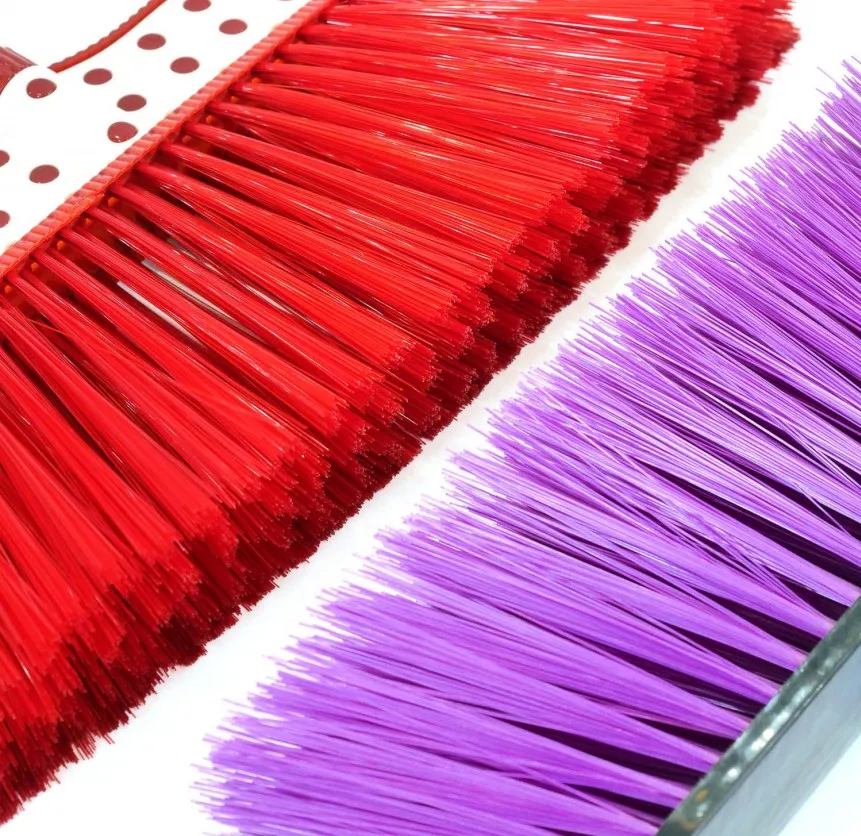

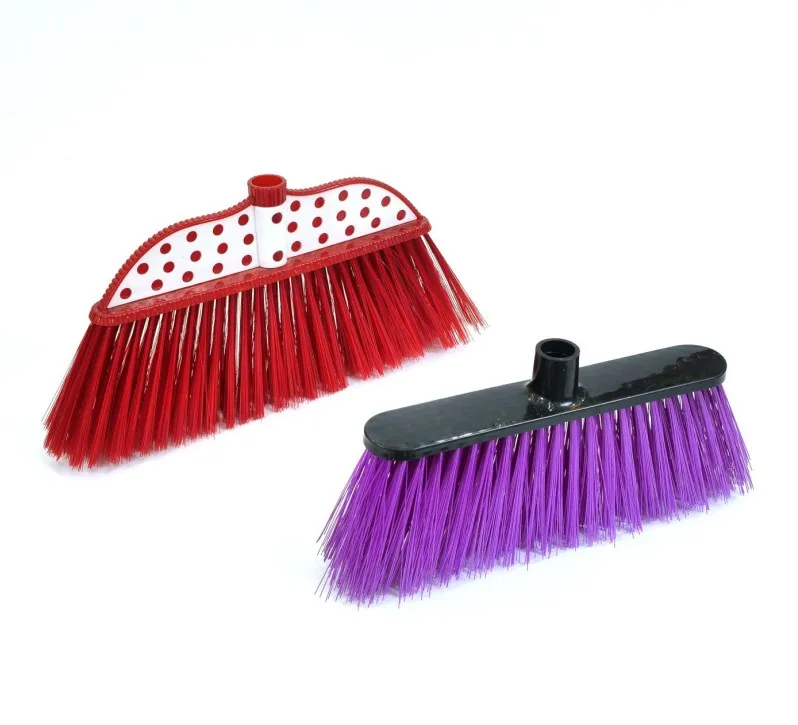

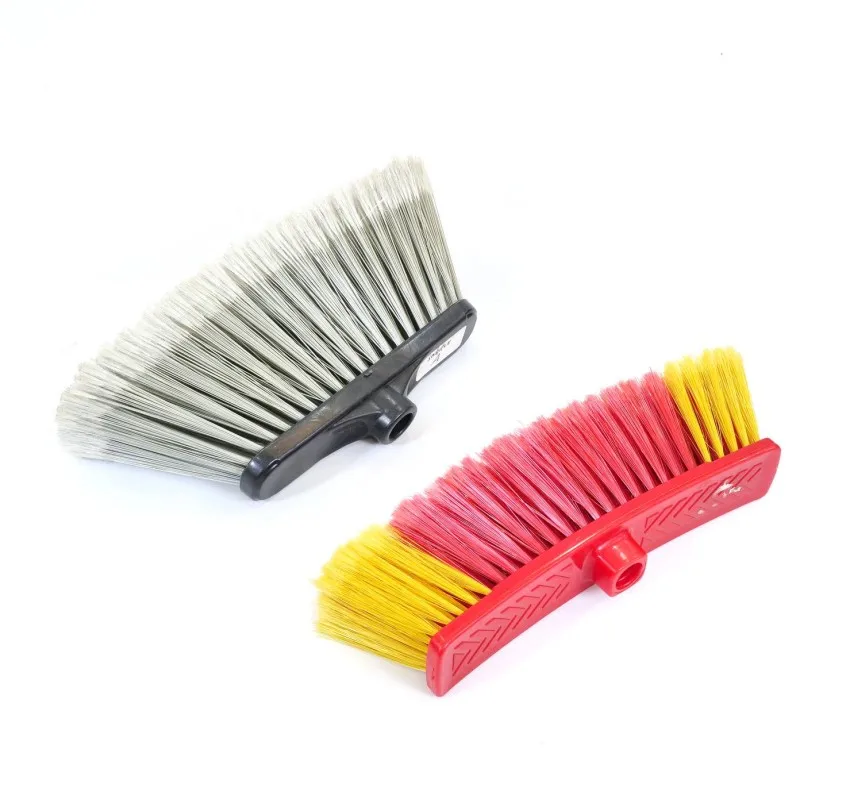

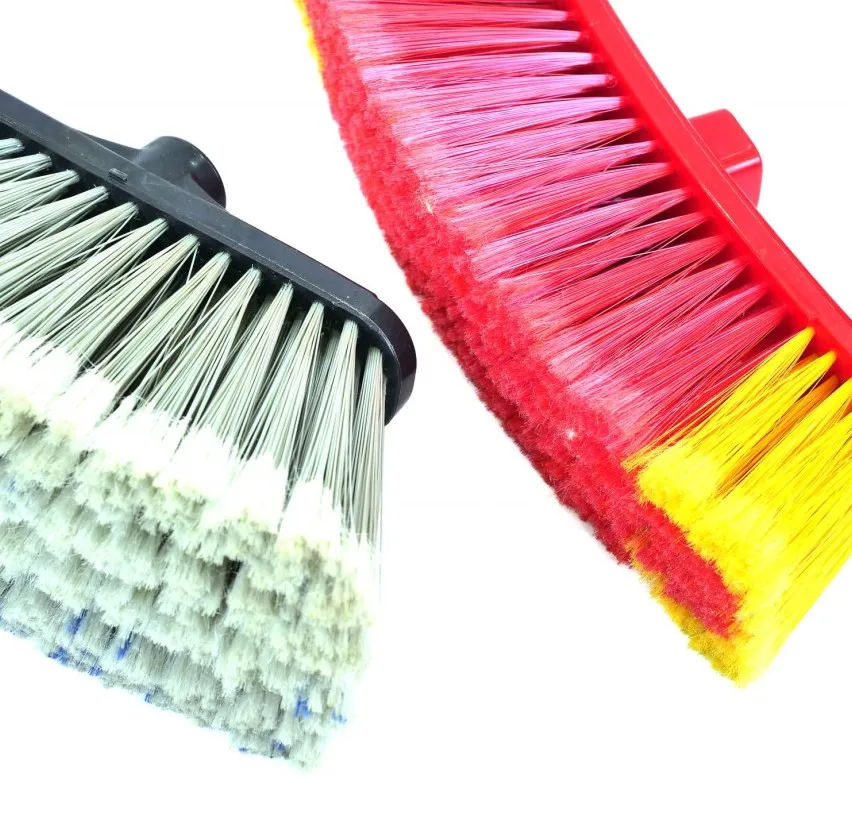

| Application | Sweeping brush |
| brush types | customized |
| Brush base materials | Plastic, wood |
| Filament materials | PP,PET, Nylon,animal hair plant fiber etc. |
| Dimeter of the disc | ≤500mm; 600~800mm |
| Diameter of hole | 4~6mm |
| The length of filament(outside the hole) | 20~200mm |
| Colors of Brush Filaments | 2 colors |
| Parameter: | |
| Drilling and tufting Speed | 4~6 holes/sec. |
| Power voltage, frequence | 220/380v , 50/60HZ (customer choose) |
| Main motor power | 2.5kw |
| Air Source Input | 0.4~0.5Mpa |
| Equipment size | 1700*1500*1800mm |
| Weight | 1200kg |
| Electrical parts: | |
| Control System(PLC) | MEIXIN Chinese and English version |
| Touch screen | MEIXIN Chinese and English version |
| Main motor | SNMA |
| Servo motor | Maxsine |
| Relay | IDEC (Janpan) |
| Variable-Frequency | DELTA (Taiwan) |
| Safety Protection: | Schneider (France brand) |
