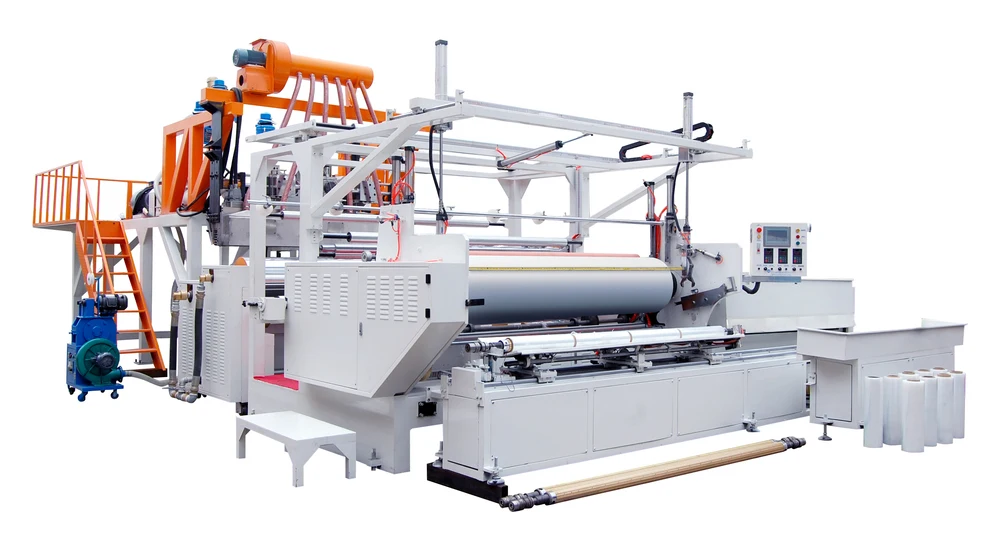

Fully Automatic High Speed 3 Layer or 5 Layer Stretch Cling Film making machine

Product Overview

Description

Model	XHD-LΦ80/120/80X2350
Voltage/Frequency/Phase	Customized
Main Raw Material	LLDPE & MLLDPE
Screw L/D	1:30mm
Designed Linear Speed	200 M/min
Width of the useful film	2000mm/4*500mm/4*450mm
Total Installation Power	300KW
Thickness	0.012-0.05mm
Capacity	200-380kg/h
Film Layer Structure	ABC/ABCBA
Total Weight	20T
Dimension(L ×W ×H)	16.5×5×5.5 M







Features of Lastest New Developed Fully Automatic High Speed 3 Layer or 5 Layer Stretch Cling Film making machine

1. The plastic film machine alloy screw adopts special mixing function and high plasticizing design which combine

     import static mixer to ensure plasticization is good, color is uniform and increase extrusion capacity greatly.



2. Plastic film machine T-die material employs imported top special mould steel. By high precise process and

    treatment to ensure the long-term use of the T-die and no deformation.. Meanwhile insures material extrusion

    is more smooth and stable.



3. Plastic film machine inside cool roller adopts two-way circulation design and built-in spiral flow way to ensure

    roller surface temperature is equal.



4. Plastic film machine winding station can move forth and back. Adopts advanced torque motor with four-axis

    automatic tension control. Both the speed and film width arefreely adjustable.





Optional system of plastic film machine

1) Sub-atmospheric Vacuum Pump.

2) Melting Gear Pump and PID Control System.

3) Accurate Touchable Screen Temperature Controller.

4) Robot Hands for Roll-change and Roll-rewinding Automatically.

5) Including Automatic Carton Loading&Unloading.

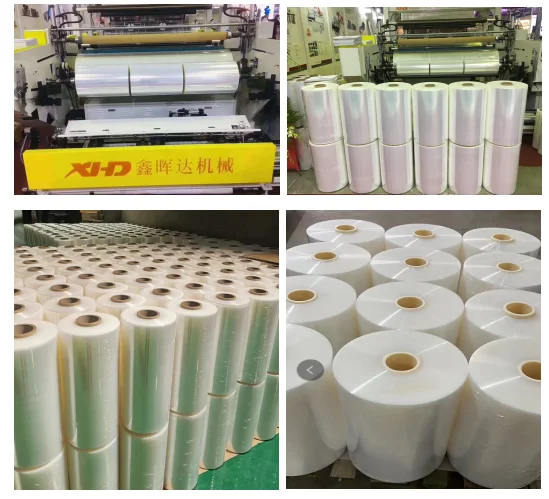

Films produced by Lastest New Developed Fully Automatic High Speed 3 Layer or 5 Layer Stretch Cling Film making machine

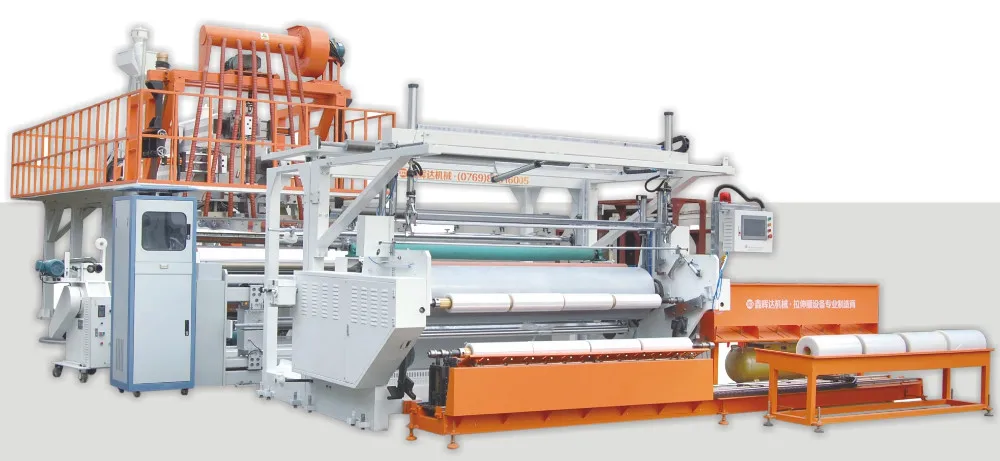

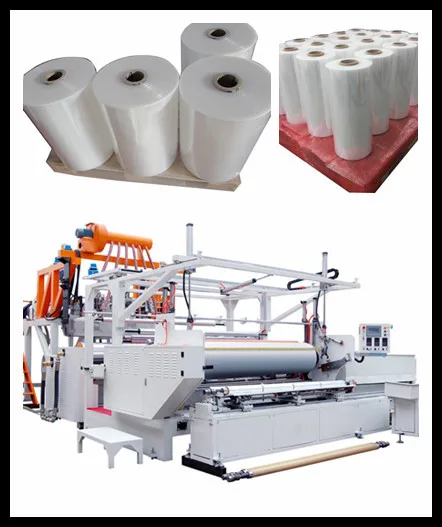

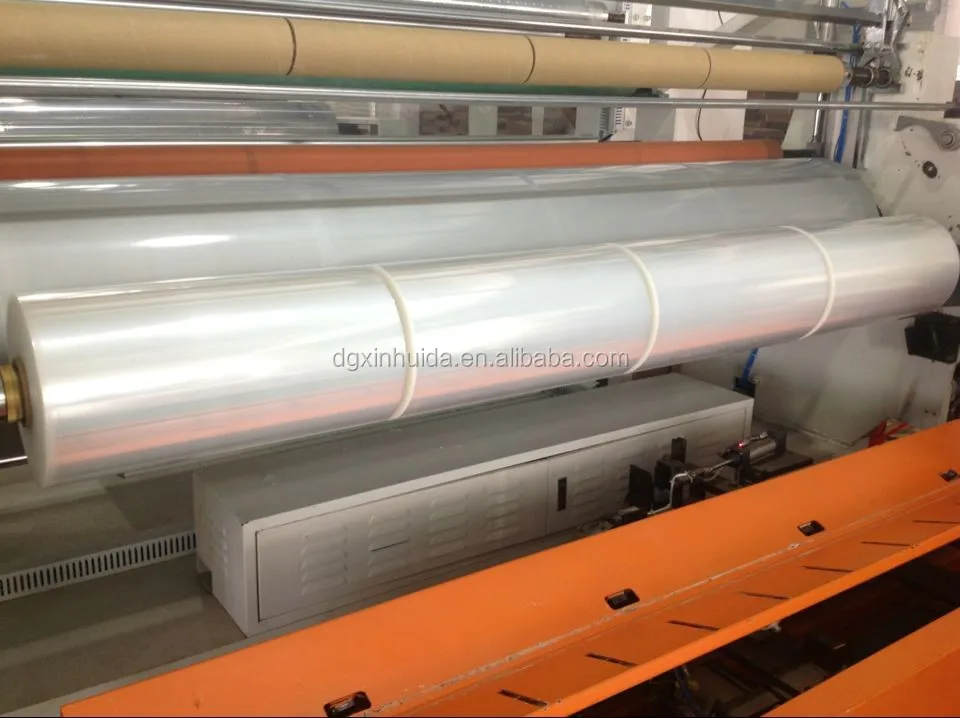

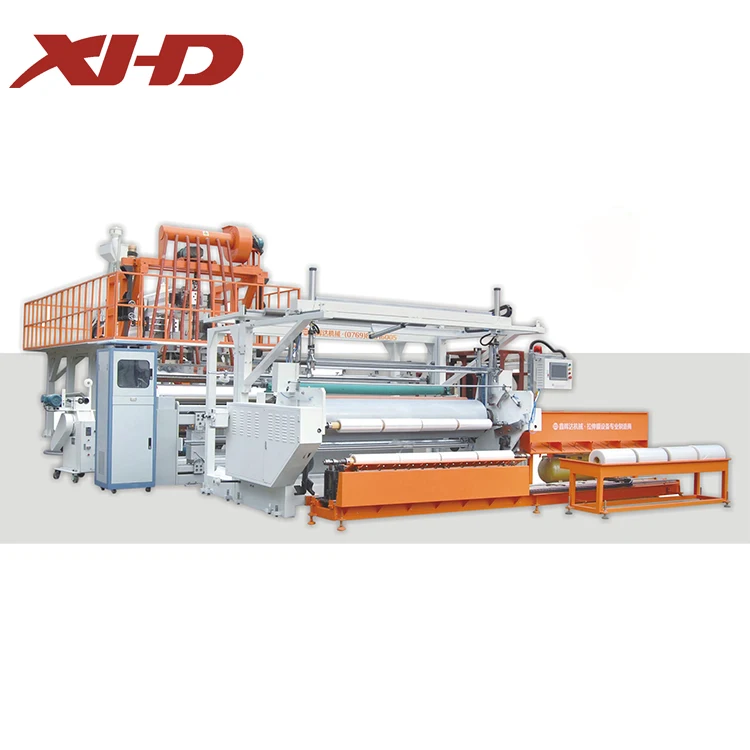

 Illustration of Lastest New Developed Fully Automatic High Speed 3 Layer or 5 Layer Stretch Cling Film making machine





Dongguan Xinhuida Machinery Co.,Ltd is an enterprises established in 2000 which is specialized in plastic film machine, the width from 500mm to 2000,single layer to multi layers. Our company is combined with machine design, R&D, manufacturing, sales and after sales services. We are honest and conscientious to supply our home and abroad customers with high quality, low power saving, high comparativer advance equipments.



As the continuous professional technology and R&D introduced, now plastic film machine have our own patent and trademark which all meet the ISO international certification. We are based on developing our advantage and combining our plastic film machine features to provide our customers the high efficient machines to win market, leading the peer and building XINHUIDA professional brand which is praised by the global world.



Under the pressure of the market economic trend and huge market competition, we keep innovating, seeking common ground while reserving.





XHD EXHIBITION AND CERTIFICATE
