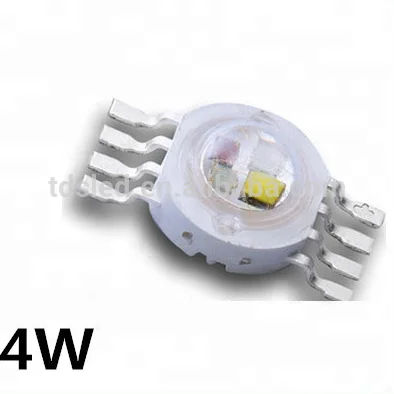

Светодиодная лампа высокой мощности 4 Вт 8 Вт 12 Вт 16 Вт RGBW со звездным радиатором

Share on (60429596553):


Price:

Quantity:


Product Overview

Description


Product Description
  •  Notice: All 3W RGBW Led is with the Epileds Chip From Taiwan. This is the TOP-1 Chip for Single                       Color series. (RED / GREEN / BLUE / YELLOW / AMBER / ORANGE / PINK / PURPLE / UV)
  • Remarks:  All Led is fit for 190 degree Reflow Soldering. If you need the led for 260 degree                                    reflow soldering ,pls point out to us. We will select the silicon lens for your LED.
  • Warranty:  All Led with 5 years warranty. If any led is out of work in 5 years, we will replace                                     them by new led through our International DHL Account


                                                                            3*1WRGB  / RGBW
NameLuminous Flux(φV)Wavelength(λd)        RGB 4 / 6 Leads
      3W RGBR:40-50LM
G:60-70LM
B:15-25LM
R:620-625NM
G:520-525NM
B:460-465NM
R:40-50LM
G:60-70LM
B:15-25LM
R:620-625NM
G:520-525NM
B:460-465NM
R:80-100LM
G:150-160LM
B:40-50LM
R:620-625NM
G:520-525NM
B:460-465NM
NameLuminous Flux(φV)Wavelength(λd)        RGBW Eight Leads
      4W/8W /12W               RGBWR:80-100LM
G:150-160LM
B:40-50LM
W:130-150LM
R:620-625NM
G:520-525NM
B:460-465NM
W:6000-8000K
R:50-60LM
G:70-80LM
B:20-30LM
W:90-100LM
R:620-625NM
G:520-525NM
B:460-465NM
W:6000-8000K
R:40-50LM
G:60-70LM
B:15-25LM
W:90-100LM
R:620-625NM
G:520-525NM
B:460-465NM
W:6000-8000K



Applications:

 All general Indoor RGB lighting and outdoor RGB lighting:

 RGB Wall Washer / RGB Spotlight / RGB Follow Light / RGB Stage Light / RGB Underwater light etc.

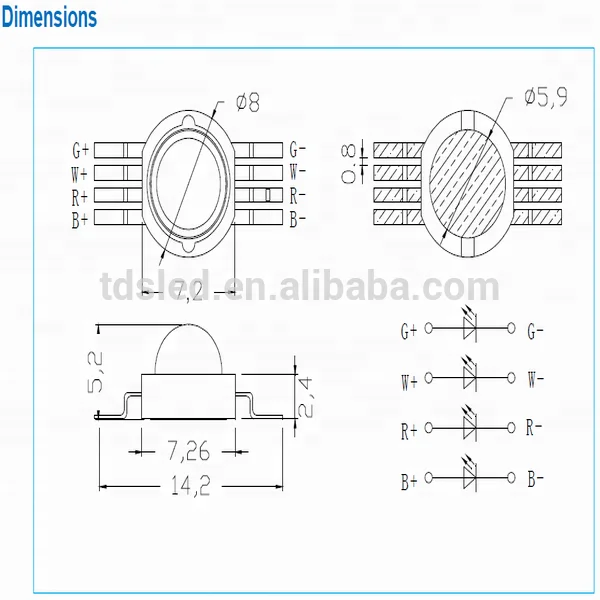

LED Dimension


Our Services

 We can help clients to solder the LED onto the MPCB / Heatsink Board. We offer the PCB design and testing support too.

RGB Heatsink..JPG

PCB With 3W RGB LED for RGB Projector / Street lamp. We can solder your OEM PCB By reflow Soldering.



Feature


FAQ



1. Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.



2. What will be the delivery time ?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes



3. Shipment will be over sea or by air ?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.



4. Could you please send me the sample ? Then i could see and analyze its quality?

Yes. We can send samples first, samples need to be charged if the value is higher.



5. Will there be any contract for this business or trade ?

Yes, there is a normal contract before the order is placed.



6. How will invoice be generated ?

Invoice can be generated with formal contract with company seals



7.payment:



T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque



If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
