Hydraulic Traveling Head Clicker Press Auto feeding by Rubber Roll

Product Overview

Description

Hydraulic Traveling Head Clicker Press Auto-feeding by Rubber Roll

CE and ISO approved ( Auto-feeding by rubber roll) precision four-column

hydraulic travelling head cutting machine

Application:

The machine is widely used for cutting large batch of regular (or same

specification) nonmetallic coiled material by the cutting die. It's especially

suitable for cutting sports goods(ball), abrasives(abrasive paper),shoes(sole,

insole,shoe-pad,upper of the shoe),

medical supplies and etc.

Features:



1. Double oil cylinders, precision four-column auto-balancing link structure,

which can guarantee uniform cutting depth of each cutting position.

2. Precision ball screw drive is adopted for accurate positioning movement and

stable operation.

3. Rubber roll auto-feeding by air-operated or manual, PLC touch screen

program control the distance of travelling head automatically sidesway and

rubber roll automatically feed.

4. Special cutting mode such as automatic dislocation, reducing cutting times,

which can reduce wastage and save raw materials.

5. It has three cutting operation mode such as manual, semi-automatic and full

automatic. When cutting in full automatic mode, operator only need pick up the

finished products directly without interruption, which can greatly increase work

efficiency and reduce the labor itensity.

6. Electromagnetic (or permanent magnetic ) chunk can be equipped together

with the travelling head, which can simply and quickly absorb the cutting die.

7. When cutting, using the safety grating to ensure the high safety of the operator.



Technical Parameters:



Maximum cutting force	30T
Stroke adjustment range	0—120mm
Range between the working tables	30—150mm
Size of travelling head	Dia.300mm
Size of lower worktable	1600×500mm
Motor power	3kW
Cutting Speed	0.12m/s
Package size	2240×1180×1900mm
Net weight	2100kg
Gross weight	2300kg
Machine color	Blue and gray  or as your option
Machine logo	SHUOYING  or Customized
OEM&ODM	Welcome

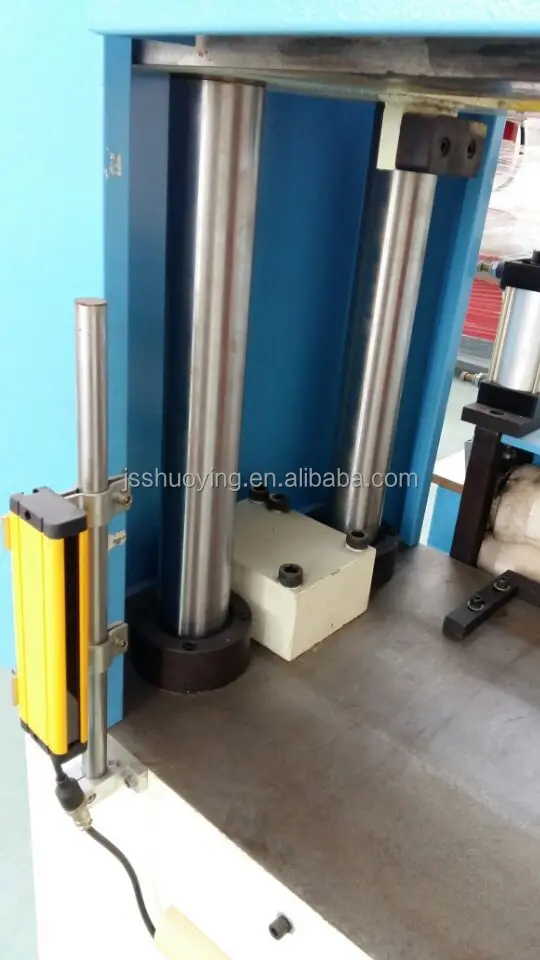

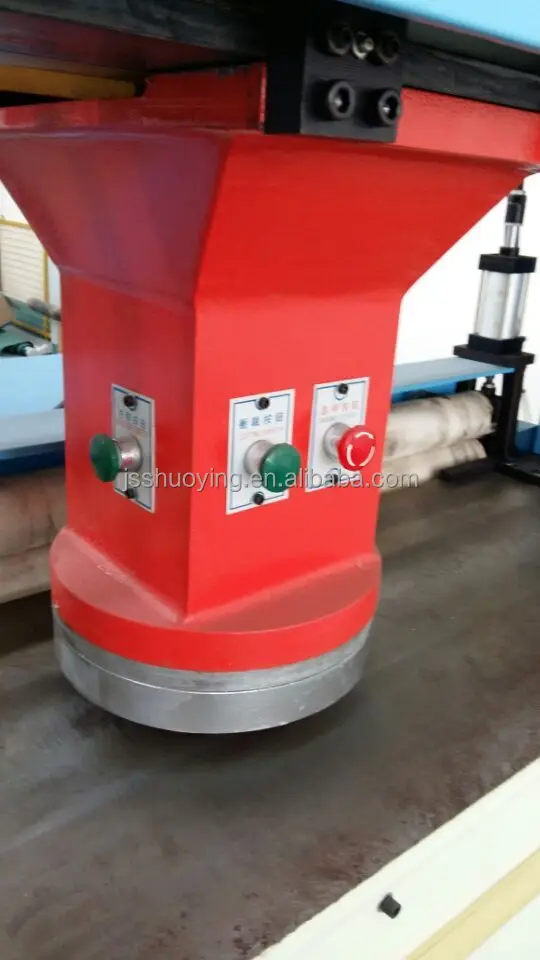

More views of the travelling head cutting machine:



  Note: If request the video link of machine operation, Please contact me .



Company Introduction:



Jiangsu Shuo Ying Precision Machinery manufacture various types of clicker press to

 meet our customers' manufacturing and production requirements.

 The die cutting technology that Shuoying provides its customers has proven to be top of

 the line in the international market. With the swing arm clicker presses leading the way

 in industry popularity, die cutting machinery has evolved into various press systerms

 for even more applications in a myriad of industries.

 The diversity of machinery within die cutting allows for a great range of tonnage, cutting

 stroke, and machine working table sizes for the various types of machinery.



Qualification Certificate and Sales Market:



Jiangsu Shuo Ying Precision Machinery Company own the certificate of ISO9001:

 2008 and CE, also we have export and import license.

 "Shuo Ying" branch series die cutting machine cooperated with the wellknown

 international company of Hongkong, Italy and UK.

 Our products in 60% percent export to more than 30 countries in  the world wide.









Customers visit Factory:





Production Equipment:



Shuo Ying Precision Machinery Company import advance mechanical processing

 and testing equipment, which gurantee the high quality products.





Production process:



The QA and QC department make strictly quality control for each product

 process.   Shuo Ying pursue to provide customers high quality cutting press

 machine and after-sales service.







Package and Delivery:





FAQ :



1, Are you a factory or a trade company ?



we are a factory , welcome to visit  and make business contact.



2, Where is your factory located ? How can I visit your factory ?



Our factory is located in No 9 Chengxiang Road Daguang Town Yancheng city Jangsu



Province China . You can take plane from Guangzhou/Beijing/shanghai city to Yancheng



city (our city ) . It is convenient .



3, Do you attend any Fair ?



Yes , we attend some professional fairs every year :



All china leather exhibition & china international footwear fair   ( in Shanghai china  )



International exhibition on shoes& leather industry   (In Guangzhou china )



4, Can we use our company logo on your machine ?



  Yes , you can use your logo if necessary .



5, How does your factory control the machine quality ?



We have some QC staffs to inspect and test the machine . every machine must be



 tested for 12-16 hour before leaving factory .



6, How long is your guarantee period ?



 One year .
