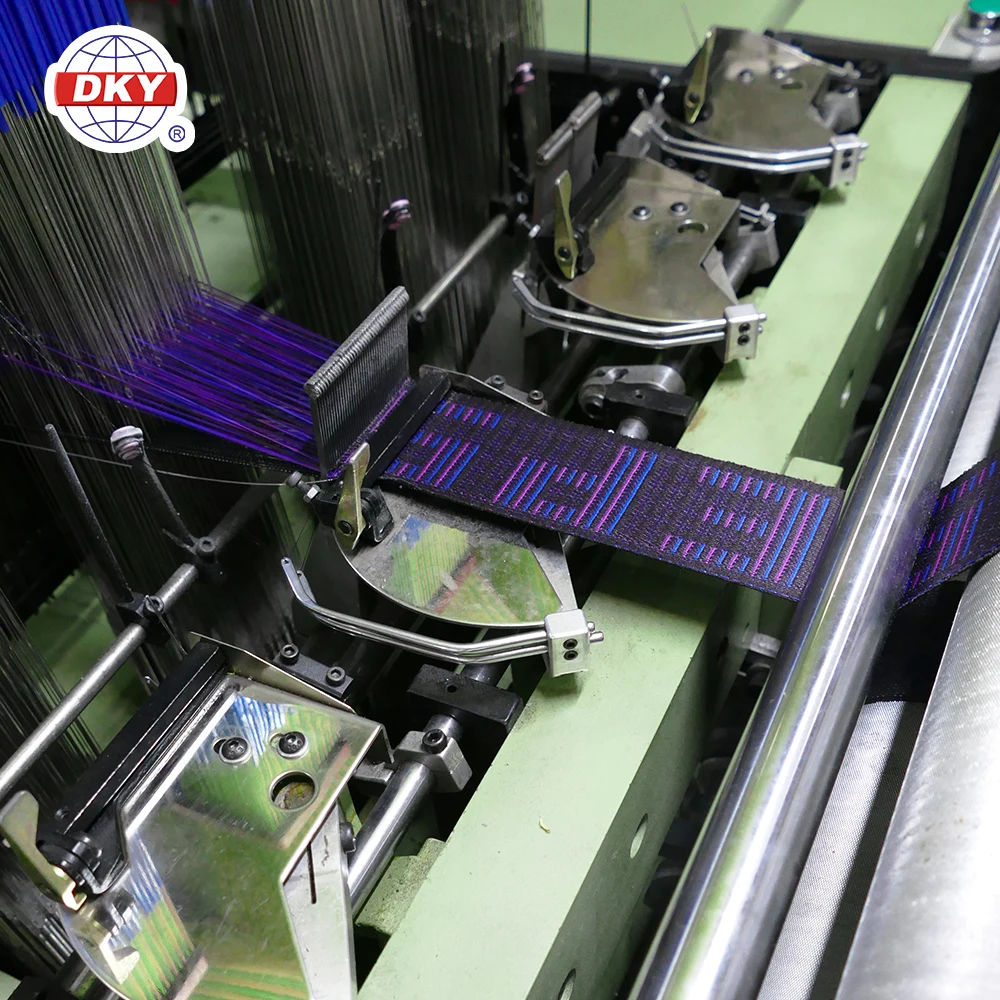

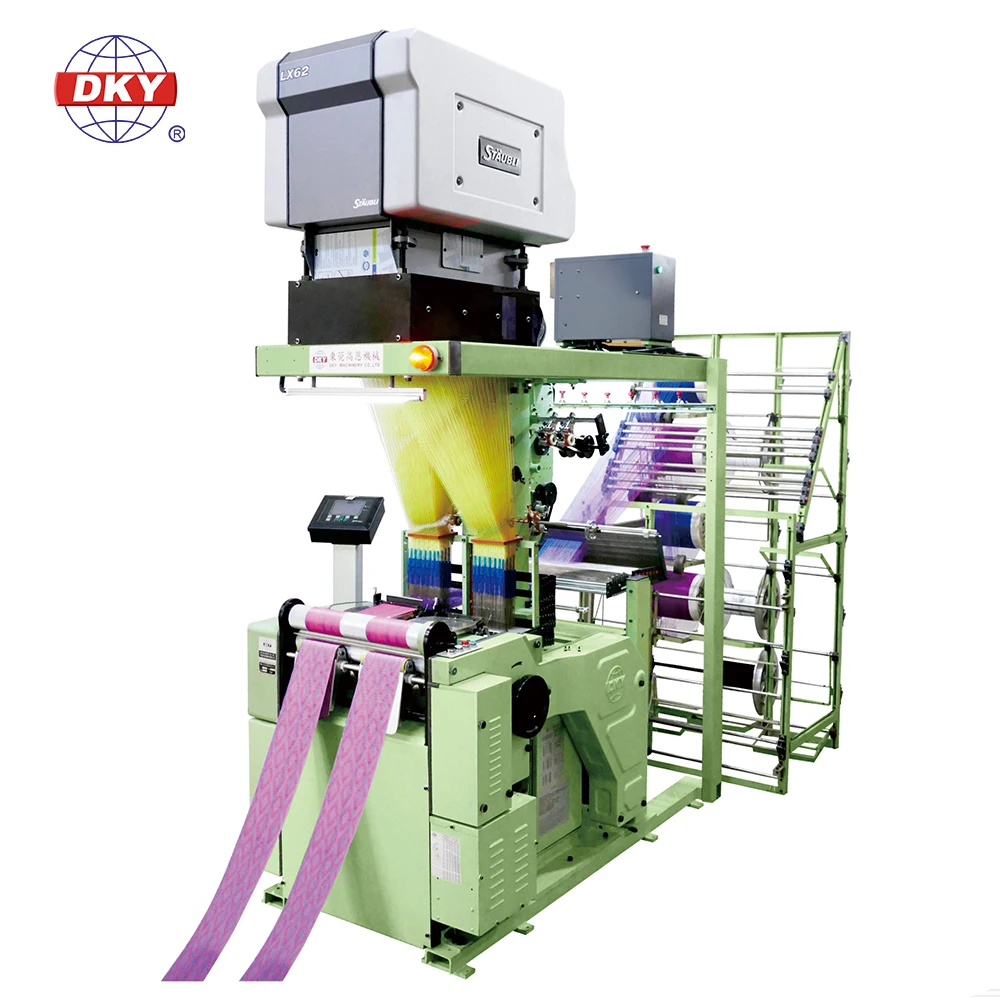

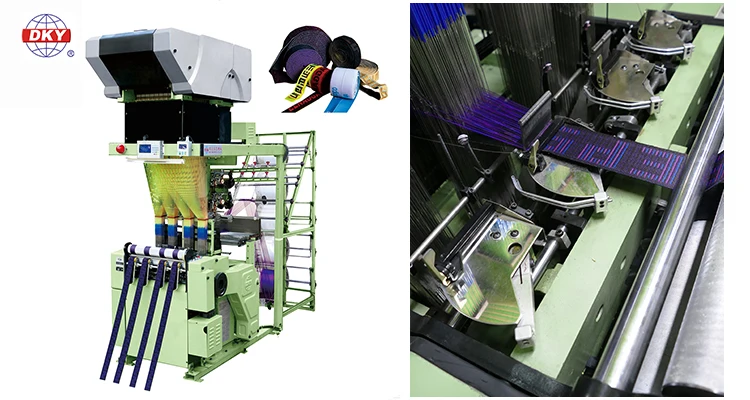

KFJd 4/65/480(960) COMPUTERIZED NARRW FABRIC JACQUARD LOOM(Double Open) DKY MACHINERY
KFJd 4/65/480(960) COMPUTERIZED NARRW FABRIC JACQUARD LOOM(Double-Open) DKY MACHINERY
KFJd 4/65/480(960) COMPUTERIZED NARRW FABRIC JACQUARD LOOM(Double-Open) DKY MACHINERY

KFJd 4/65/480(960) COMPUTERIZED NARRW FABRIC JACQUARD LOOM(Double Open) DKY MACHINERY

Share on (60432824357):


Price:

Quantity:


Product Overview

Description



PRINCIPLE FEATURE


KFJLd4/65/480(960)
● Electronic control twin jacquard heads. The utilized of electronic controlled fabricon upper, middle, and lower shedding can satisfy with special need of tape.
● Adopting multi-arm connecting rod for higher hooks of jacquard loom.
● Jacquard head is made of high-strength, high toughness alloy material. lmported CNC processing, high precision, light weight, small load,and cool dowm quickly to guarantee its high-speed and running smoothly.
● Jacquard comber board and harness cord are imported from Switzerland & Japan.
● New control system, high compatibility, increased memory storage, which can store 16 patterns, and the pattern up to 10000 weft.
● Belt weft feeding system makes stable and accurate yarn feeding, easy to adjust the quantity of yarns.
● Using USB for data transfer, convenient, fast, stable and USB.
● Dual-speed motor to make adjustment of machine easier.
● Great compatibility to match various software with JC5 system for data entering.
● Using automatic lubrication system on machine, easy to maintain and noise-free during operation.
● Using LCD screen to protect the screen with good anti-interference and extend the lifespan.
● Optional variety of special devices to match production of different products.
● Automatic memorizing funtion to ensure the quality of tapes to reduce rejection rate.
● The angle of needle holder is Zero degree, the edge of tape will more beautiful and the surface of finished tape will be relatively flat.


SPECIFICATION


MODEL
NO.OF LINES
MAX.REED WIDTH m/m
HEALD FRAME
 REPEAT
MOTOR POWER
MAX.SPEED R.P.M
HOOKS
KFJLd8/27
8
27
12片
40
2.2kw
850~900
192N(96)~480N(240)
KFJLd6/45
6
45
12片
40
2.2kw
850~900
192N(96)~640N(320)
KFJLd4/65
4
65
12片
40
2.2kw
850~900
92N(96) ~960N(480)*
KFJLd6/50
6
50
12片
40
2.2kw
850~900
192N(96)~640N(320)
KFJLd2/135
2
135
12片
40
2.2kw
500~700
192N(96)~960N(480)*
KFJLd2/165
2
165
12片
40
2.2kw
500~700
192N(96)~960N(480)*
KFJLd2/80
2
80
12片
40
2.2kw
700~850
192N(96)~960N(480)*
KFJLd4/80
4
80
12片
40
2.2kw
500~600
192N(96)~960N(480)*
KFJLd4/110
4
110
12片
40
2.2kw
500~700
192N(96)~960N(480)*
