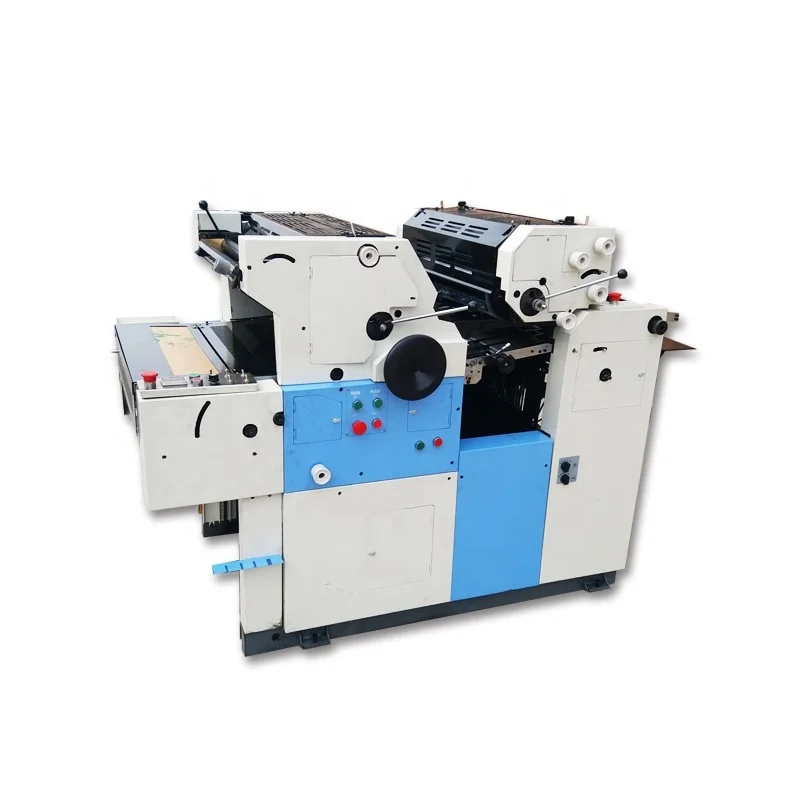

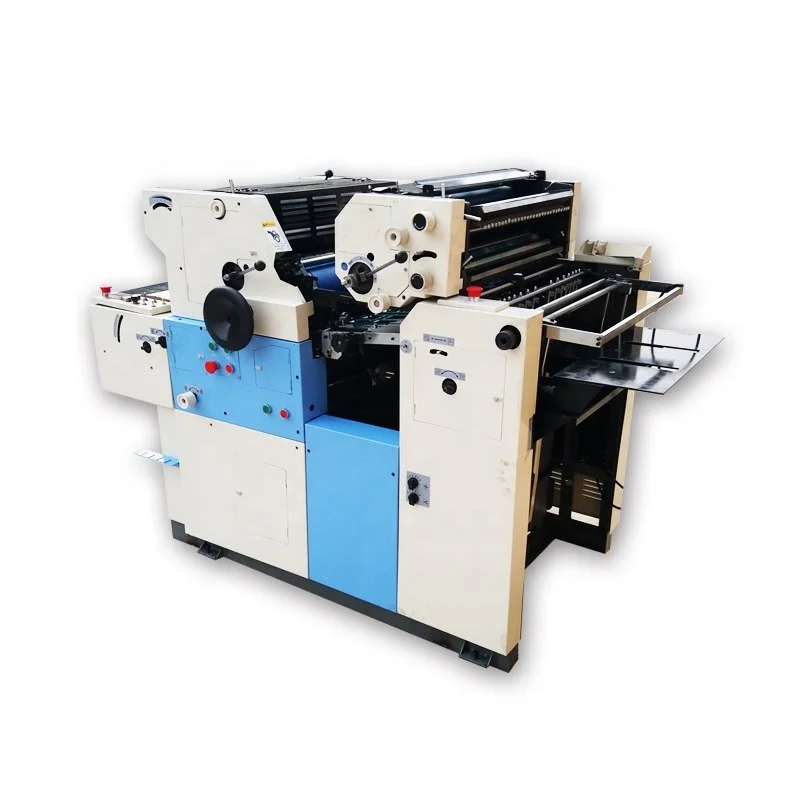

2016 NEW ZR56IIS uv offset printing machine of mini offset printer

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Product Description



This machine has smart structure,practicable and economical.

It’s an advanced type on basic of Hamada machine.

It adopts three form ink rollers and two/one form dampening roller structure.

It’s a pneumatic pressing type instead of handle.

It has the plate micro-adjustment function.

It’s easy to operate. (Touching Screen Automatic is optional)

It adopts advanced PLC programmable controller



ZR56IIS

2016 NEW uv offset printing machine of mini offset printer



Model

ZR56IIS



Max. printing size

550 × 375mm



Max. sheet size

560 × 400mm



Plate size

560 × 420 × 0.15mm



Blanket size

560 × 460 × 1.95mm



Usable paper

28-250gsm



Ink roller

14pcs (3 forme inking rollers)



Dampening roller

5pcs (2 forme dampening rollers)



Printing speed

2000-7000 sheets/hour



Power supply

Single-phase: 220v, 50Hz



Main motor

1.1kw



Air pump motor

0.55kw



Machine dimension

1760(L) × 970(W) × 1340(H)mm



Net weight

820kg



Package dimension

1810(L) × 1110(W) × 1470(H)mm



Gross weight

930kg







Product Shows




Product Advantages

Exact registration:

water supplying, ink supplying and platform

pressing each units can be finished at

different lever with the same handle

Joint pressure of printing rollers is controlled

with an electric eye, which is more reliable

and easy to be regulated



Accurate orientation:

Front paper stopper of registration

both side-pulled-paper stopper

paper feeding horizontal registration

paper feeding table slight adjustment

plate cylinder registration of up/down



The latest control system:

Using the most advanced control system of computer

program and circuit board, that can improve production

efficiency and also reduce the errors of printing.

The whole machine is controlled by PLC. There are

functions such as auto press, auto stop while paper jam

powder jet, steps running forward and backward


Double sheets detection:

It can avoid the problem such as double

sheets, paper overlap and non-stop



Dampening and inking separated:

Dampening system is separated from inking

system, which can adjust dampening and inking

flexibly and content the requirement

of different printing items for

dampening and ink


Automatic pause:

the machine can be paused automatically when

 paper order is out of control

then automatic alarm

which can avoid waste paper


Centralized Lubricating oil supply:(Optional)

use Auto system to control Lubricating oil for

the important parts of machine which

can improve the efficiency of machine


Presented counter:(Optional)

This machine adopts electromagnetic

presented counter. If the quantities printing

work finishes, the paper

feeding stops automatically

Company Information

Weifang Zongrui Printing Machinery Co.,Ltd is located in the famous kite capital of the world--- Weifang. This factory was established in 2010. It is a comprehensive enterprise which collects scientific development, production management and technical service. It is the largest printing equipment production base of China. The factory covers an area of 20,000 square meters, the fixed asset 2 million dollars.

The factory has advanced machinery-processing equipment, perfect quality management system and quality guarantee system. It was awarded “Shandong Famous Brand Product” by Shandong Province and awarded “Weifang Top Hundred Enterprise” by The People’s Government of Weifang and was awarded the honorary title of "Honoring Contracts and Standing By Reputation Enterprise” by Agricultural Bank of China Shandong Province branch five consecutive years. It first passed the ISO9001 quality management system certification and ensure that the quality standard products are produced every Offset press.

Packaging & Shipping


Sample Shows

Sample Shows.jpg

contact us

Company Name:Weifang Zongrui Printing Machinery Co., Ltd.

Address:East Xiazhuang Ind. Zone, Beiguan Street Office, Weicheng Dist.

Weifang City, Shandong Province, China.

FAX: 86-0536-8953250  86-0536-8953251

CONTACT PERSON: PATRICK SUN

MOBILE: 86-18863030258               WhatsApp: 18863030258

FAQ

q: WHAT’S THE PRODUCT RANGE?

A: Printing machine,such as mini offset printing machine, heavyduty offset printing machine, flexo&plate lableprinting machine,

tape printing machine and some small machine like pre-press and post-press.

q: ARE YOU A MANUFACTURE?

A: Yes, we are located in weifang, shandong province which close to qingdao port.

q: HOW DOES YOUR FACTORY DO REGARDING QUALITY CONTROL?

A: Most our machine mechanical parts are processed by ourselves.So we can better controlour quality frombeginning.

Electrical Part we had cooperated with good foreign brand, such as UBC, Yaskawa,   Siemens, NSK,Delta, Panasonic etc.And all our machine will do running test before shipping.

q: WHAT’S THE PAPER FEED SYSTEM AND DELIVERY SYSTEM?

A: Multi-sucker universal feeder/Chain Delivers with three gripper Bars.

q: WHAT’S THE REGISTRATION?

A: Wheel-type pull side/front side.

q: WHAT’S THE DIFFERENT BETWEEN THE OFFSET PRINTING AND FLEXOGRAPHY?

A: Offset printing: Toppan printing (PS plate, resin plate).Flexography: Intaglio printing .The offset printing is more precision than flexography.

q: WHAT’S THE THE DIFFERENT BETWEEN SATELLITE MODEL    AND 2 COLOR UNIT MODEL ?

Satellite model : one imprint, two ink duct. Suitable for printing normal two color prints.

2 color unit model : two imprints. Suitable for printing high quality prints.
