High quality tunnel car washing machine
- Category: >>>
- Supplier: Nantong Sea Melody Industrial Co. Ltd.
Share on (60433629356):
Product Overview
Description
Tunnel Type SMC(B) washing machine for automobile
Model | SMC(B)-741 | SMC(B)-941 | SMC(B)-981 | SMC(B)-1041 | SMC(B)-1141 |
Big side brush | 4 | 4 | 4 | 6 | 6 |
Small side brush | 2 | 2 | 4 | 2 | 4 |
Horizontal brush | 1 | 1 | 1 | 2 | 1 |
Dry system | 1 | 1 | 2 | 1 | 1 |
Conveyor length | 10.92m | 11.92m | 13.92m | 13.94m | 14.94m |
Total power consumption | 30kw | 31kw | 48kw | 33kw | 35kw |
Water consumption(per car) | 100-120L | 100-120L | 100-120L | 100-120L | 100-120L |
Compressed air(Mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Car types applied for | Car&coach | Car&coach | Car&c oach | Car&coach | Car&coach |
Max car standard | 5500*1950*2000 | 5500*1950*2000 | 5500*1950*2000 | 5500*1950*2000 | 5500*1950*2000 |
Area demanded | ≥19000*4000mm | ≥20000*4000mm | ≥22000*4000mm | ≥22000*4000mm | ≥23000*4000mm |
Power requirements | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ |
Features:
1) Automatic water spaying and waxing system
2) Automatic speed variable moving system
3) Automatic washing system (wider brush)
4) Controlled by intelligentized computer
5) Pneumatic transmission system
6) Automatic dry system
7) Car position indication system
8) Operating system
The machine controlled by intelligentized computer with the functions of automatic inspecting, moving spraying, washing, waxing, drying, cleaning wheel and chassis.
Pictures

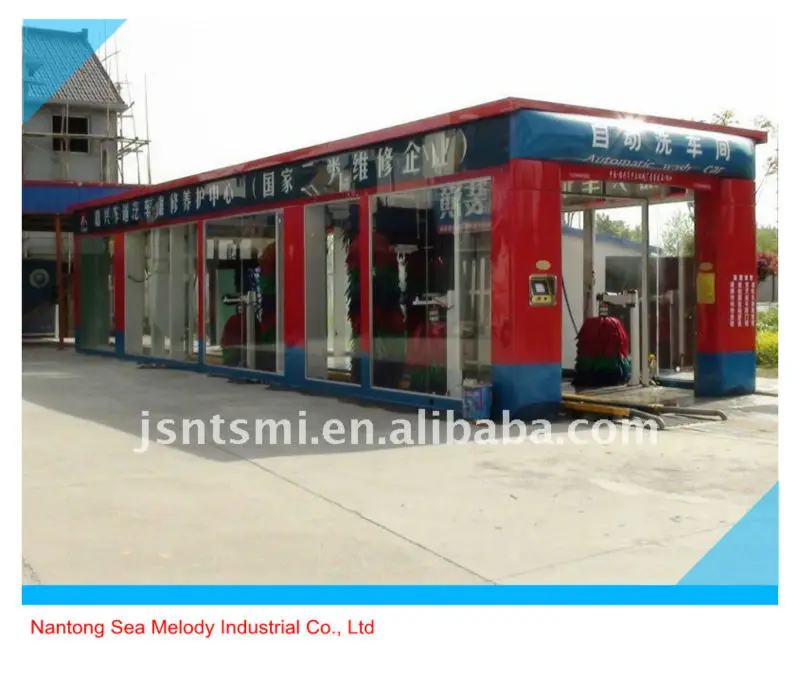

tunnel car washing station
