Встроенный Bluetooth mp3 модуль материнской платы JK6836BT
- Category: MP3 Players >>>
- Supplier: Shenzhen J&K Ideal Electronic Co. Ltd.
Share on (60434129264):
Product Overview
Description
Product Description
Product Name | JK6836BT For car amplifier sound mini sd usb bluetooth mp3 player module |
Material | Plastic+PCB |
Function | Bluetooth 5.0 Version, FM radio, Line in |
Package | QTY: 400PCS/CT, Carton size: 48*34*46cm, Weight: 17.5KG |
- JK6836BT For car amplifier sound mini sd usb bluetooth mp3 player module
Main function
1.Bluetooth 5.0 version /USB / TF /Line in/ FM /led display
2. Format:MP3 /WMA /WAV/FLAC/APE
3. Color dancing led display
1.Bluetooth 5.0 version /USB / TF /Line in/ FM /led display
2. Format:MP3 /WMA /WAV/FLAC/APE
3. Color dancing led display
4.Choose folders
5. IR remote control.
6.Product size: 107*25*30 mm
5. IR remote control.
6.Product size: 107*25*30 mm
7, Power supply: DC12V (optional DC 5v)
Keys function
MODE: USB/TF /AUX/FM/Bluetooth switch.Long press for choose previous folders.
NEXT/V+: Under MP3 mode, short press NEXT, long press VOL+.
Under AUX mode, press VOL+.
Under FM mode, short press to selection up, long press VOL+.
Under bluetooth mode, press VOL+.
PLAY/PAUSE:Under MP3 mode, short press PLAY/PAUSE, long press choose next folder
Under AUX mode, press play/mute.
Under FM mode, short press to automatic selection.
Under bluetooth mode, press play/mute. Long press for choose next folder.
PRE/V-: Under MP3 mode, short press LAST, long press VOL-.
Under AUX mode, press VOL-
Under FM mode, short press to selection down, long press VOL-.
Under bluetooth mode, press VOL-.
NEXT/V+: Under MP3 mode, short press NEXT, long press VOL+.
Under AUX mode, press VOL+.
Under FM mode, short press to selection up, long press VOL+.
Under bluetooth mode, press VOL+.
PLAY/PAUSE:Under MP3 mode, short press PLAY/PAUSE, long press choose next folder
Under AUX mode, press play/mute.
Under FM mode, short press to automatic selection.
Under bluetooth mode, press play/mute. Long press for choose next folder.
PRE/V-: Under MP3 mode, short press LAST, long press VOL-.
Under AUX mode, press VOL-
Under FM mode, short press to selection down, long press VOL-.
Under bluetooth mode, press VOL-.
Details Images

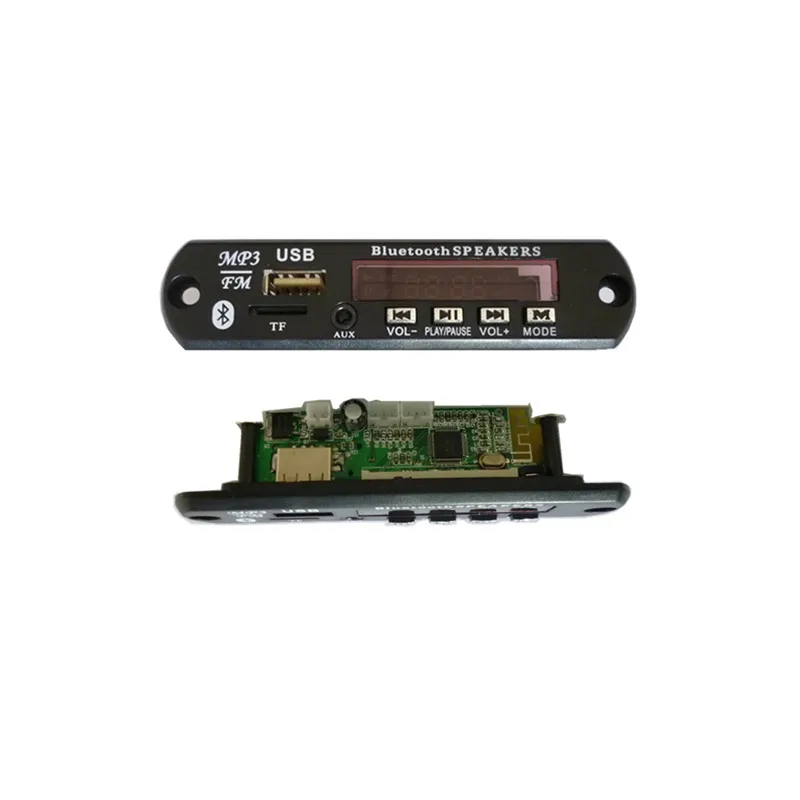

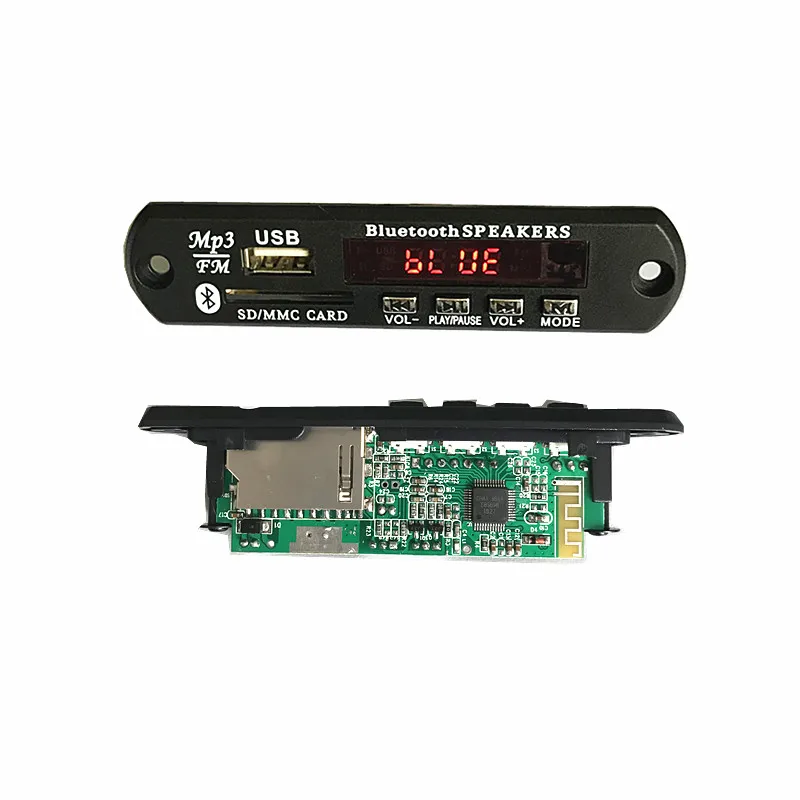

High quality sound mp3 decoder board
*We use high performance 32-bit RISC CPU, DC-160MHZ operation,
*Bluetooth 5.0 Version, support a2dp/avctp/avdtp/avrcp/hfp profile, receiver with -85dBm sensitivity.
*FM radio frequency: 87.5~108MHz
*Format: MP3/WMA/WAV/FLAC/APE
*16-bit stereo DAC, SNR>92dB
*MP3 decorder support 32–320kbps
*FAT16 or FAT32 systems supported
This kind is a 32 bits RISC microcontroller.
*Bluetooth 5.0 Version, support a2dp/avctp/avdtp/avrcp/hfp profile, receiver with -85dBm sensitivity.
*FM radio frequency: 87.5~108MHz
*Format: MP3/WMA/WAV/FLAC/APE
*16-bit stereo DAC, SNR>92dB
*MP3 decorder support 32–320kbps
*FAT16 or FAT32 systems supported
This kind is a 32 bits RISC microcontroller.

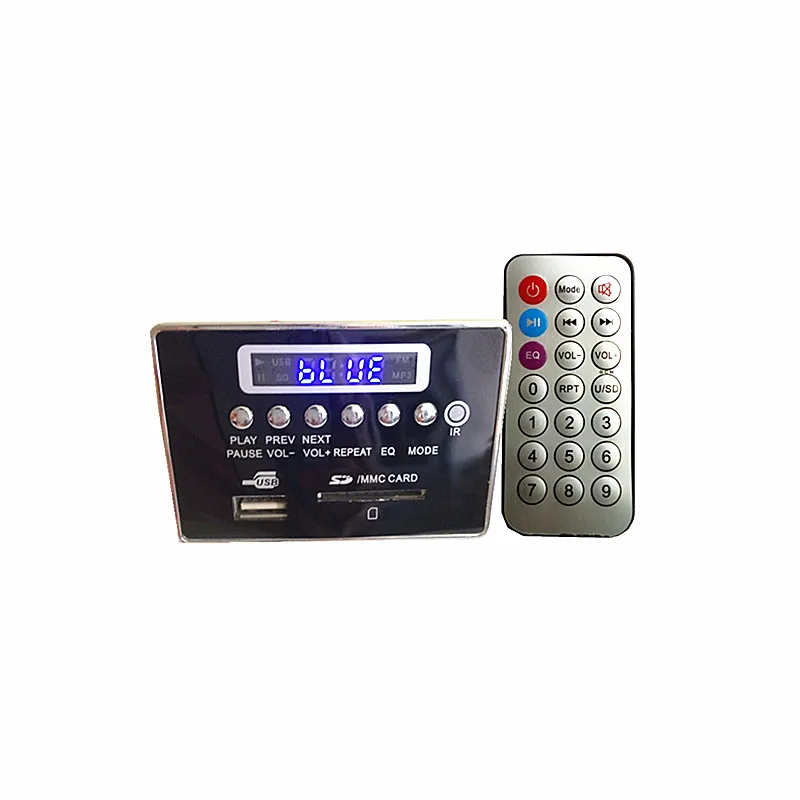

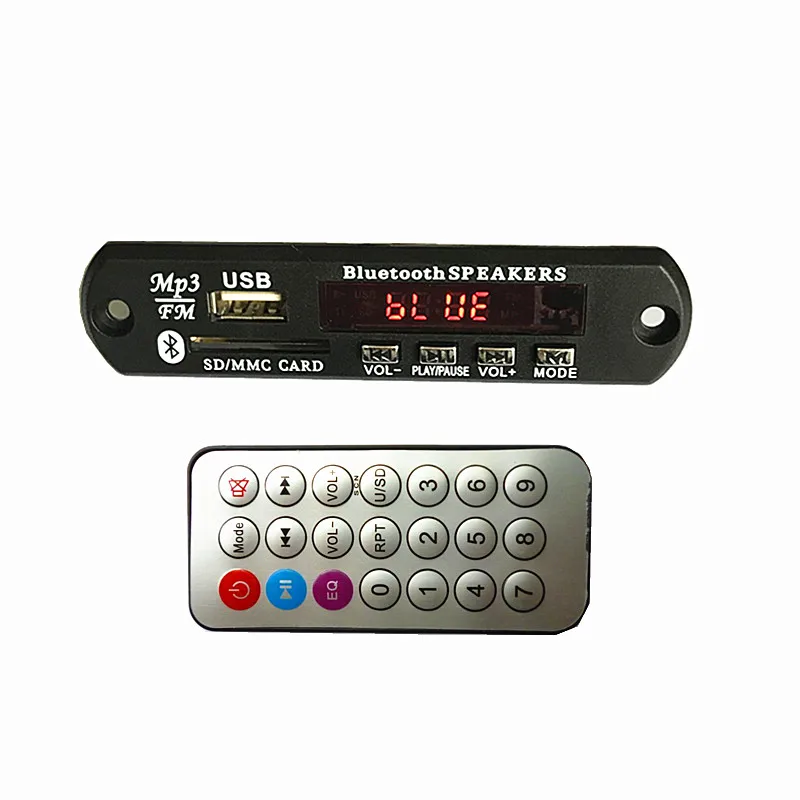

Remote control
Certifications
Product Usage
Audio
Car stereo
Broadcasting system
Intelligent housing system
Packing&Shipping
Company Introduction
Shenzhen J&K Ideal Electronic Co.,Ltd is an international audio company specializing in R&D, production, sales and service. Mainly sell MP3 decoder board, MP5 decoder board, Bluetooth receiver, Bluetooth speaker, home audio, smart speaker, smart speaker, professional engineering amplifier, professional engineering speaker and other digital accessories products, is the audio industry development, production, OEM & ODM professional manufacturer with one strength and strength.
Our advantage:
Our advantage:
More than 10 years experience in audio product design and manufacturing
Factory 2000 square meters
12 SMT machine equipments, 6 production lines.
Strong R&D team with more than 10 people
Strict quality control system ensures high quality
More than 10 year experience for audio products.
