CL 22D SS Wire Drawing Machine
- Category: Wire Drawing Machines >>>
- Supplier: Jiangyin Xiangle Machinery Manufacturing Co. Ltd.
Share on (60434655607):
Product Overview
Description
| CL-22D stainless steel wire drawing machine |
Product Description

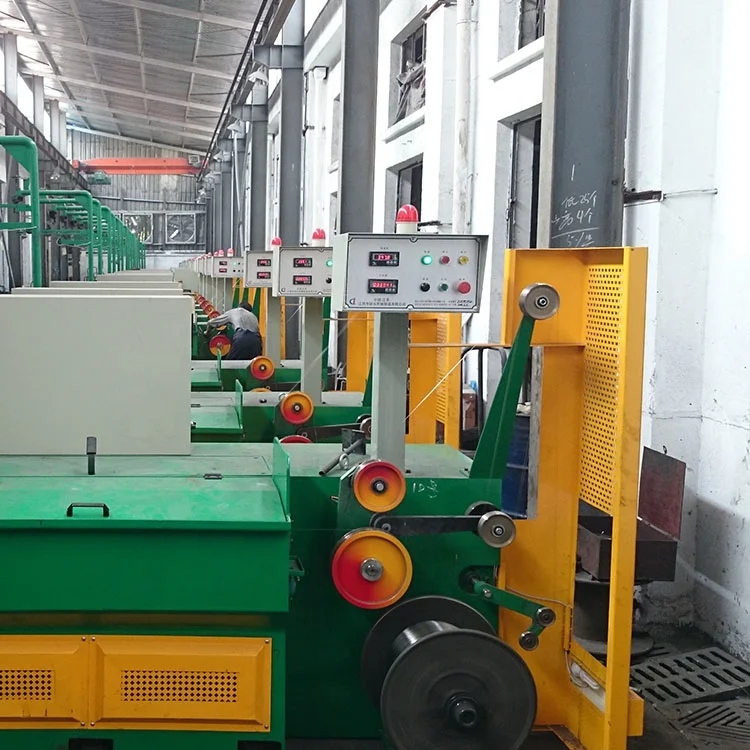

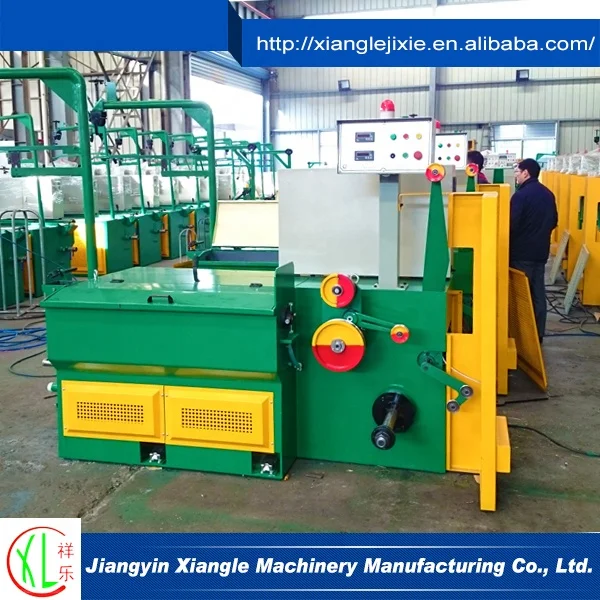

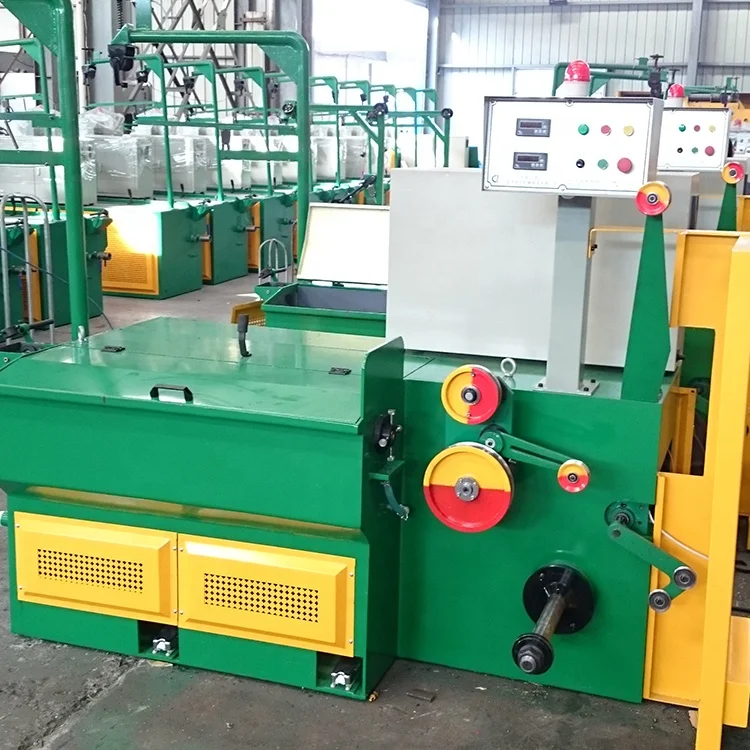

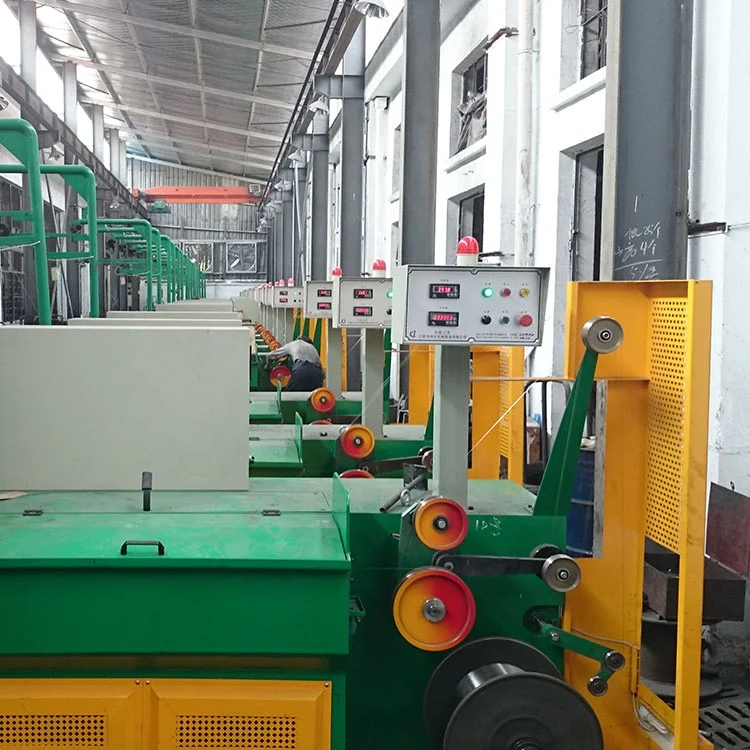

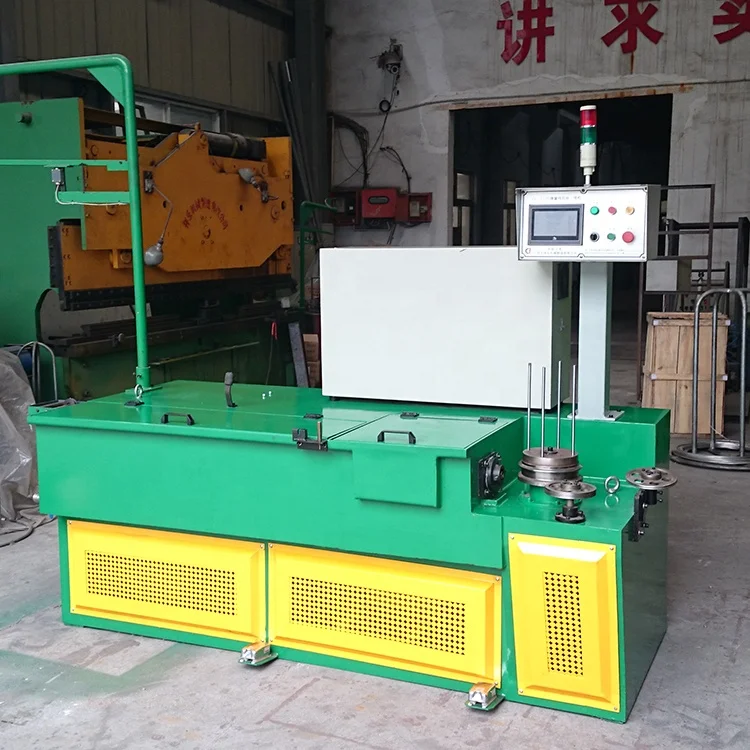

Equipment Pictures |
Technical Parameters |
| Inlet | 1.2mm-0.8mm |
| Outlet | 0.4mm-0.2mm |
| Max Modules | 22 |
| Mechanical Reduction | 15.60% |
| Drawing Method | Horizontal Four-step Pulleys Type |
| Max Line Speed | 600m/min |
| Control System | PLC Dual Frequency Conversion |
| Drawing Capstan | Mold Steel Vacuum Annealing Treatment |
| Main Motor's Power | 7.5KW |
| Take-up Machine's Power | 1.5KW |
| Driving Method | Synchronizing Sheel,Synchronizing Belt, Flat Belt |
| Drawing Lubrication Method | Modules, Step Pulley By Full Immersion |
| Braking Method | Electronmagnetic Brake |
Product Advantages |
1. Low cost;
2. Energy efficiency;
3. Stable and reliable performance;
4. Cleaner Production.
The domestic market share of stainless steel drawing machines takes more than 90% in stainless steel
equipment industry area. For the overseas market,our equipment are exported to Japan, Russia, Brazil,
Vietnamese, India and other countries.
