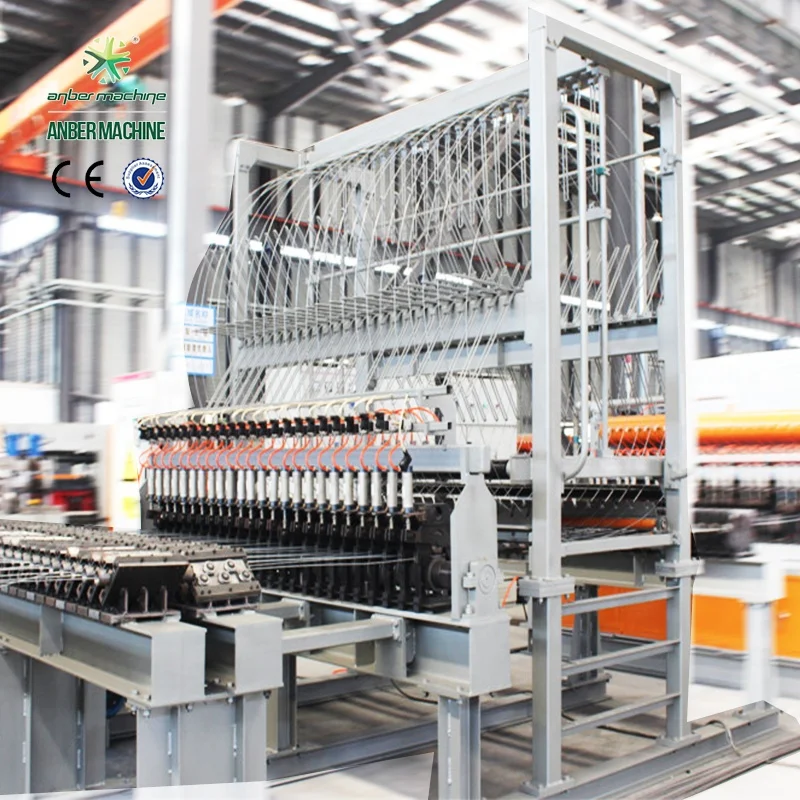

3 5mm 2.4m mechanical mesh welding machine
- Category: Other Construction Material Making Machinery >>>
- Supplier: Wuxi Anber Machine Co. Ltd.
Share on (60435344521):
Product Overview
Description
Product Description

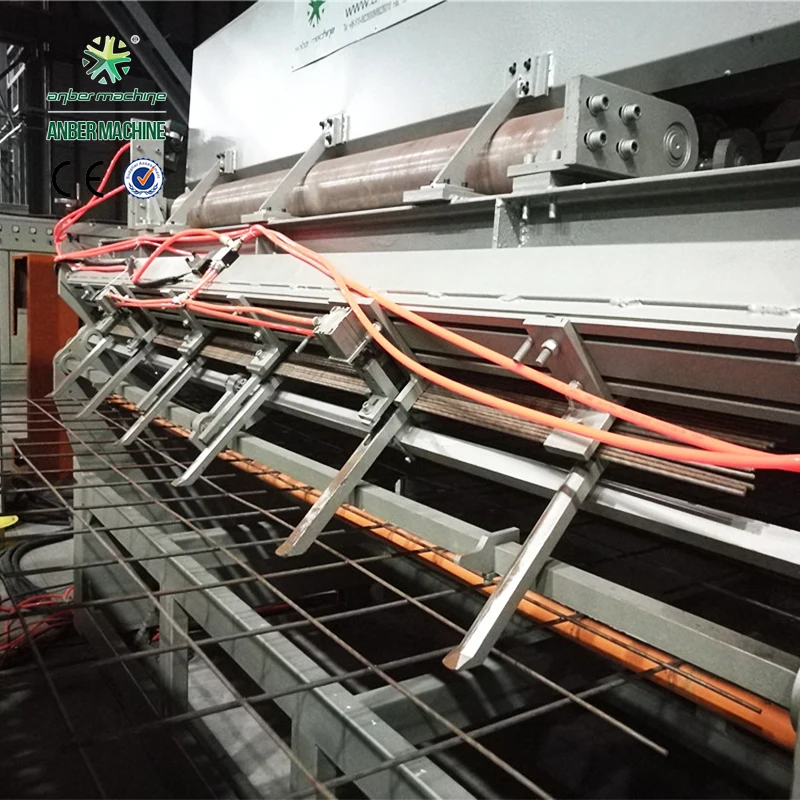

The mesh welding line is especially for the production line that line wire is from spool and cross wire from pre-straightened and cut bar. Line wire feed from coil, cross wire is pre-cut and then feed in the cross wire feeding system, the cross wire feeding system will fed the wire into the welding system automatically and even, the mesh edge is aligned and no need to cut any more, the welded mesh is normally recoiled by the coiling machine.
Welded wire mesh machine is a kind of auto welding equipment designed and manufactured by ourselves based on absorbing the advanced electromechanical controlled resistance welding technology from home and abroad, of which multinomial technologies have won the national patents.
Our welded wire mesh machine has the following major advantage:
1. Main machine frame is welded with the thicker steel panel and steel bar. The main structure is more well-set and compact.
2. The cross wire feeding hopper is originative. The cross wire feeding is automatic and driven by step motor, which makes the cross wire aligning more accurate.
3. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.
4. The mesh aperture size welded is diversified. The line wire spacing can be adjusted through the related parts. The cross wire spacing adjusting is controlled by microcomputer and it can have 10 different styles.
5. Welding adopts late-model efficient welding transformer. The voltage adjusting range is big and it can fall into eight different grades, which enlarge the range of wire diameter size.
6. In order to adapt the capacity of the clients’ main power transformer and reduce the rush of the current, electric and electronic welding control adopt the separating control electricity input, i.e., the welding transformers don’t work at the same time but in several times when welding the same row of cross wires.
The machine can be used to produce the mesh for guard rail of road, railway, hills, fencing, mesh for casting of building roofs, etc.
Main parameter:
Model | ABE-3/5-1500 | ABE-3/5-2000 | ABE-3/5-2500 |
Line wire | 3-5mm, from coil | 3-5mm, from coil | 3-5mm, from coil |
Cross wire | 3-5mm, pre-cut | 3-5mm, pre-cut | 3-5mm, pre-cut |
Mesh width | 1500mm | 2000mm | 2500mm |
Line wire spacing | 50-100mm | 50-100mm | 50-100mm |
Numbers of welding points | 30 | 40 | 48 |
Transformer | 3*125KVA | 4 * 125KVA | 6*125KVA |
Cross wire spacing | 50-200mm, mechanical adjusted | ||
Wire diameter | 3.0mm-5.0mm | ||
Max welding capacity | 5.0+5.0mm with standard quality | ||
Max welding speed | 30-40 cross wires per min | ||
Welding way | Resistance welding controlled by Silicon-controlled rectifier (hereinafter called as SCR) | ||
Welding voltage | Adjustable in eight different grades through welding transformer | ||
Pressurizing way | By changing the length of tie rod in pressurizing beam and the compression of the upper electrode spring | ||
Main parts

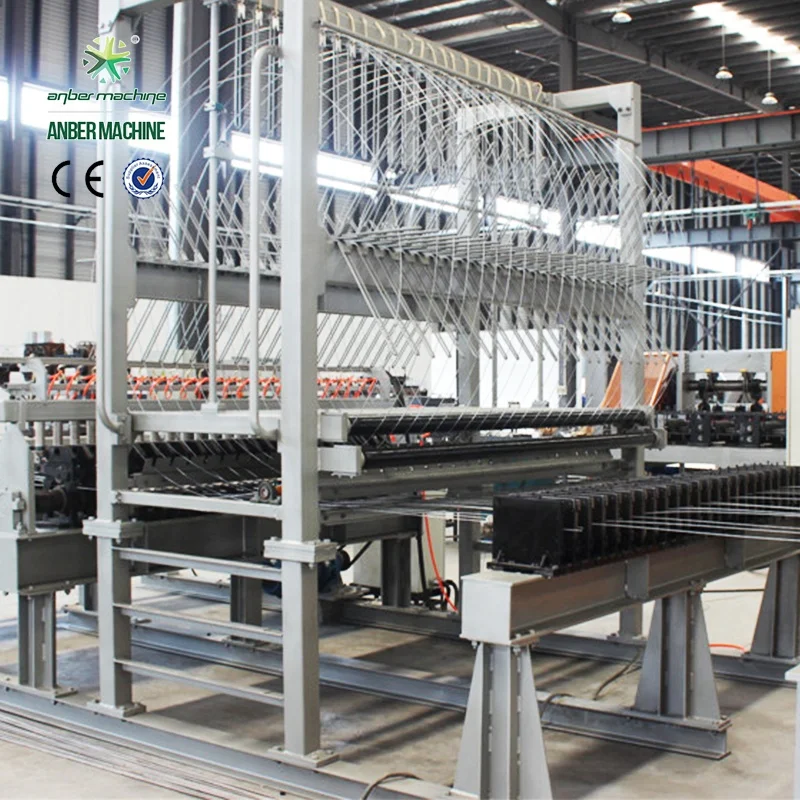

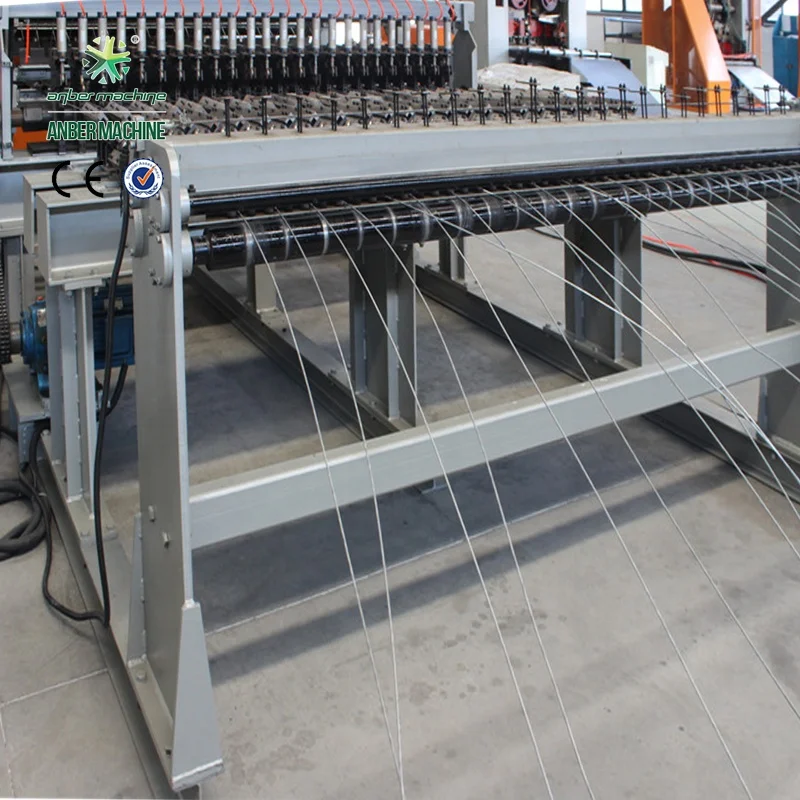

Line wire straightening structure

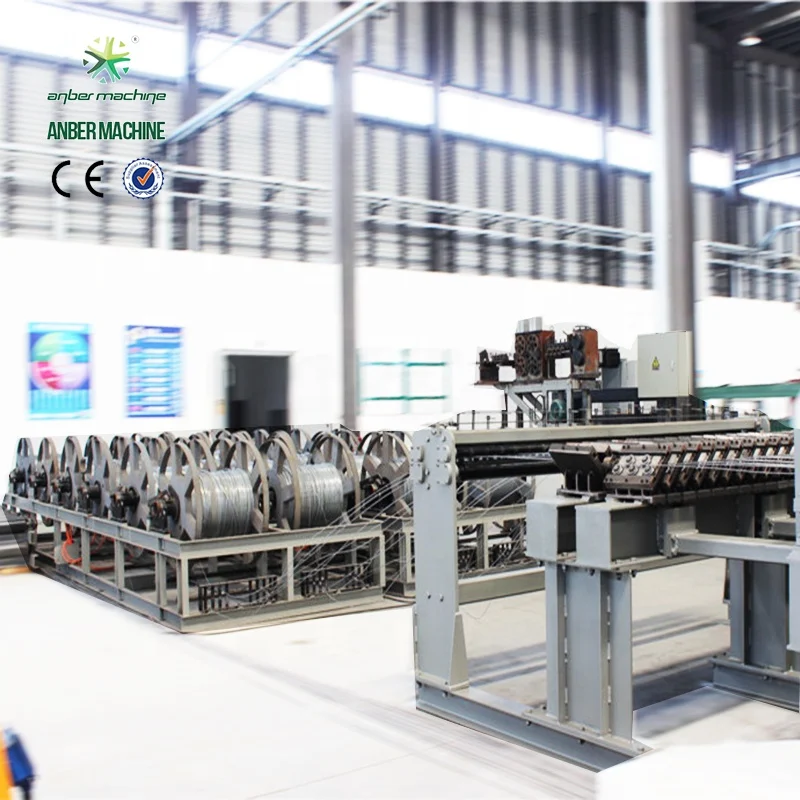

Line wire pay off
Pay off inner diameter: 450mm
Pay off loading weight: 1000kg

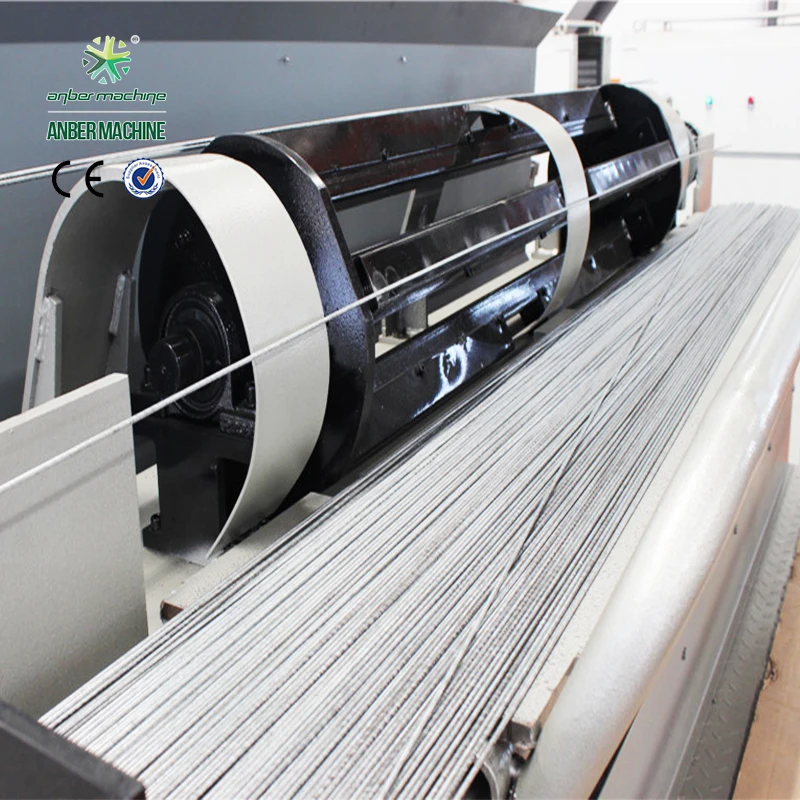

Wire straightening and cutting machine for cross wire
Wire diameter: 3—6mm, speed: 30m/min

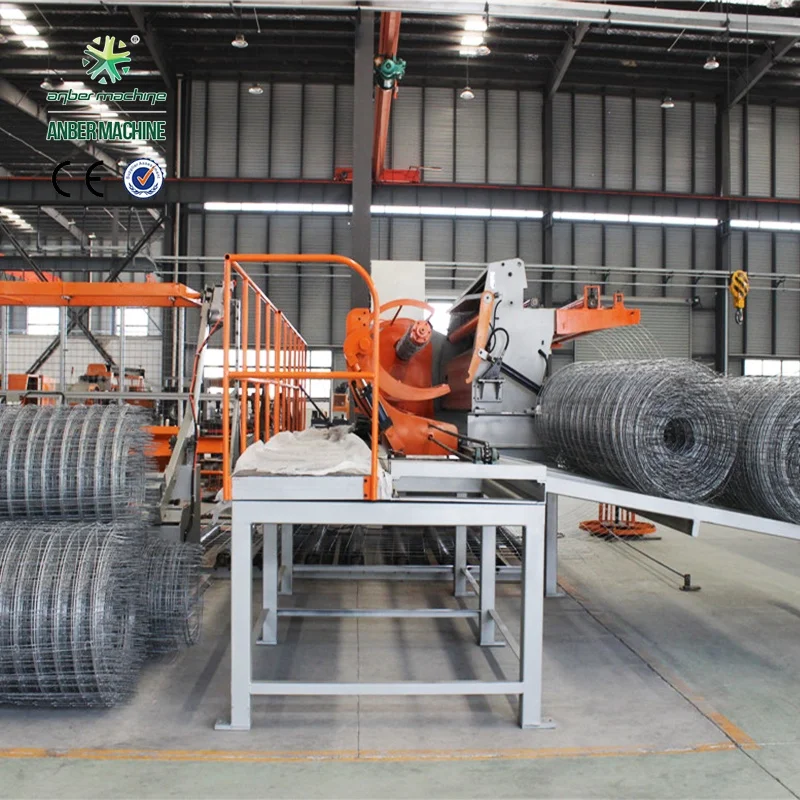

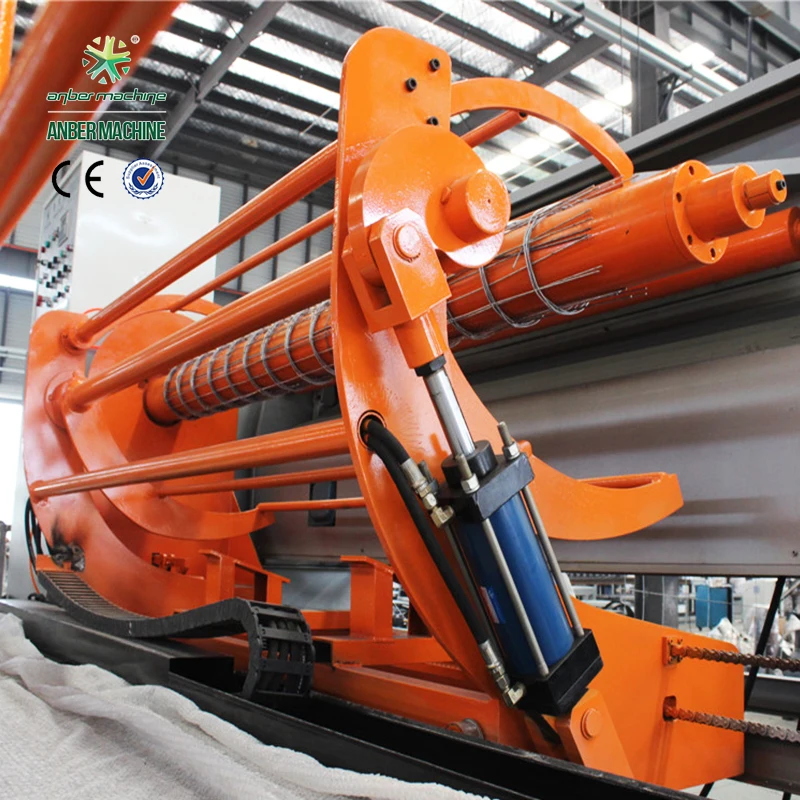

Mesh coiling machine
Contact us
Packaging & Shipping
Our Services
Warranty
Within the limits of what hereinafter set forth, ANBER undertakes to remedy all defects of the equipment attributable to its engineering, material and workmanship. Such obligation of ANBER is limited to defects that show within 12 (twelve) months from the delivery of the equipment.
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
Machine is installed and commissioned by ANBER technicians. Testing cost, travel, accommodation and meal expenses are payable by the customer, the customer will provide local engineers and staff to support the installation.
