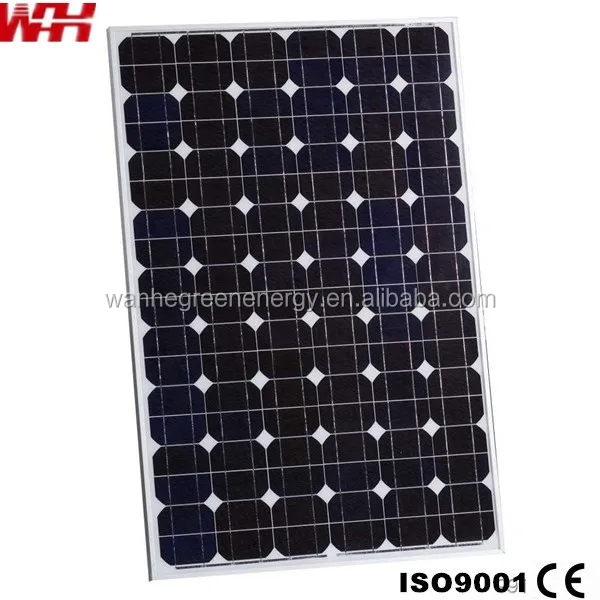

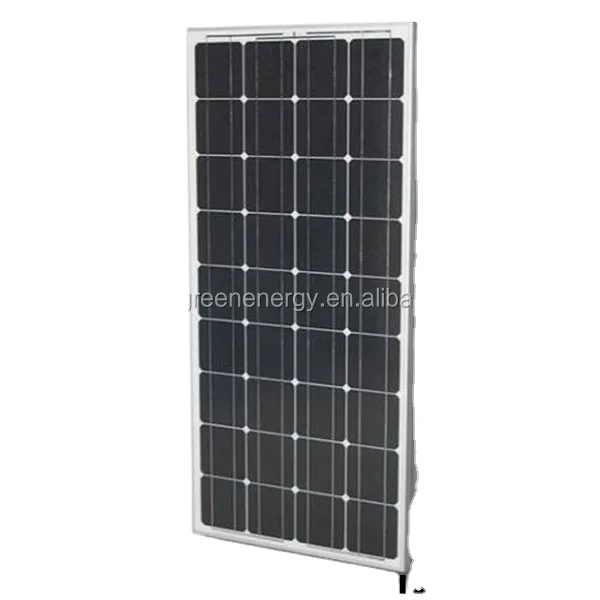

Large Capacity Large capacity solar panels Cooled Solar Panels

Product Overview

Description







     Jilin Wanhe Lighting Co.,Ltd is located in Changchun City,Jilin Province,Northeast of China.Wanhe is an international Solar Panels supplier manufacturer in China more than 10 years. Wanhe has the modern management method and a professional efficient team. All workers pass the skills access before work.Wanhe uses the newest technology and equipment, 90% of the production facilities are imported from Germany, Italy and US.All products are approved by ISO9001/14001, TUV, UL, CE& CSA. Wanhe has powerful Research Ability, 15~20 new kinds of products are launched each year.Wanhe has annual 200MW solar panel and solar cell production capacity.80% of our products are export to more than 60 countries in the world.







Details about Solar Modules
Module Type	100W-P
Number of Cells	44pcs
Dimensions	670*935*30mm
Peak Power (Pmax)	100W
Module Efficiency	16.07%
Cell Efficiency	19%
Power Tolerance	±3%
Open Circuit Voltage(Voc)	21.6V
Short Circuit Current(Isc)	6.05A
Working Current	5.55A
Working Voltage	18V
Max System Voltage	DC 600V
Operating Temperature	-40°C~85 °C
Nominal Operating Cell Temp	47±2 °C
Temp. coefficient Isc(TK Isc)	0.06%/ °C
Temp. coefficient Voc(TK Voc)	-0.34%/ °C
Temp. coefficient Power(TK Pmax)	-0.42%/ °C
Series Fuse Rating	5A
