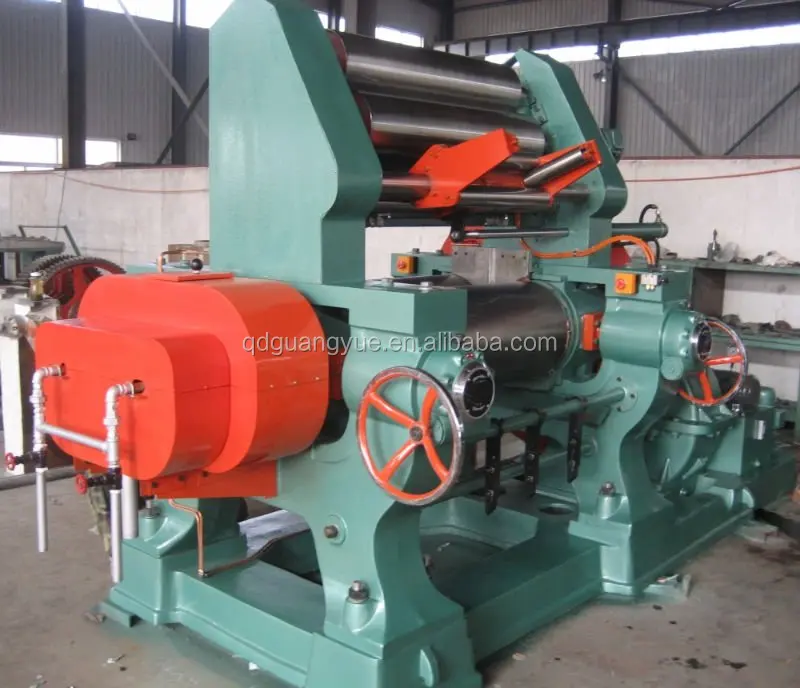

Двухвальная Мельница 18 дюймов/открытая резиновая мельница с блендером

Product Overview

Description

 Two roll open rubber mixing mill machine











  parameters of Two roll open rubber mixing mill machine



Model		XK-160	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560
Diameter of rolls(mm)		160	250	300	360	400	450	560
Working length of rolls(mm)		320	620	750	900	1000	1200	1530
Linear speed of front roll(m/min)		11.24	14.4	15.1	16.25	18.65	24.5	29.09
Speed ratio of front & rear roll		1:1.35	1:1.17	1:1.27	1:1.25	1:1.27	1:1.27	1:1.2
Max. roll gap(mm)		4.5	8	8	10	10	15	20
Feeding capacity per batch(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	75
Bearing body structure		Rolling bearing/nylon bushing/copper bushing
Lubrication mode		Grease/thin oil pump
Gap adjusting mode		Manual/electric
Overall dimension(mm)	L	1140	2900	3580	3780	4250	5000	5900
	W	900	1500	1550	1850	1850	2280	2180
	H	1370	1550	1695	1740	1760	1850	2000
Weight(ton)		1	3.2	5.2	6.5	7.3	12.5	22







 100% Real Manufacturer,   Welcome to visit us sincerely.



If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.

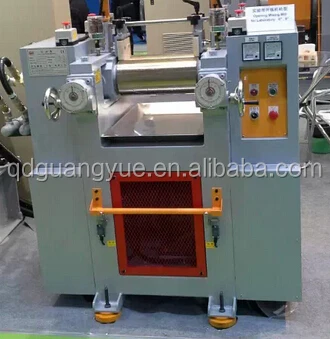

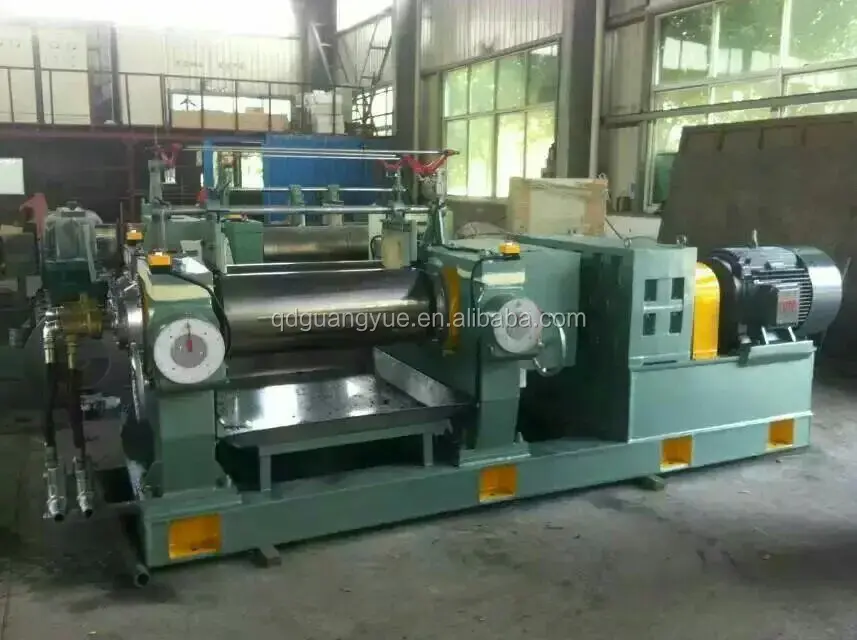

1.XK-160 lab rubber mixing mill . Mainly used for lab use

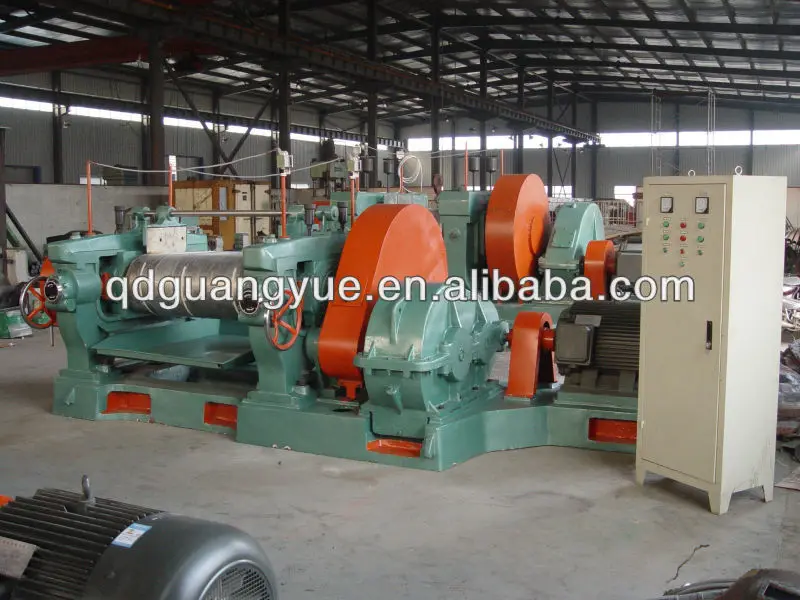

2. xk-400 rubber mixing mill.production is about 350 kg/h . From this model , we



begin distiguish configuration . NYLON , COPPER , ROLLER BALL BEARING.

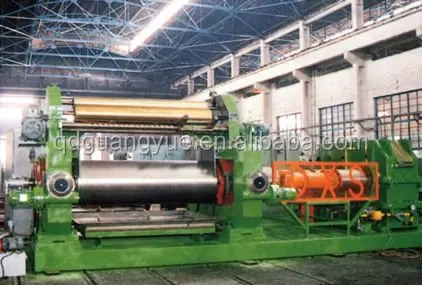

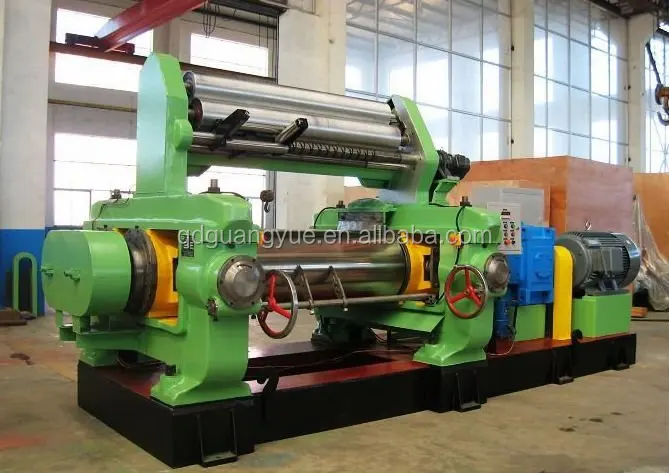

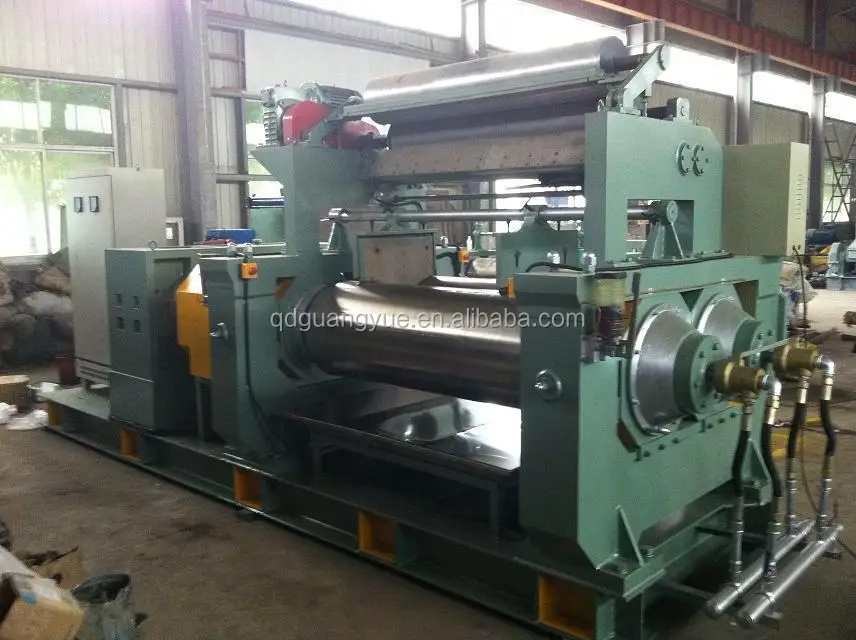

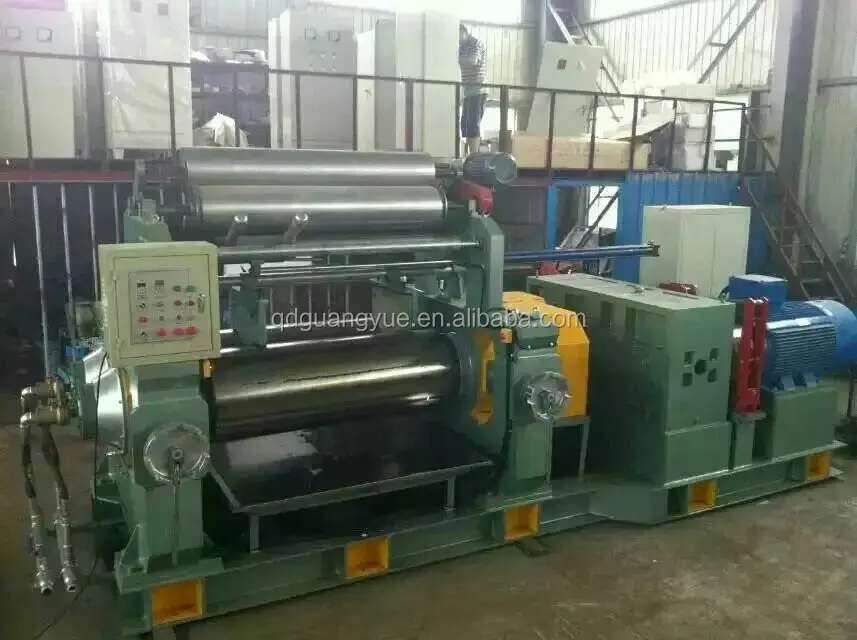

3.XK-450 rubber mixing mill . two configuration , stock blender is choosed . 500 kg/h

















4.XK-560 . two configuration , stock blender . production is 500 KG/H











PARTS DISPLAY





1.Reducer (three configuration can choose)







2.Rollers









3. Water cooling system













 4.nylon bush and bearing bush







5.Rolles gap adjust system







About the parts ,Just choose which type you want

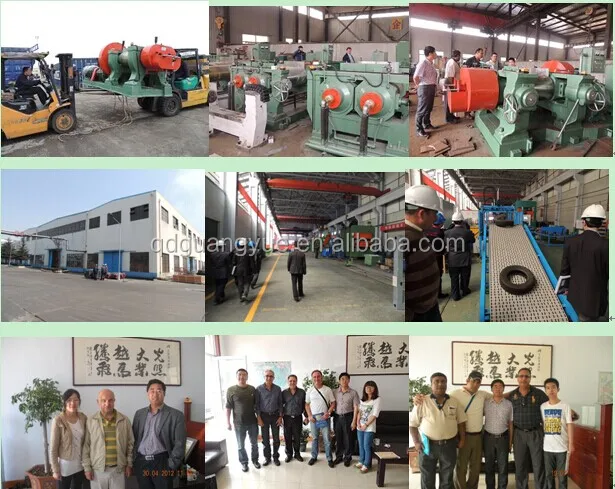

Customers











  CERTIFICATE











Version : xk-160 xk-230 xk-250 xk-300 xk-360 xk-400 xk-450 xk-560



Certificate and identification: ISO 9001, CE , SGS

Application : The mill is used for rubber plasticating, mixing, warming and sheeting.

General design:

1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.

2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.

Features:

1. The rolls are made of chilled alloyed castiron. Their working surfaces are of high hardness and wear-resistant. The working temperature of the bored roll is controllable by steam, cooling water or oil that pass through them thus, to meet the requirements of milling process.

2. Roll nip adjustment is realized by hand or electricity which can obtain high accuracy and sensitivity



Others



Roller bearing can be divided into 3 kinds, nylon bush , bearing bush and copper bush .

Nip adjustment can be divided into manual and electric .

Stock blender can be added in light of your needs











We can produce different size according to your parameter requirement. and we allow proper discount according to the quantity you order







We confident that you will find our product with high quality and reasonable price. If you have any question, pls dont feel any hesitate to contact me.
