Leather Upholstery Car Truck Seat Cover Cutting Machine

Product Overview

Description

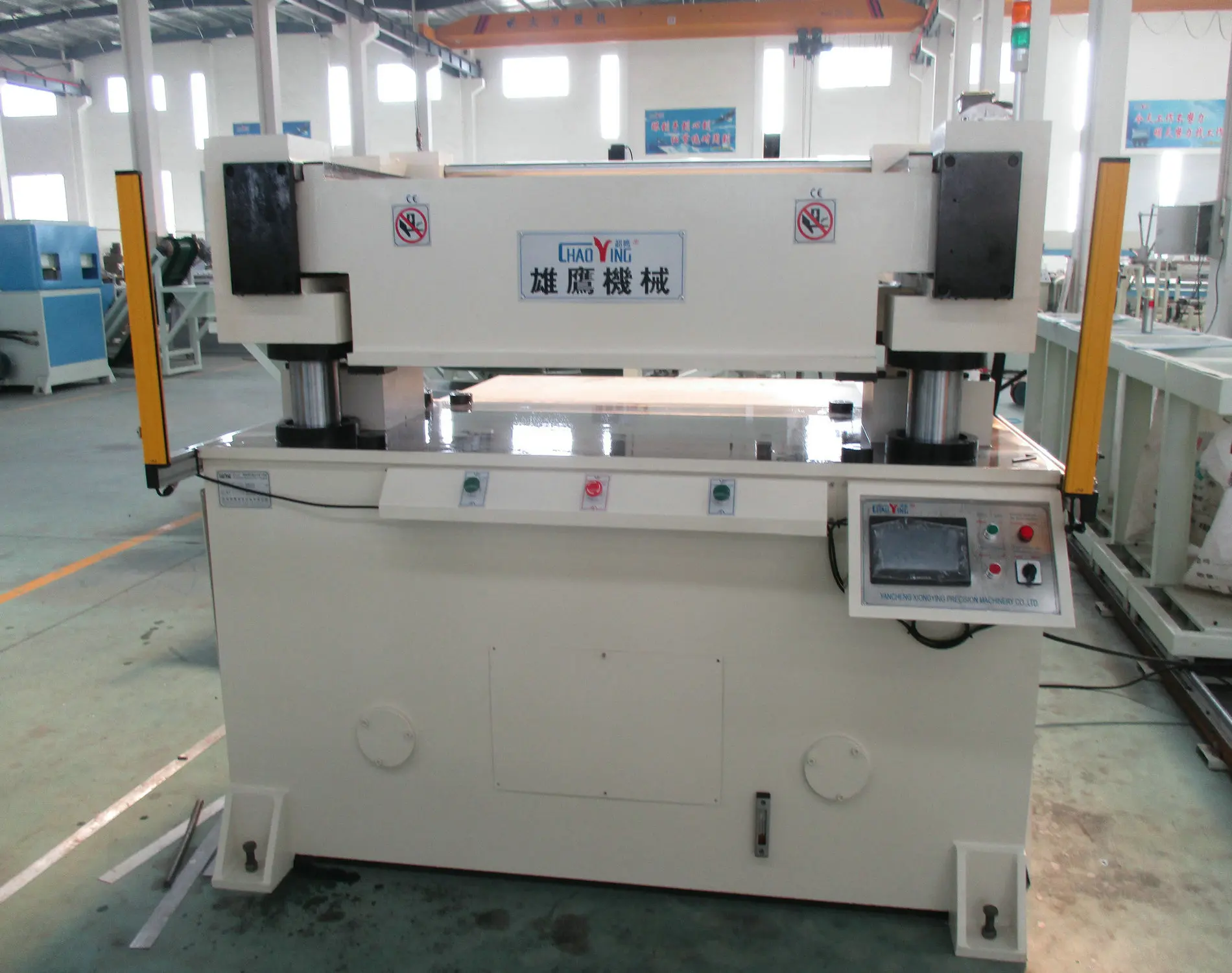

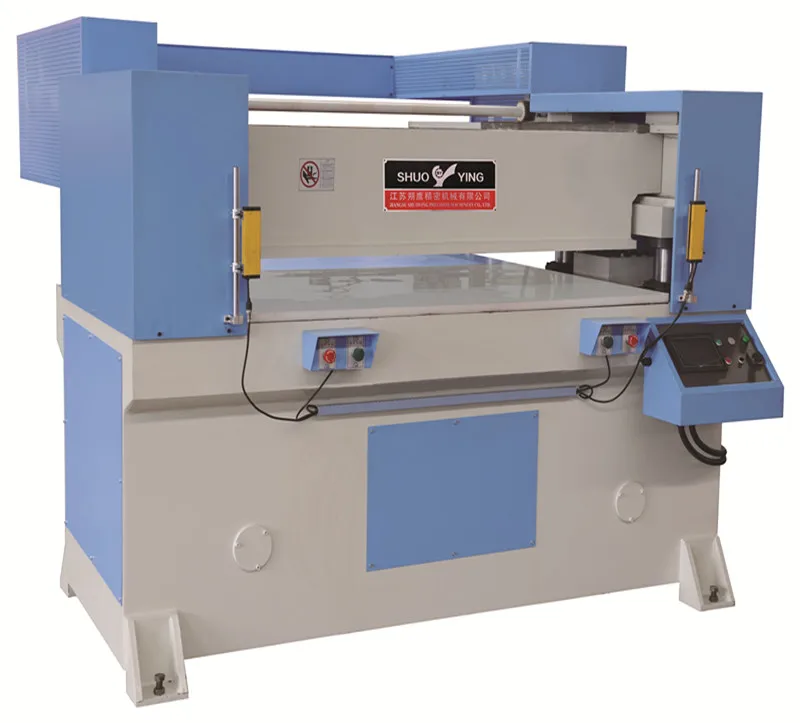

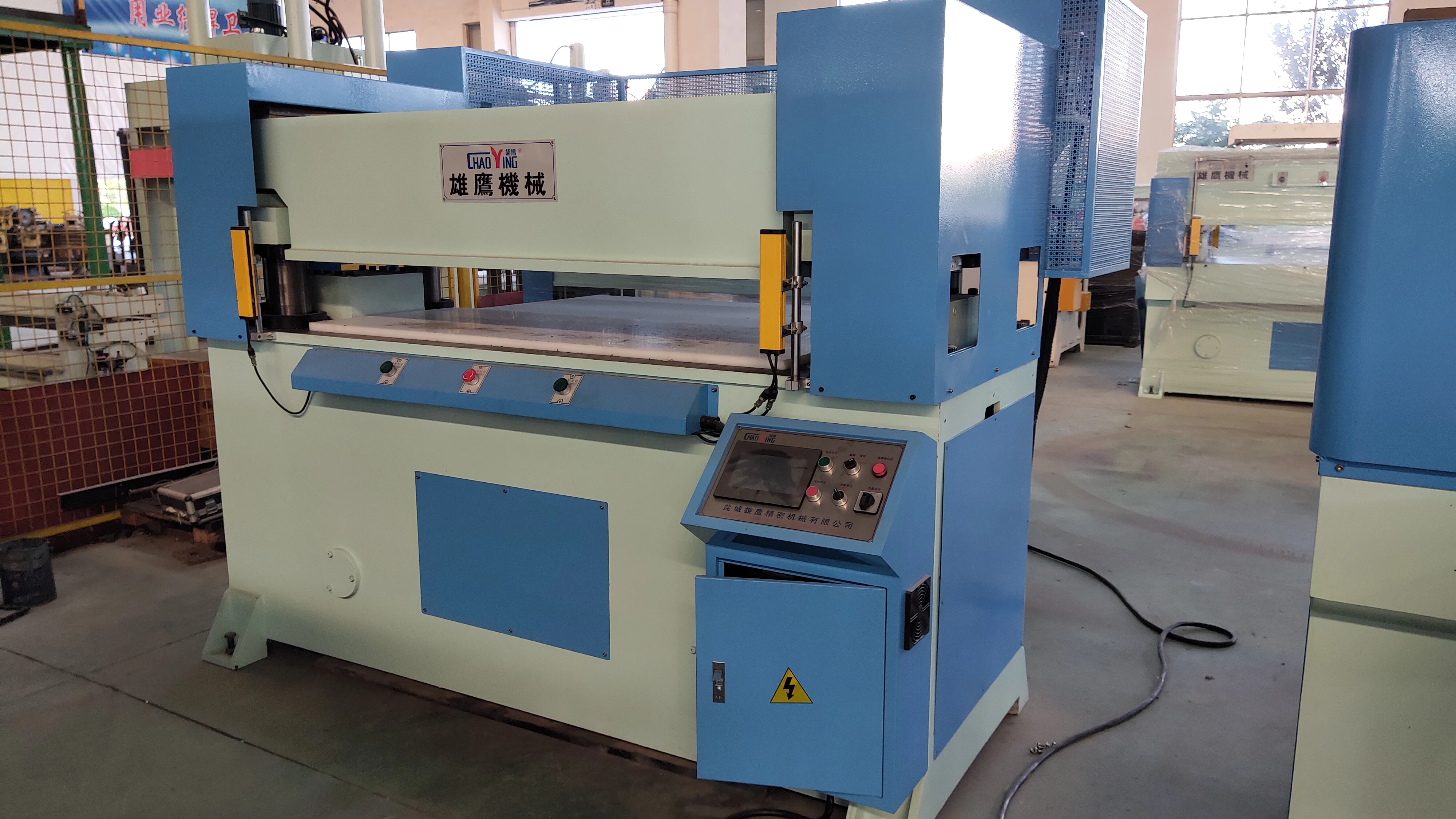

 Leather Upholstery Car Truck Seat Cover Cutting Machine

CE and ISO approved  (automatic receding head) precision four-column hydraulic

plane die cutting press machine

Application:

The machine is widely used for cutting paperboard, textile, leather, rubber,

plastic, floor(carpet) etc.



Features:

1. PLC touch screen program control, using intelligent pressure for cutting

and don't need manually setting height of the cutting die.

2. Upper cuuting board can be automatically moved forward and backward

for best visual field of the operator. From feeding material, placing cutting

die util cutting, all movements( the upper cutting board will move forward,

drop down and cut, rise up and move backward automatically) will be done

without interruption, which can greatly improve the work efficiency and

reduce the labor  intensity.

3. Double oil cylinders and precision four column auto-balancing link

structure, which can guarantee uniform cutting depth of each cutting position.

4. When upper cutting board drops down and touches cutting die, it can

automatically slow cutting to make the cutting material no size error

between the top and bottom layers.

5. Equipped with central oil supply automatic lubricating system, to ensure

working precision and prolong the service life of machine.

6. When cutting, using the safety grating to ensure high safety of operators.



Technical Parameters:



Maximum cutting force	50T
Stroke adjustment range	0—140mm
Range between the working tables	50—190mm
Size of upper cutting board	1600×800mm
Size of lower worktable	1600×820mm
Motor power	5.5kW
Cutting Speed	0.35m/s
Package size	2150×1900×1850mm
Net weight	4000kg
Gross weight	4200kg
Machine color	Blue and gray  or as your optional
Machine logo	SHUOYING  or Customized
OEM&ODM	Welcome

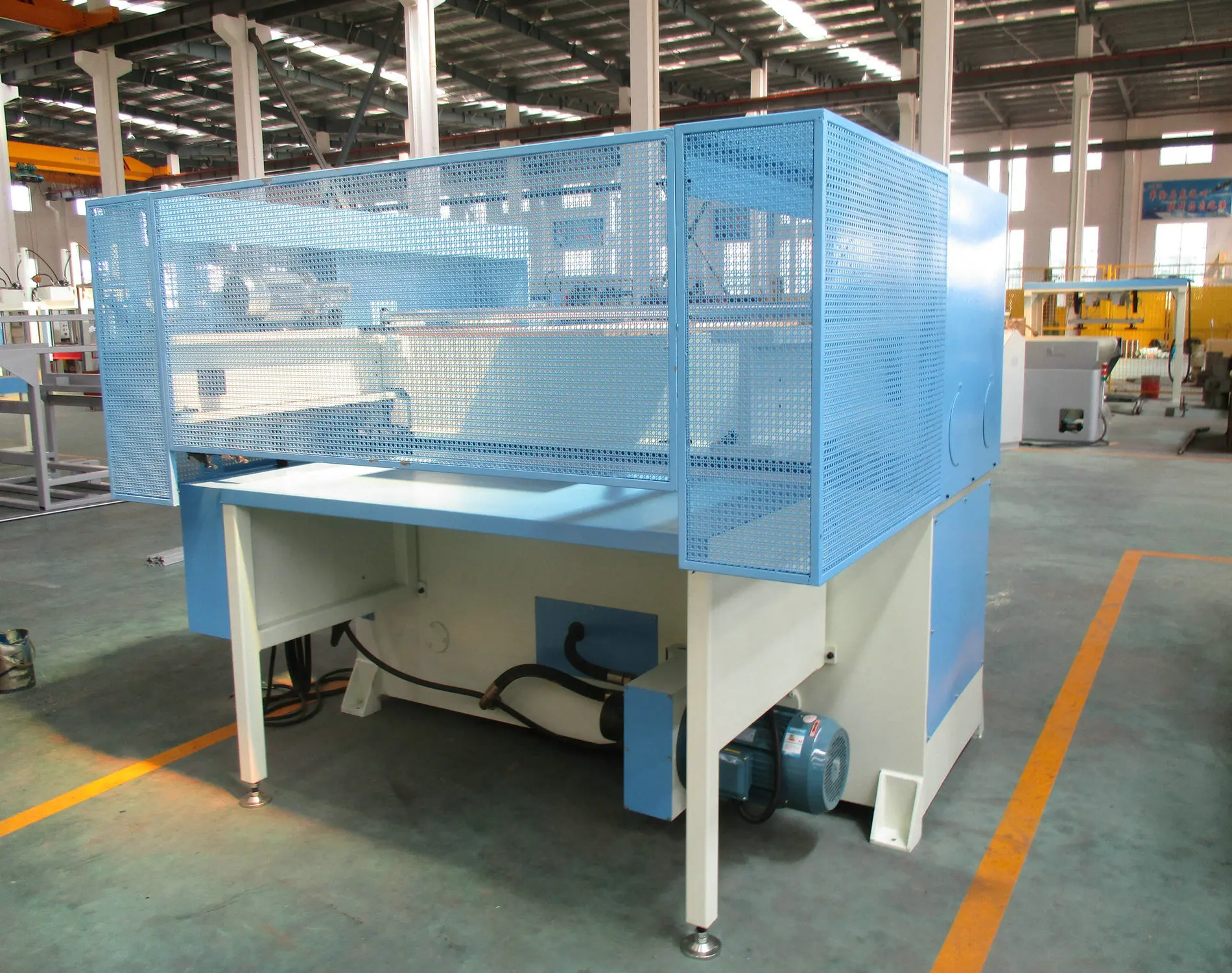

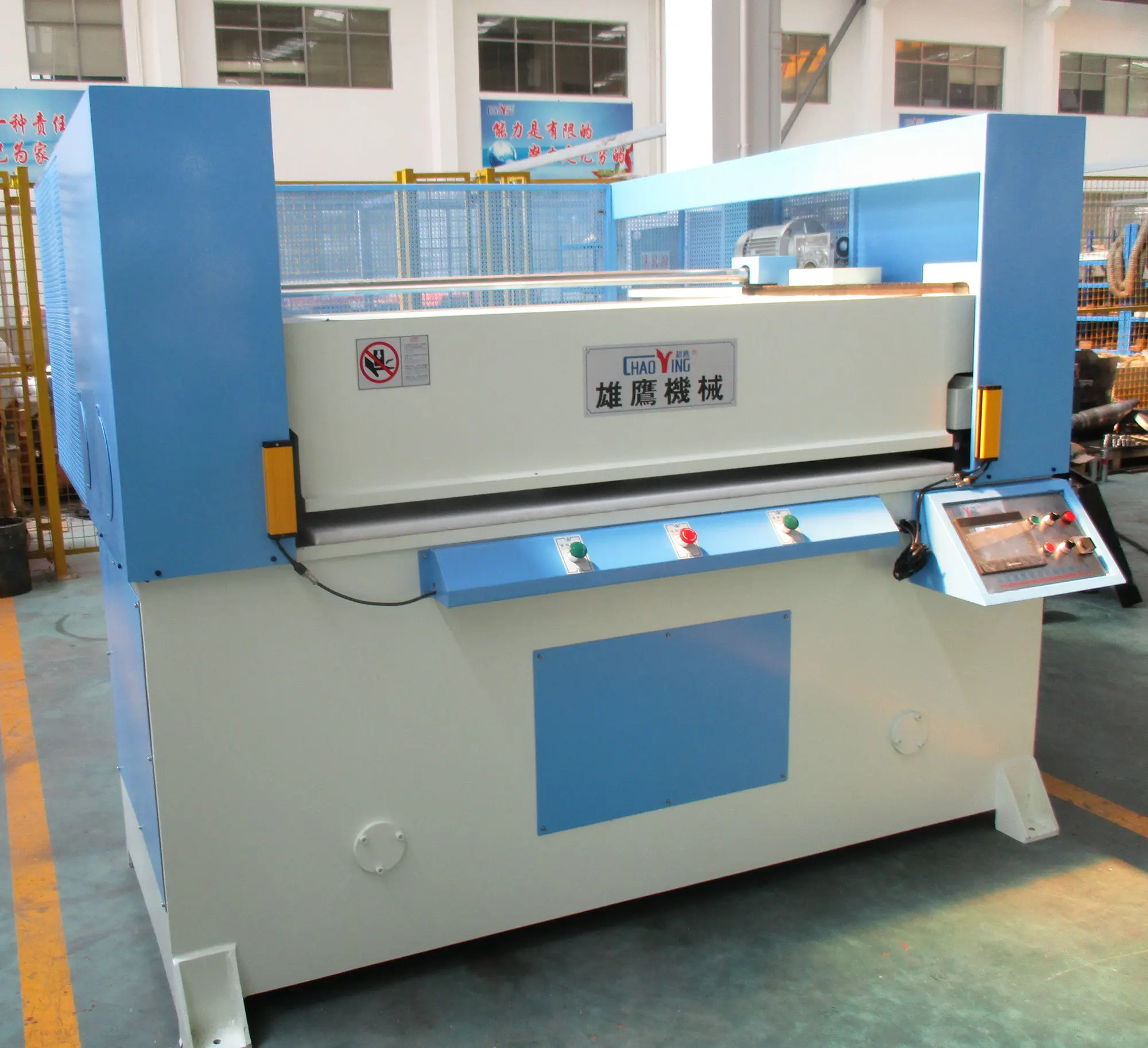

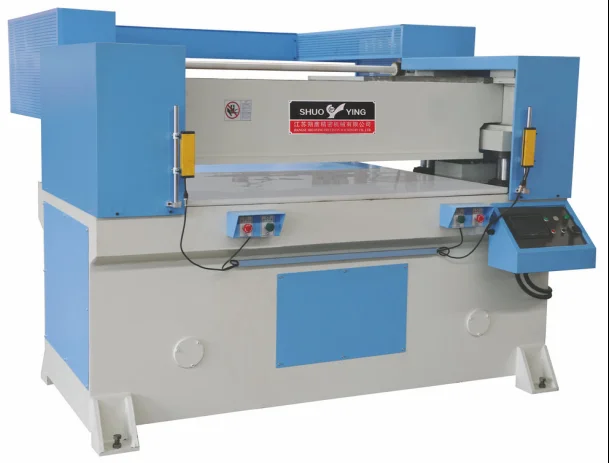

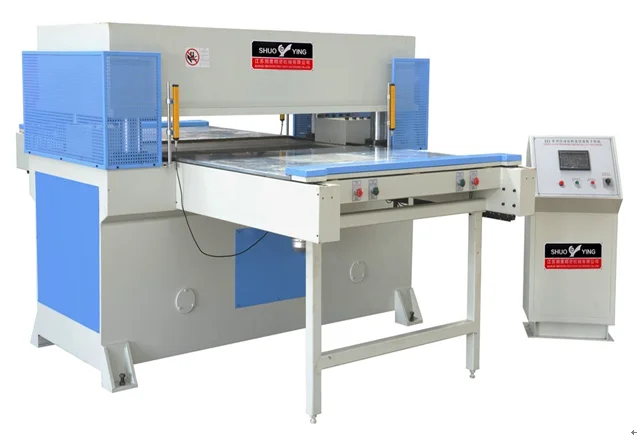

More views of series type machine:



  Note: If request the video link of machine operation, Please contact me .



Company Introduction:



Jiangsu Shuo Ying Precision Machinery manufacture various types of clicker press to

 meet our customers' manufacturing and production requirements.

 The die cutting technology that Shuoying provides its customers has proven to be top of

 the line in the international market. With the swing arm clicker presses leading the way

 in industry popularity, die cutting machinery has evolved into various press systerms

 for even more applications in a myriad of industries.

 The diversity of machinery within die cutting allows for a great range of tonnage, cutting

 stroke, and machine working table sizes for the various types of machinery.





Qualification Certificate and Sales Market:



Jiangsu Shuo Ying Precision Machinery Company own the certificate of ISO9001:

 2008 and CE, also we have export and import license.

 "Shuo Ying" branch series die cutting machine cooperated with the wellknown

 international company of Hongkong, Italy and UK.

 Our products in 60% percent export to more than 30 countries in  the world wide.









Customers visit Factory:

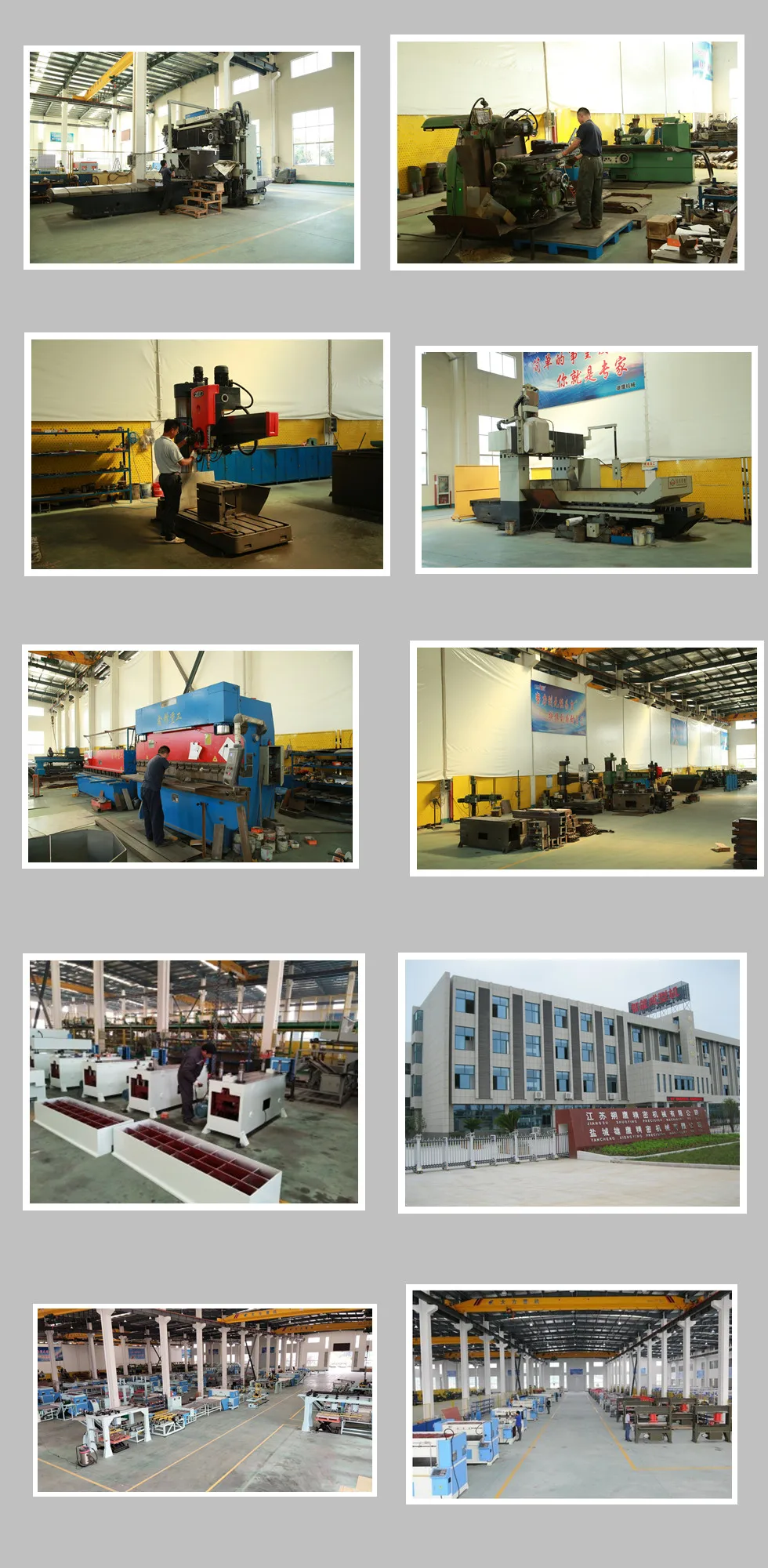

Production Equipment:



Shuo Ying Precision Machinery Company import advance mechanical processing

 and testing equipment, which gurantee the high quality products.

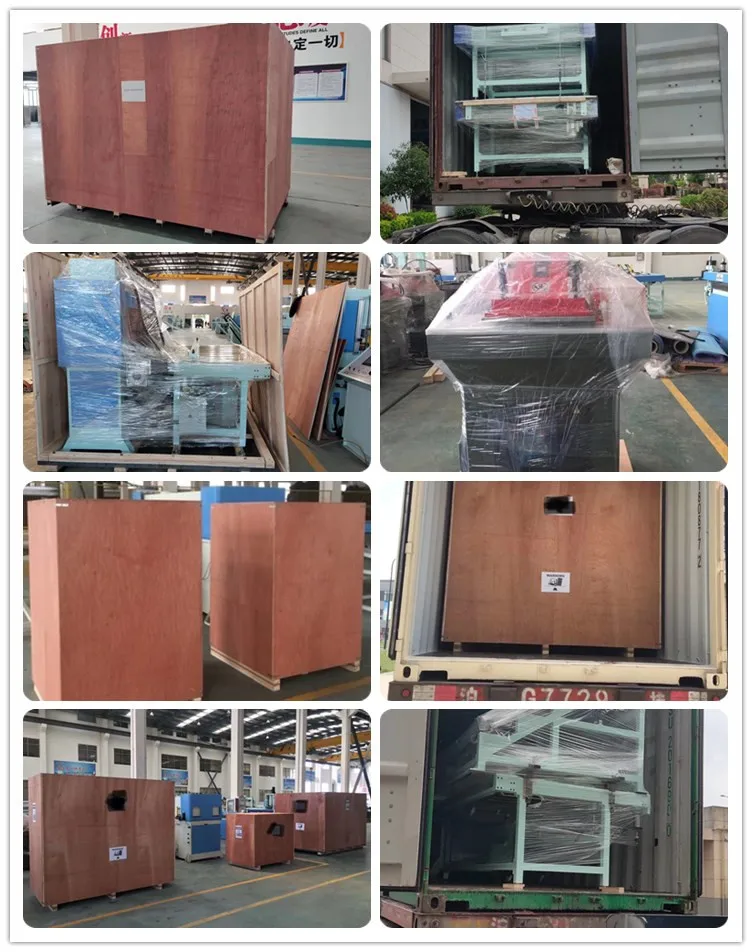

  Package and Delivery:





FAQ :



1, Are you a factory or a trade company ?



we are a factory , welcome to visit  and make business contact.



2, Where is your factory located ? How can I visit your factory ?



Our factory is located in No 9 Chengxiang Road Daguang Town Yancheng city Jangsu



Province China . You can take plane from Guangzhou/Beijing/shanghai city to Yancheng



city (our city ) . It is convenient .



3, Do you attend any Fair ?



Yes , we attend some professional fairs every year :



All china leather exhibition & china international footwear fair   ( in Shanghai china  )



International exhibition on shoes& leather industry   (In Guangzhou china )



4, Can we use our company logo on your machine ?



  Yes , you can use your logo if necessary .



5, How does your factory control the machine quality ?



We have some QC staffs to inspect and test the machine . every machine must be



 tested for 12-16 hour before leaving factory .



6, How long is your guarantee period ?



 One year .



Contact information:



Acquiring our die cutting press  is a matter of trust!

 For more detailed information about our company and products, please contact us.
