Humidity And Temperature Sensor Probe
US $35.00-$48.00
AOYI Factory sell C type thermocouple WZCT 03 with Over 28 Years Professional Factory Original Made
- Category: Temperature Instruments >>>
- Supplier: Shanghai Aoyi Electric Co. Ltd.
Share on (60438014560):
Product Overview
Description
Product Description
C Type Thermocouple Features
1.Flexible extension wire can bend freely
2.Pt100,Cu50 is more reliable and higher accuracy than K,E
3.Short thermal response time,small size,stainless steel probe,simple structure,low cost, convinient using, etc.
4.Can measure temperature directly with temperature indicator in the occasion not fitted with protecting tubes.
5.Be used to measure temperature in the plastic,food,light and textile and the other industries.

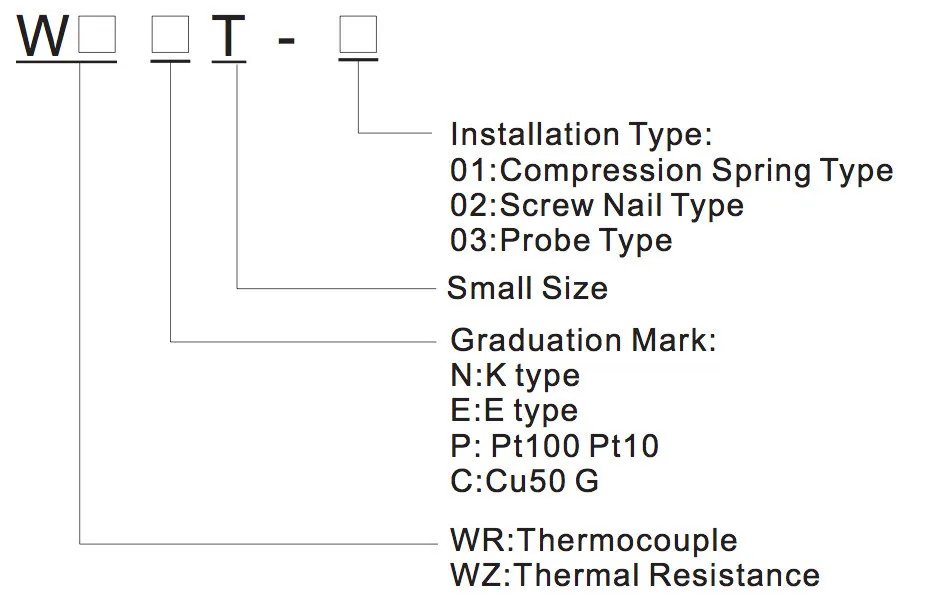

C Type Thermocouple Model Description
C Type Thermocouple Main Technical Parameters
Thermocouple Type | Measuring Range °C | Precision Class | Allowable Error t°C |
K | 0-600 | B | 2.5°C or 0.75%t |
E | 0-600 | B | 2.5°C or 0.75%t |
PT100 | -200-420 | B | (0.3+0.005ltl) |
Cu50 | -50-100 | B | (0.3+0.005ltl) |
Remark:
1.t is tested temperature value 2.Test conditions are as following:
a.armoured thermal resistance value in normal temperature b.15-35°C environment temperature and less than 80% humidity c.10-100V(DC) test voltage
d.>100MΩinsulating resistance between pole and outer tube

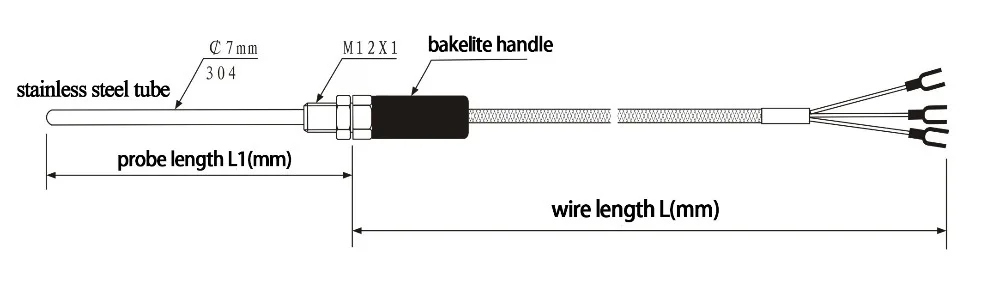

C Type Thermocouple Structure Diagram
product recommendati
Company Information
Certifications
Packaging & Shipping
Warning
1.Please confirm whether the auxiliary power,input signal and connection are correct before energizing.
2.The instrument should be preheated for 15 minutes before accurate measurement.
3.The instrument shall not be knocked,collided and vibrated violently,and the operating environment shall meet the technical requirements.
Packaging and Storage
The instruments and accessories shall be stored in a dry and ventilated place under packing conditions to avoid exposure to moisture and corrosive gasses.The storage temperature shall not exceed +70℃,no less than -40℃,and the humidity shall bexiao 85%.
FAQ
1. Q: Can you provide OEM service?
A: Yes, we can.
2. Q: What's the MOQ?
A: For testing purpose, 1pc is ok.
3. Q: Can you provide trade assurance service?
A: Yes, we are member of the Alibaba trade assurance scheme.
4. Q: What's the lead time?
A: General lead time is 15 days after payment.
5. Q: What's your waranty?
A: We provide 12 months warranty against manufacturing defective.
