007 портативный измеритель твердости LEEB модель PDHT 1

Product Overview

Description

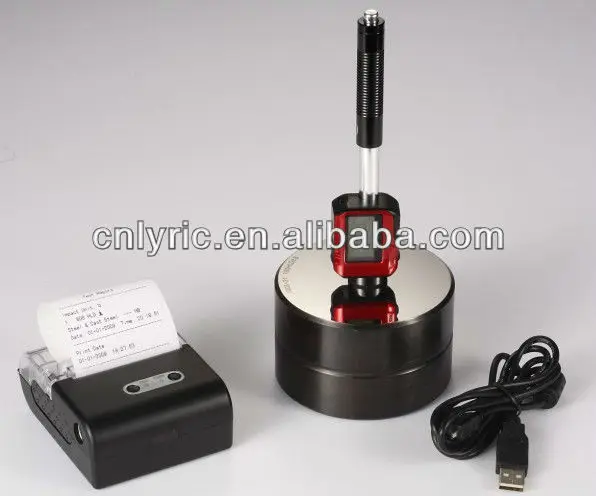

Model PDHT-1 Portable Hardness Tester LEEB



Application: For the majority of your hardness testing assignments.



 Main FEATURES:

nSelf contained (Impact Device D integrated): no cables.

nIntegrated impact direction sensor.

nHighly accurate (±4HL) in any impact direction (360°) – automatically.

nIntegrated display of results for all common hardness scales.

nLarge, high contrast LCD for optimum viewing in all conditions.

nEasy calibration.

nFull USB communication with PC, software included free of charge.

nInternal storage of data with day and time.

nBattery: Rechargeable Li ion, charges through USB port.

nIntelligent sleep mode.

nStandards and Guidelines applied: DIN 50156 (2007), DGZfP Guideline MC 1 (2008), VDI / VDE Guideline 2616 Paper 1 (2002), ISO 18625 (2003), ASTM A956 (2006), GB/T 17394 (1998), JB/T 9378 (2001), JJG 747 (1999), CNAL T0299 (2008), JIS B7731 (2000).

nPrinter: Wireless (Bluetooth) mini printer.

nOperating environment: Temperature: -10~+60°C; Humidity: 20%~85%.

nStorage environment: Temperature: -30~+80°C; Humidity: 5%~95%.

nDimensions: 147 x 35 x 22 mm.

nWeight: 100 g.



Measuring range / materials

Material	HLD	HRB	HRC	HB	HV	HSD
Steel and cast steel	300-900	38-100	20-68	81-654	81-955	32-100
Cold work tool steel	300-840	-	20-67	-	80-898	-
Stainless steel	300-800	46-101	-	85-655	85-802	-
Grey cast iron	360-650	-	-	93-334	-	-
Nodular cast iron	400-660	-	-	131-387	-	-
Cast aluminum alloys	170-570	23-84	-	19-164	-	-
Brass	200-550	13-95	-	40-173	-	-
Bronze	300-700	-	-	60-290	-	-
Copper	200-690	-	-	45-315	-	-
