40B Universal herb food tree brance leaves pulverizer

Product Overview

Description

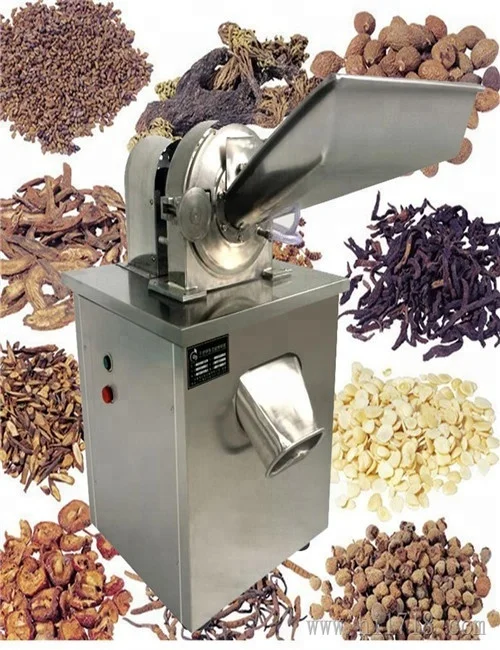

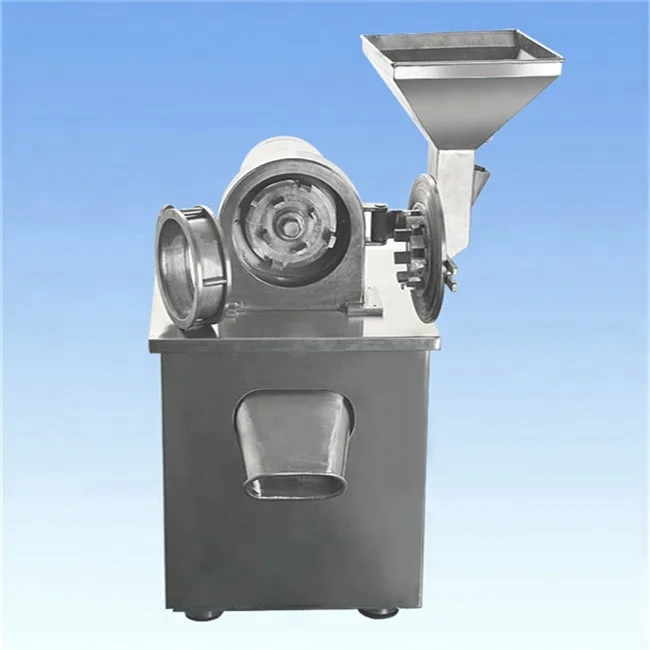

40B Universal herb food tree brance leaves pulverizer

Main Application:

Model B Universal Crushing Set is used in the industries of pharmaceutics,chemical,food and etc.

Operating Principle:

By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth and impact among the material.The machine is designed according to GMP standard and made of stainless steel.The advantage of it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.

Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model	Production Capacity(kg/h)	Spindle speed(r/min)	Feeding size(mm)	Crushing fineness(mesh)	Motor Power(KW)
15B	10-50	6000	6	60-120	2.2
20B	60-150	4500	6	40-120	4
30B	100-300	3800	6	40-120	5.5
40B	160-800	3400	10	40-120	7.5
60B	300-1000	2800	12	40-120	15
80B	400-2000	2000	12	40-120	22
100B	500-3000	1500	12	40-120	30
Overall dimension(mm)	Weight	Crushing fineness(mesh)	Motor Power(KW)	Overall dimension(mm)	Weight
550×400×850	85	60-120	2.2	550×400×850	85
550×600×1250	180	40-120	4	550×600×1250	180
600×700×1450	250	40-120	5.5	600×700×1450	250
800×900×1550	360	40-120	7.5	800×900×1550	360
900×900×1880	550	40-120	15	900×900×1880	550
1100×950×1960	850	40-120	22	1100×950×1960	850
1350×1000×2100	1200	40-120	30	1350×1000×2100	1200
