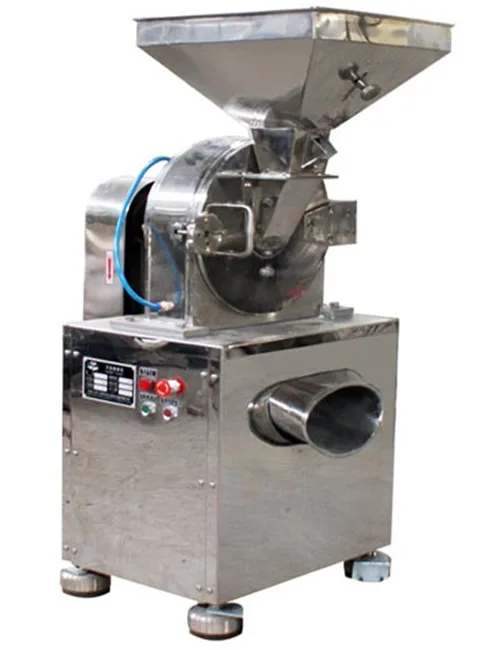

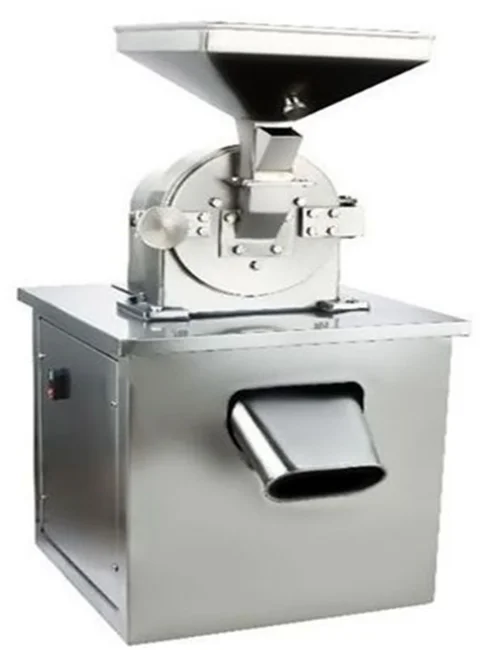

Model WF fine herb pulverizer

Product Overview

Description

Model WF Rough arabig gum mill

Main Application:

Model WF Rough Mill is a preprocess set to support the fine grinding process and used in the industries of pharmaceutics,chemicals,and food.

Operating Principle:

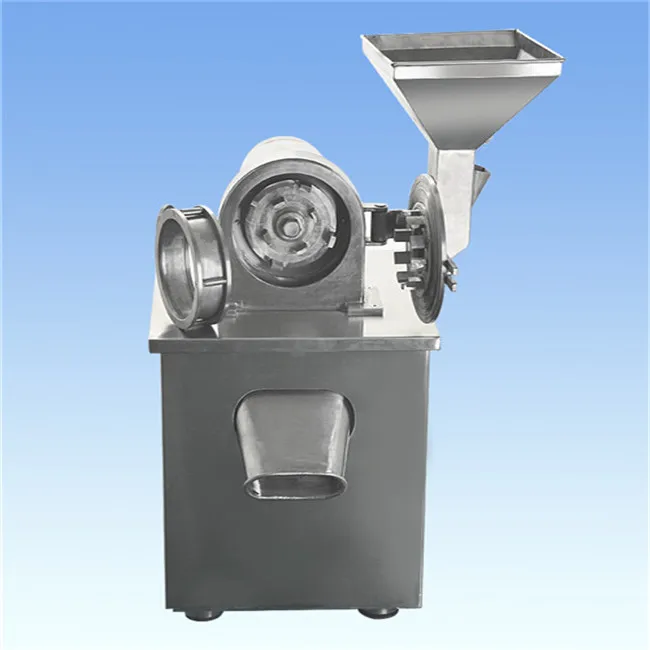

This model has a horizontal crushing structure.Raw material is sent into the crushing chamber through a hopper and then stroked by the knife blade and the tool apron.The revolving and fixed knifes cut and grind material.Processed stuff runs to the exit automatically because of the rotary centrifugal force.The machine is designed according to GMP standard and made of stainless steel.The advantages of it are simple structure,convenient cleaning and low noise.Currently it is the most ideal one among coarse crushing machines.

Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.



Model	Capacity(kg/h)	spindle speed(r/min)	Feeding size(mm)
WF-100	50-300	500	less than 100
WF-120	100-500	500	less than 100
Crushing fineness(mm)	Power(KW)	Overall size(mm)	Weight(kg)
2-20	4	700×800×1250	220
2-20	5.5	800×650×1350	280
