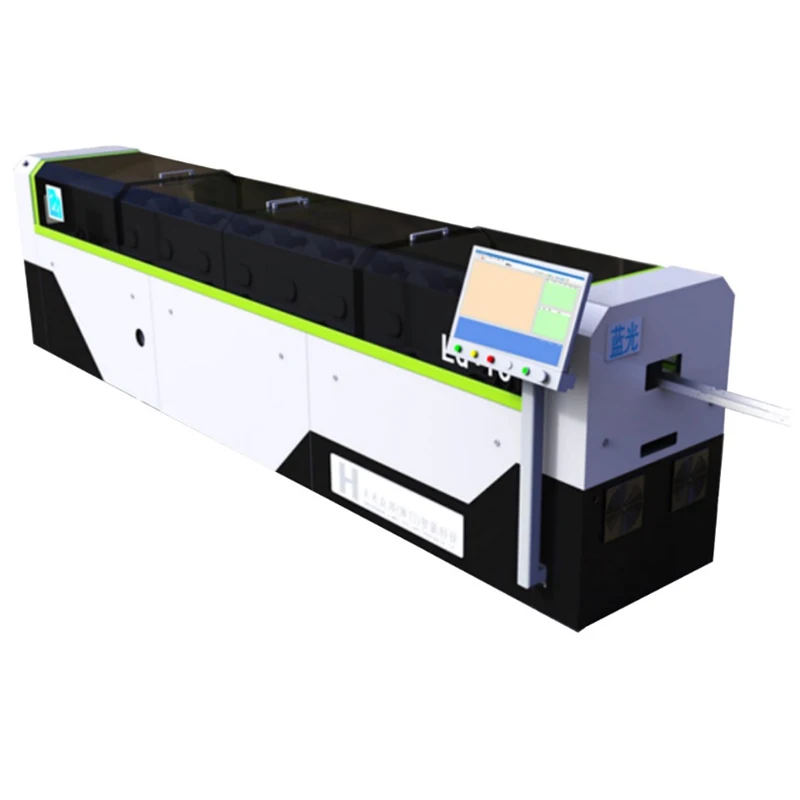

Light Gauge Steel Frame Roll Forming Machine Steel Forming Machine

Light Gauge Steel Machine LG-160

Help you create a light steel system which is not only suitable for Chinese market but also suitable for international market.

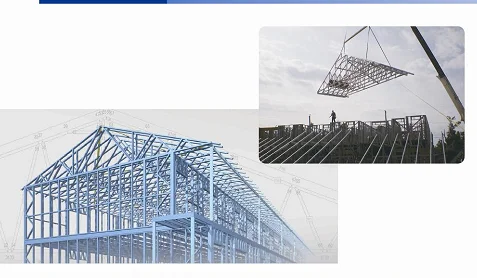

Europe, America, Japan, Korea Villa:

Light steel + softness heat preservation + interior & exterior decoration = blended light steel villa

China Villa:

Light steel + blended heat preservation + interior & exterior decoration = blended light steel villa

China Villa are used steel-concrete instead of concrete, the main market of light steel villa are base on big thickness and strongness of wall.

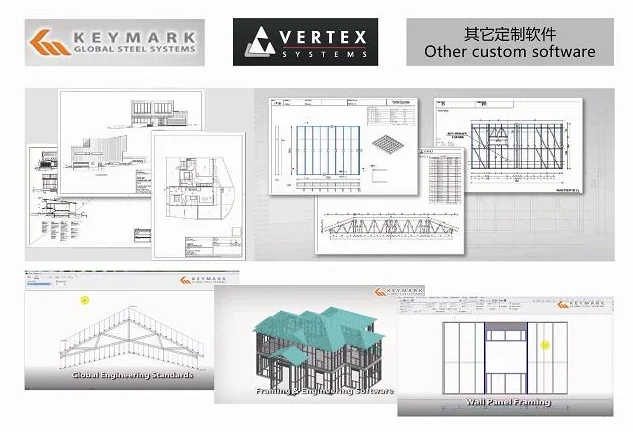

Different Software Optional

You can choose different software, which reduces your investment risk

LG - 160single specification production
1-6 layers of residential building

 Material : Galvanized coil, Aluminum-zinc coil

 Thickness:0.55-1.5mm

 Width:50-160mm

 Flange: 41mm

 Lip:8-11mm

The flow chart is showing below.

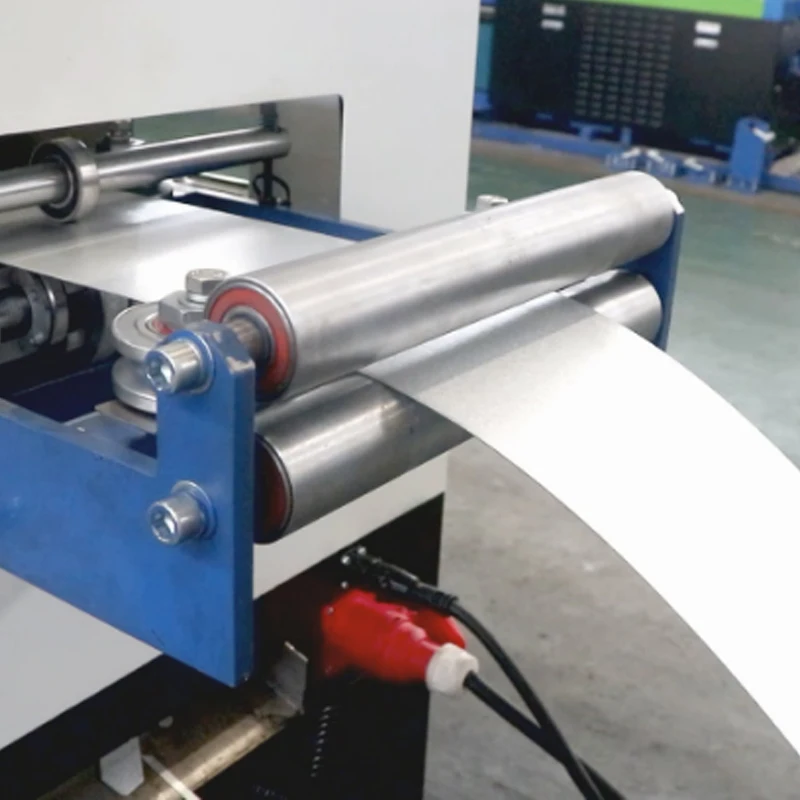

Manual De-coiler→ Leveling Device→ Punching & Cutting Device→ Roll Forming System→ Product Support
