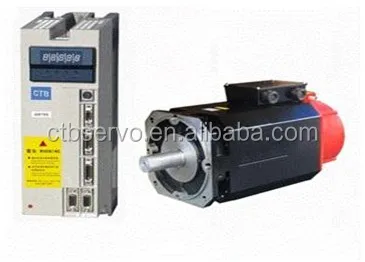

AC EtherCAT bus servo GS series spindle drive

GS series AC servo driver realized full closed loop servo control of spindle motor with integration of speed control, position control and torque control, as main power drive system of machine tools,  GS can achieve high precision processing of milling, turning, grinding etc, especially reflects its better performance with comparison of frequency inverter in heavy scrape.

Suitable for various NC machine tool

Can perfectly realize

NC milling machine   NC lathe

Working center       NC boring machine

Gantry machine       NC vertical lathe

NC grinding machine   Turn-milling combined NC machine tool

Special processing with full frequency domain

Precise processing more than 6000 rpm

Heavy cutting processing with low speed and big torque

Reading below 40 rpm

Thread machiningwith low speed

C axis function

Drilling and tapping processing with high speed

Independent accurate stop control

GS series owns function of independent accurate stop control, which can fulfill stop control, whatever type of tools changer, such as, Turntable Style, CAM type, Chain type, she can adapt them smoothly.

Accurate stop of spindle motor encoder

Accurate stop of spindle external encoder

Accurate stop of Zero switch

Accurate stop of external zero pulse

Accurate stop of second position

Suitable motor

AC servo spindle motor, Variable frequency motor, three-phase asynchronous motor etc.

Rigid tapping

GS series driver can connect with various NC interfaces with perfect performance; achieve rigid tapping, make NC drilling, NC milling, and NC boring, and working center to achieve their full play.

Max speed for rigid tapping can reach 6000rpm

Tapping error≤5%

Can receive analog instruction, pulse instructions or bus connection

can complete interpolation function with Z axis to realize rigid tapping independently

Application area:

CTB product mainly used in Machine tools,Hydraulic servo industry, oil field industry, woodworking industry, Construction industry, Industrial robot, new-energy bus

 Standard models or OEM production, overseas maintenance service available.

Company profile

• Beijing CTB servo Co., Ltd founded in 2000, which is the national high-tech company of Beijing Zhong Guan Cun science park. CTB has been successfully listed in “New OTC Market” since Dec, 12th 2014, Stock code: 831544, stock abbreviation: BK servo.

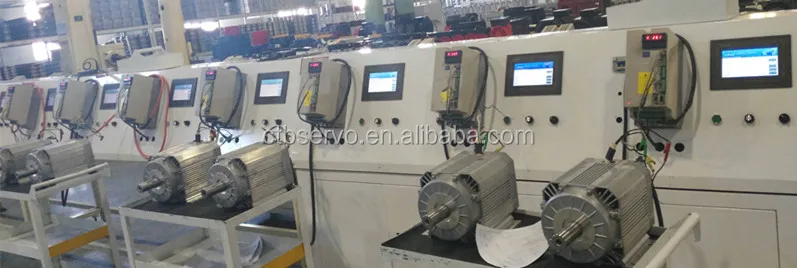

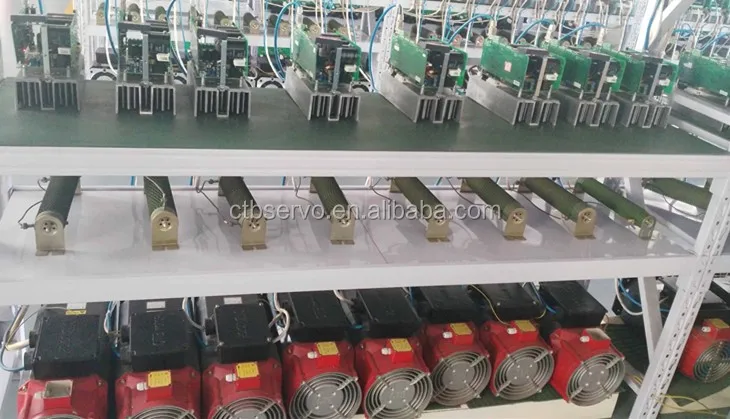

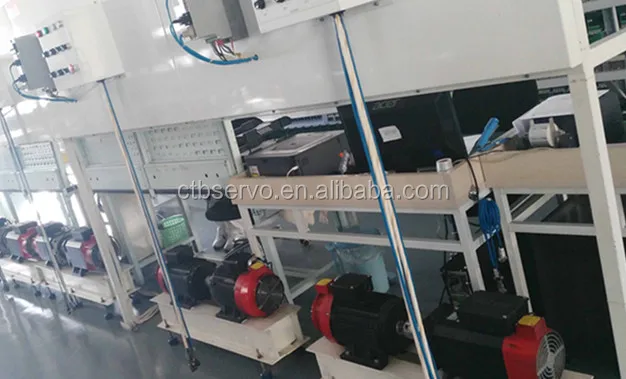

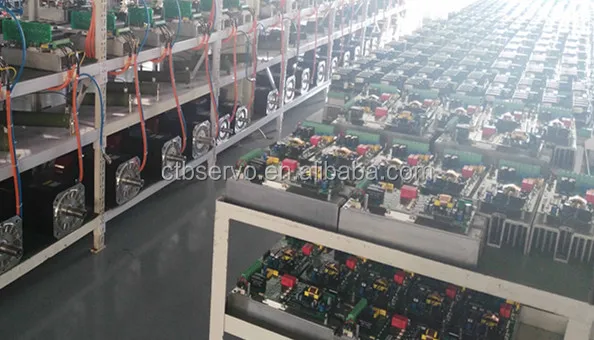

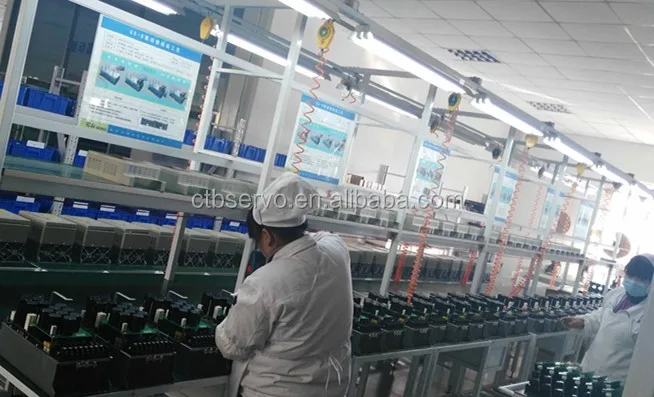

• CTB is unique large-scale production-oriented enterprises with combination of servo motor and drive, equipped with first domestic smart motor parts processing production line, which is designed by SMTCL, adopt domestic intelligence I5 CNC system, basically can reach 4.0 industrial standards, annual production capacity of 100000 sets.
• CTB products cover whole series of motorized spindle, ac servo motor, spindle motor, frequency conversion motor, built-in motorized spindle, dedicated servo motor for press, injection molding machine, pumping unit as well as various drives. All CTB production with our independent intellectual property right
